【Buck Module parameters】Input voltage: 4.75V-23V;Output voltage: 1.0V-17V;Current output: peak 3A, 1.8A long time;Switching Frequency: 340KHz;Output ripple: 30mV (no-load);Load regulation: ±0.5%;Voltage regulation: ±2.5%
【High Conversion Efficiency】These mini 360 step-down converter is designed with the high frequency switching technology as the core chip, conversion efficiency up to 96 percent, smaller size, higher efficiency, bring you nice using experience

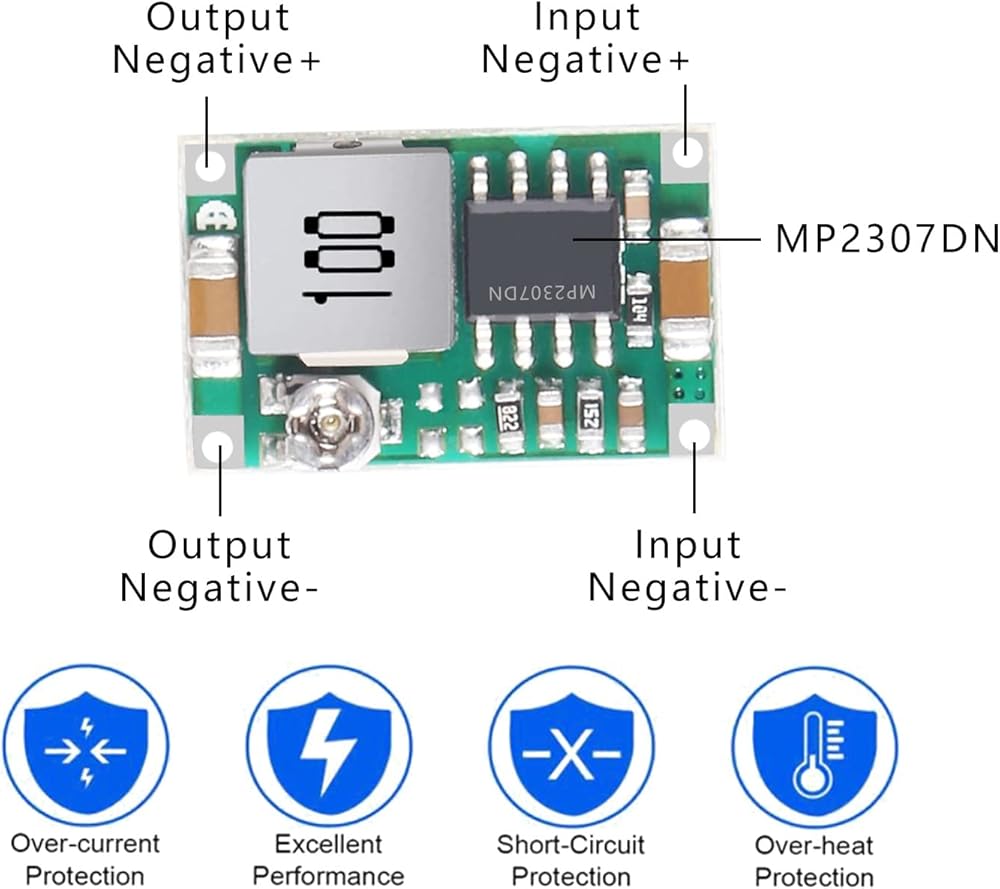

【Protection function】Feature with over-current protection, over-heat protection and short-circuit protection
【Wide Application】The mini 360 buck module is suitable for LED lights, micro-controllers, battery chargers, DIY portable sourse, vehicle power supply, communication equipment power supply, aero model and most low power devices
【Package & After-sale Service】You will receive 12 pieces of mini 360 step down converter modules,sufficient quantity is suitable for you to use or give your friends.If you have any questions about the buck module, please feel free to contact us,we will provide you with a satisfactory solution

وصف

Specification:
1.Type: Non-Isolated step-down module
2. Rectification Mode: Synchronous Rectification
3. Input Voltage: 4.75V-23V
4. Output Voltage: 1.0V-17V
5. Output Current: Peak value 3A, 1.8A for long time work
6. Transfer Efficiency: 96% (max)
7. Switching Frequency: 340KHz
8. Output Ripple: 30mV (no-load)
9. Load Regulation: +/-0.5%
10. Voltage Regulation: +/-2.5%
11. Working Temperature: -40 degree to +85 degree

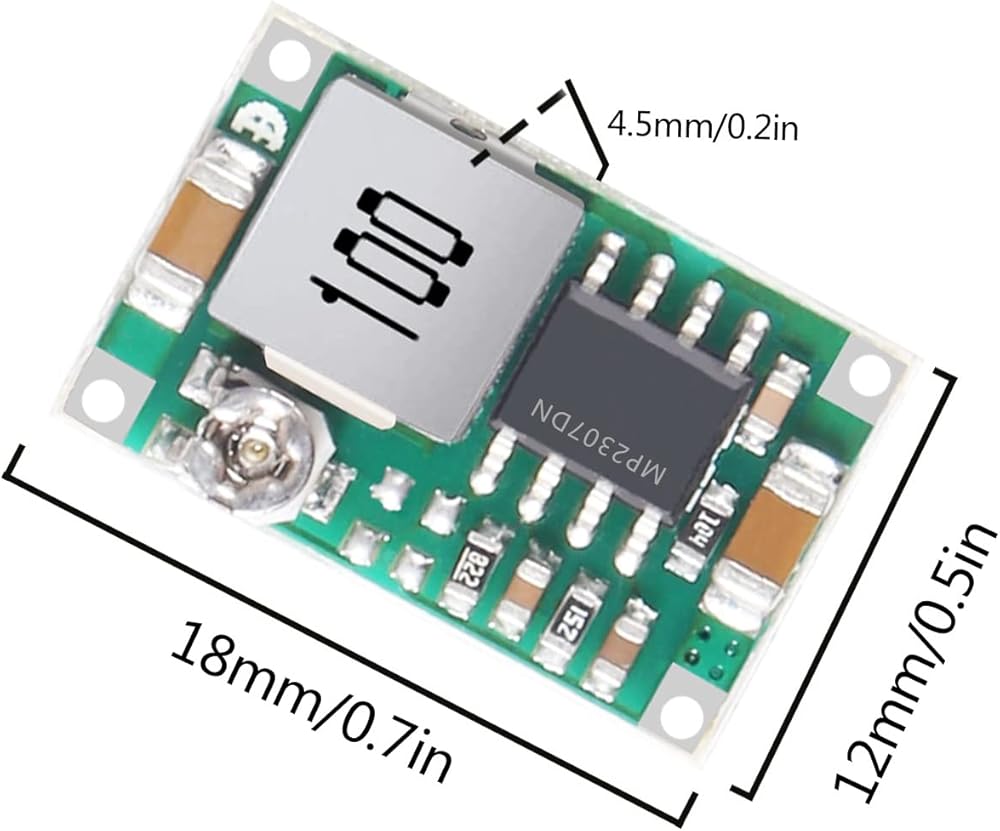

12. Size: approx.18x12x4 mm(LxWxH)

Package Included:

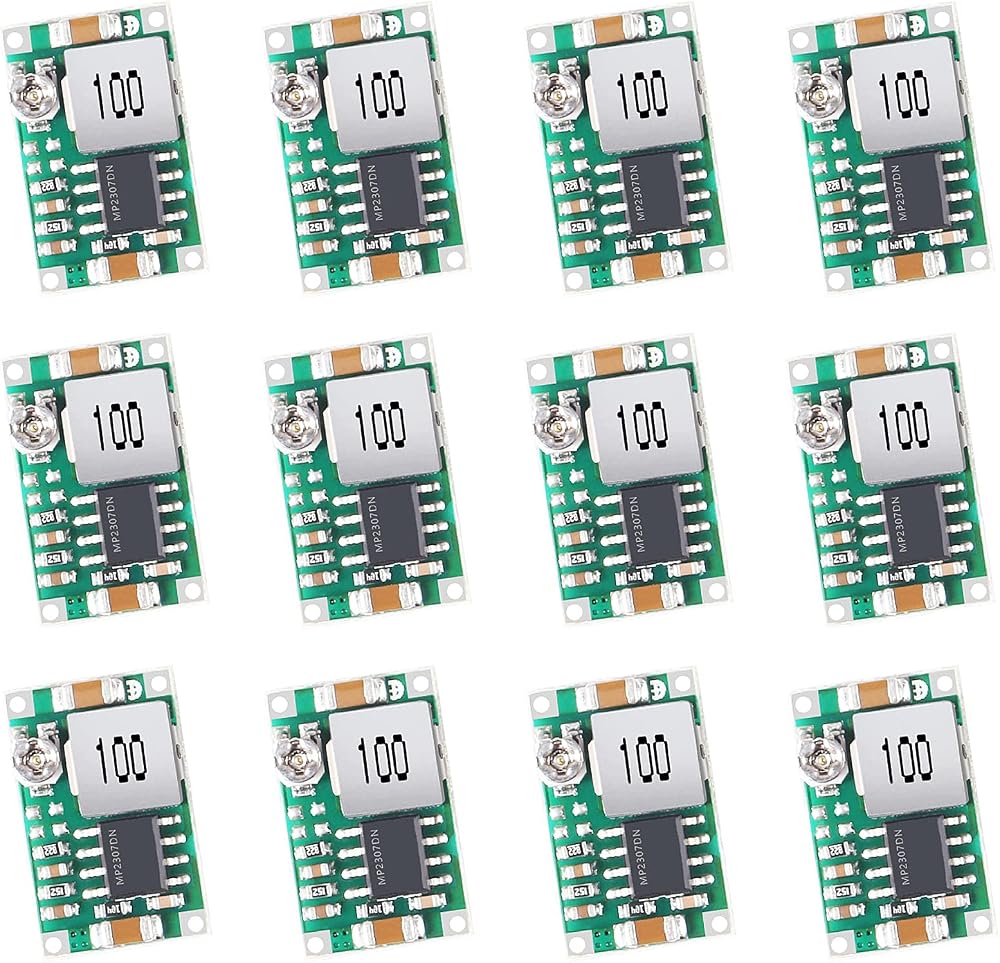

12 x Mini 360 3A DC step-down buck converter module
