مميزات خاصة

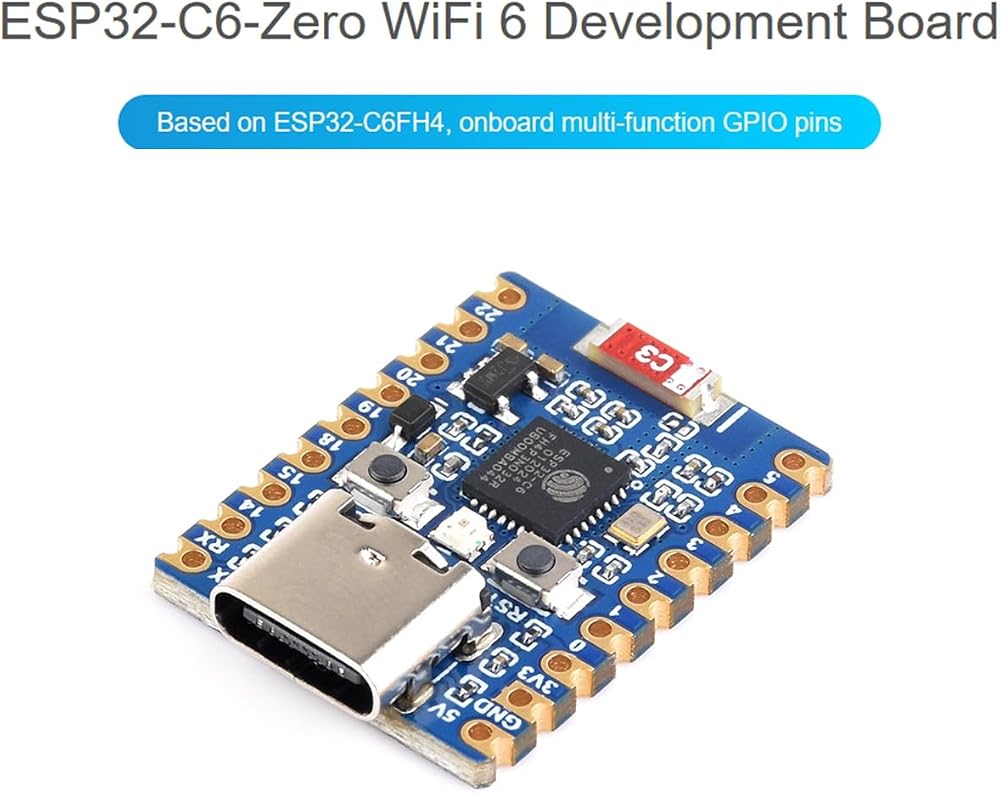

ESP32-C6-Zero WiFi 6 Development Board with Pre-Soldered Header, Based on ESP32-C6FH4, Dual Processors. Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory. Onboard USB Type-C port, 22 x GPIO pins allows flexibly configuring pin functions.
W-I--F-I 6 and BLE 5 support-- ESP32-C6 integrates 2.4 G H z W--i--F-i 6 (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Blue--too-th Low Energy subsystem supports Blue--too-th 5 (LE) and Blue--too-th Mesh
ESP32-C6 suitable for AIoT applications-- Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features
Supports ESP-IDF, Arduino--- Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

وصف

Overview

The ESP32-C6-Zero with Pre-Soldered Header is a low-cost, high-performance microcontroller development board with a compact size and rich peripheral interfaces. Adopts ESP32-C6-MINI-1 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz, and built-in 320KB ROM 512KB HP SRAM, 16KB LP SRAM, and 4 MB flash. Onboard standard Raspberry Pi Pico pin headers, it can be compatible with multiple peripheral devices and is easier to use in different application scenarios.
You can choose ESP-IDF and Arduino in software so that you can easily and quickly get started and apply it to the product.

Features

Adopts ESP32-C6-MINI-1 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz.
Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.
Integrated 2.4 G H z W--i--F-i 6 (802.11 ax/b/g/n) and BLE dual-mode wire-less communication, with superior RF performance.
Type-C connector, easier to use.
Rich peripheral interfaces, including standard Raspberry Pi Pico interfaces, better compatibility and expandability.
Castellated module allows soldering directly to carrier boards.
Support multiple low-power modes, easy to adjust communication distance, data rate, and power consumption, to meet various application scenarios with power consumption requirements.
Please use the provided " WS_TCA9554PWR " file to set GPIO22（SDA）and GPIO23（SCL）as I2C functions for GPIO extension to make the device function complete.
Please note that GPIO22 (SDA) and GPIO23（SCL） are used for TCA9554PWR, and you only can connect these pins to I2C slave device, and do not connect to others.

Package Content
ESP32-C6-Zero with Pre-Soldered Headerx1
