Package include:

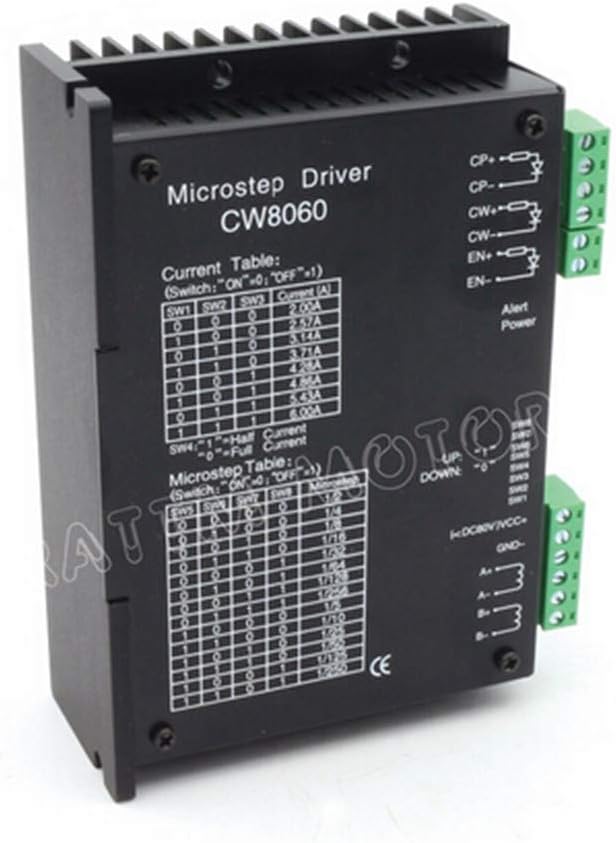

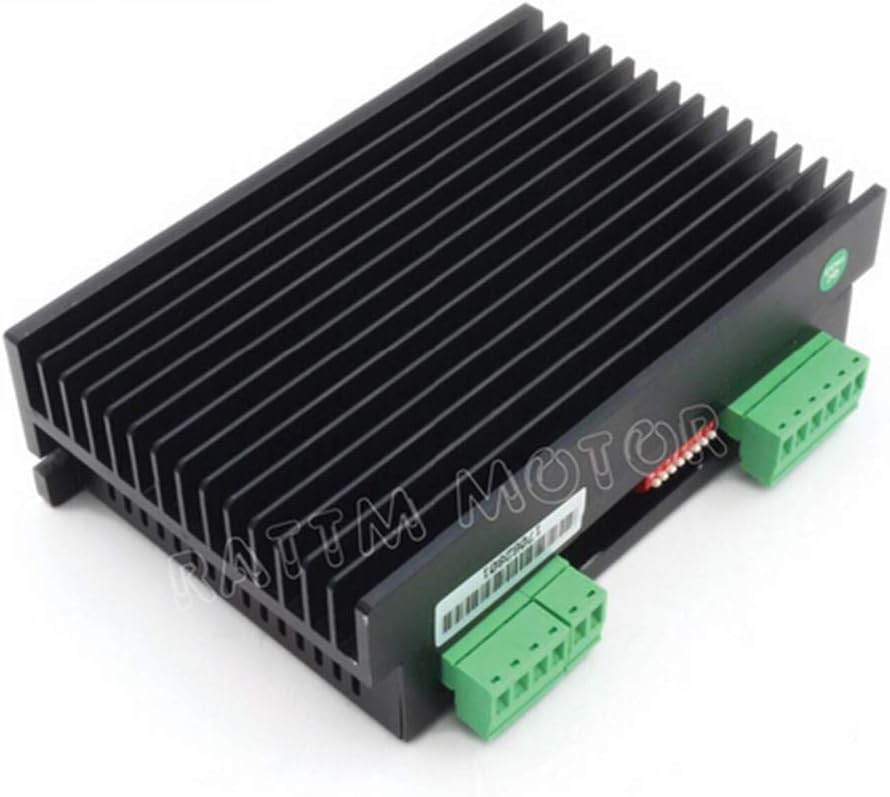

1 x CW8060 Stepper Motor Driver
use manual will by mailbox.CW8060 driver Characteristics:
1. DC power input type: 24V~80V;
2. Output current: 2~6A;

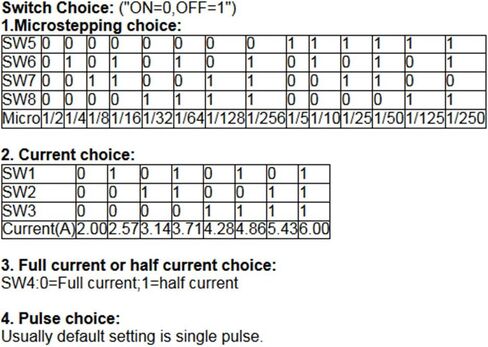

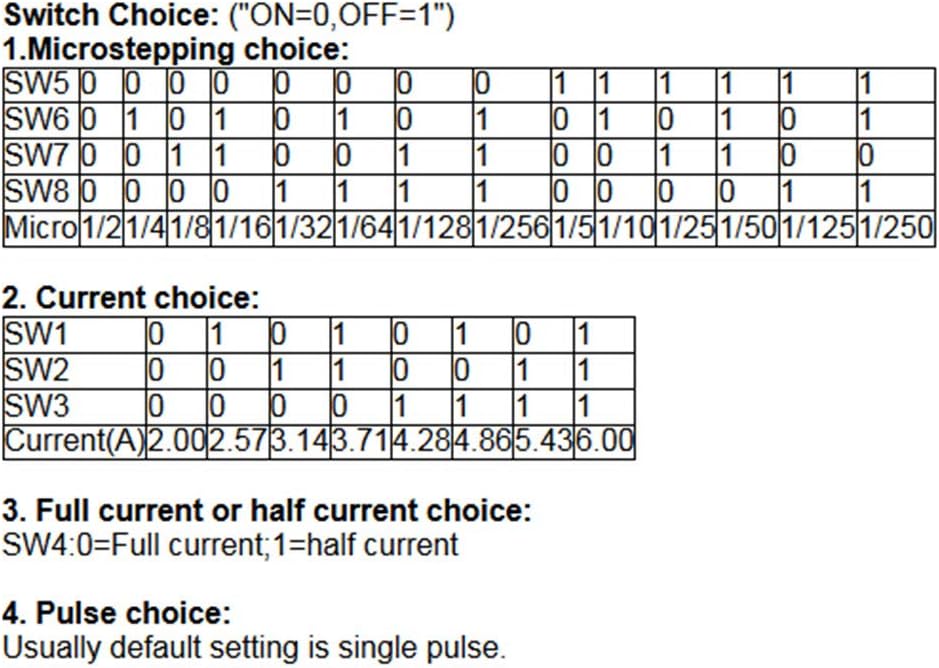

3. Mircostepping: 1(1.8deg),1/2,1/4,1/8,1/16,1/32,1/64,1/128,1/256; 1/5,1/10,1/25,1/50,1/125,1/250;
4. Protect form: Overheated protect, lock automatic half current, error connect protect;
5. The maximum pulse rate is 100KHZ;

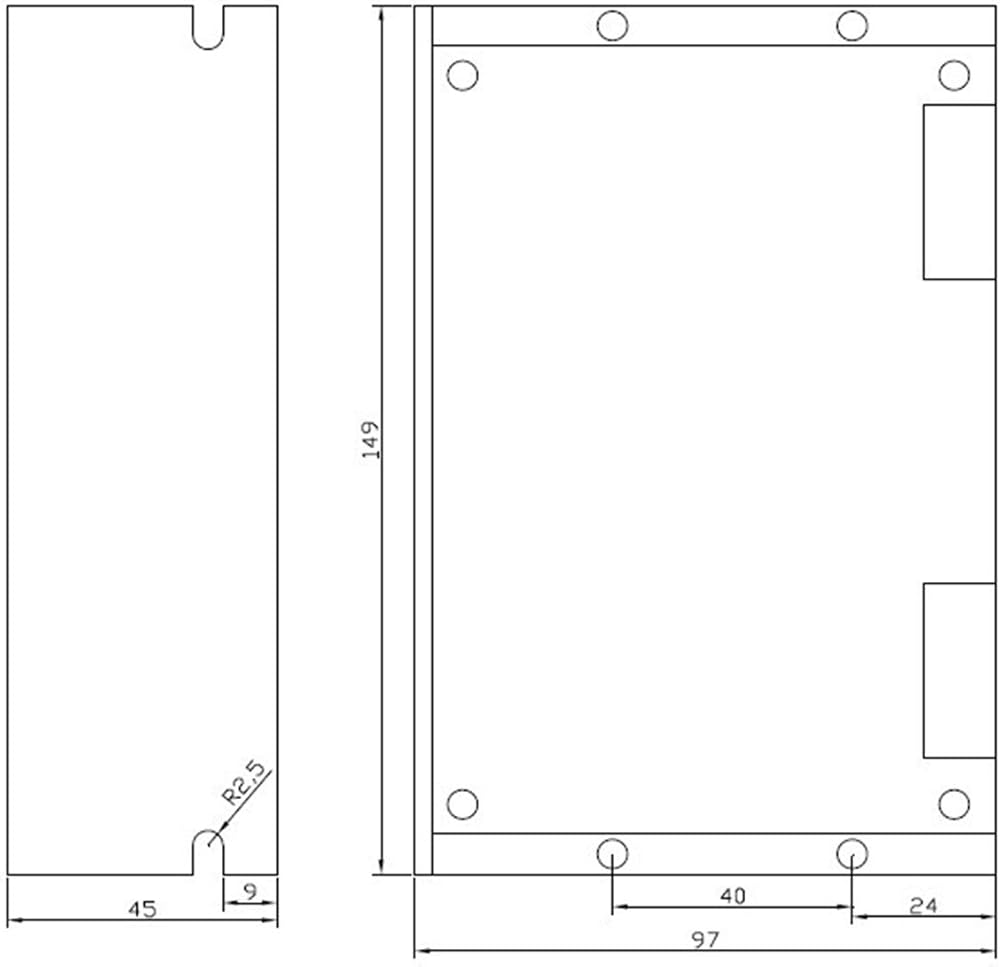

6. Dimensions: 147mmx97mmx30mm;
7. Weight:
8. Working environment: Temperature-15~40deg Humidity
9. It is fit for NEMA17-34 two and four phase stepper motors whose current is small than 6A.
I/O Ports:
1. VCC+: DC power positive pole;
Note: Must guard against exceeding 80V,so as not to damage the module.

2. GND: DC power cathode;
3. A+, A-: Stepping motor one winding;
4. B+, B-: Stepping motor other winding;
5. CP+, CP-: Stepping pulse input+5V (Rising edge effective, rising edge duration >10uS);
6. CW+, CW-: Stepping motor direction input, voltage level touched off,high towards, low reverse;
7.REST+, REST-: motor free.

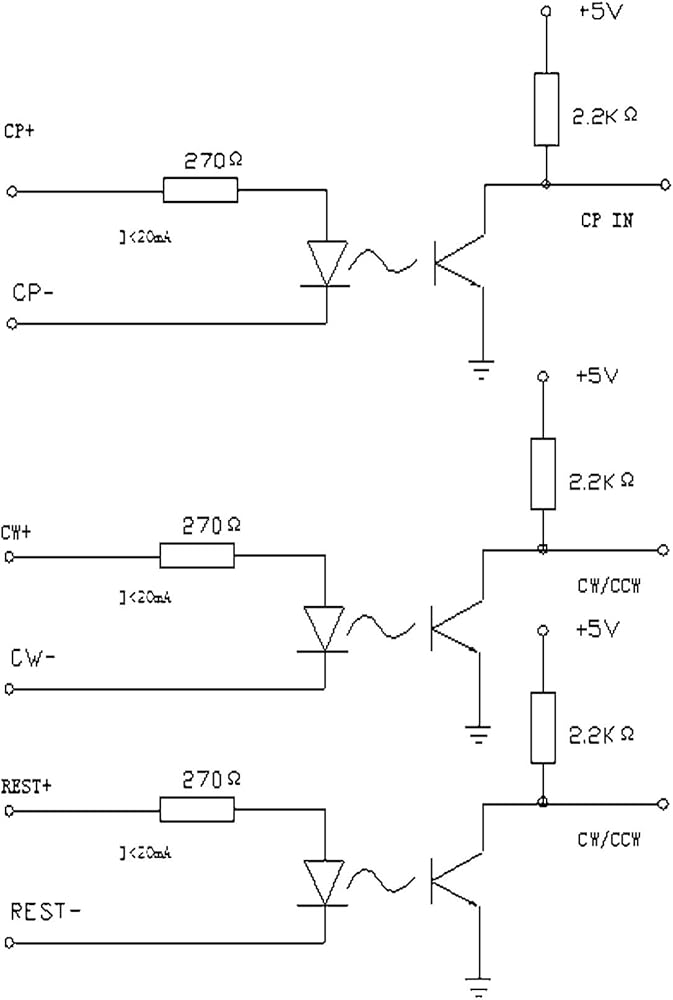

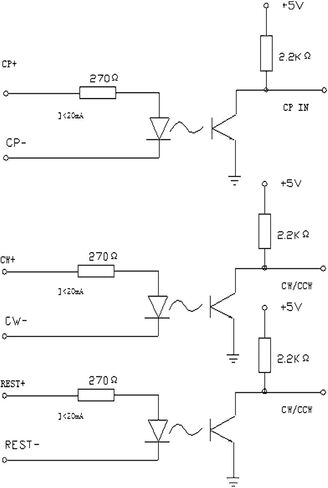

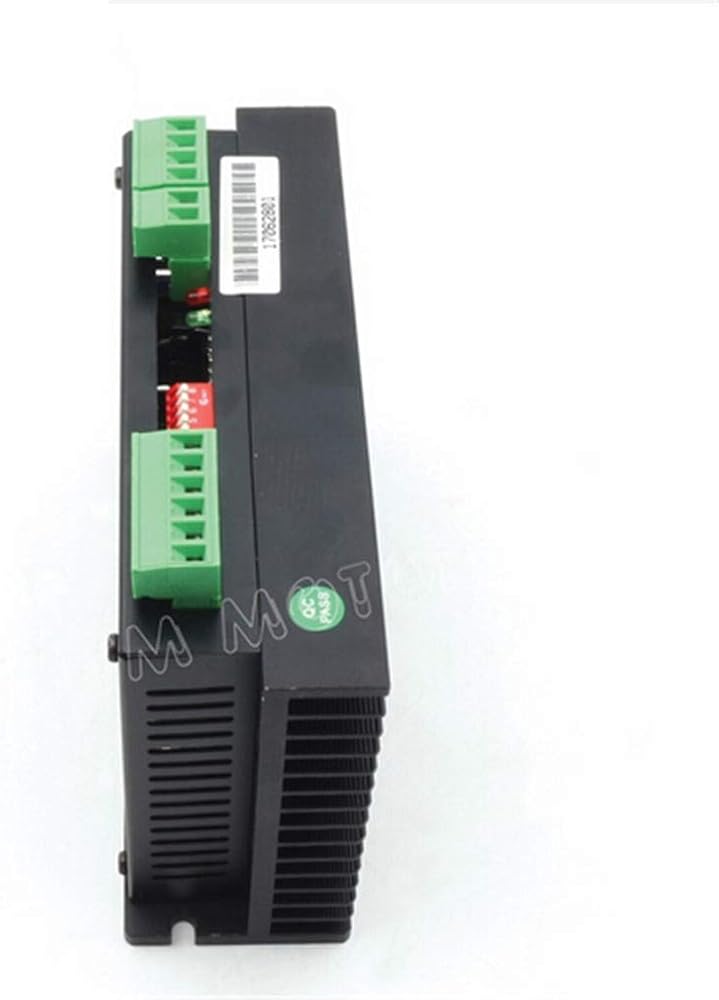

The interface see; the right picture
