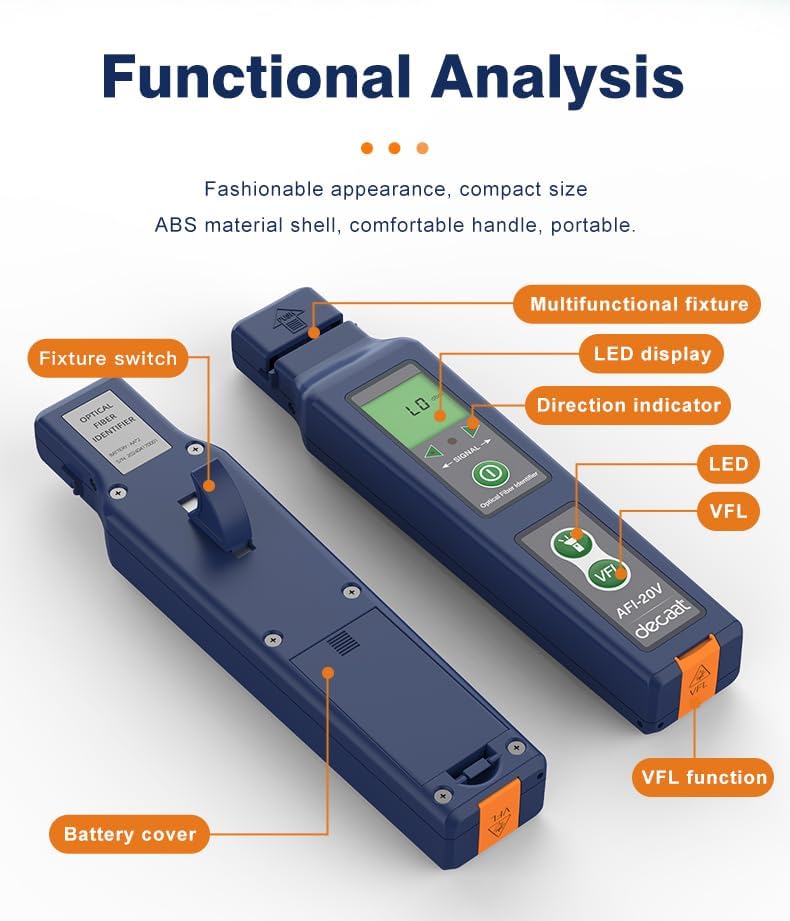

Efficiently identify and troubleshoot optical fiber networks with this versatile multi-in-one fixture.

The optical fiber identifier operates within the 800-1700nm wavelength range, allowing you to detect live traffic on single-mode and multimode fibers.

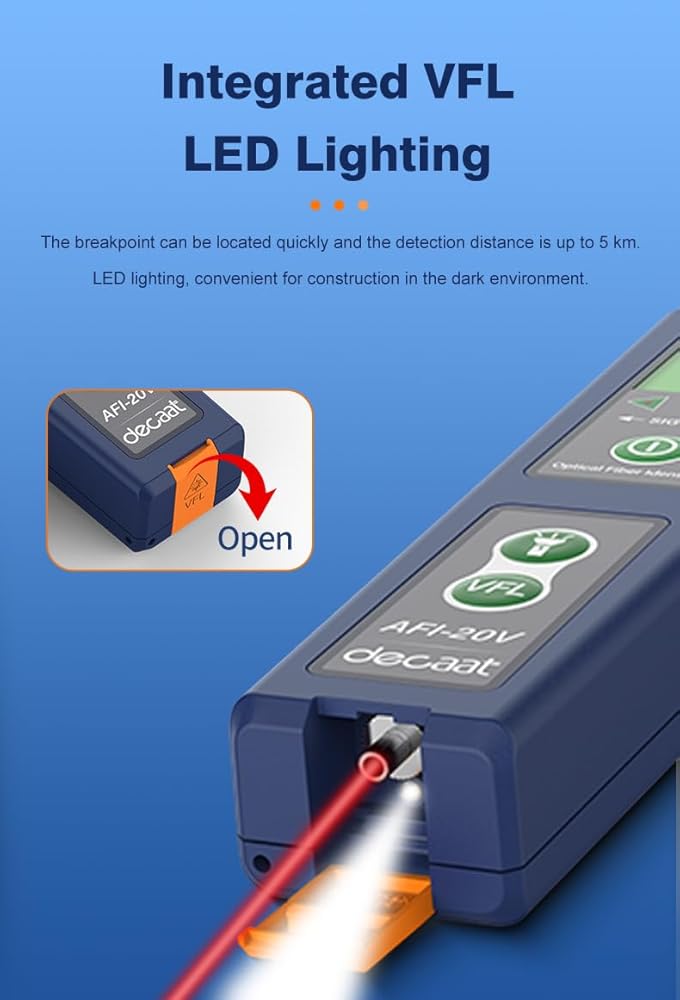

Its built-in 5KM visual fault locator aids in pinpointing breaks or bends in the fiber cable.

The integrated LED and user-friendly interface make it easy to interpret results and diagnose issues.

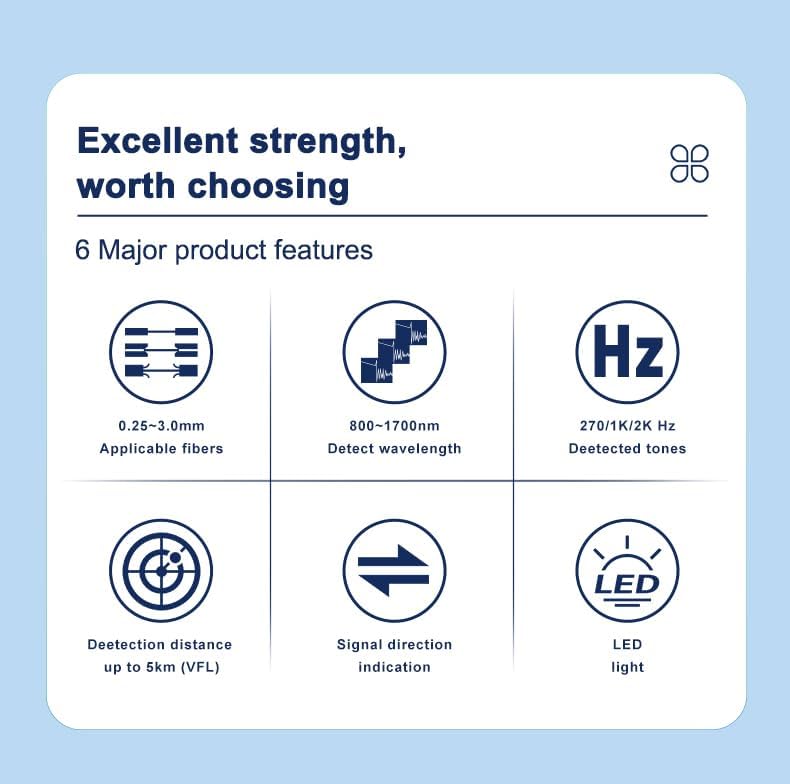

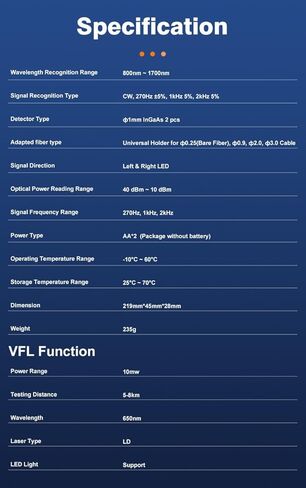

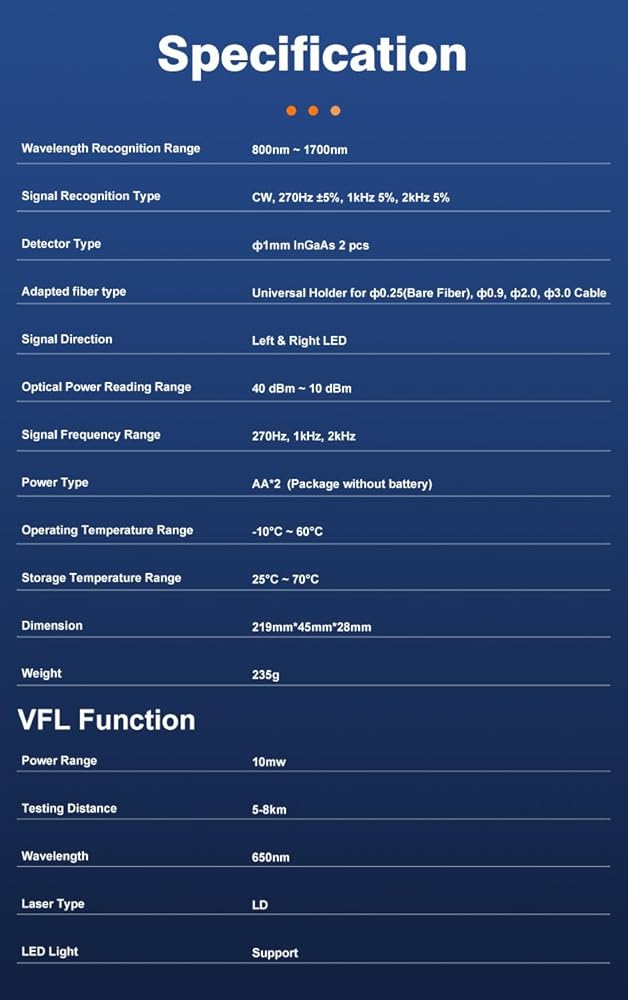

---Wavelength Recognition Range: 800nm ~ 1700nm

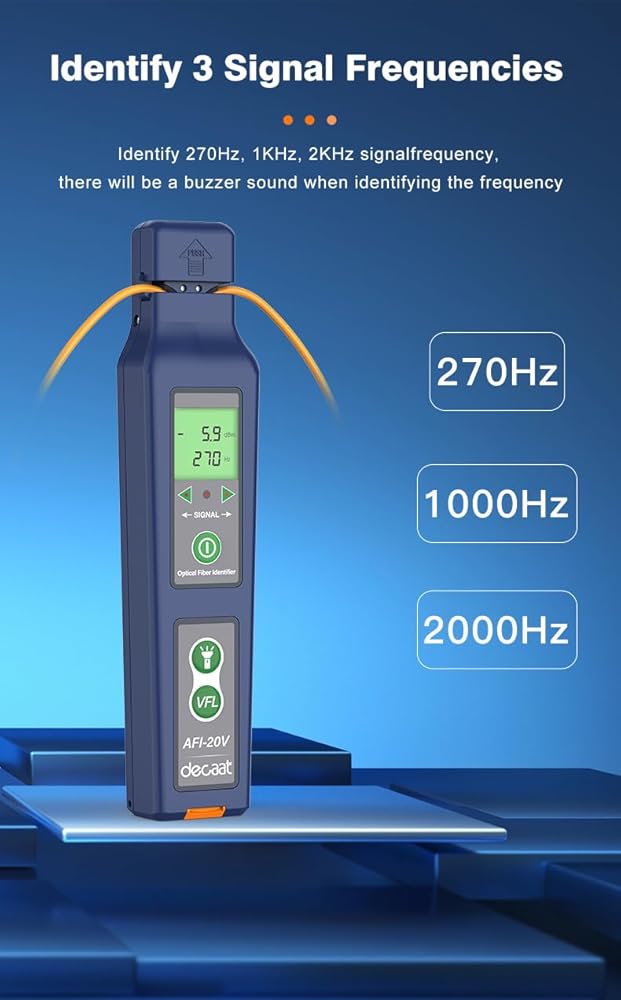

---Signal Recognition Type: CW, 270Hz ±5%, 1kHz 5%, 2kHz 5%

---Detector Type: ф1mm InGaAs 2 pcs

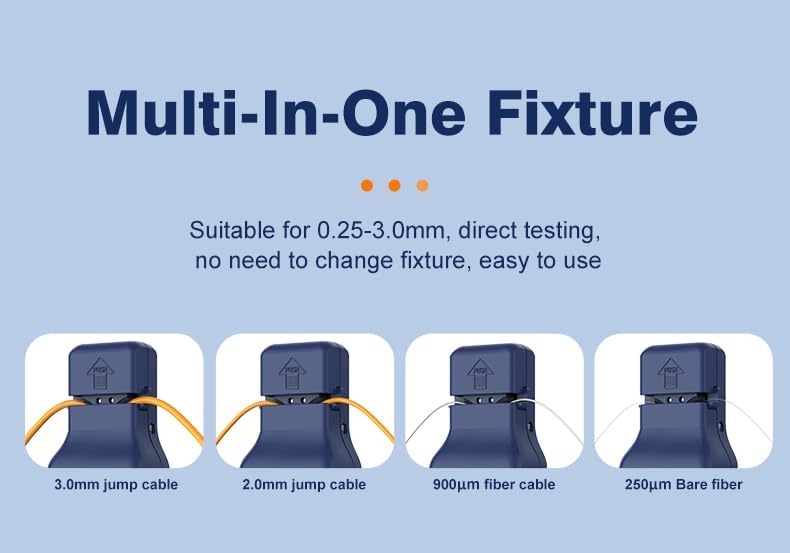

---Adapted fiber type: Universal Holder for ф0.25(Bare Fiber), ф0.9, ф2.0, ф3.0 Cable

---Signal Direction: Left & Right LED

---Optical Power Reading Range: 40 dBm ~ 10 dBm

---Testing Distance: 5-8km

---LED Light: Support

How to use it?

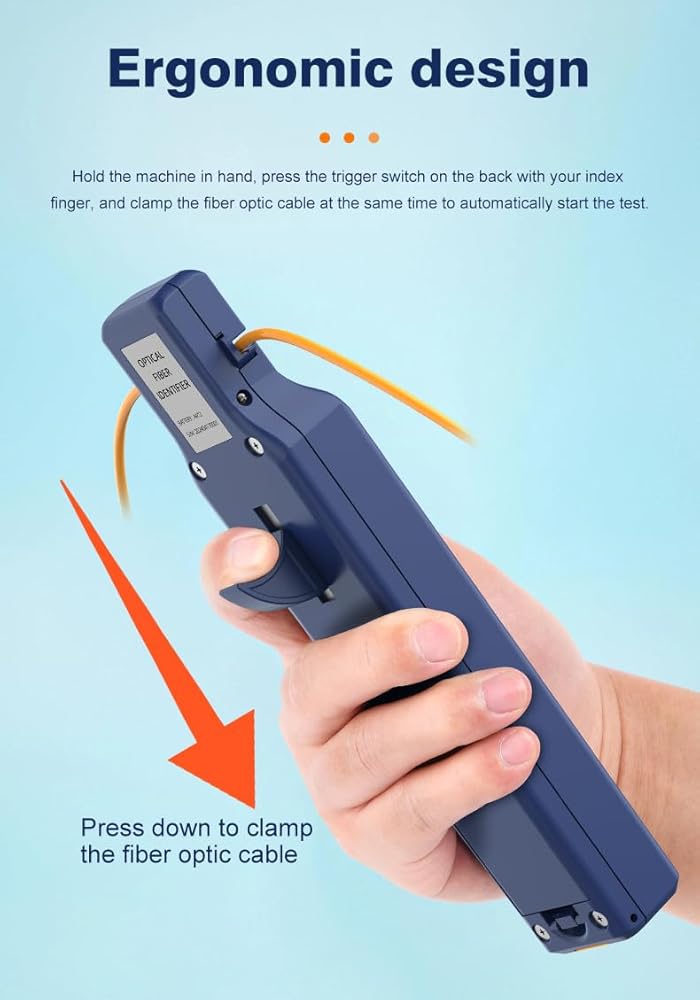

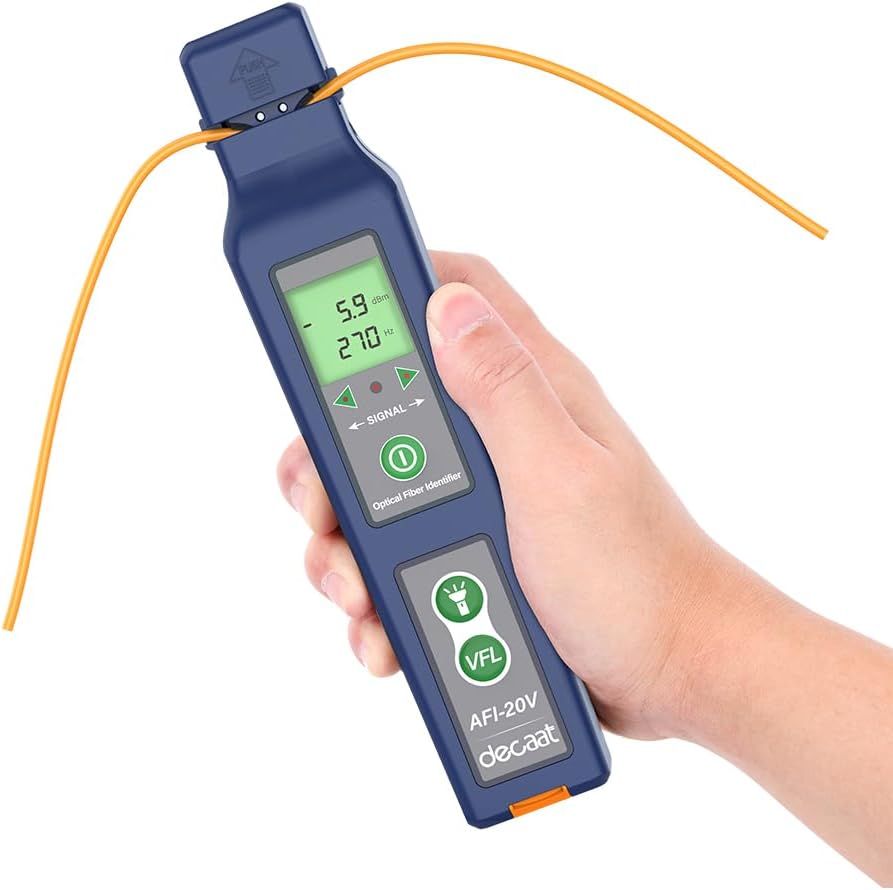

A: Hold the machine in hand, press the trigger switch on the back with your finger, and clamp the fiber optic cable at the same time to automatically start the test.

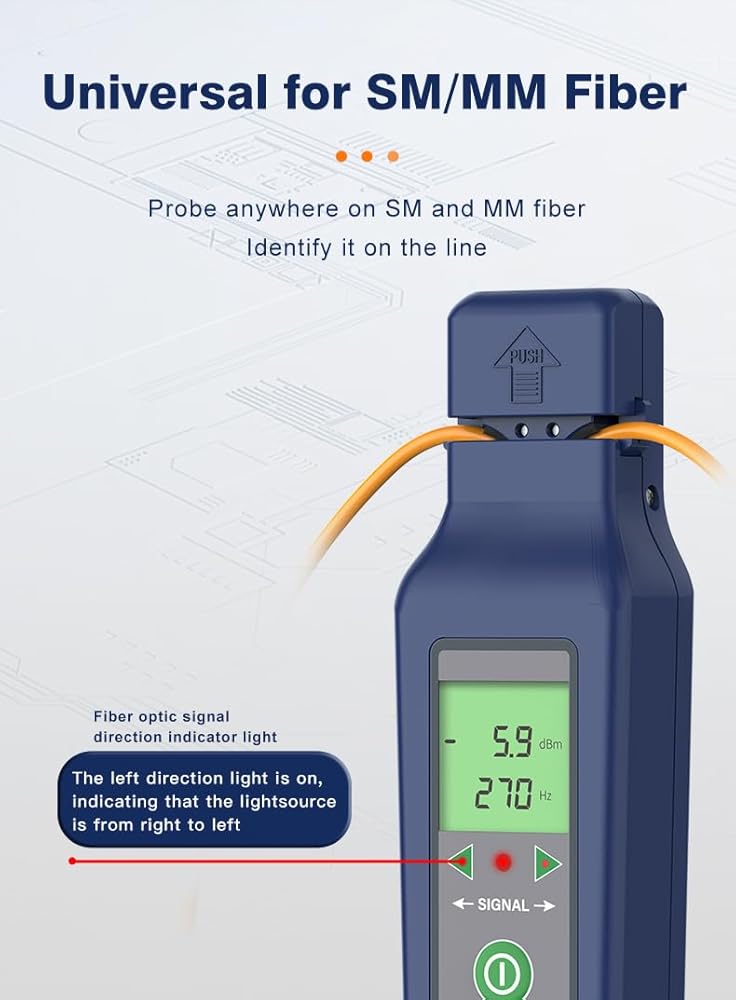

The left direction light is on, indicating that the light source is from right to left
