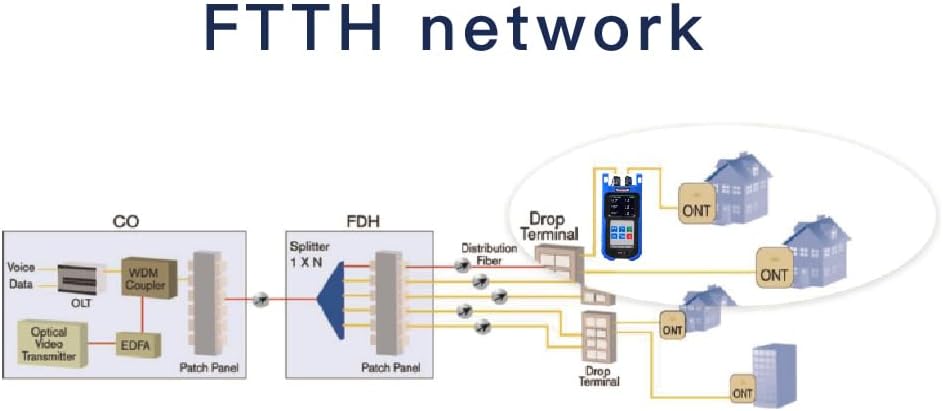

1. For FTTx/PON service tune-up or maintenance: Simultaneously measure and display different PON architectures, data and video signals
2. TPN-35 PON Power sending from USA warehouse; 1310/1490/1550 SC/UPC fiber connectors

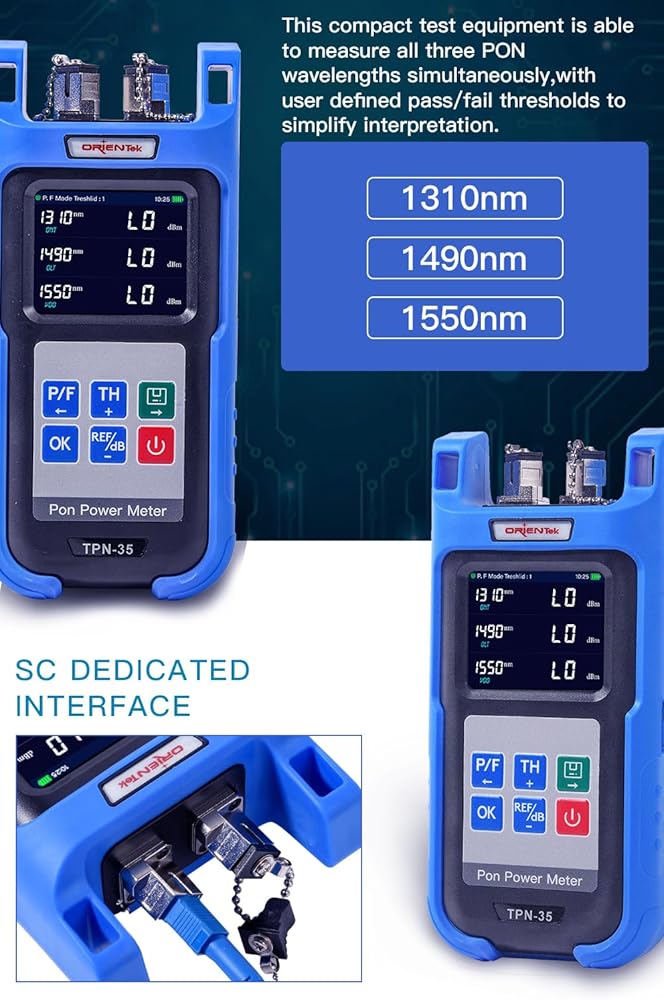

3. Users can test 1490nm,1550nm, 1310nm three wavelengths in the PON network at the same time
4.The instrument provides five sets of thresholds to choose from, with pass, warning, and fail modes, perfect for quick access to the PON network POWER Level

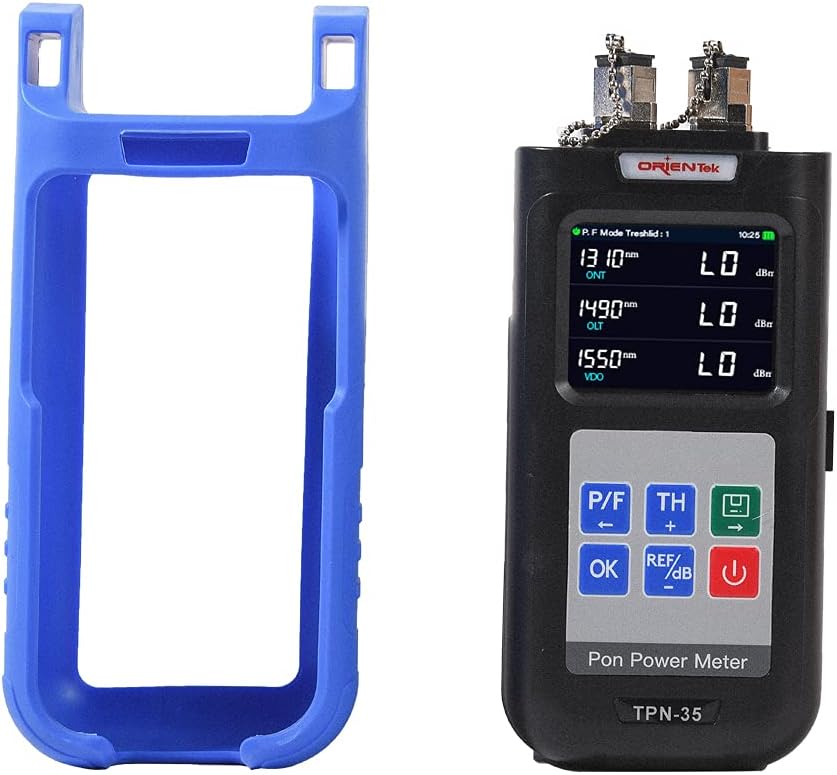

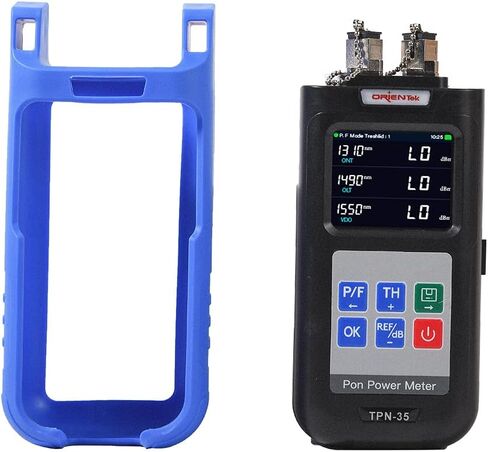

5. Silica Gel Protect Pads Protects it from accidental falls or other damage

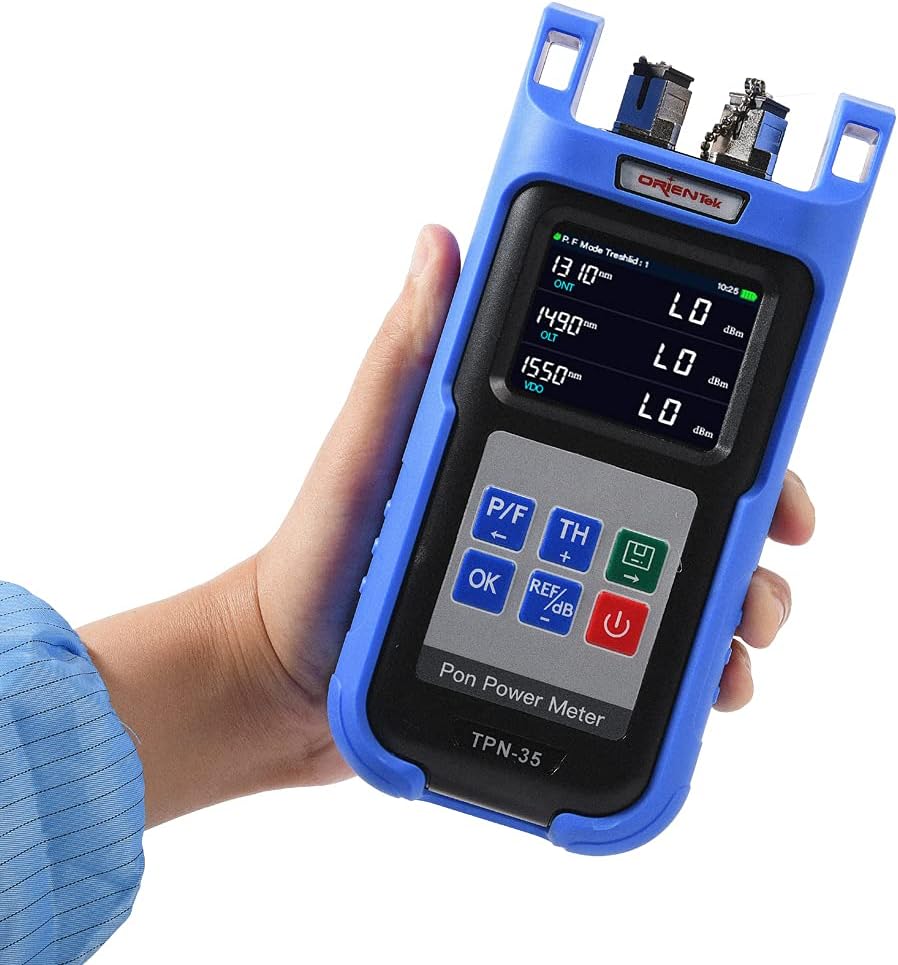

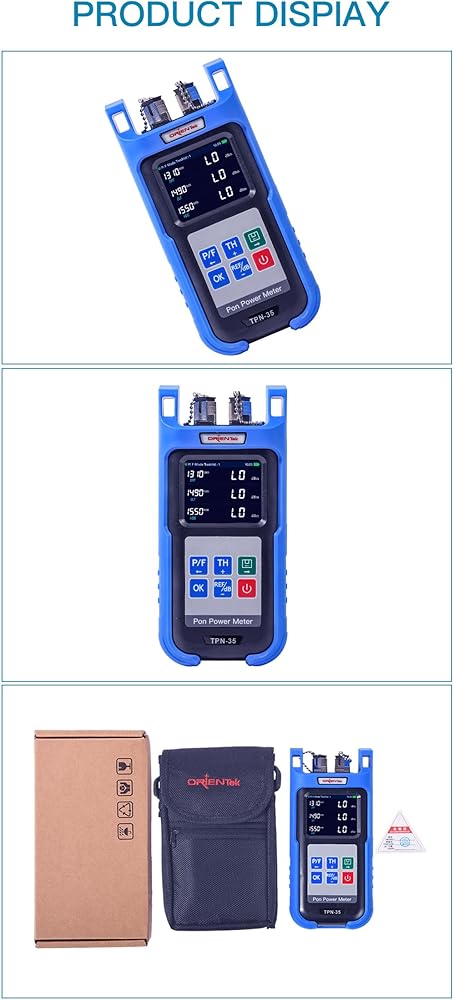

TPN-35 PON Optical Power Meter 1310/1490/1550nm

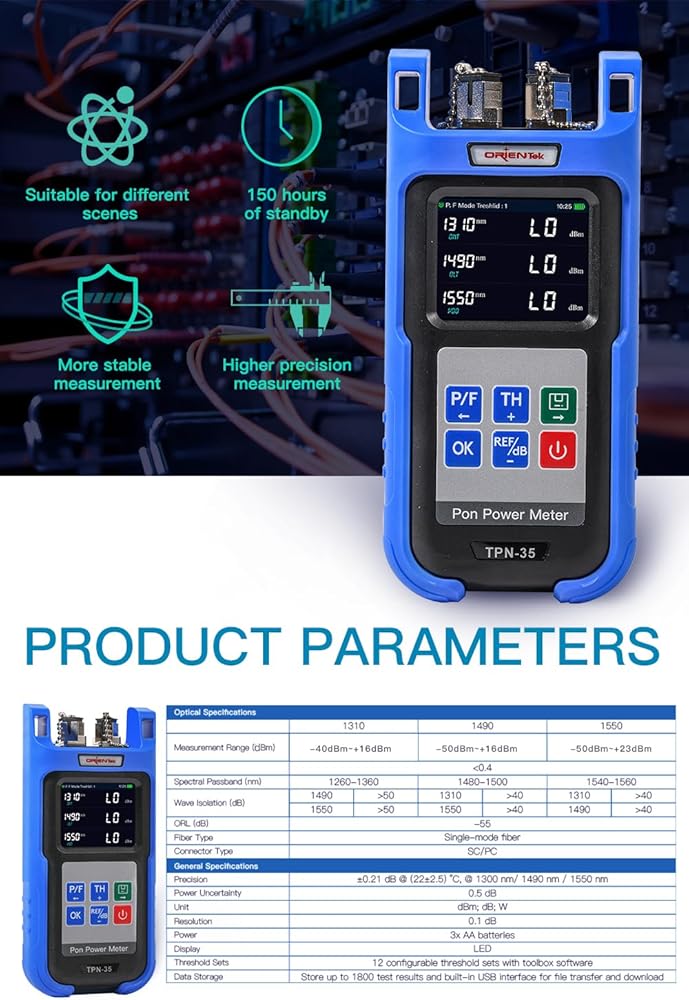

Wavelength：1310/1490/1550

Measurement Range (DBm): 1310 CW:+15 ~ -35 BW:+8 ~ -30;

1490: +10 ~ -50; 1550: +25 ~ -45

Spectral Passband (nm):1260-1360;1480-1500;1540-1560

ORL (dB): -55

Fiber Type: Singlemode fiber

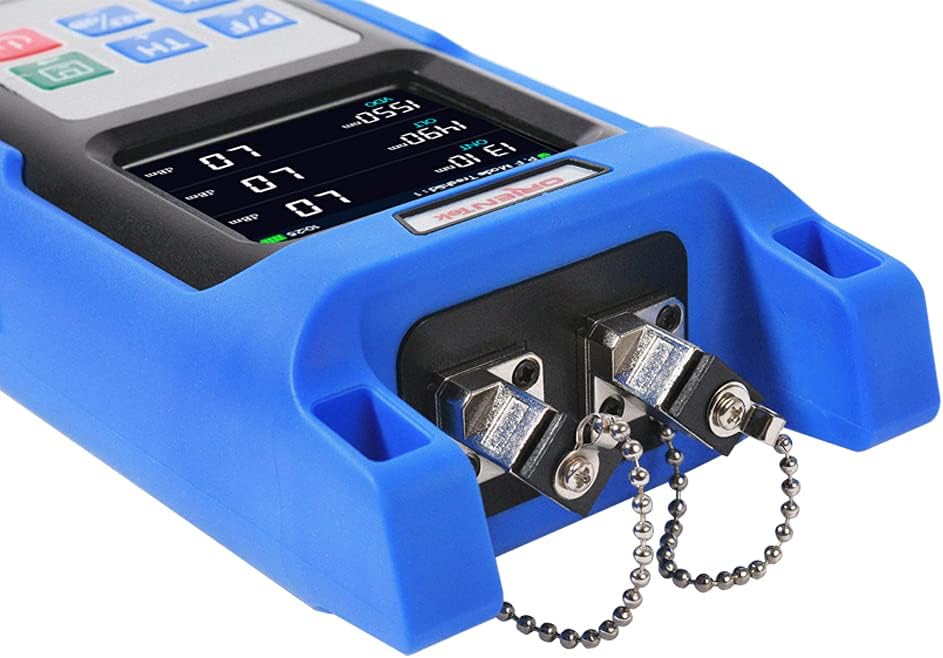

Connector Type: SC/UPC or SC/APC

Precision: ±0.21 dB @ (22±2.5) °C, @ 1300 nm/ 1490 nm / 1550 nm

Power Uncertainty: 0.5 dB

Unit : dBm;dB; W

Resolution: 0.1 dB

Power: 3x AA batteries

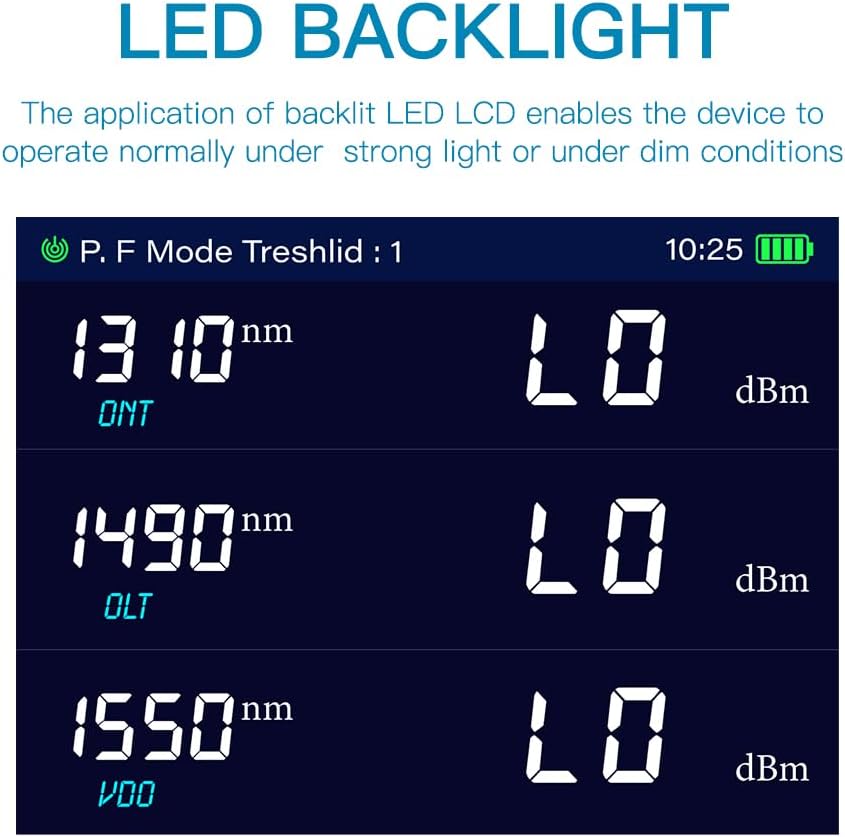

Display: LED
