Double Acting - Hydraulic control valve for operating double-acting cylinders.

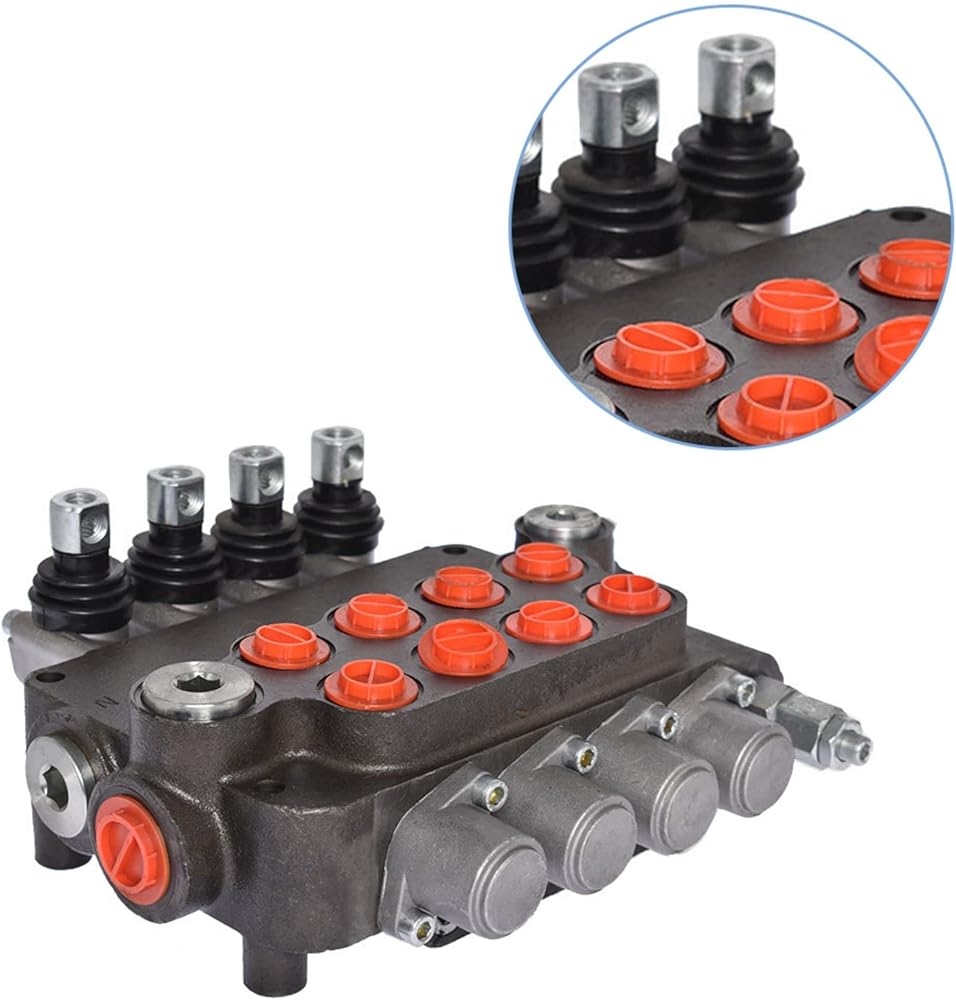

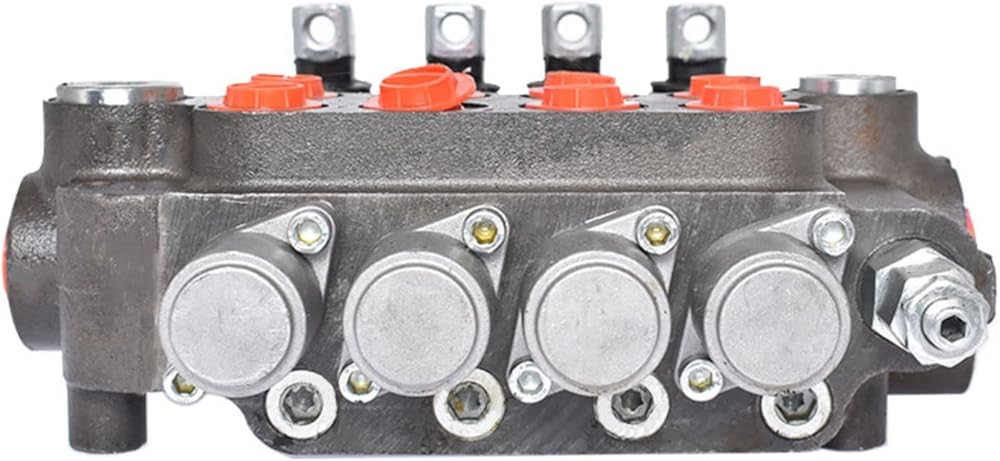

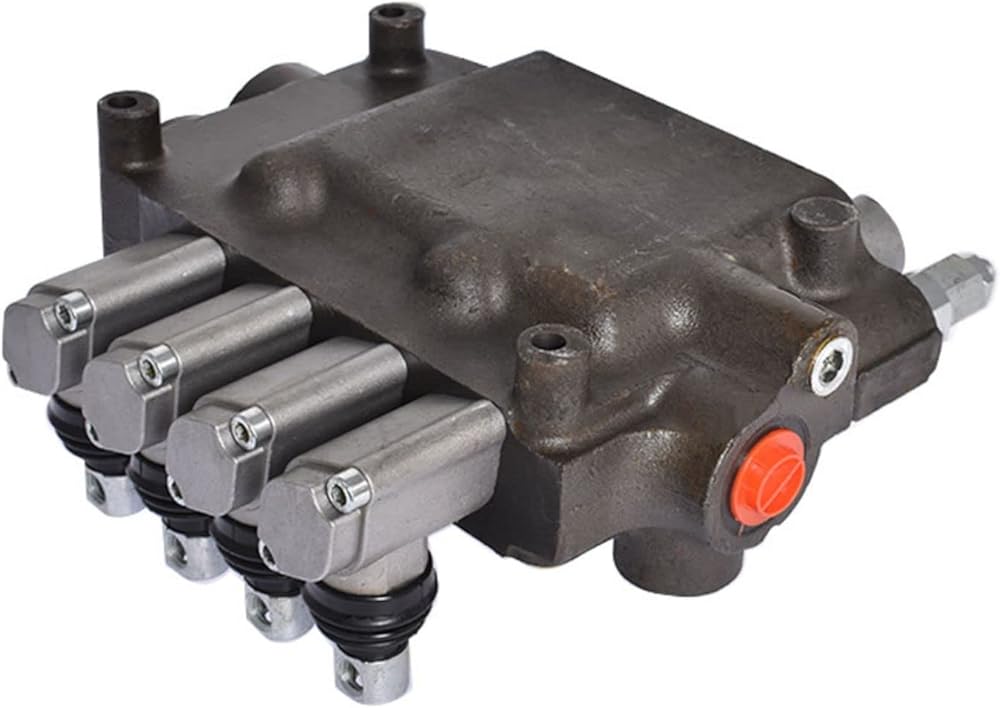

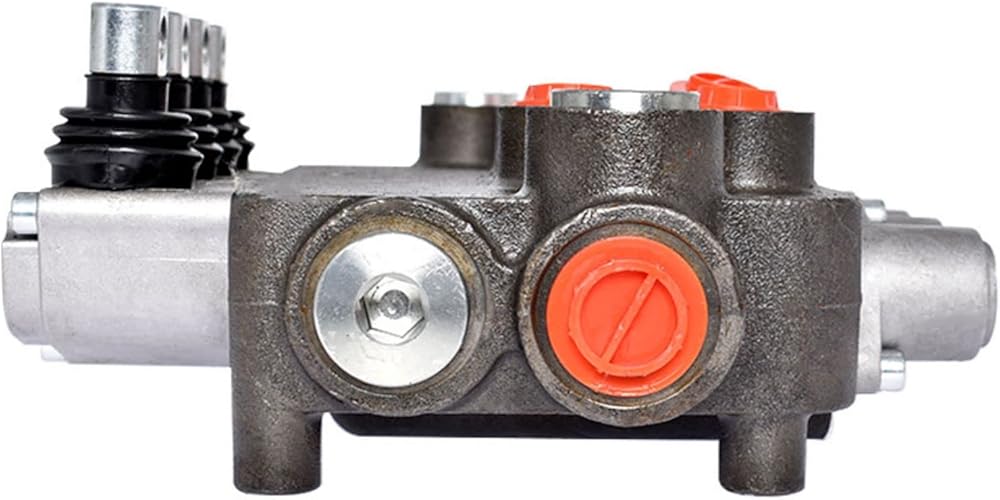

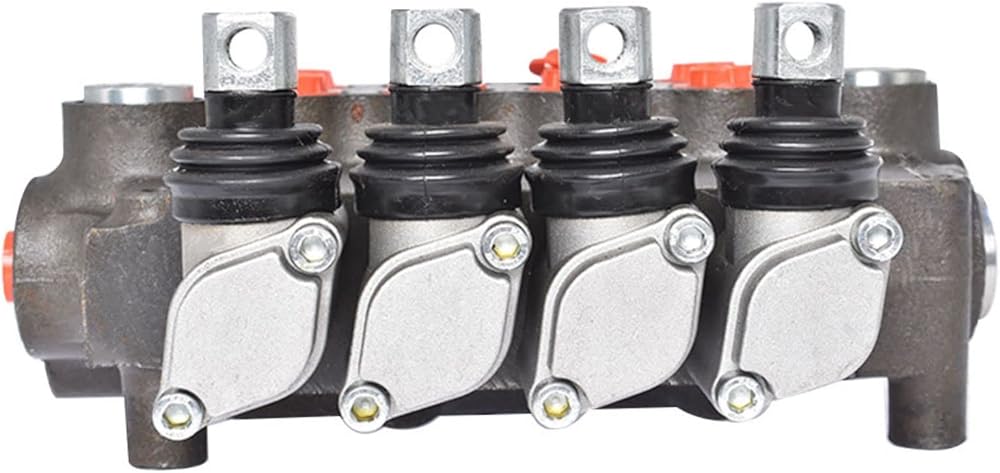

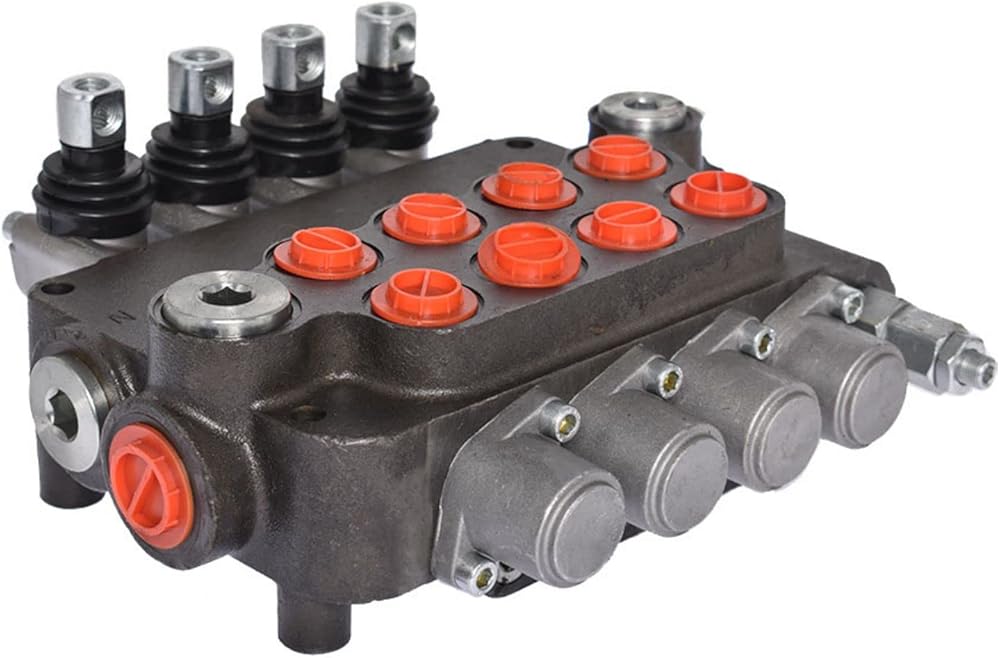

Durable & High-Efficiency - This hydraulic directional control valve comes with 4 spools, with cast iron construction for long-time use. The relief valve range is up to 3600 PSI and the maximum flow is up to 21 GPM.
Parallel Oil Circuit - Parallel oil circuit, manual control, closed valve, through the pressure output port connected with other hydraulic components to provide the power source.
Standards Size - Our product is specially designed to exact part number standards manufactured. The size is accurate and can perfectly match your equipment.
Easy to Install - The installation is simple and straightforward, you can install them without using any special tools.
وصف
Feature:
This hydraulic directional control valve is designed to manage and direct the flow of hydraulic oil between hydraulic pumps and hydraulic cylinders, motors, tanks, and more. Its compact design allows the use of control valves in small tractors, tractor loaders, log separators, and other mobile applications.
Specification:
Max pressure: 3600 PSI
Inlet port: SAE 10
Outlet port: SAE 12
Working ports: SAE 10
Fluid temperature: 5 to 176℉
Mounting: 3 bolts m8 needed
Valve type: 4 way 3 positions
