مميزات خاصة

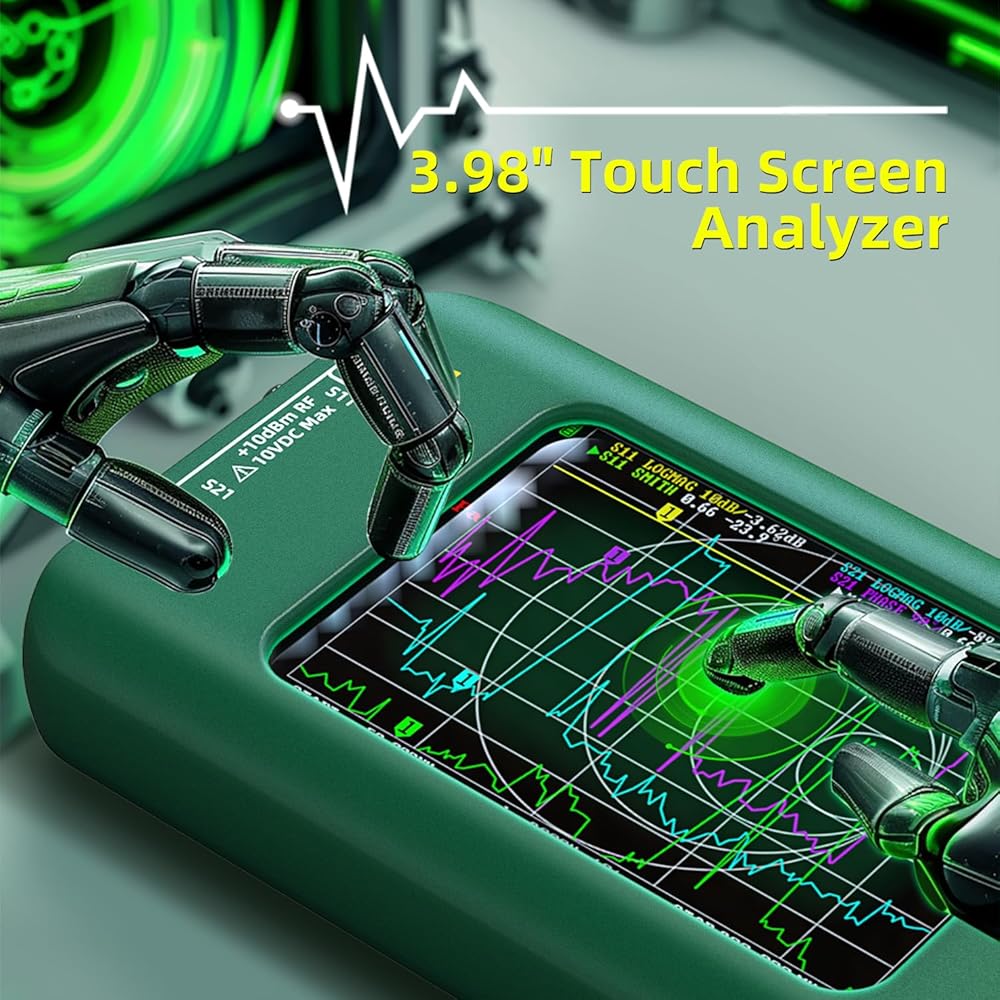

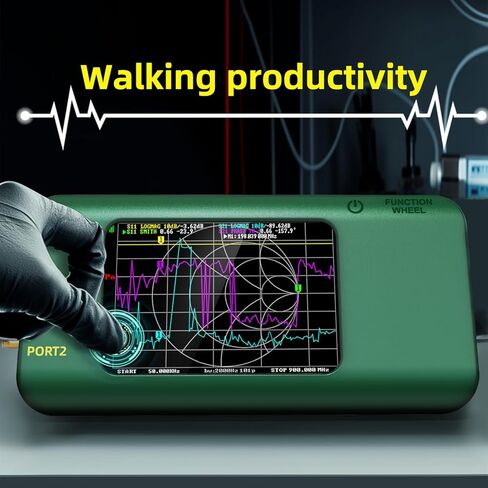

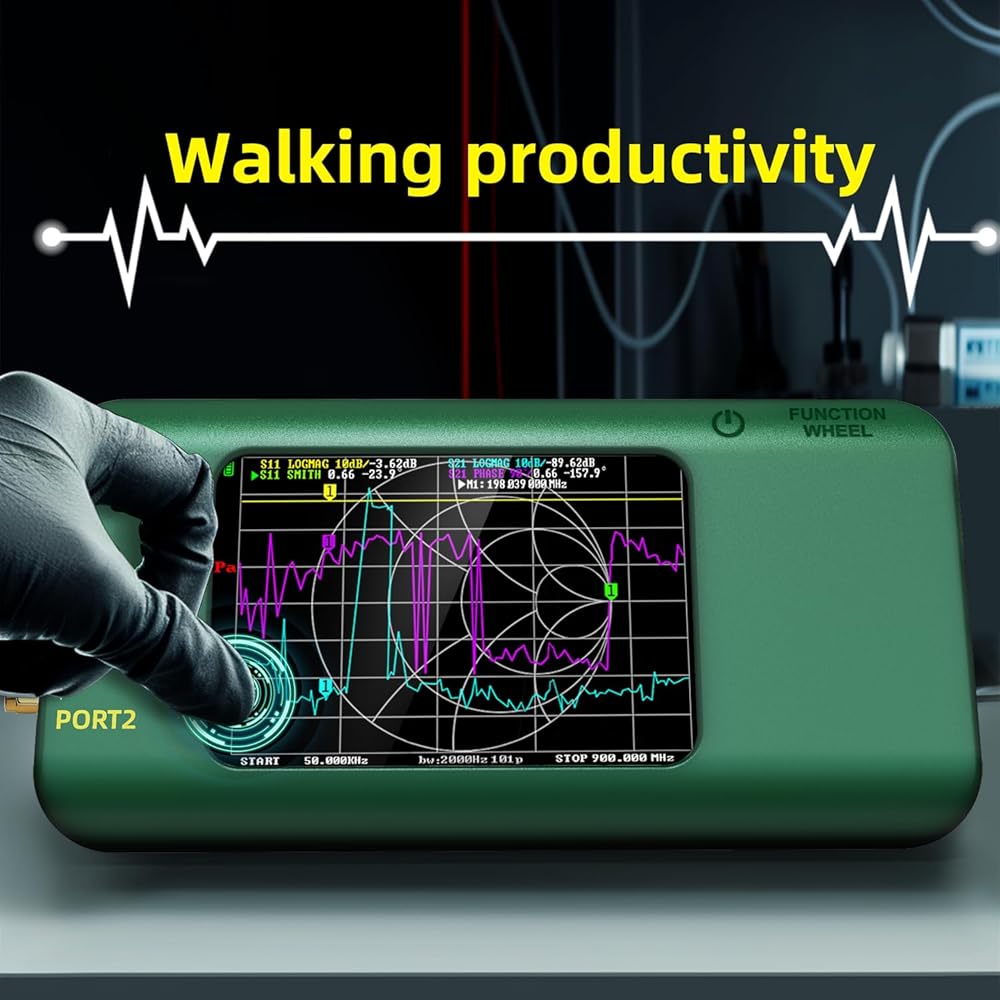

3.98 inch TFT Touch Screen: this vector network analyzer is 320*480 touchable display. Mini body with 3.98-inch large screen, easy to carry and read test data. The touch screen is responsive and can be operated by fingers, which is more flexible and convenient.
Improved Algorithm Frequency: This network analyzer supports 10KHz-1.5GHz measurement frequency, The 50K-300MHz frequency range of direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics Great for trouble shooting antennas and Great for trouble shooting antennas and improving performance. Great for trouble shooting antennas.
3000mAh Large-capacity battery: This antenna analyzer has a built-in 3000 mAh rechargeable li-ion battery, which provides a longer battery life of up to 8 hours of continuous operation. Capable of working for long periods of time without external power to meet the needs of field testing or mobile testing.
Multi-functional: This new P5 analyzer measures RF S11 (reflection), S21 (forward gain) and related parameters. Equipped with an SD card port for easy storage and sharing of data, it is ideal for evaluating antenna resonance and SWR. Ideal for evaluating antenna resonance and SWR, it comes with 4 display tracking points, 8 marker points, and 7 setup saves, making it easy to read data points using markers.
Full Body Silicone Case with Bag: This analyzer comes with a full body silicone case protector, shockproof and drop resistant. With EVA storage bag, it can be easy to carry and dustproof. With its thin and lightweight body and clear display, the P5 is a very mini, handy and smart analyzer for electronic engineers, amateur radio operators or radio diy enthusiasts.

وصف

Features:

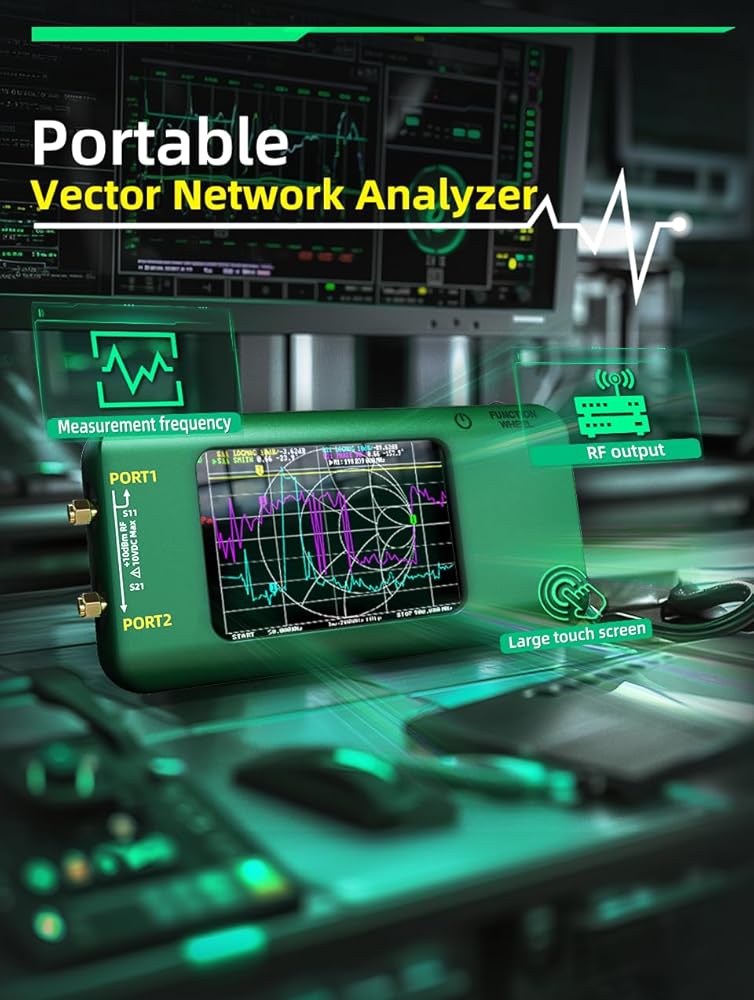

A set of communications, microwave, antenna, vector comprehensive evaluation and analysis of an analyzer
3.98-inch full-view TFT LCD color touch screen, more convenient and sensitive operation
With SD card port, convenient for data storage and extraction
Equipped with 3000 mAh lithium battery, more durable life time
Silicone jacket is shockproof and drop-resistant
EVA bag for easy storage

Specification:
Measuring frequency: 10KHz~1.5GHz
Display: 3.98-inch TFT color screen
RF output: 0dpm (±2dB, base wave)
Frequency accuracy: Frequency stability: Measurement range: 70Db(50KHz-300MHz)/60dB(300-900MHz)/40dB(0.9G-1.5GHz)
Number of calibration points: Max 401 (optional) Unlimited when connecting to a PC
Number of scanning points: Max 401 (optional) Unlimited when connected to a PC
Scan point speed: >600p/s (RBW=4000Hz)
Display tracking: 4
Marker: 8
Setting Save: 7
Size: 168mm*81mm*23.8mm
Weight: 251g

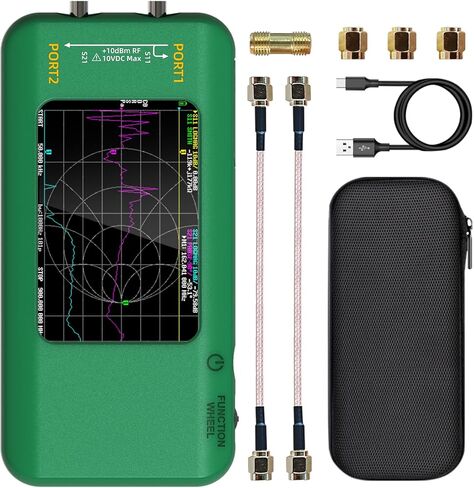

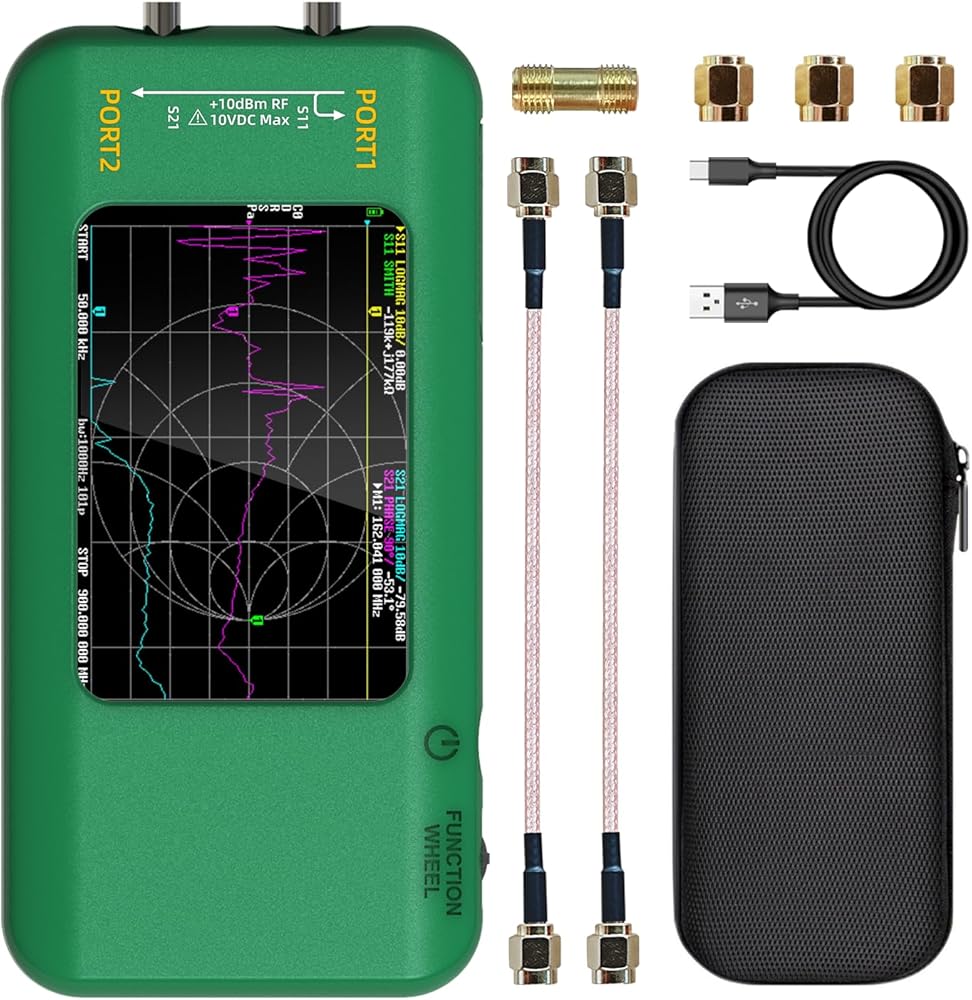

Package Contents:
P5 Vector Network Analyzer
Dual female connectors
Calibration open circuit
Calibration short
Calibration load
SMA extension cable
USB type-C cable
EVA Storage bag
