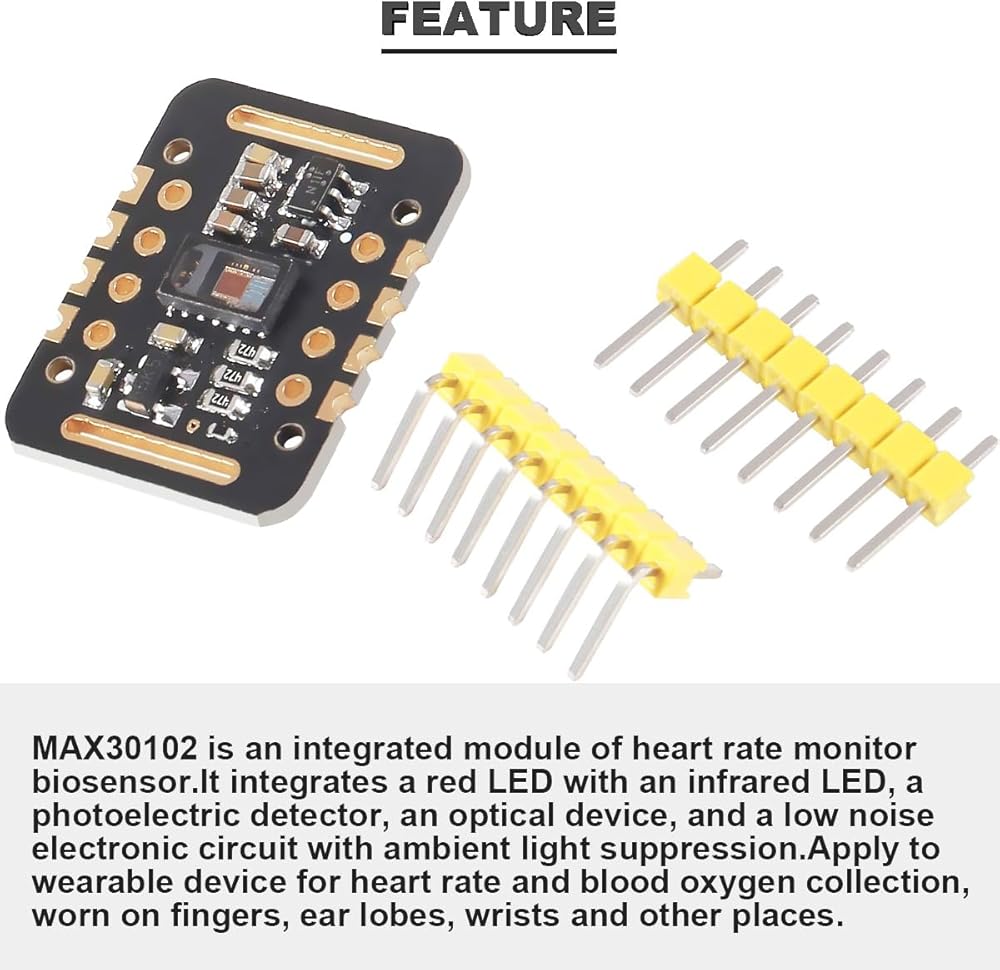

WHAT IT DOES: MAX30102 is an integrated module of heart rate monitor biosensor. It integrates a red LED with an infrared LED, a photoelectric detector, an optical device, and a low noise electronic circuit with ambient light suppression.Apply to wearable device for heart rate and blood oxygen collection, worn on fingers, ear lobes, wrists and other places.
COMMUNICATION INTERFACE: The standard I2C compatible communication interface can transmit the collected data to for Arduino, KL25Z,and other microcontrollers for heart rate and blood oxygen calculation.
SPECIFICATION: Output Signal Interface: I2C Interface;Communication Interface Voltage: 1.8 ~5V;LED power supply voltage: 3.3~5V;LED peak wavelength: 660nm/880nm;Detection Signal Type: Optical Reflection Signal (PPG);Size:21mm*5mm.
VIDEO LINK: For more details, please refer to link:https://www.youtube.com/watch?v=KarBC2ZKpBY.
PRODUCTS INCLUDE: 4 x MAX30102 Heart Rate Sensor;8 x 8-pin header;30 x Male and female cable.

وصف

Specification:
LED peak wavelength: 660nm/880nm.
LED power supply voltage: 3.3~5V.
Detection Signal Type: Optical Reflection Signal (PPG).
Output Signal Interface: I2C Interface.
Communication Interface Voltage: 1.8 ~3.3V~ 5V

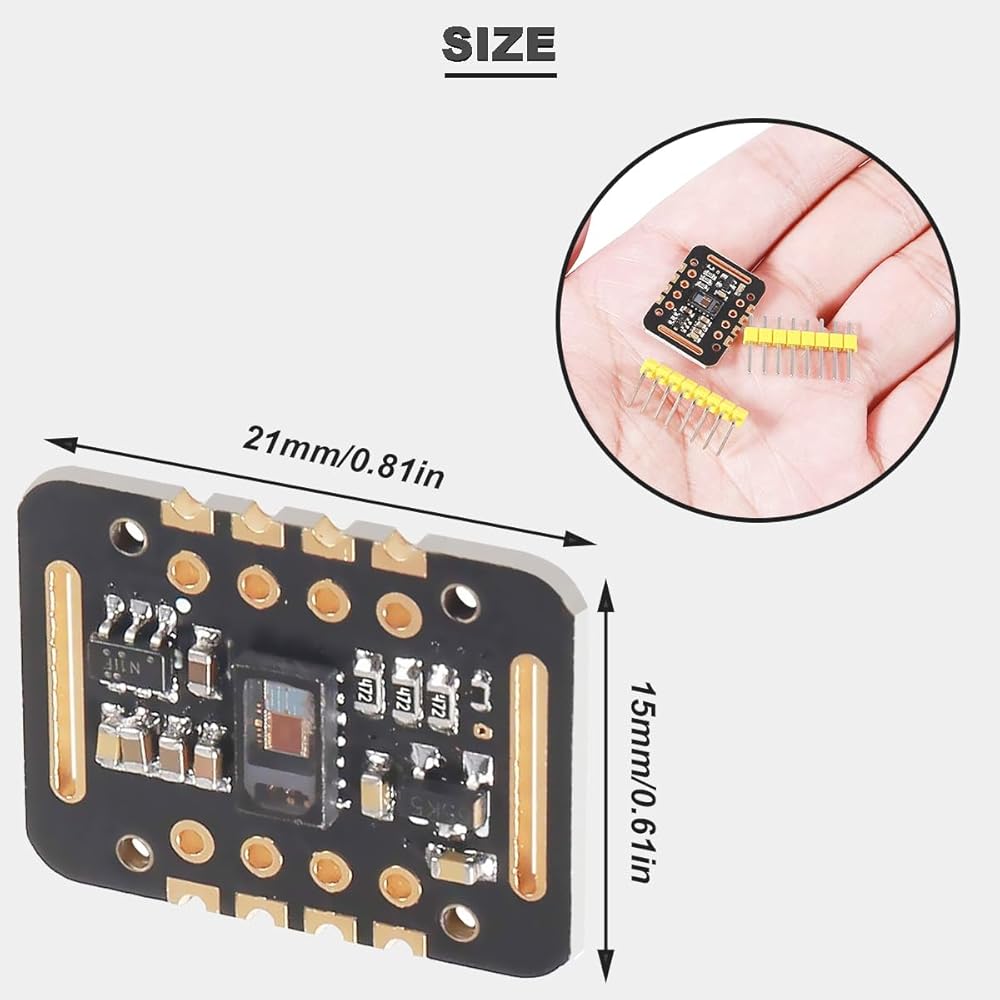

Size:21mm * 5mm
Reserve Mounting Hole Size:0.5x8.5mm/0.02x0.33Inches.

Interface:
VIN: Main power input 1.8V-5V.
3-bit pad: I2C bus pull up level, you can choose 1.8V or 3.3V according to the pin master voltage.
SCL: I2C bus clock
SDA: Connected to the I2C bus data
INT: MAX30102 chip interrupt pin
RD: MAX30102 chip's RD LED grounding terminal, generally doesn't need to connect.
IRD: MAX30102 chip's IR LED grounding terminal, generally doesn't need to connect.
GND: grounding wire.

Package Includes:

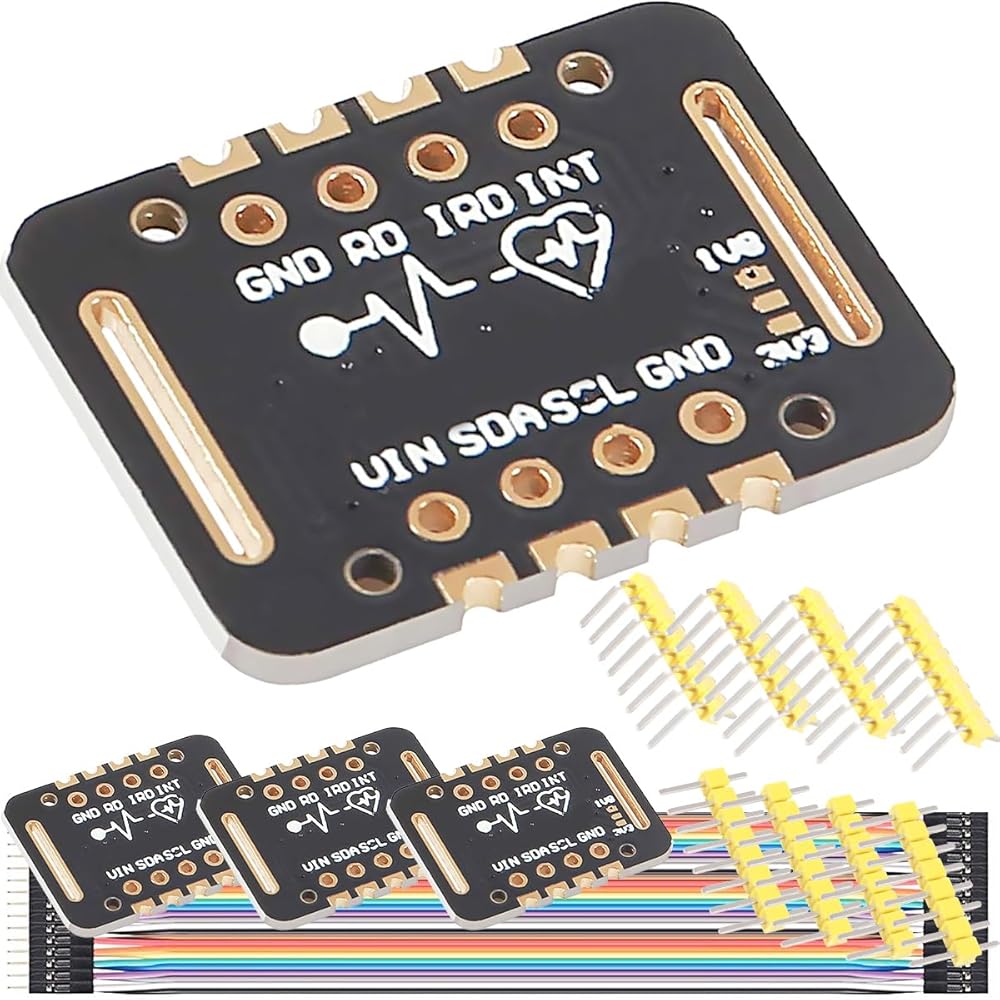

4 x MAX30102 Heart Rate Sensor
8 x 8-pin header
30 x Male and female cable
