مميزات خاصة

WHAT IT DOES: L7812CV is a kind of voltage control element.Widely used in large-scale and very large-scale integrated circuits.
FEATURES: No external compensation component is required, and current limiting current is included to prevent the load from short-circuiting and burning components.
MATERIAL: The Voltage Regulator is made of metal oxide semiconductor material, which has good thermal stability and long service life.
MULTIFUNCTION: With multiple functions such as detection, rectification, amplification, switching, voltage stabilization, and signal modulation.
SPECIFICATIONS: Output Voltage : 11.5-12.5V;Quiescent current : 5.1-8mA;Maximum Input Voltage : 35V;Maximum Output Current : 1.5A.
APPLICATION: L7805 L7805CV regulators are widely used in various fields such as power adapters, instruments, industrial automation control equipment and automotive electronic accessories.

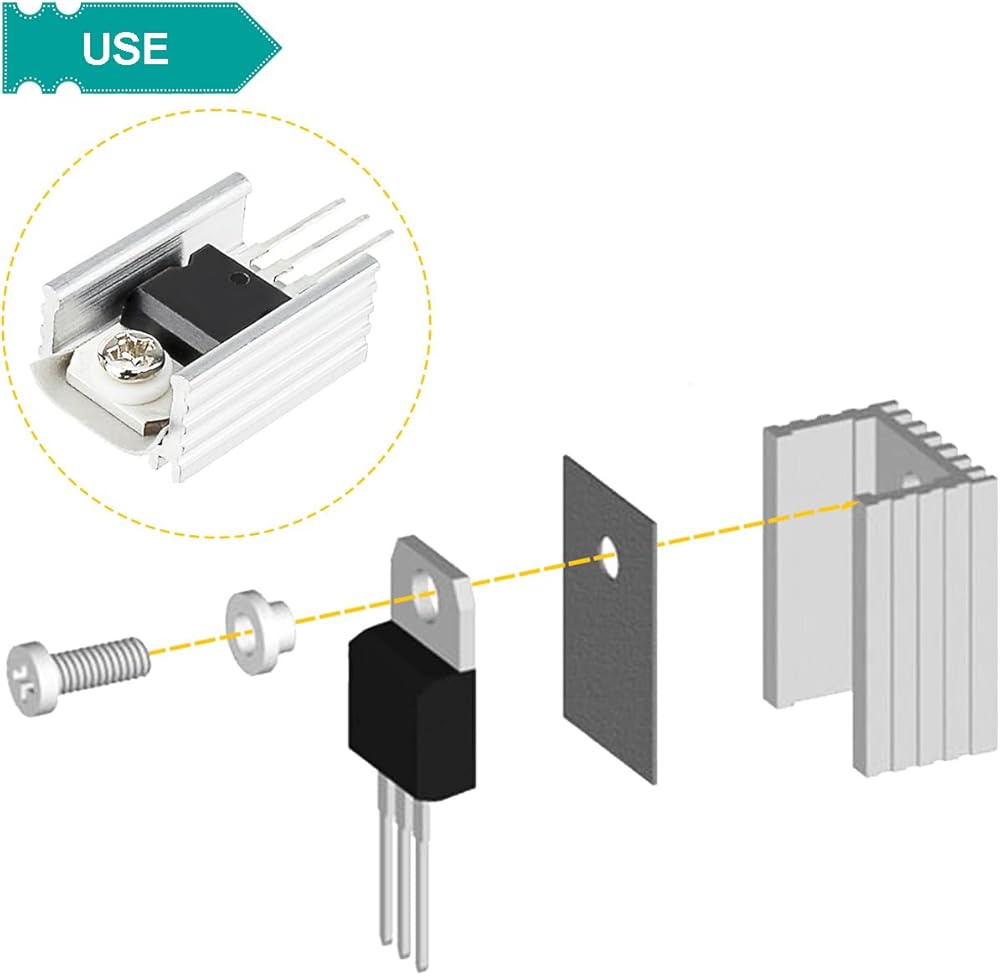

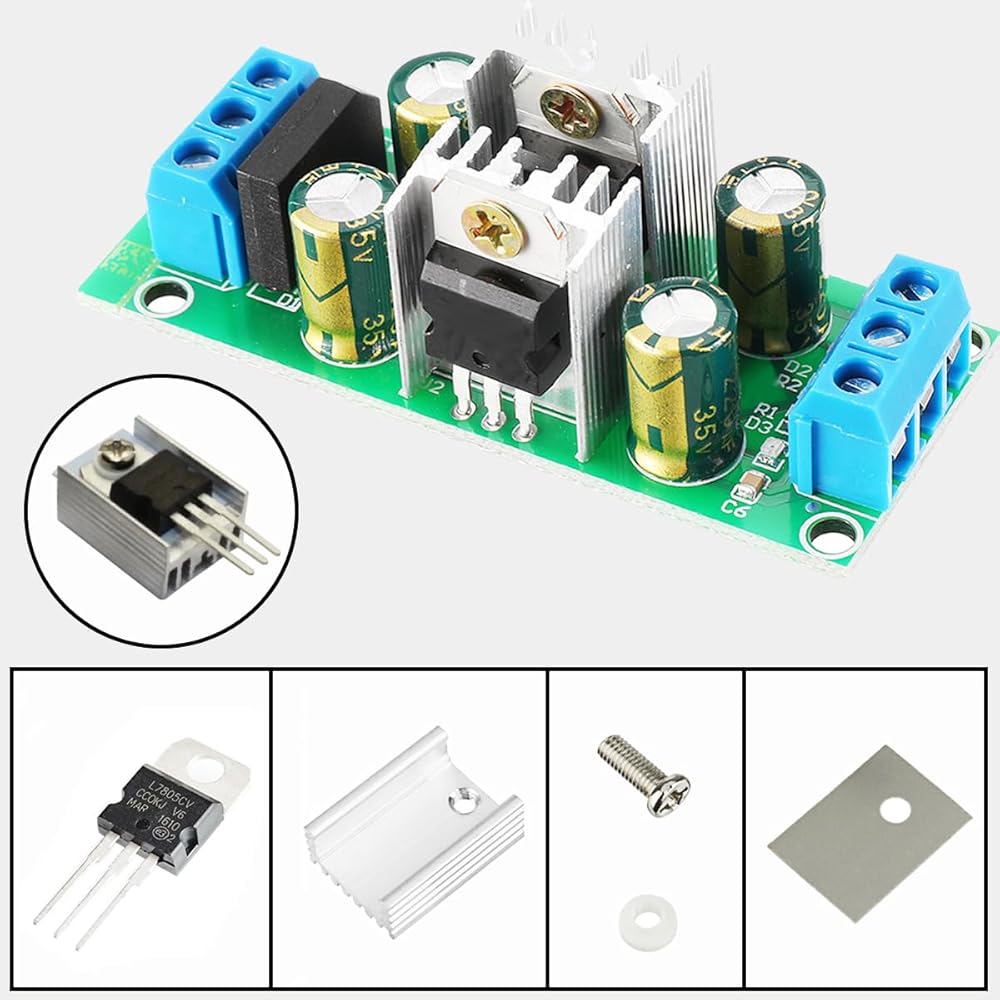

PRODUCTS INCLUDE: 20 x L7812CV Voltage Regulator;20 x Heatsink;20 x Rubber Silicone;20 x Screw washer;1 x Screwdriver.

وصف

Specification:
Output Configuration:Positive Voltage Regulators
Output Voltage(Min/Fixed):11.5-12.5V

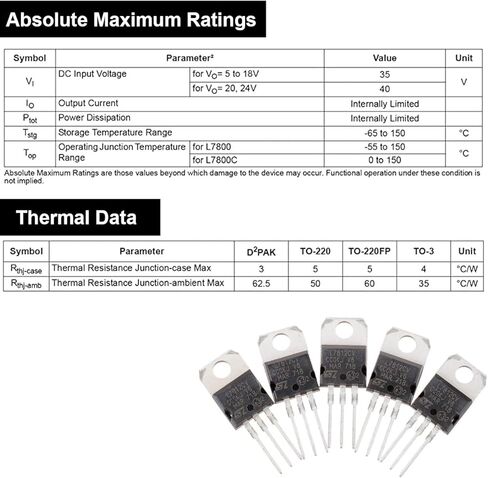

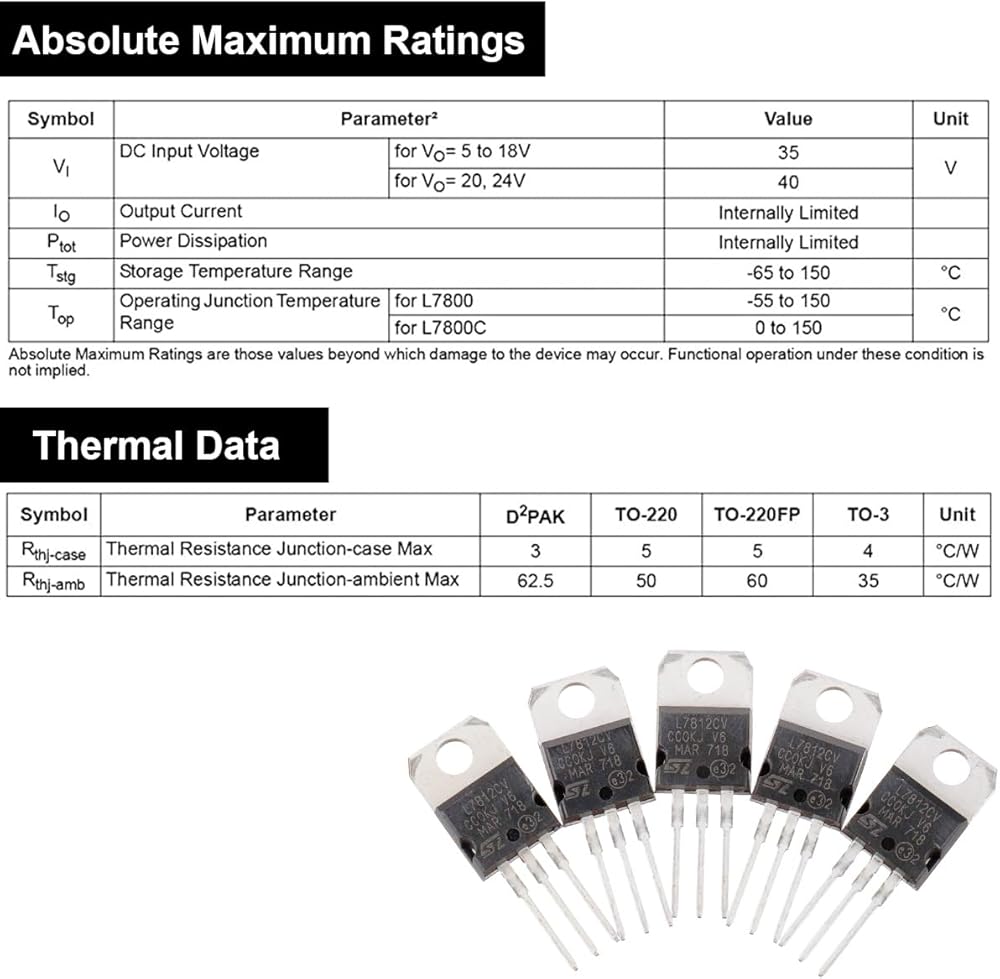

Input Voltage(Max):35V
Voltage Dropout (Max):2V @1A (Typ)
Output Current(Max) :1.5A
Quiescent current : 5.1-8mA
Ripple rejection ratio: 76dB/120KHz
Output resistance: 18mΩ
Output voltage temperature coefficient -1.1mV / °C
Operating Temperature:0°C ~ 125°C
Mounting Type:Through Hole

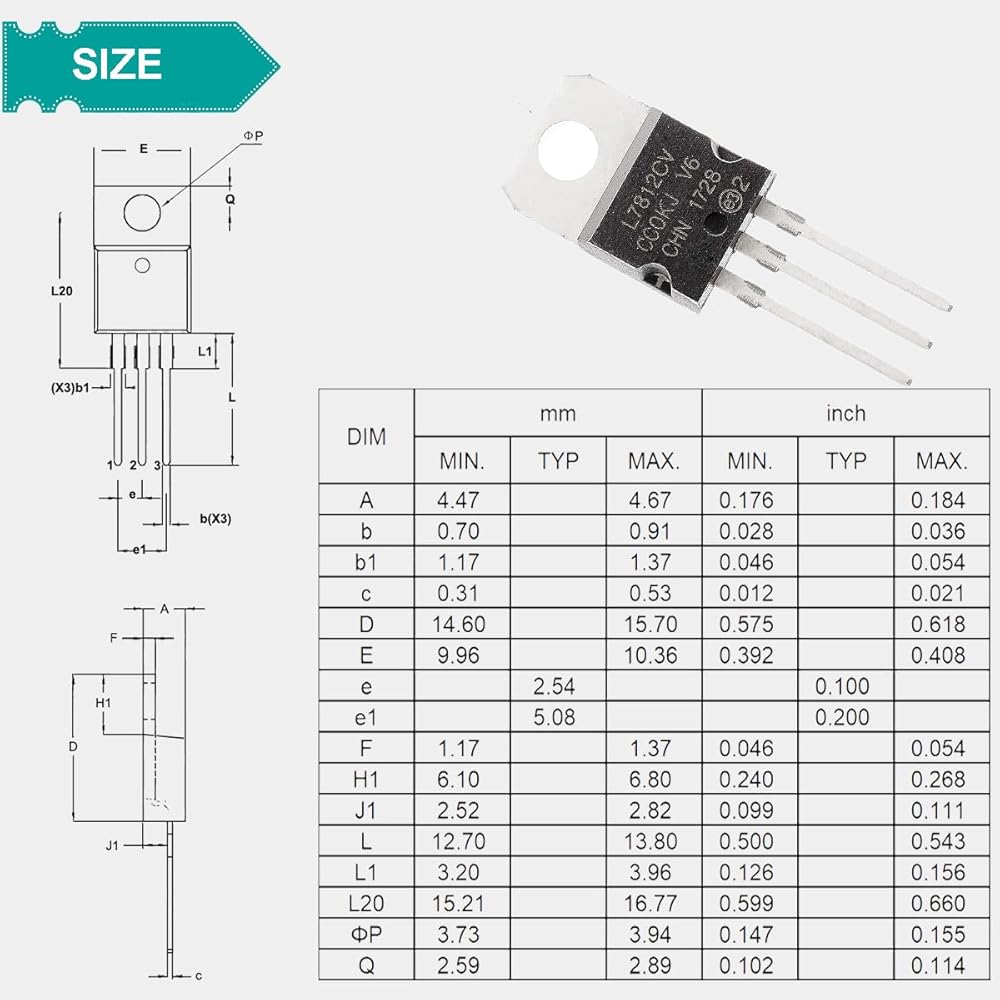

Package / Case:TO-220
Protection Features:No external compensation component is required, and current limiting current is included to prevent the load from short-circuiting and burning components.

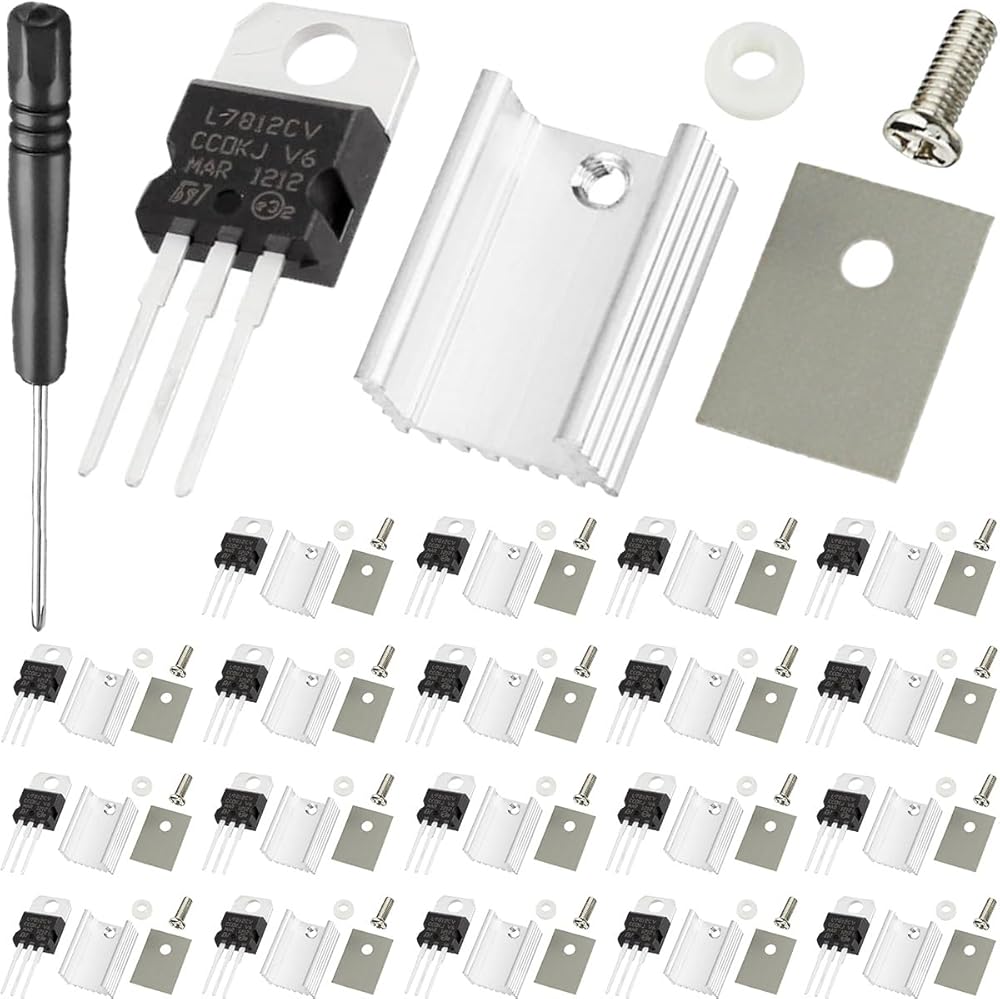

Package includes:
20 x L7812CV Voltage Regulator
20 x Heatsink
20 x Rubber Silicone
20 x Screw washer
1 x Screwdriver

مرحبًا،

بحث

L7812CV L7812 منظم جهد كهربائي ثلاثي الأطراف TO-220 منظم جهد ترانزستور مخرج 12 فولت 1.5 أمبير منظم جهد خطي IC مع مجموعة تركيب مفك براغي من الألومنيوم (20 قطعة)
