IDC16 2x8 دبابيس ذكر رأس لوحة القطع موصل كتلة المحطة مع أقدام تركيب السكك الحديدية DIN البسيطة
مميزات خاصة

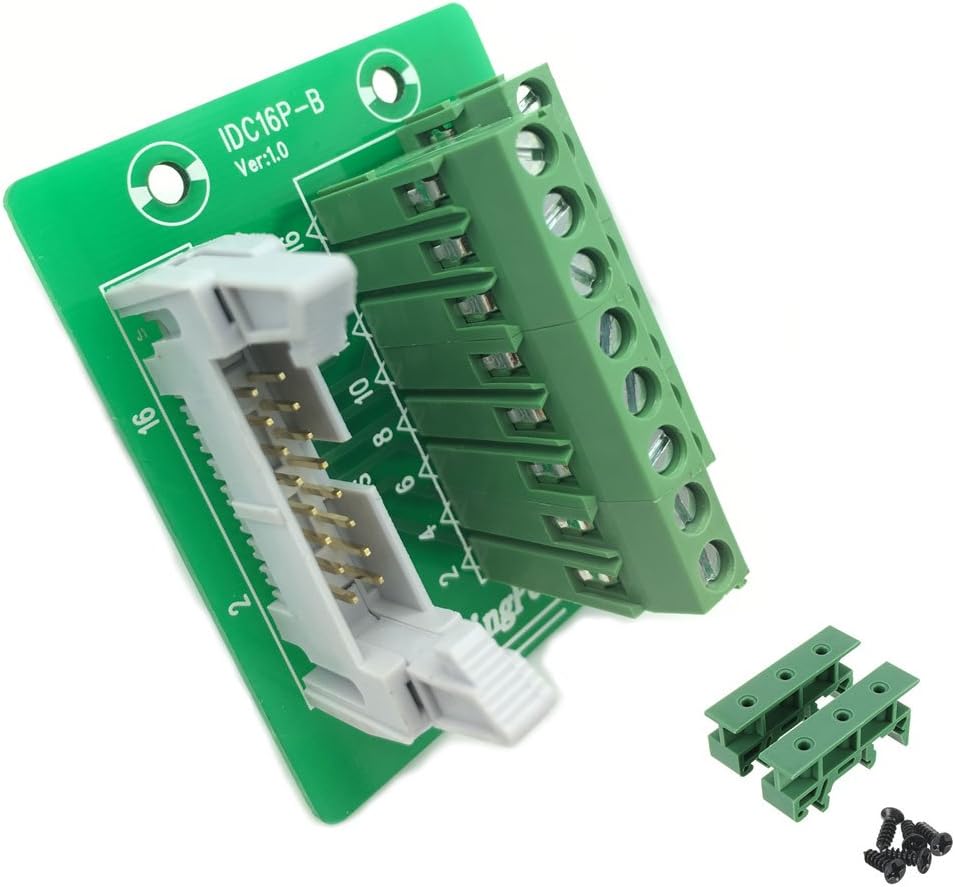

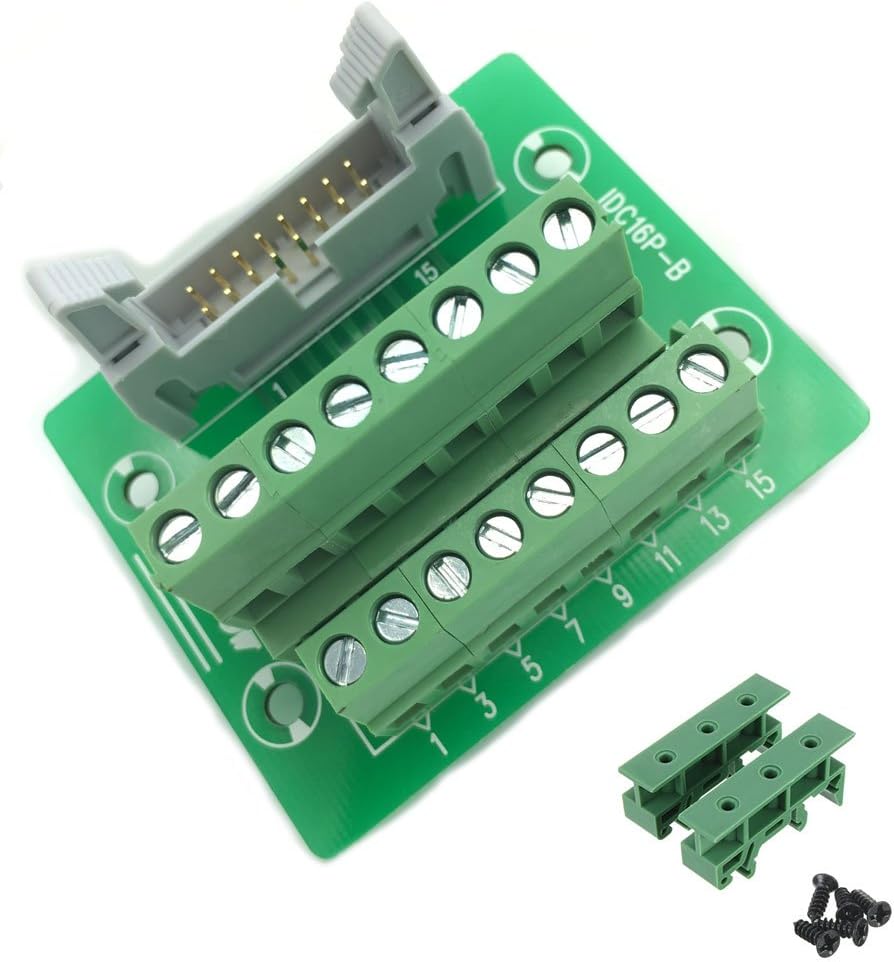

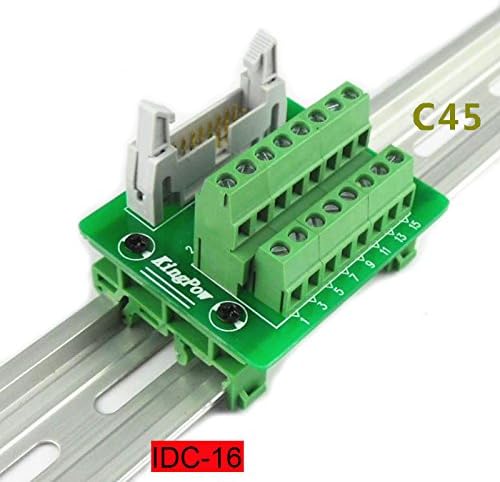

- IDC-16 Interface Module with Simple DIN Rail Mounting feet.
- IDC pin pitch 2.54mm/0.1" male header connector.
- Pitch 3.81mm/0.15" screw terminal block.

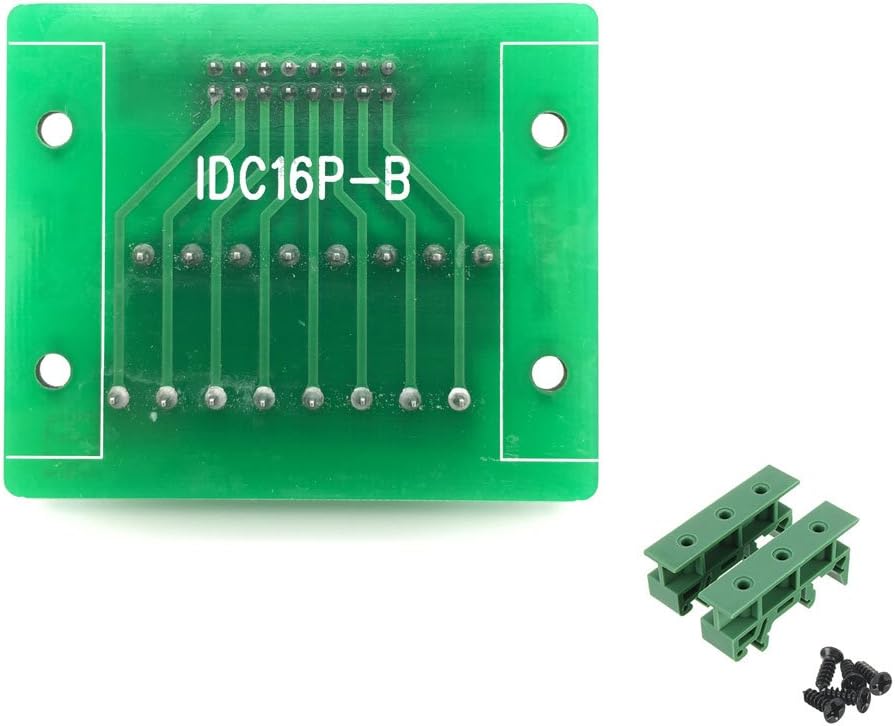

- FR-4 fiber glass PCB, dual copper layers.
- PCB dimensions: 51 x 61mm(L x W).
وصف
IDC-16 Interface Module with Simple DIN Rail Mounting feet.
IDC pin pitch 2.54mm/0.1" male header connector.
Pitch 3.81mm/0.15" screw terminal block.

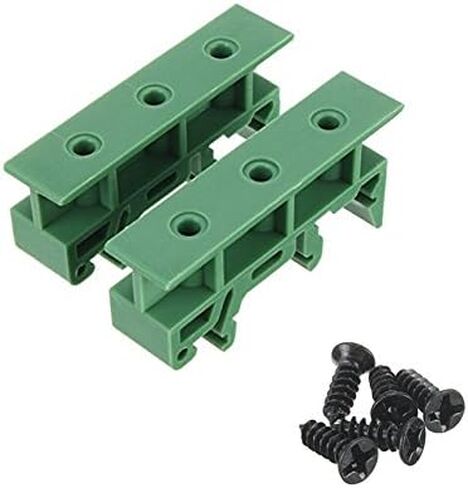

Sample DIN Adapters (Feet): for width 35 / 32 / 15mm DIN rails.
FR-4 fiber glass PCB, dual copper layers.

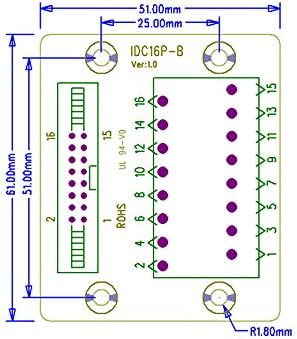

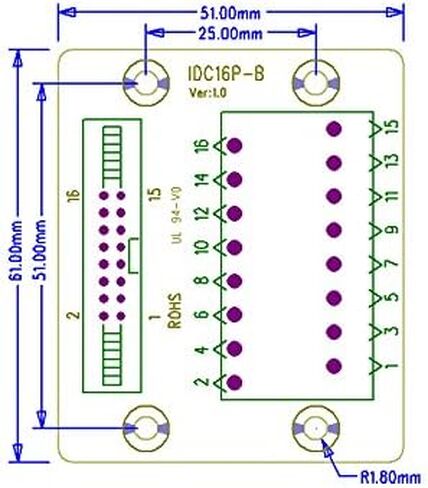

PCB dimensions: 51 x 61mm(L x W).
100% new, never used.
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
