【Product name】: 3-pin XLR metal panel mount female socket.
【High Quality】: This microphone connector adapter shell is made of high quality all metal, which provides the best overall RF protection, black metal shell, pure copper gold-plated pins, to ensure electrical conductivity, dustproof and waterproof, and the connection is firm and not easy to loosen. Has good contact performance and good flame retardancy. Overall size: 30.5x25.5mm/1.20x1.00 inches.
【Features】: Connector Type: XLR 3-Terminal Female, XLR Female Panel Mount Receptacle, with unique cage contacts, enhance conductivity and reduce wear when mated with female, easy to install. Can be used in microphone connection/audio electronics, amplifier cable applications.
【Application】: The 3-pin XLR female jack panel mount connector is mainly used for docking with the 3-pin card ohm male. It is suitable for mixing consoles, power amplifiers, audio equipment, etc. It is the first choice for public broadcasting and karaoke sound engineering.
【Package Included】: 3-pin XLR metal female jack, we offer a 90-day money-back risk-free purchase guarantee.

وصف

Product Description:

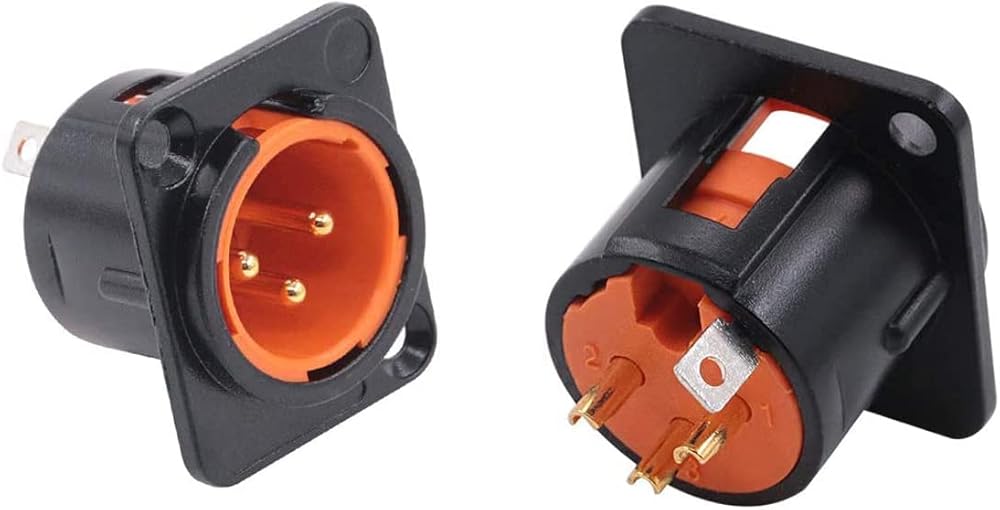

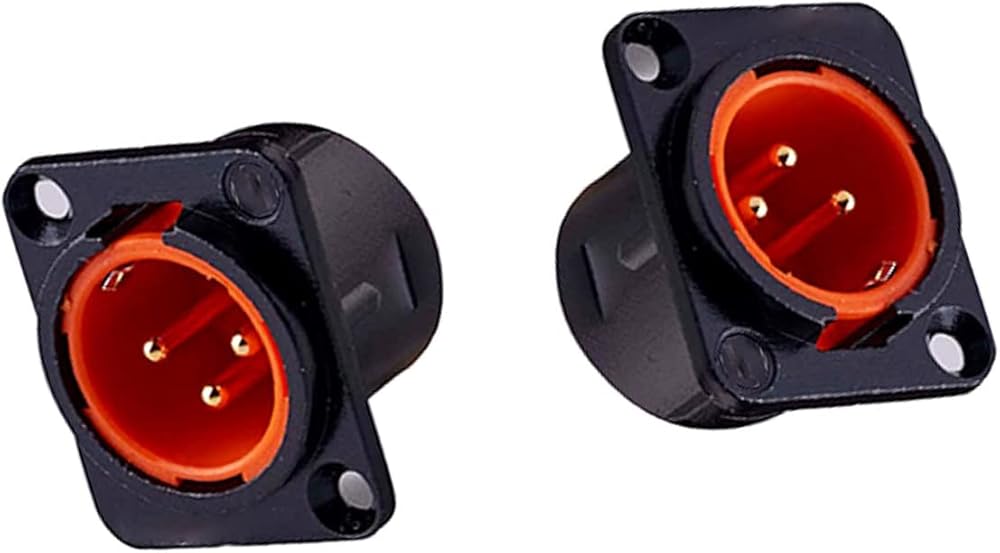

Name: XLR 3-pin Female Jack.

Feature:

XLR 3 terminal male straight 3 terminal PCB panel mount socket for professional audio equipment.

This speaker panel mount connector is primarily intended for use with a four-pin card ohm-female connector. It is suitable for mixing consoles, power amplifiers, audio equipment, etc. It is the first choice for audio projects such as karaoke, concerts, and public broadcasting.

Specification:

Material: aluminum alloy

Color: black yellow

How to use: Wiring

Connector Type: XLR 3-Terminal Female

Number of contact pins: Gold-plated 3 pins

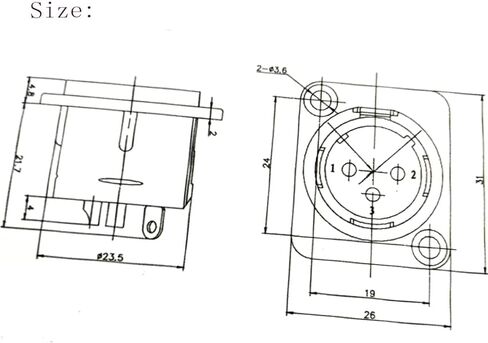

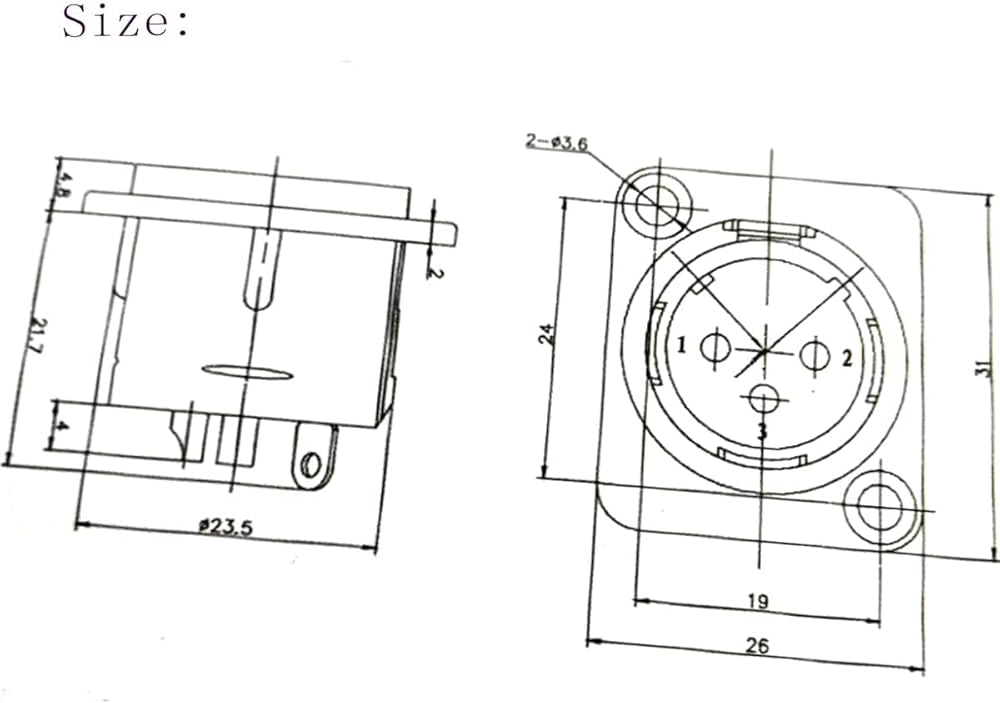

Pitch: 26mm/1.02"

Aperture: 3.2mm / 0.12"

Mounting Diameter: 31mm/ 1.22"

Overall size: 31x26mm/1.22x1.02 inches (L*W*H)

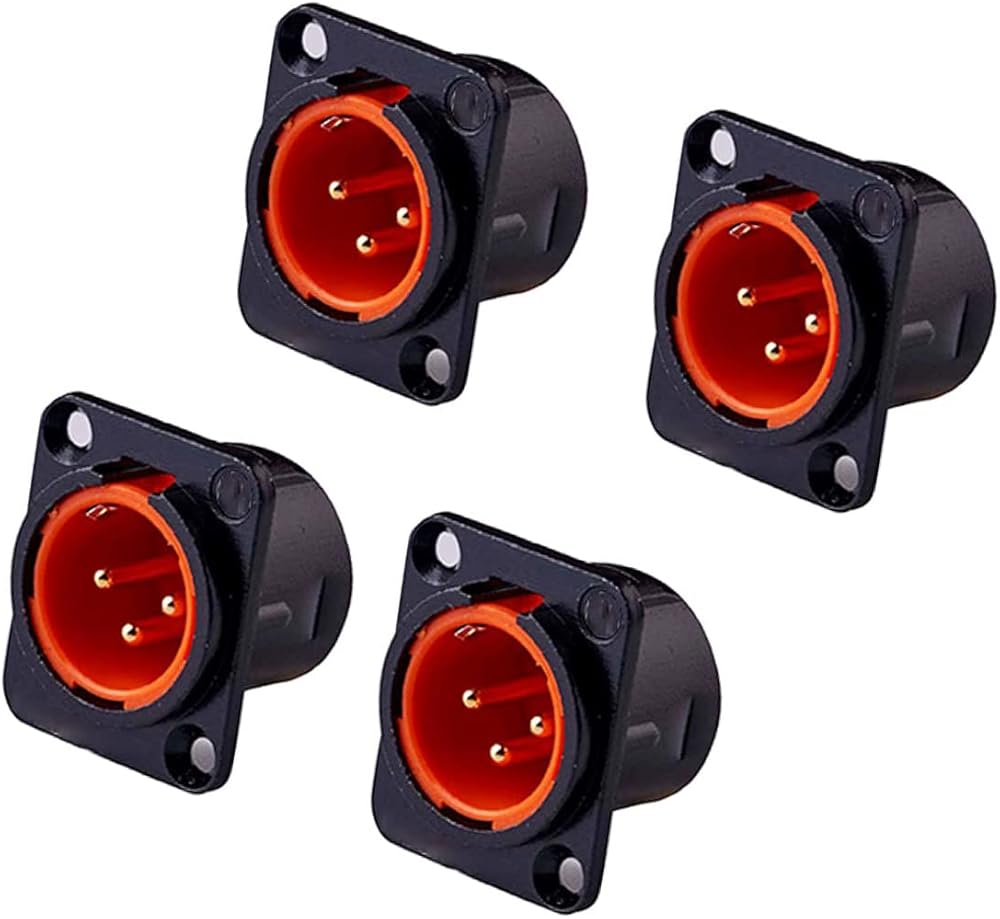

Package includes: 4pcs x XLR metal female jack panel mount.
