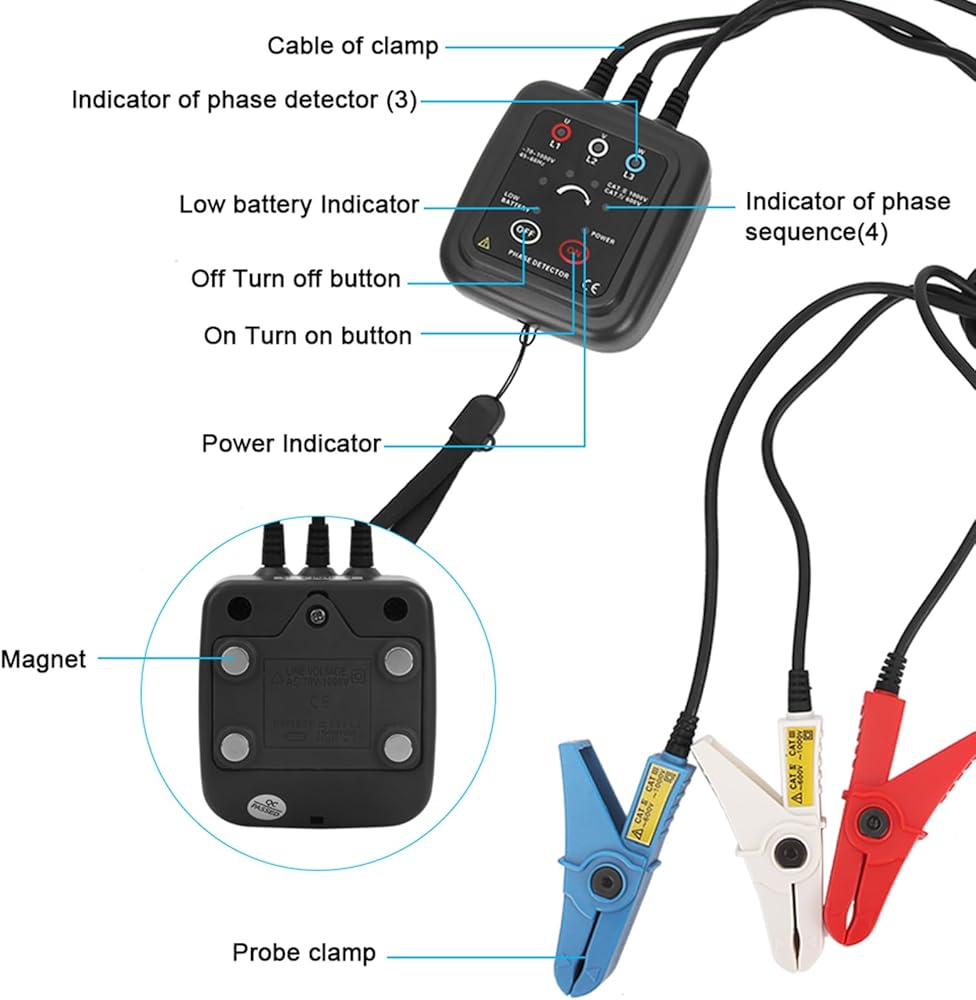

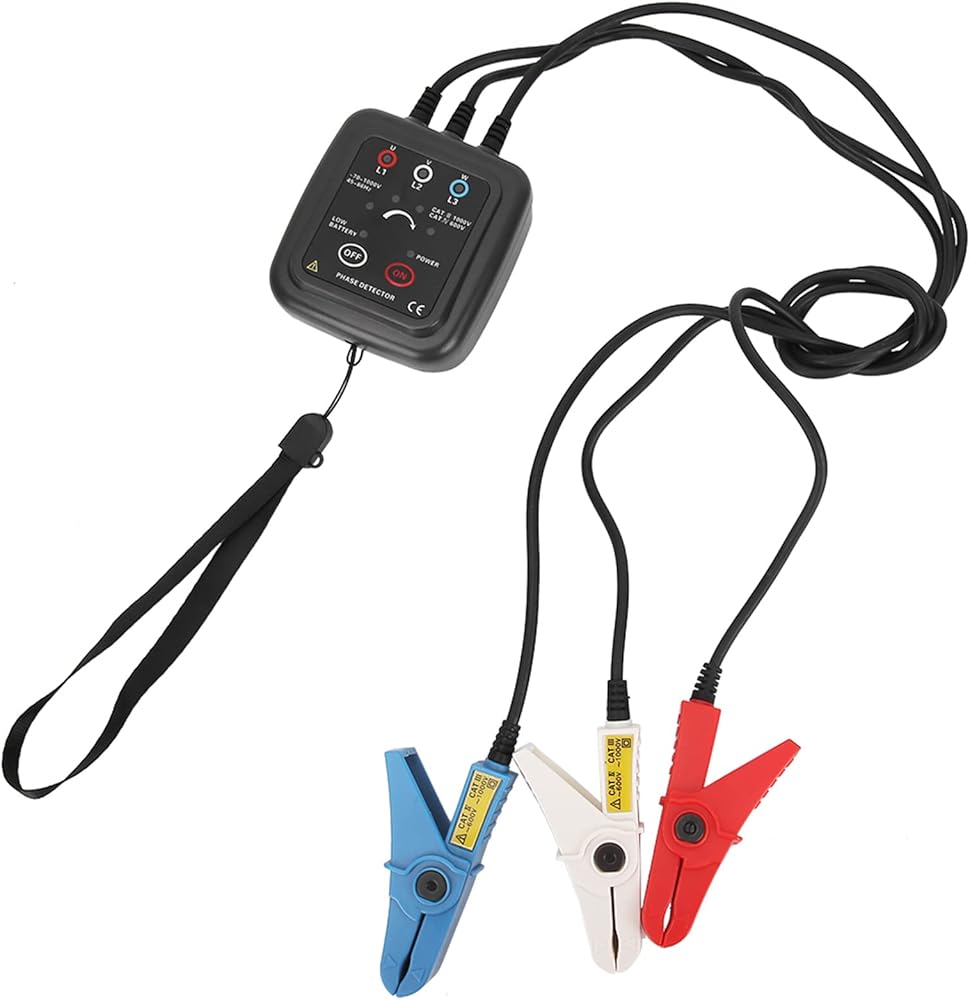

[SAFE AND FAST NON-CONTACT MEASUREMENT] The AC 70-1000V ETCR1000C Phase Meter uses clamp type non contact inductive measurement, allowing you to detect phase sequence without opening wires or touching high-voltage exposed wires.

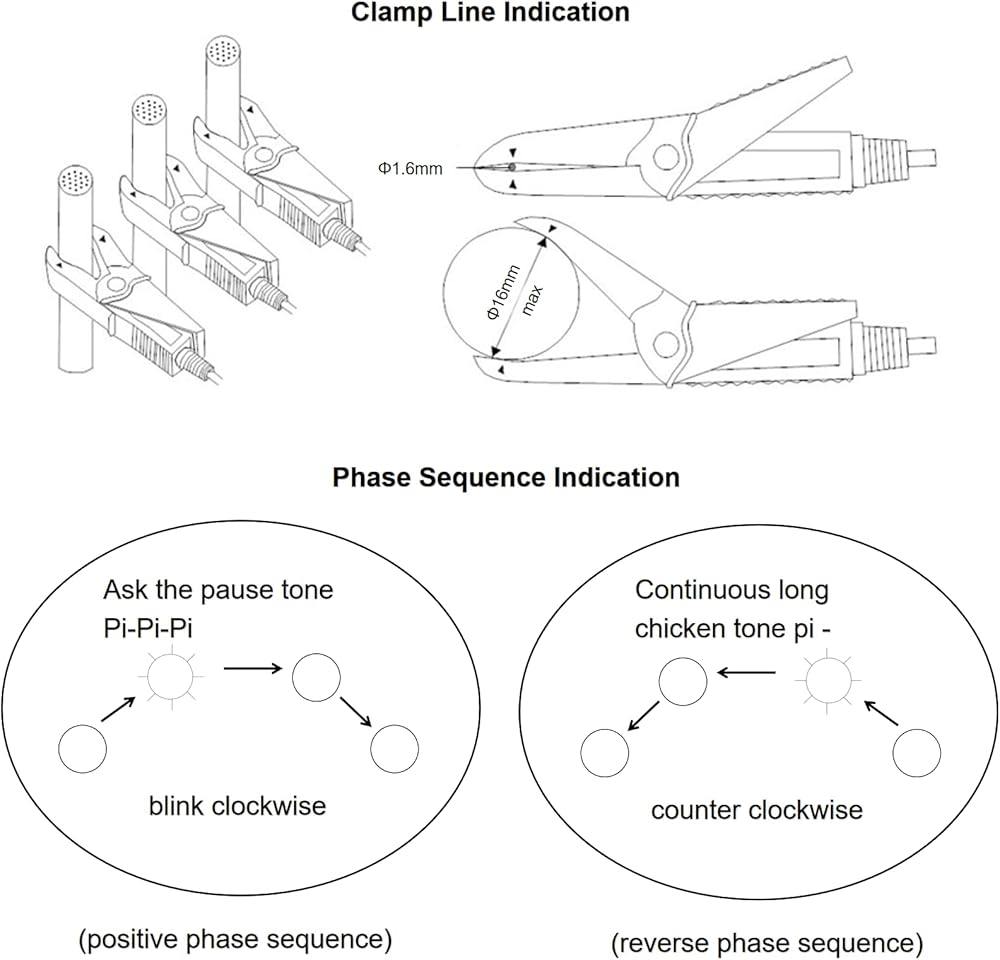

[CLEAR INDICATION] With dynamic sound and light, this detector clearly indicates the positive or negative phase sequence of the three-phase power supply. The four phase-sequence lamps light in order for positive or negative phase sequence, making it easy to understand at a glance.
[VERSATILE FUNCTIONS] This phase sequence detector not only detects phase sequence, but also performs live line check, simple power check, live wire identification, phase loss judgment, wire break position search, DC line break point detection, and line maintenance.

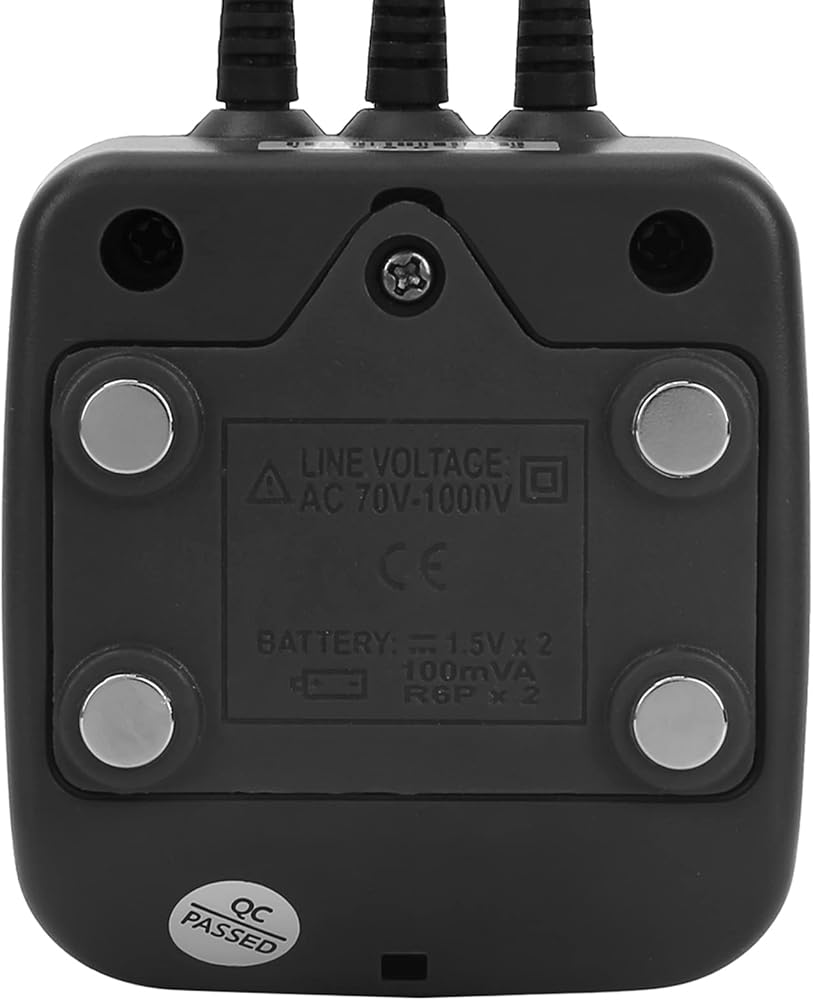

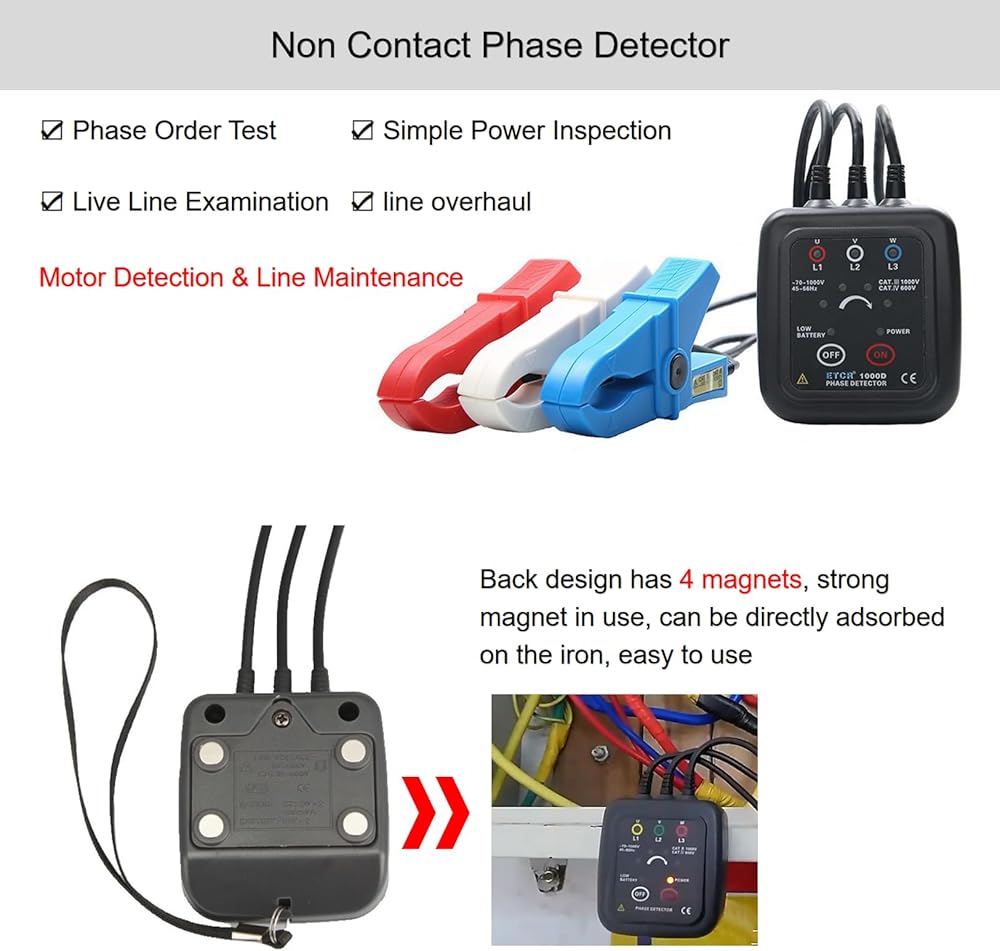

[CONVENIENT MAGNETIC BASE] Equipped with 4 magnets on the bottom plate, this phase meter can be easily attached to the metal casing of equipment during testing, providing convenient and secure operation.
[LONG BATTERY LIFE AND DURABLE DESIGN] Powered by 2 AA alkaline dry batteries, this phase detector can continuously work for 70 hours. It is also designed with high-quality insulation clamps and can withstand 800g quality.
وصف
Magnetic force Four magnets on the back of the meter, which are attached to the distribution box and can withstand 800g quality.
Auto Power off After 5 minutes, the meter automatically cut off power supply.
Meter Dimension Width, height, thickness 70mm*75mm*30mm

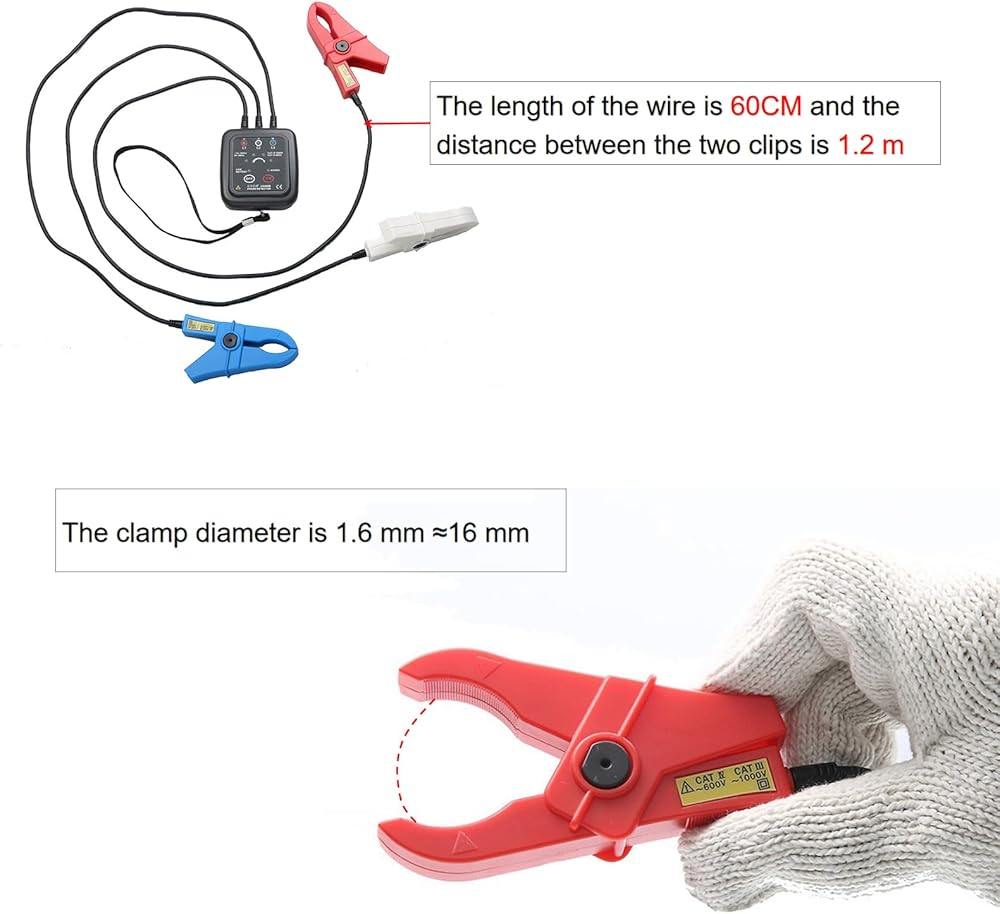

Clamp Length 0.6m
Weight 317g
Working Temperature and Humidity -10℃-55℃; below 80%for for RH
Storage Temperature and Humidity -20℃-60℃; below 90%for for RH
Maximum Measured Voltage AC 1000V
Dielectric Strength 5.4kVrms
Maximum rated Power 100mVA
Safety Provisions EN61010-1: 2001, EN61010-031: 2002, Pollution 2, CAT 3 (600V), Transient over-voltage 6000V

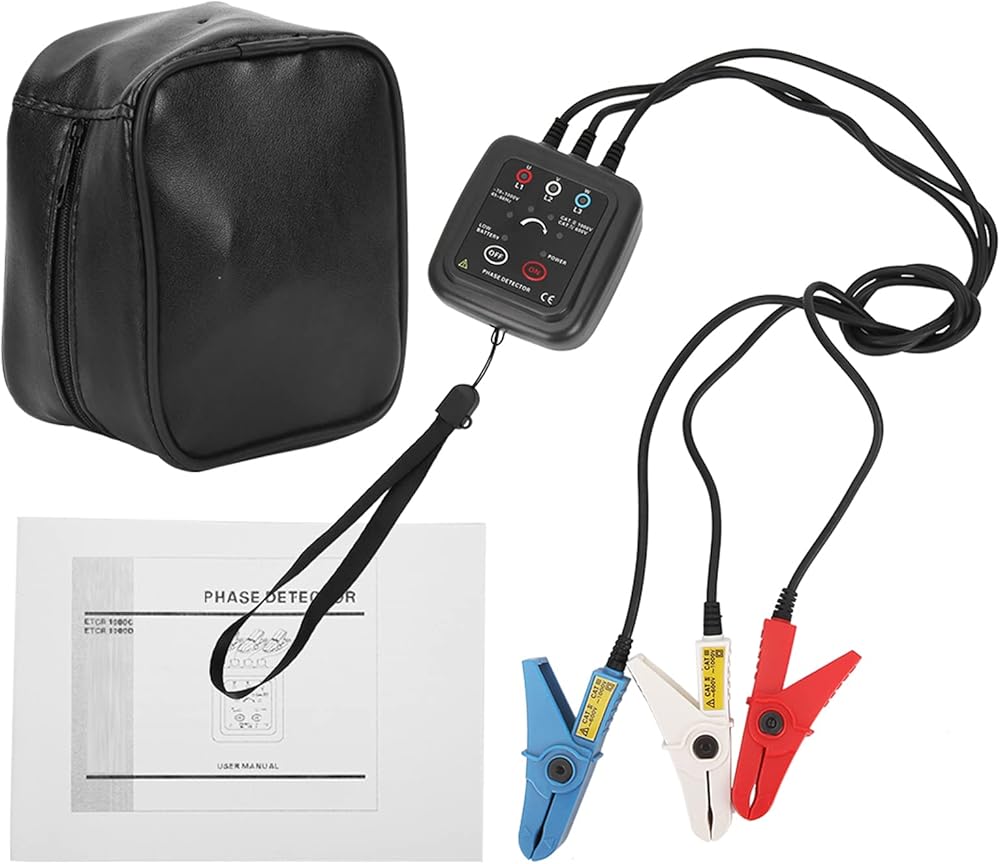

Package list:
1 * Non-Contact Phase Sequence Detector

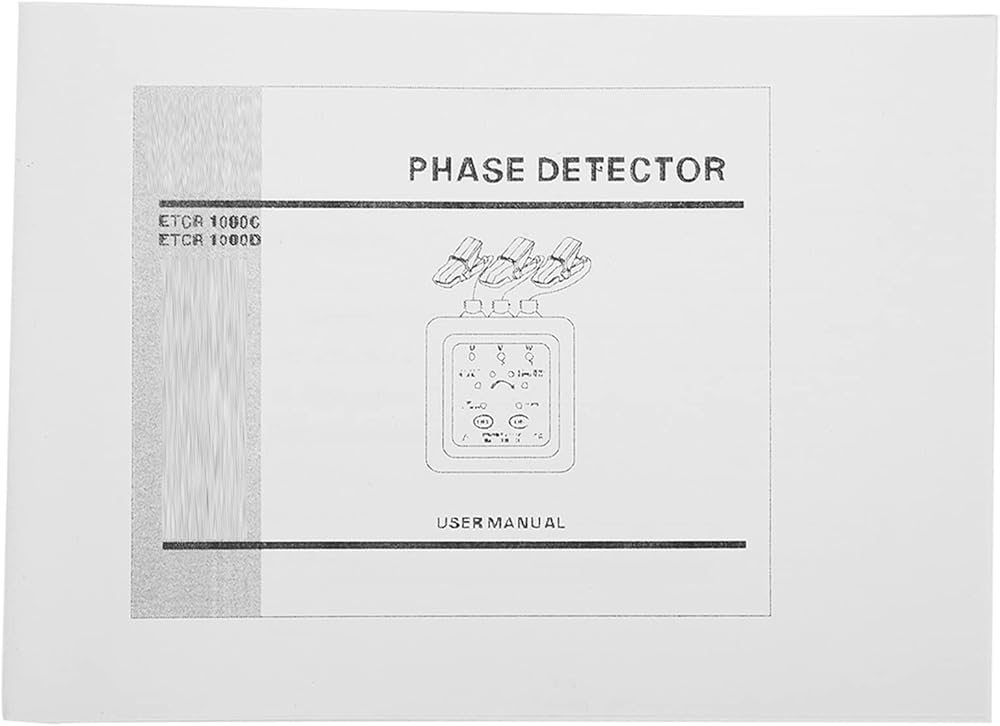

1 * User Manual
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
