ESP32S ESP32 ESP-WROOM-32 لوحة تطوير 2.4 جيجا هرتز ثنائي النواة واي فاي + بلوتوث 2 وظيفة وحدة تحكم دقيقة لاردوينو (ESP32 38P Type-C، 3 قطع) in Kuwait

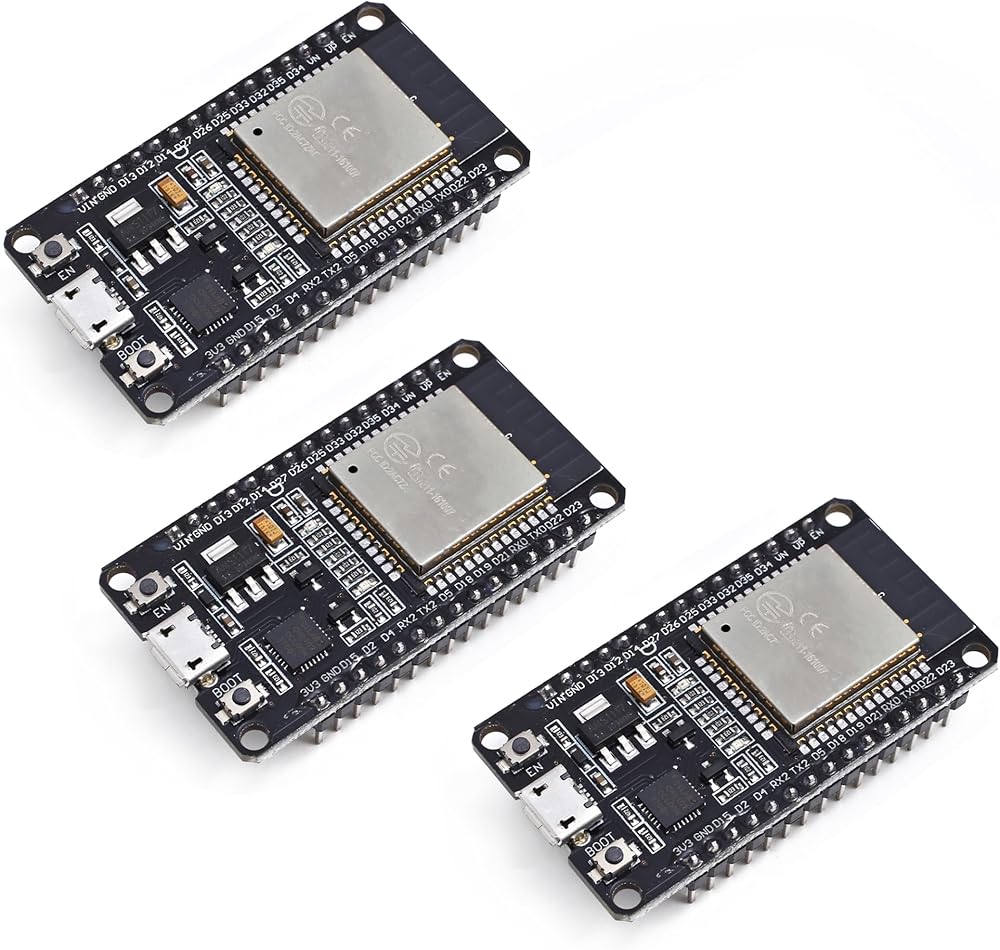

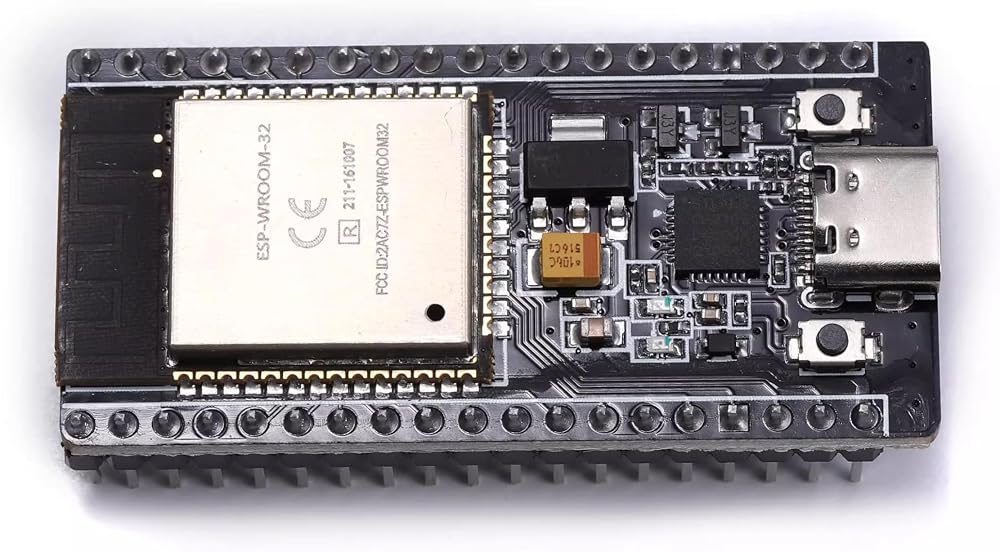

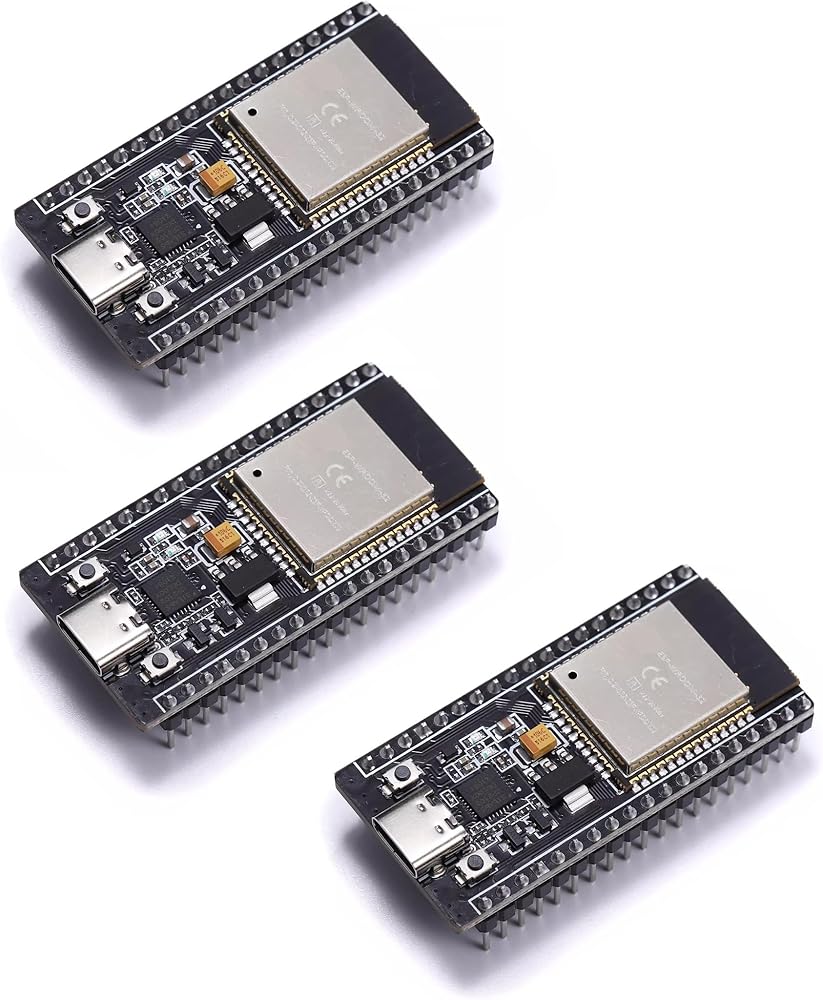

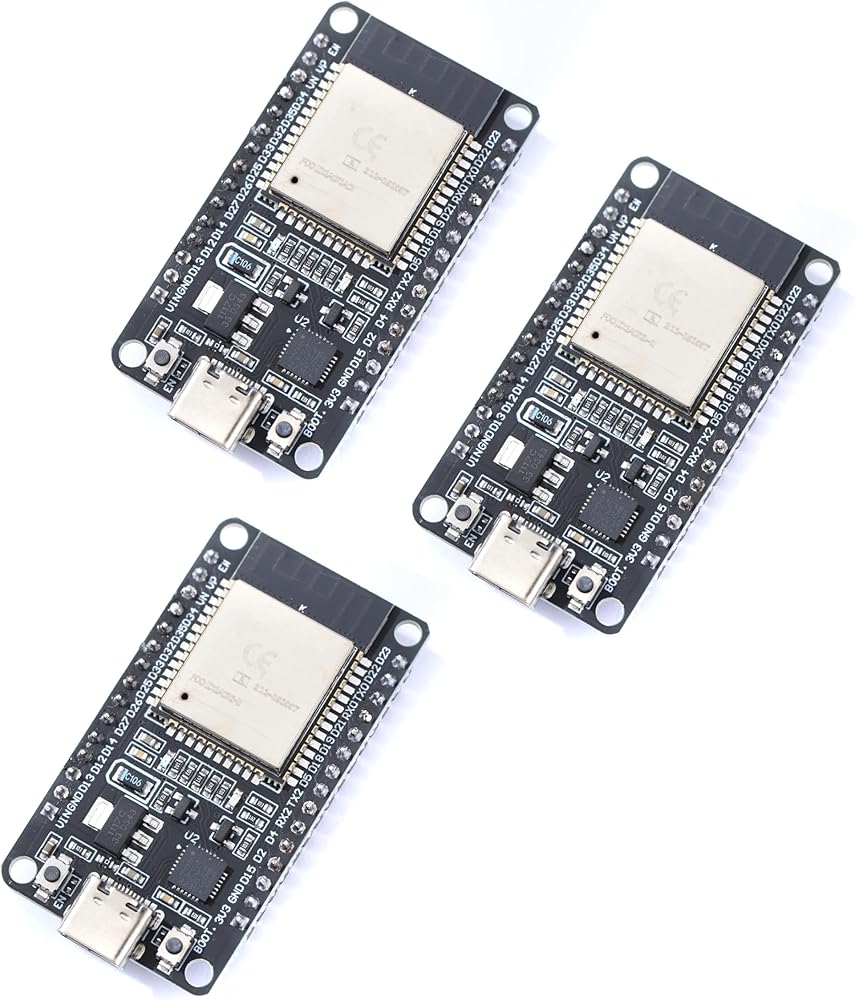

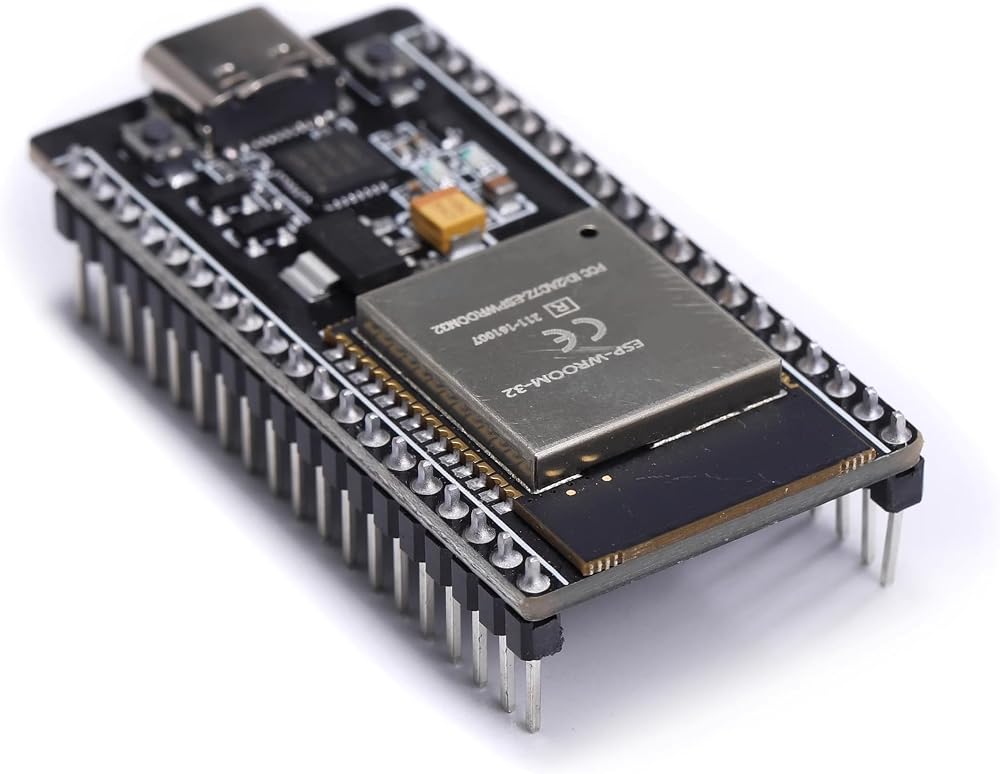

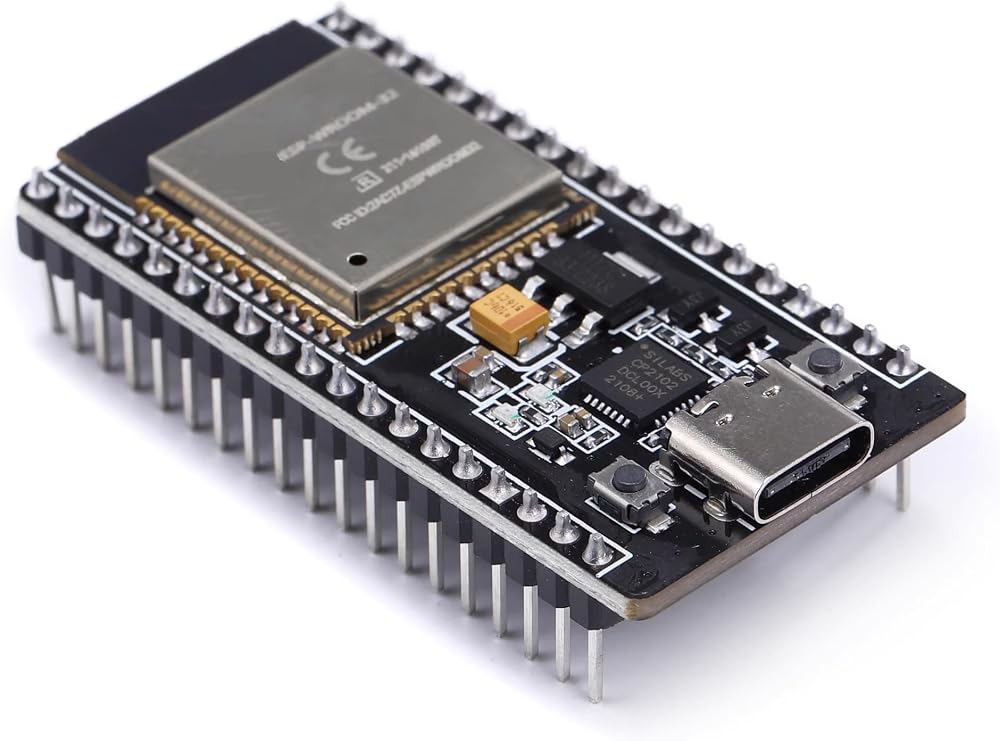

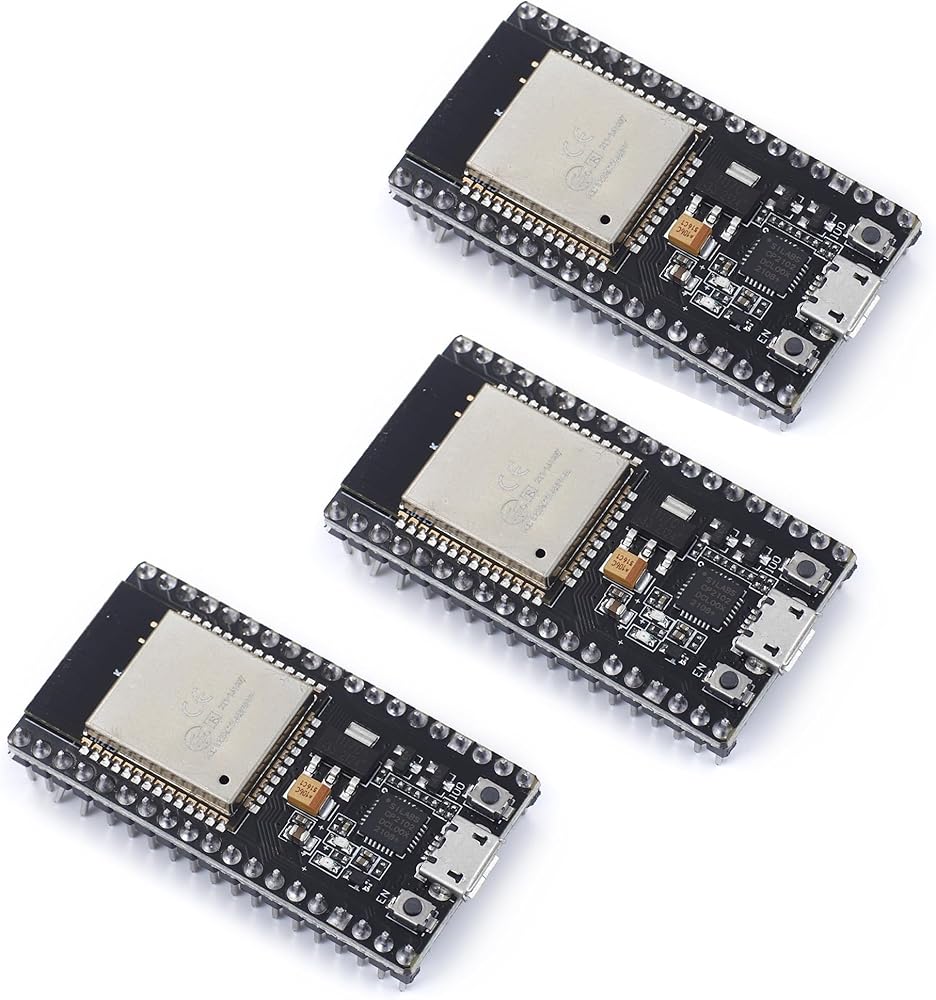

ESP32S ESP32 ESP-WROOM-32 لوحة تطوير 2.4 جيجا هرتز ثنائي النواة واي فاي + بلوتوث 2 وظيفة وحدة تحكم دقيقة لاردوينو (ESP32 38P Type-C، 3 قطع)

KWD 7
مقاسESP32 38P نوع ج
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • If you think you have received the wrong product, please contact us and give us a chance to correct it,We also have tech support, just contact us on Amazon,thank you.

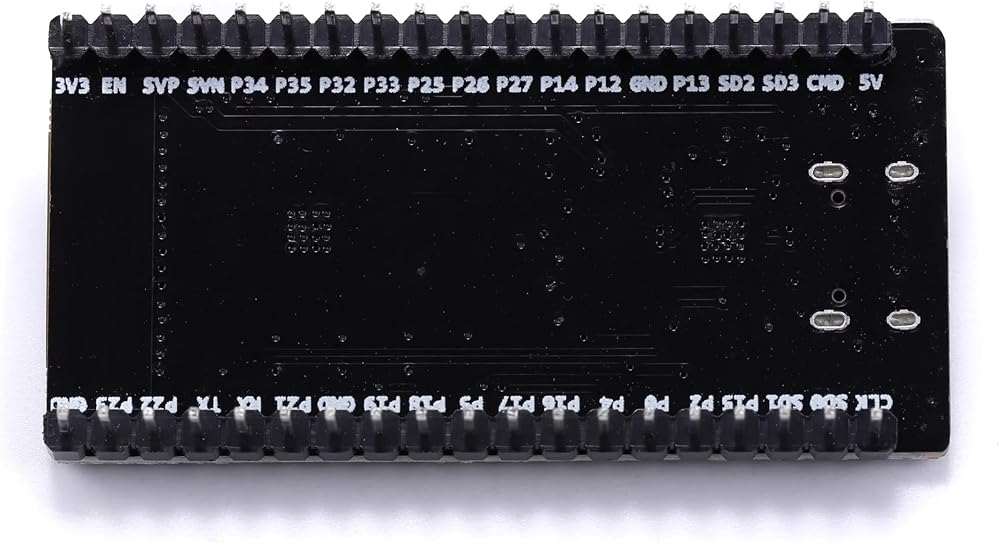

  • 1. The Development Board continues 1.0 classic design, eliciting most I/O to both sides of the needle, developers can connect peripherals according to their own needs.
  • 2. When using breadboard for development and debugging, the standard needle arrangement on both sides can make the operation more simple and convenient.
  • 3.small volume. Easy to embed into any product
  • 4.Powerful, support LWIP protocol, freertos
  • 5.Support three modes: AP, STA, AP+STA coexistence mode
  • 6.in Arduino IDE，choose ESP32 DEV
  • 7.The maximum operating voltage of the ESP32 is 3.3V. The ESP32 has an on-board voltage regulator that can withstand voltages up to 5V using the VIN and GND pins. Once a voltage is input to the ESP32 development board's VIN pin, that voltage is passed through the ESP32's on-board voltage regulator (AMS1117), which outputs a constant 3.3V, which is the board's operating voltage. Note: The maximum operating voltage of the ESP32 is 3.3V. The maximum voltage that can be applied to the ESP32 Development Board from the VIN pin is 5V. The maximum voltage that can be applied to the ESP32 Development Board from the VIN pin is 5V.USB power supply is 5V.
  • 8.you need to driver the CP2102 before you can start using it
  • 9.32S is the core development board based on ESP-32S module.

وصف

This board is already soldered! Data Feature: Complete microcontroller with WLAN (802.11bgn) and Bluetooth (Classic and LE). Reset and boot buttons are available, so a new firmware can be quickly and easily installed. The development board combines a CPU with 2 Tensilica LX6 cores, clocked at up to 240 MHz, and 512 kilobytes SRAM in a single microcontroller chip. Warm Tips: When you download the program to development board, you need to press the IOO button for 1-2 seconds. 38P and 30P board sizes and circuit layouts are different.
