12V charger power control board, automatic power-off charging.
Continental terminals, safety and environmental protection materials, input and output ports to ensure safe and reliable.

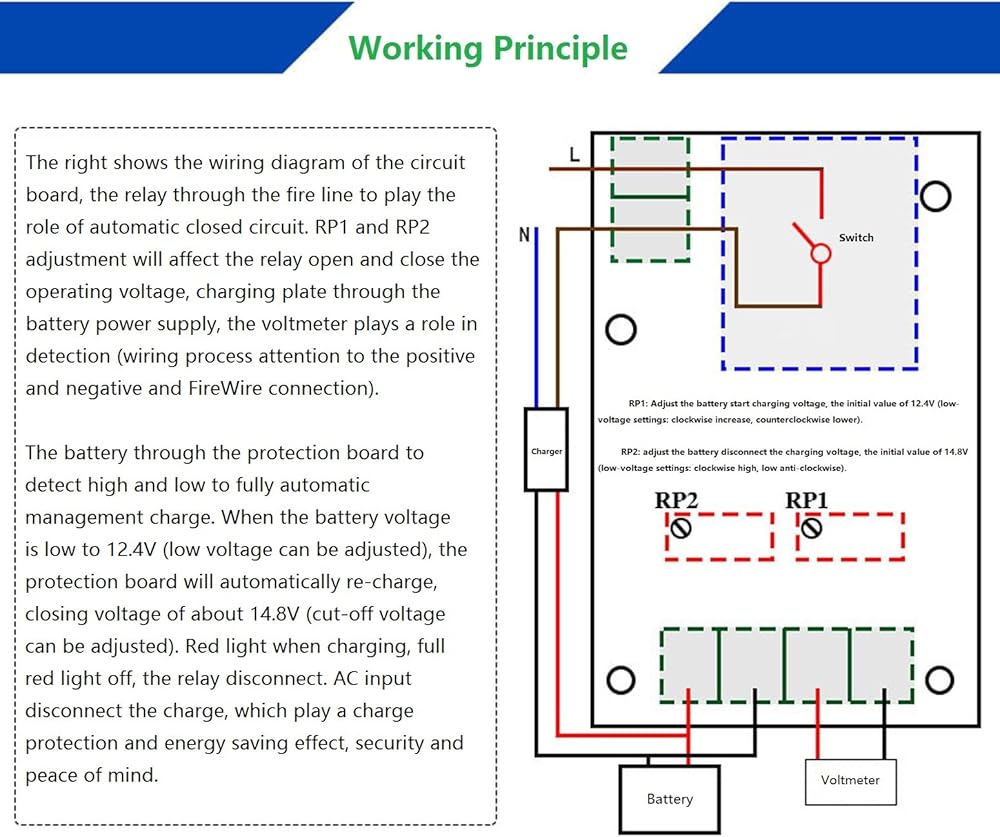

Charging / off potentiometer: RP1- adjust the "Start" charge voltage (low-pressure setting: clockwise rotation becomes high and low counter-clockwise) Factory setting 12.4V; RP2: adjustment " off" charge voltage (low pressure setting : clockwise rotation becomes high and low counterclockwise) factory is 14.8V.

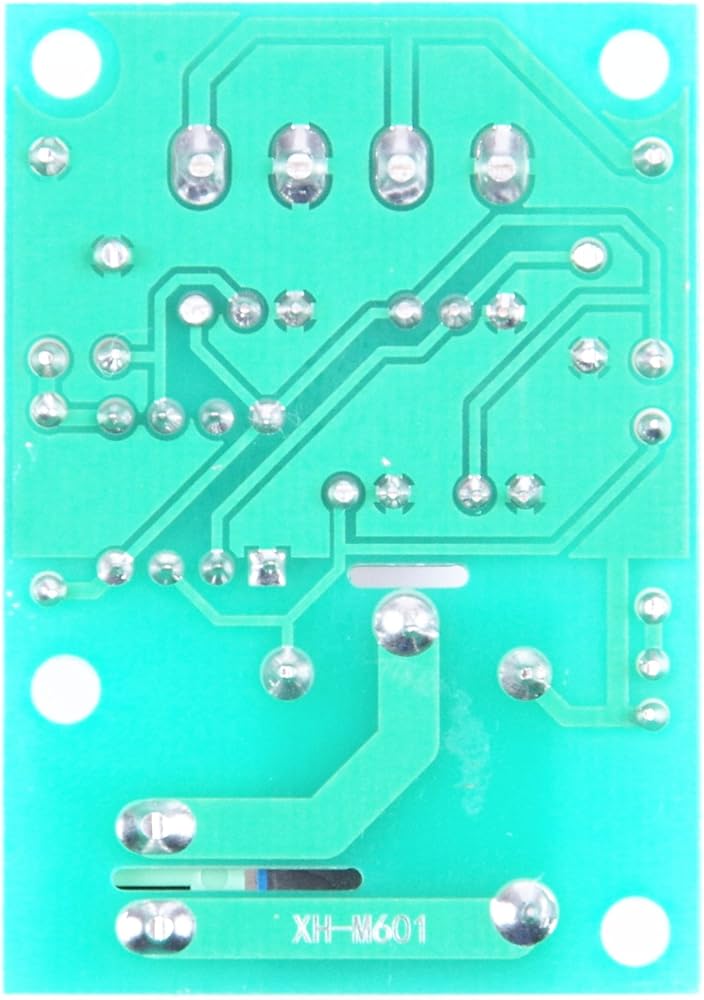

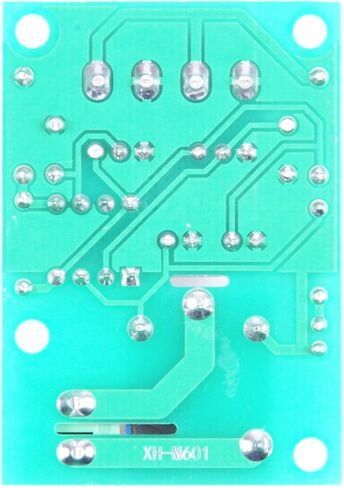

Using military grade 1.6mm thick circuit boards, high-quality components to ensure product quality.

وصف

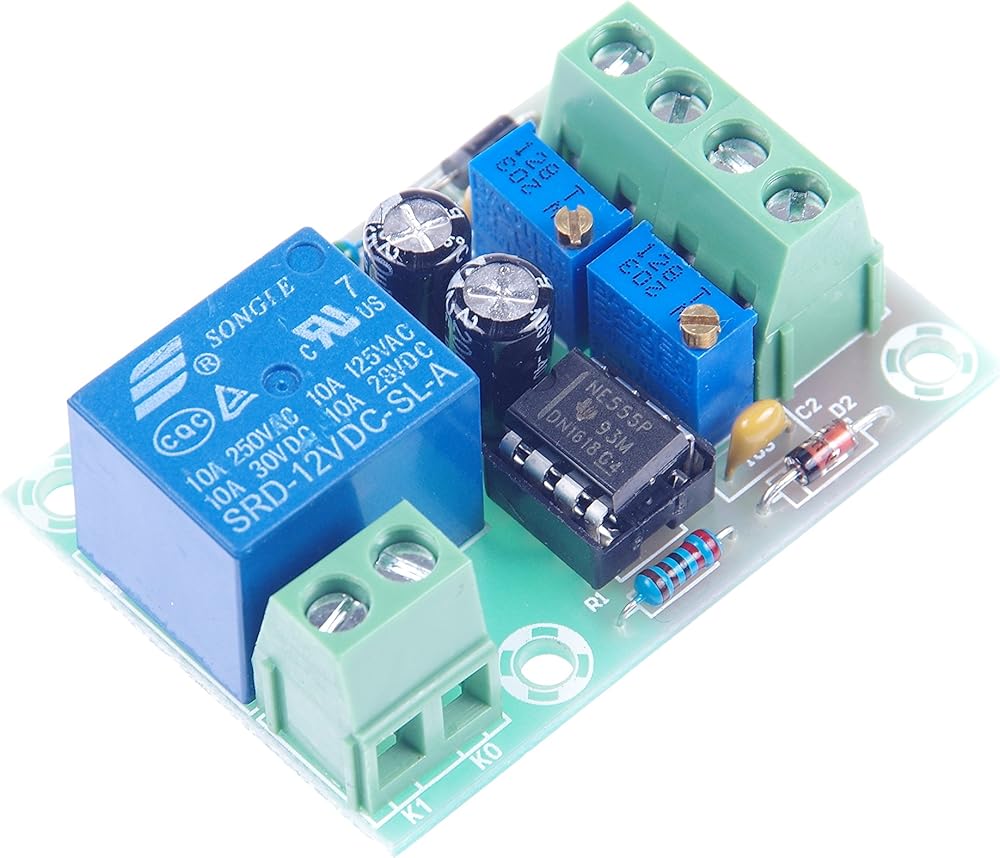

Product Name: 12V charger power control board.
Supply voltage: 13.8V ~ 14.8V.
Relay closed voltage: 12.4V.
Relay off voltage: 14.8V.
Voltage error: ¡À 0.1V.

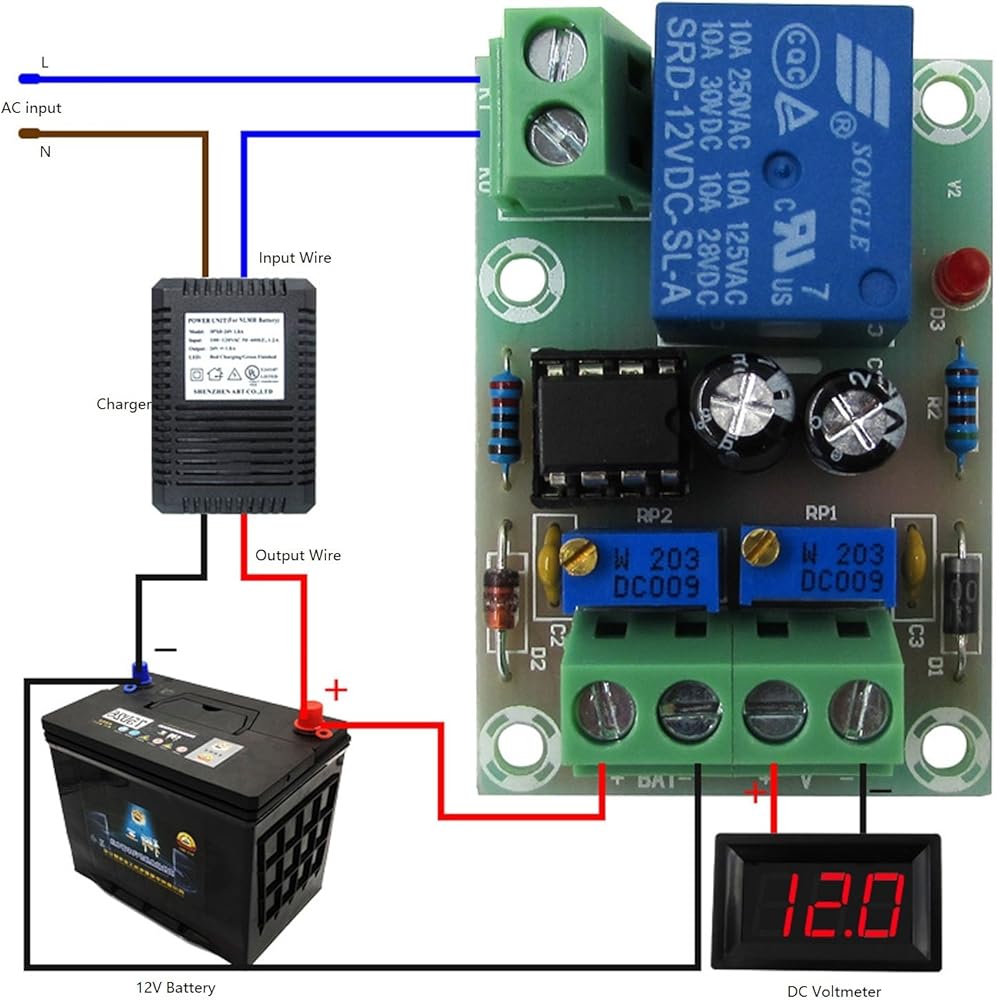

Voltage detection method: DC voltmeter.
Battery Charger Type: 12V battery.

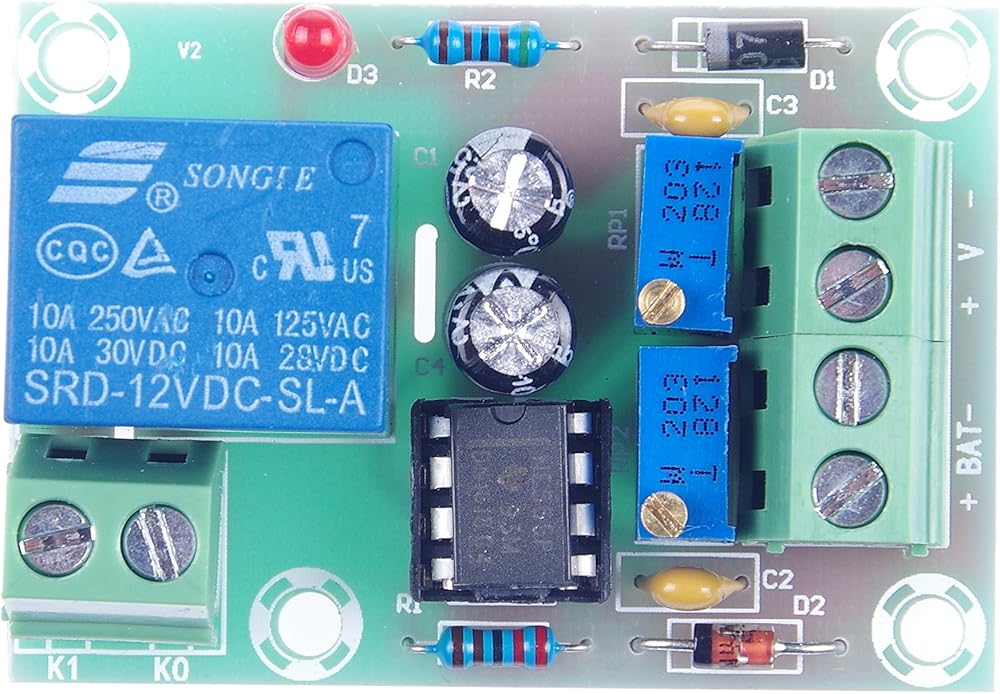

Potentiometer adjustment: RP1 RP2 (careful adjustment).

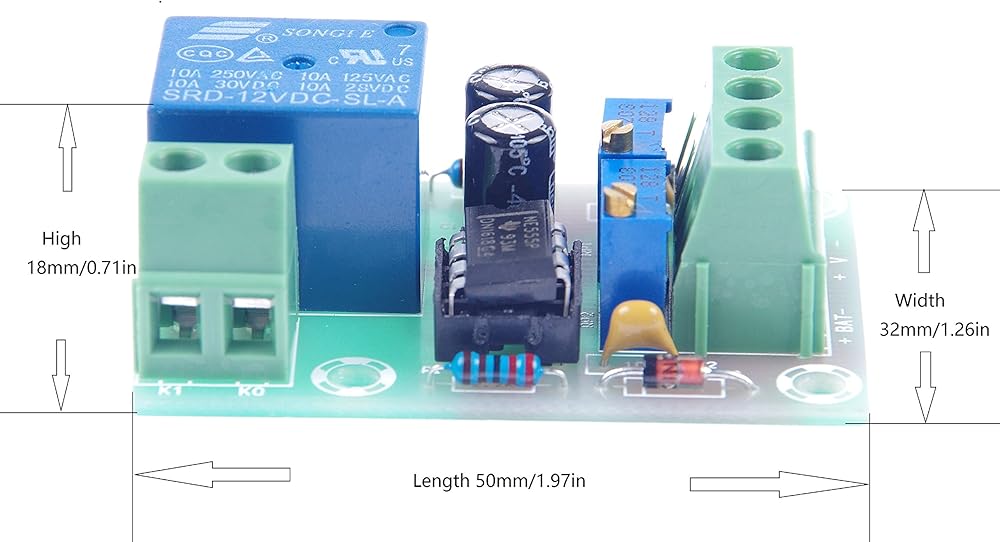

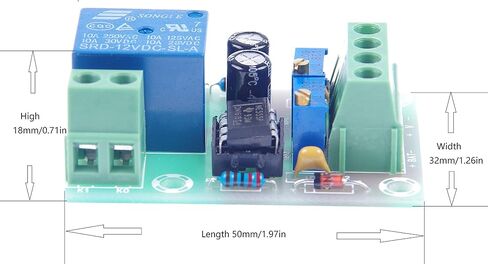

Product size: 50 * 32 * 18mm (L * W * H).
Weight: 27.5g/0.97oz.
Warning:
RP1 RP2 Do not arbitrarily adjust, Not connected voltmeter can not be adjusted more to prevent the voltage is mixed up users do not realize.
Package included:
1*12V charger power control board.
