مميزات خاصة

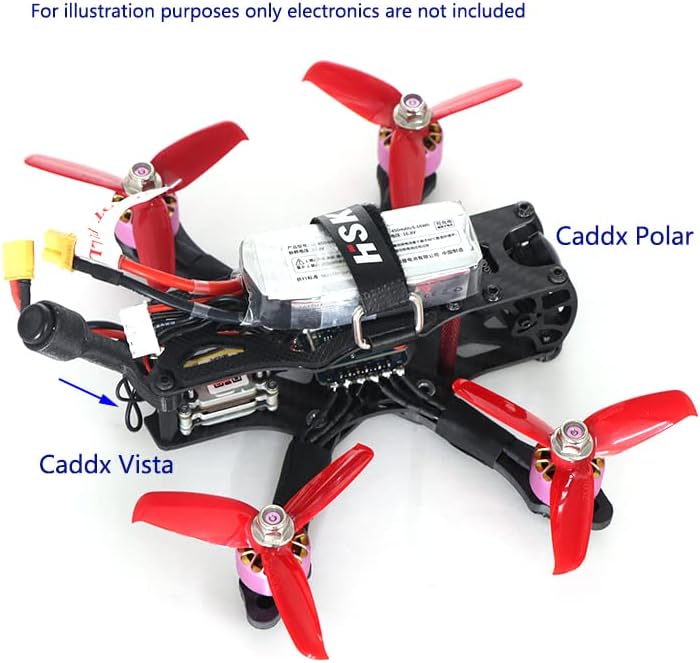

★Specially designed for Caddx vista which gives you a total new level of fpv experience. Camera is well protected with side plates.
★Durable: This 3 inch micro frame is made of high-quality 3K Carbon Fiber, 4mm thick arm , designed to sustain multiple crashes and abuses
★Powerful: Perfect combination with brushless motors with 9*9/12*12MM mounting holes including 1404/1406/1408/1506/1507/ brushless motors,etc.
Suit for 20*20MM (M2) flight controller. Inner height of the frame: 25MM. Weight: about 90g( all parts included)
A tiny quad of this kind of form factor would be perfect to fly backyard enjoying HD footage. Grab it and have fun!

وصف

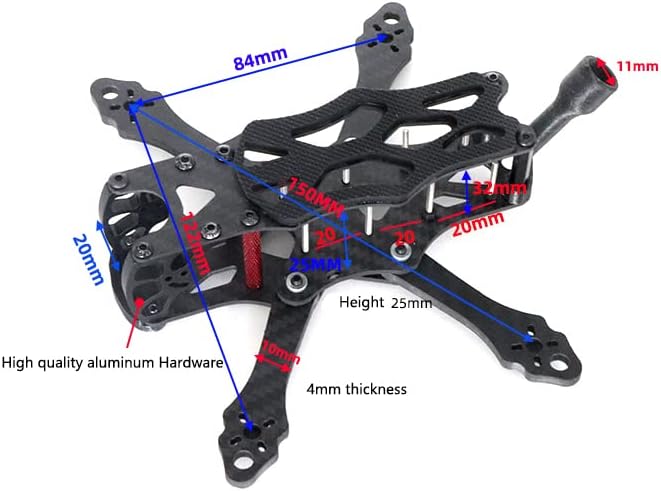

Motor diagonal wheelbase: 3 inches (150MM)
Weight: about 90g( all parts included)
Upper plate thickness: 1.5MM
Bottom plate thickness: 2MM
Arm thickness: 4MM
Inner height of the frame: 25MM
Flight controller mounting hole: 20*20MM (M2)
Camera installation hole distance: 20*20/19*19MM (with included spacer)
Motor mounting hole distance: 9*9/12*12MM (M2)

Recommended configuration:
Motor: 1404/1406/1408/1506/1507/ F2203.5 series motor
Flight control: F405 MINI/F722 MINI
ESC: MINI 20—40A 4-in-1 ESC
Battery: 3-45 550-1300MAH 75-120C
