Protects major appliances from catastrophic surges...even lightning. SEP-200 protects against electrical surges that can cause damage to major appliances including their sensitive electronic circuitry. Catastrophic failures and gradual component degradation can be caused by high voltage surges, which are generated by harsh weather conditions, external power problems, or day-to-day electrical component switching. Panamax also recommends using secondary plug-in protectors at the equipment you would like to protect.

The Panamax SEP-200 Indoor and Outdoor Service Entrance Protector – Protect Your Major Appliances SEP-200 protects against electrical surges that can cause damage to major appliances including their sensitive electronic circuitry. Catastrophic failures and gradual component degradation can be caused by high voltage surges, which are generated by harsh weather conditions, external power problems, or day-to-day electrical component switching.
Use the SEP-200 indoors or outdoors

Protects Up to 400 Amps

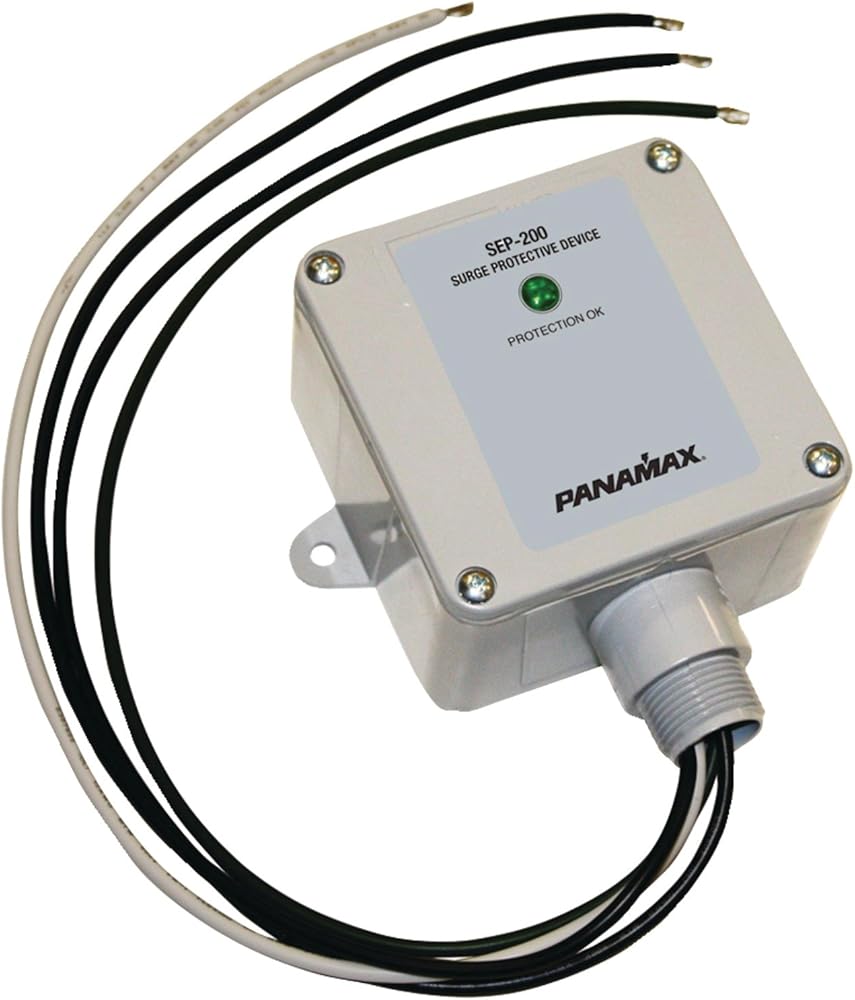

AC surge protector permanently connected to main service panel. SEP-200 Service Entrance Protector features a compact chassis for easy installation, visible diagnostic LED, 120/240 V, 1 Phase, 3 wire plus ground. For use with panels rated up to 400 Amps.

The SEP-200 protects against electrical surges that can cause damage to electric and electronic equipment. Catastrophic failures and gradual component degradation can be caused by high voltage surges, which are generated by harsh weather conditions, external power problems, or day-to-day electrical component switching. The SEP-200 will protect electrical equipment against surges caused by the above factors. Panamax also recommends using secondary plug-in protectors at the equipment you would like to protect.

Features Include

The ability to be installed indoors or outdoors. Rated for split or single phase panels up to 400 Amps. Includes three wires plus a ground wire for safety. The SEP-200 Service Entrance Protector meets all ANSI C62.41 requirements. Has a 700V L-N / 800V N-G voltage protection rating, UL 1449 3rd Edition. Is small (5.5 x 2.5 x 5.5 inches) and lightweight (1.25 lbs), and operates at temperature from -40 to +176 degrees Fahrenheit.

$10,000 Three-Year Limited Connected Major Appliance Protection Policy

Panamax will pay to repair or replace covered major household appliances, up to an aggregate three year total of $10,000, if the major household appliance, as defined herein, is damaged by an AC power or lightning surge. The Panamax surge protector must show signs of damage or be operating outside of design specifications.
Includes three wires plus a ground wire
()

Original owner is defined as: either the original purchaser of the SEP-200 protector or the first homeowner to reside in the residential household with the SEP-200 protector. Major household appliances are defined as the following motor driven household loads: refrigerator, freezer, oven, range, washer, dryer, ceiling fan, or dishwasher.

5 Year Product Warranty

Panamax warrants to the original owner of the Panamax SEP-200 surge protector, for five (5) years following the date of purchase of the protector, that the surge protector shall be free of defects in design, material or workmanship. Panamax will repair or replace any such defective unit during the warranty period.

Warranty Limitation for Internet Purchasers

Panamax products purchased through the Internet do not carry a valid Connected Equipment Protection Policy unless purchased from an Authorized Panamax Internet Dealer! Authorized Panamax Internet Dealers have sufficient expertise to insure warranty compliant installations.
