مميزات خاصة

【Regulate Range】 Input supply voltage: DC 10V-55V; Maximum current: 60A; Continuous current: 40A; Speed range: 0-100% ; Control frequency: 15KHZ

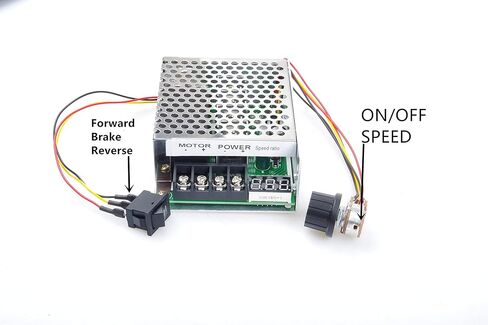

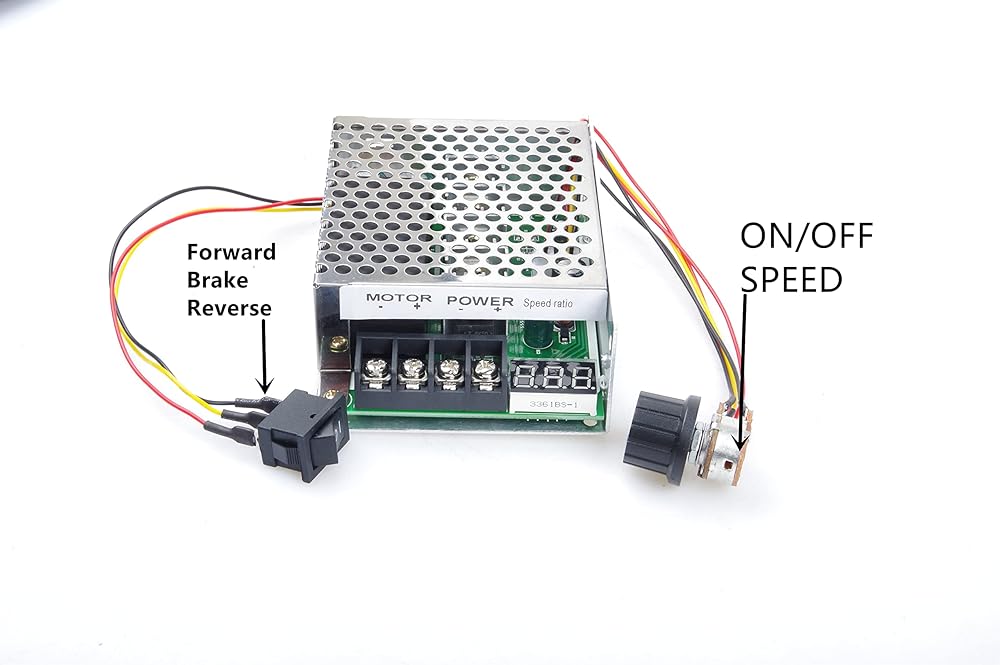

【Switch Function】The PWM DC motor speed controller come with switch function. High power speed controller switch which is much more adaptable and conveniently change the motor direction.

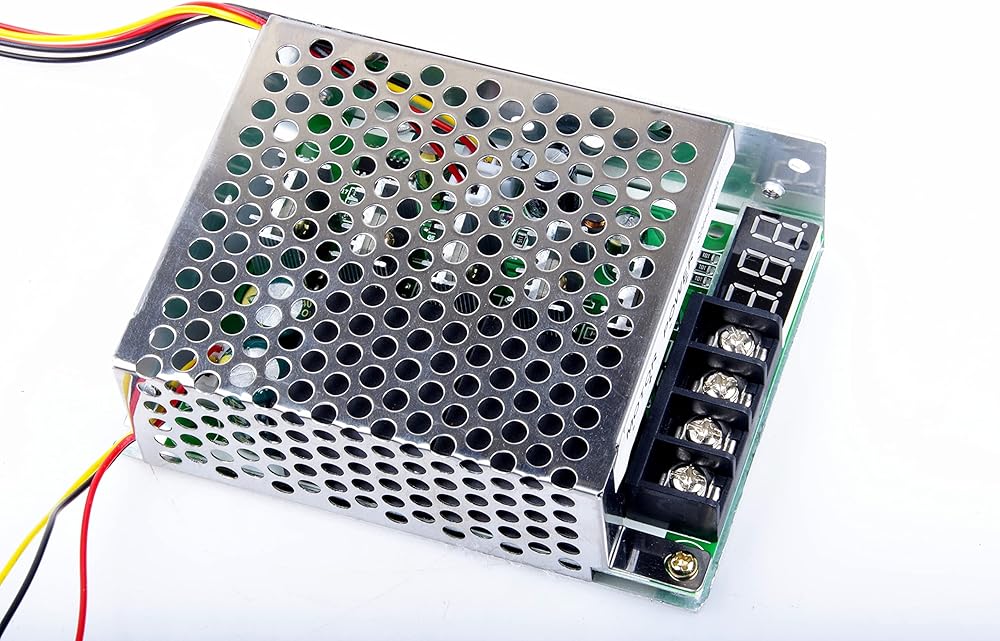

【Excellent Heat Dissipation Performance】 The enclosure of the speed controller for motor is an aluminum enclosure. Aluminum shell is very strong to prevent damage, holes on its side and top which are helpful for heat dissipation.

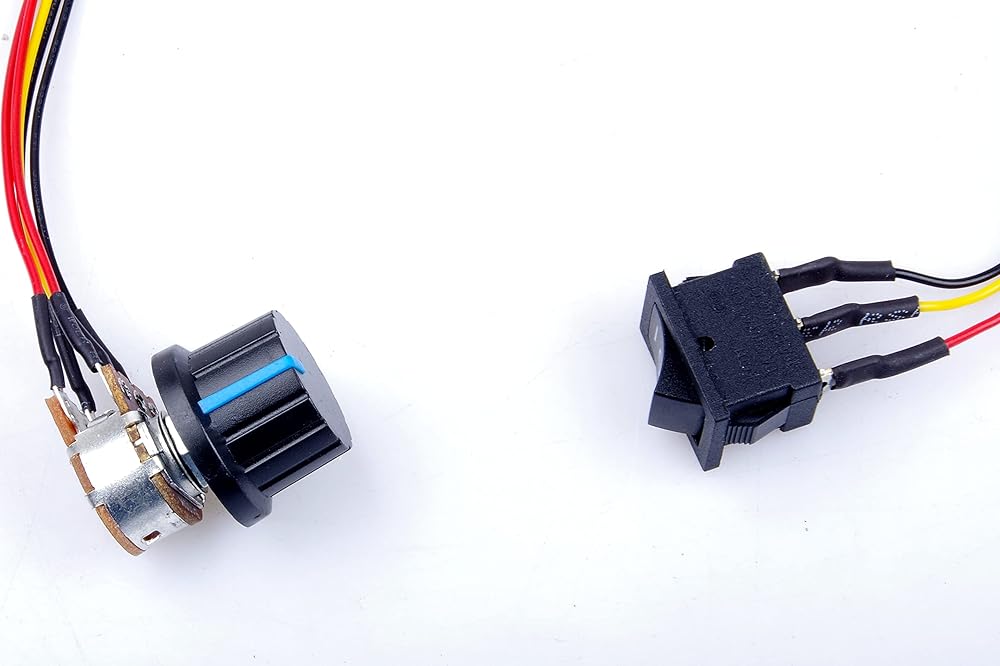

【Easy to Operate】The stepless motor controller has a simple potentiometer knob adjusts the motor speed from 0% ~ 100% smoothly. And with LED display is accurate to show 0 ~ 100% of the motor speed. The input voltage of PWM motor speed controller should be equal to the rated voltage of the motor within 10-55V,or it will be burnt.
【Application】 The dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit.Note: The motor cannot be used in electric vehicles.

وصف

Input voltage: DC10-55V (equal to the ratedvoltage of the motor)
Output voltage: Linear under load Connection Type: Barrier TerminalProduct
Maximum current: 60A
Continuous current: 40A
Speed Type: Adjusting Current
Speedmode: potentiometer (linear)
forward reverse: support
Speed range: 0--100%
Control frequency: 15KHZ
Wiring type: Terminal knob
Support motor: DC brush motor,can't work for Brushless motor stepper motor
Specifications: 100K (with switch)
Motherboard size: 100MM * 76MM * 28MM
Shell size: 110 * 78 * 38MM

Note: The digital display is the full speed percentage of the motor 0-100 not the motor actual speed
The input voltage must be positive and negative Correctly Connect
