AC 220V 2.2KW 3HP VFD, 12A Variable Frequency Drive, Single Phase to 3 Phase Frequency Converter, Professional 3 Phase Inverter for Spindle Motor Speed Control(AT1-2200X)

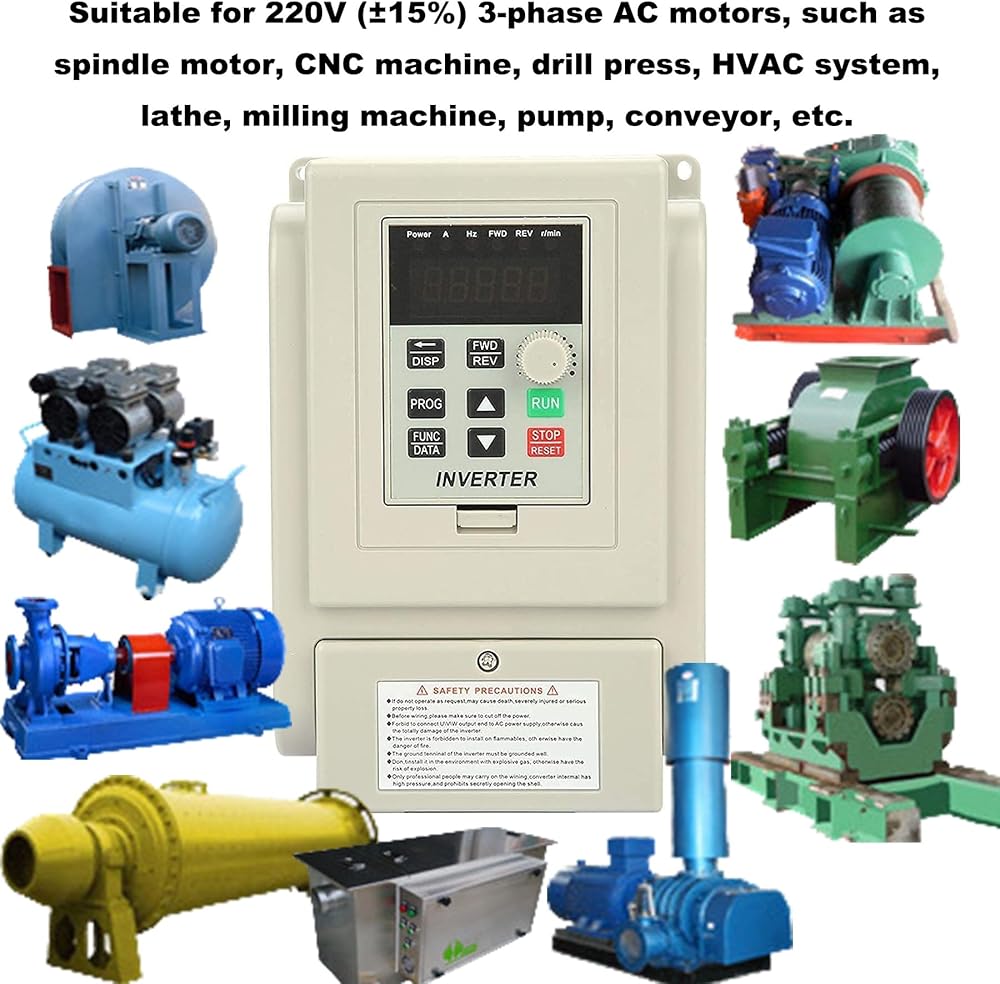

VFD converts the single-phase input power AC 220V (±15%) into 3-phase output power AC 220V to control the speed of the motor, suitable for 220V (±15%) 3-phase AC motors, such as spindle motor, CNC machine, drill press, HVAC system, lathe, milling machine, pump, conveyor, etc.
VFD features a premium copper coil and high-quality circuit board, specially treated to fend off corrosion, oxidation and dampness, ensuring reliable performance and efficiency
VFD has a grid vent for fast heat dissipation in low noise to maintain optimal working temp, over-heating alarm to be triggered when working temp is >80℃/176℉

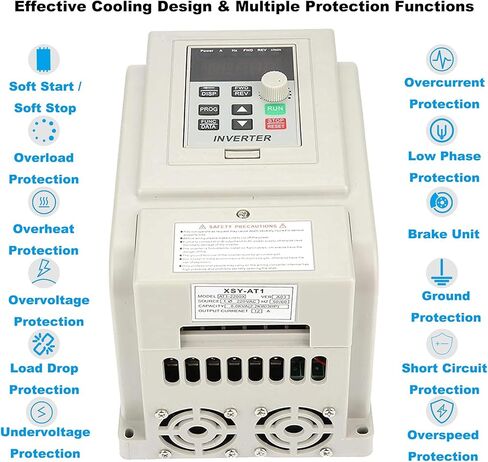

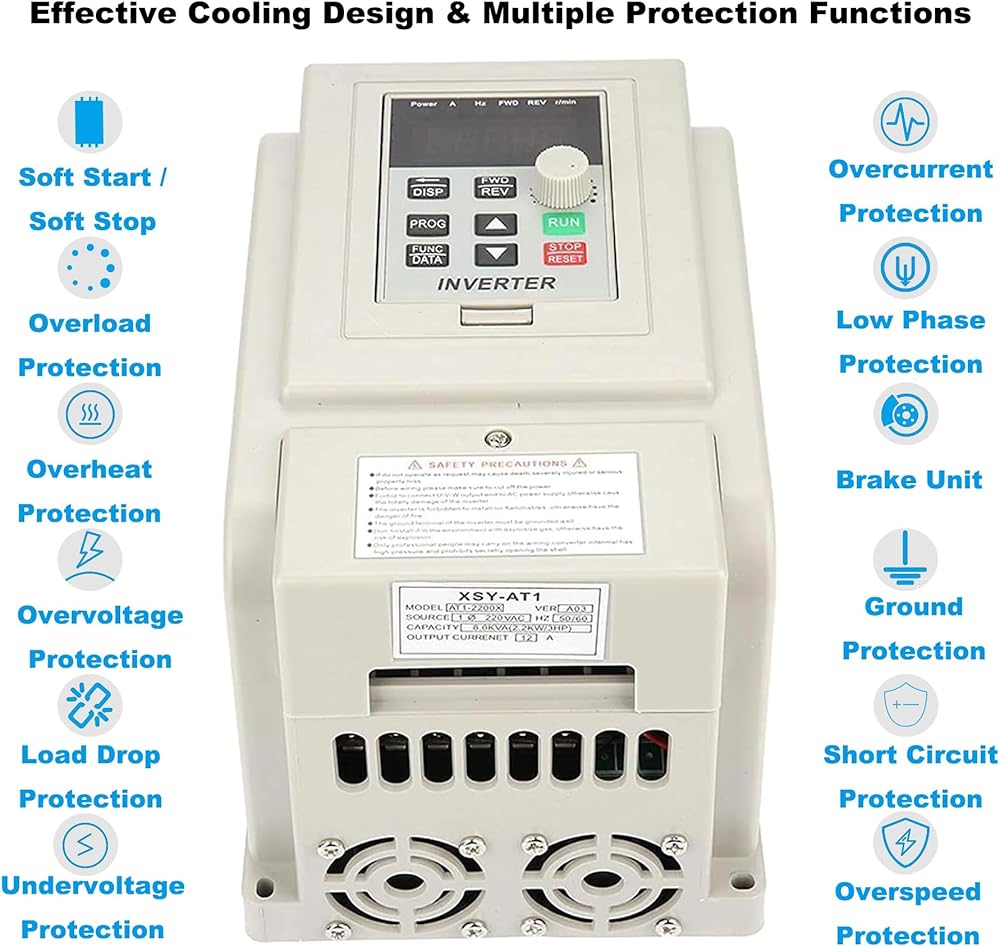

VFD incorporates multiple protection functions against over-current, over-voltage, under-voltage, module failure, short circuit, missing phase in input and output, abnormal adjustment of motor parameters, electronic thermal relay, etc

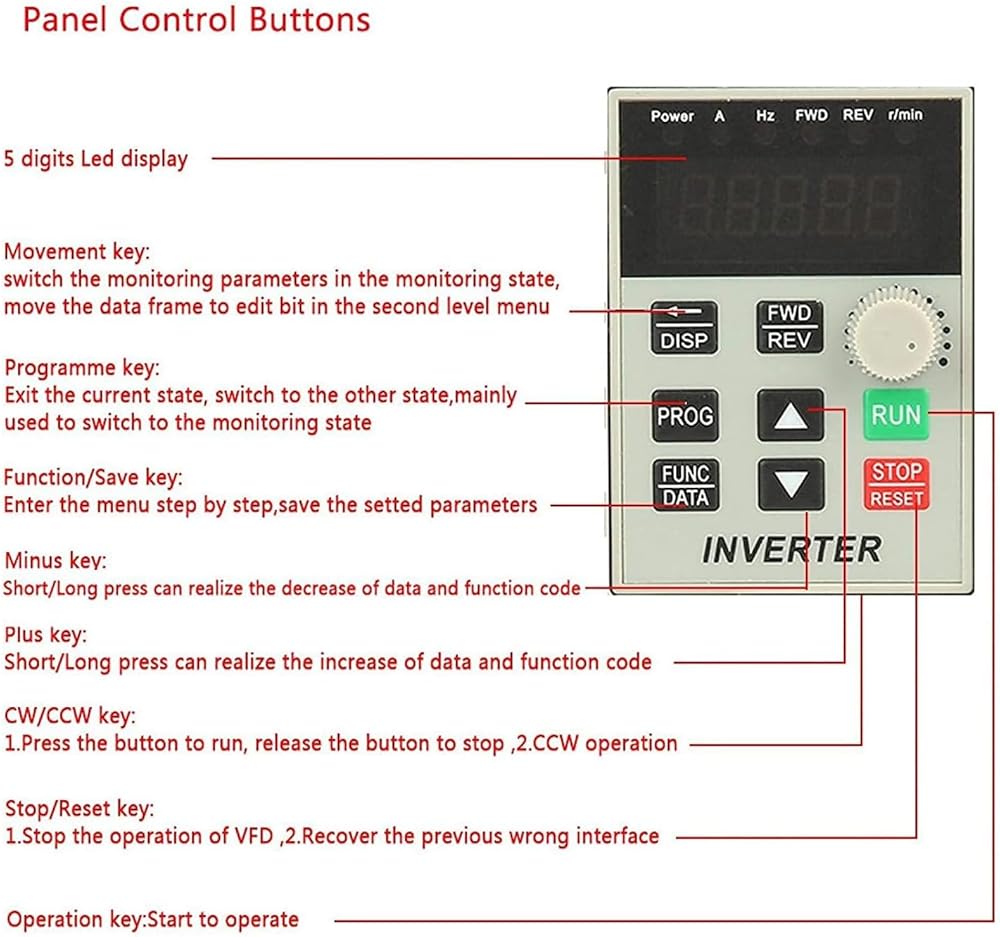

VFD features an embedded control panel that can be easily removed for convenient operation, also designed with a 5-digit LCD display
Please note that the power rating of the motor connected to the VFD should not exceed twice the power rating of the VFD (2 x 2.2kw = 4.4kw).
NOTICE
-Our VFD does not support external braking resistors, external relays or external panels.
-Please set the parameters before wiring, or the settings will not be saved.
SPECIFICATION
-Model: AT1-2200X
-Single Phase VFD Drive: 1 phase input, 3 phase output
-Input voltage: 220V (±15%)
-Output voltage: 220V
-Input frequency: 50/60Hz
-Output frequency: 0-400Hz
-Rated Power: 2.2KW
-Rated load: 3HP
-Output current: 12A
-Regulation method of output voltage: PWM control
-Working temp: 14℉-104℉

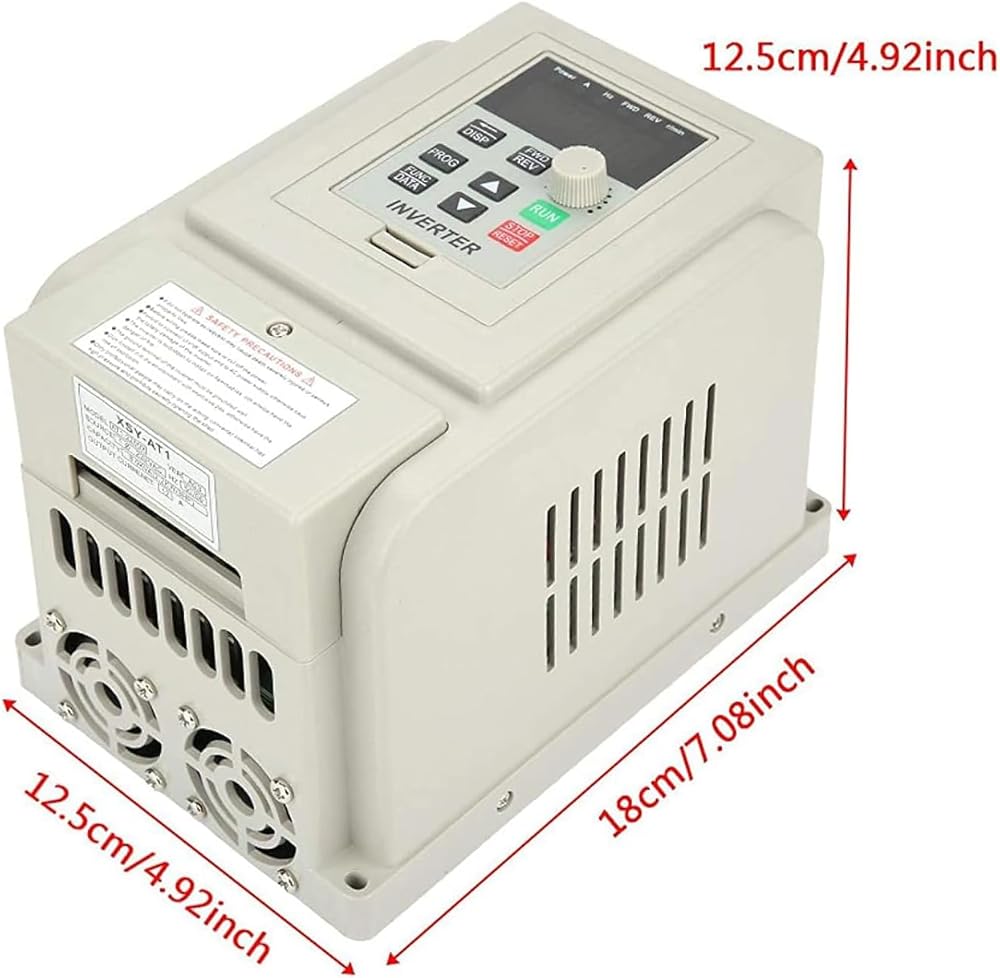

-Size: 4.9” x 4.9” x 7.1”
-Weight: 2.8 lb.
PACKAGE
-1 x 2.2KW 3HP 12A VFD
-1 x Instructions
