Oscilloscope mode: Oscilloscope real-time sampling rate up to 1GSA/S, dual-channel input, bandwidth up to 100MHZ, real-time sampling rate, with a complete trigger function (single/normal/automatic), can be freely used for periodic analog signals and non-periodic digital signals.

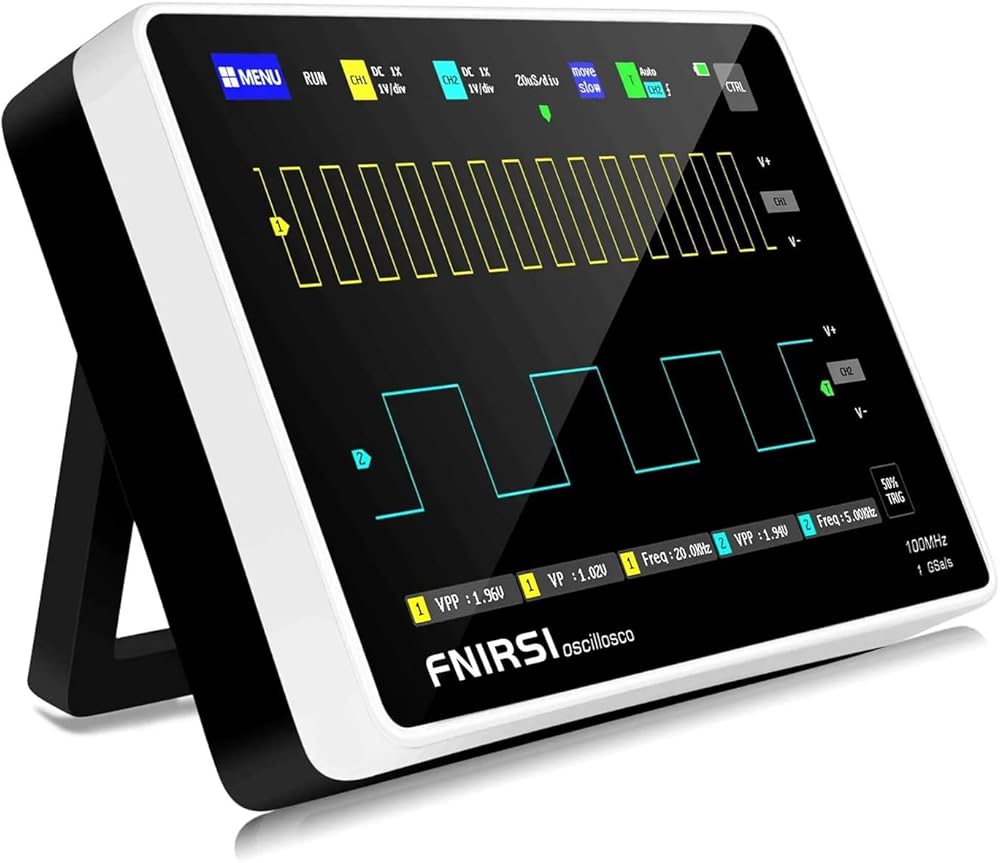

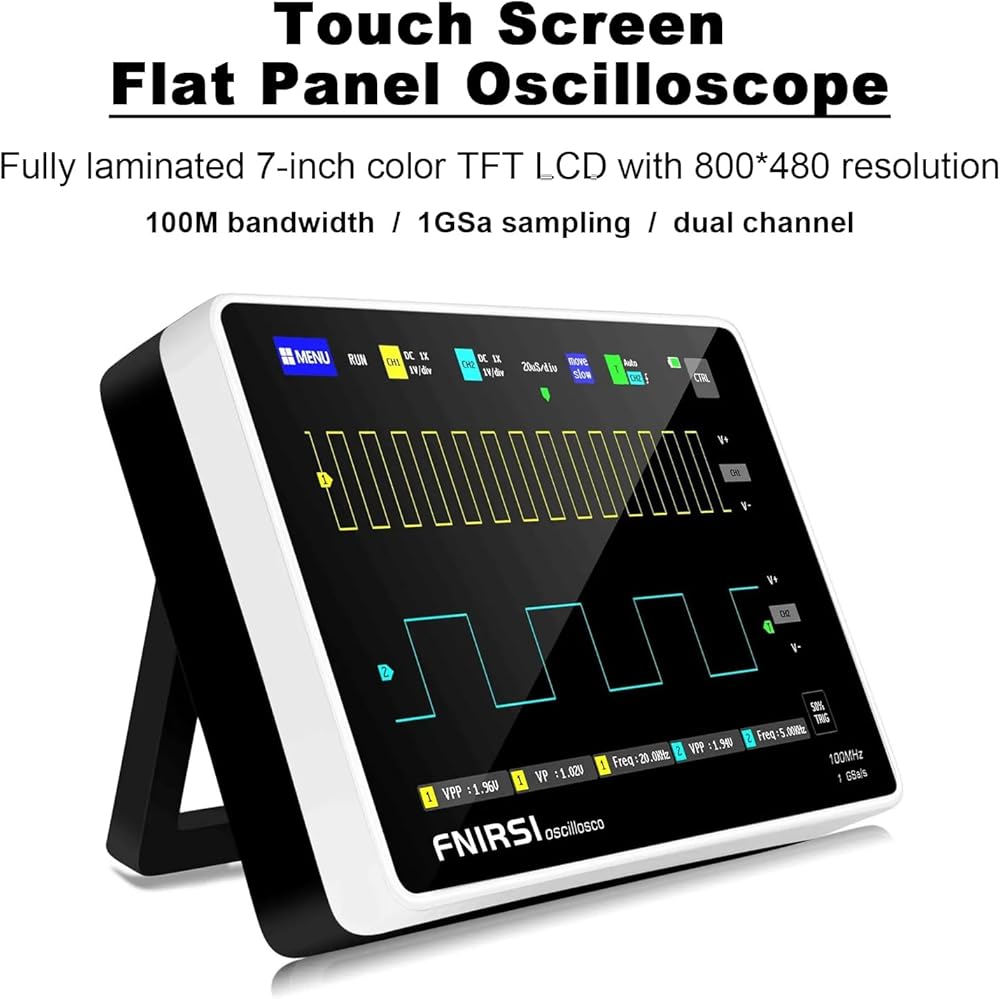

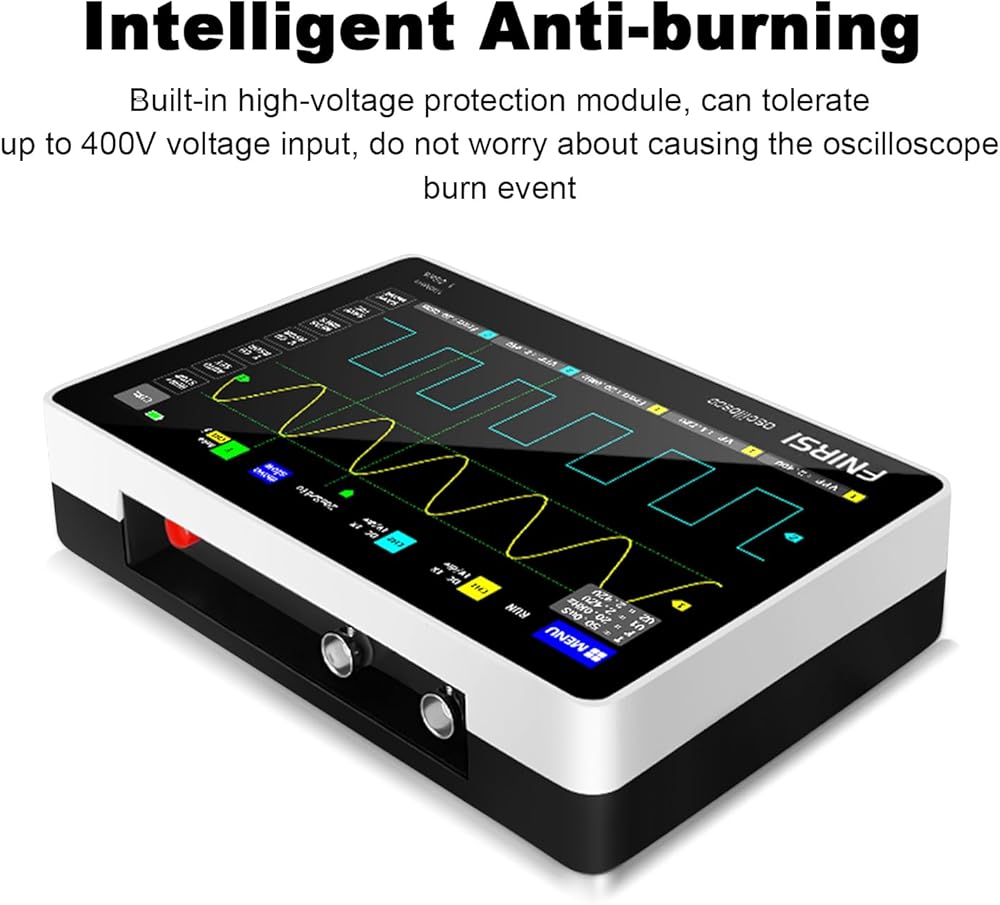

Professional design: 7 inches, 800*480 resolution, vivid color and high contrast. Ultra-thin and easy to carry. Built-in high voltage protection module, can withstand up to 400V continuous voltage. 6000mAh high-performance lithium battery, fully charged can be used continuously for 4 hours.

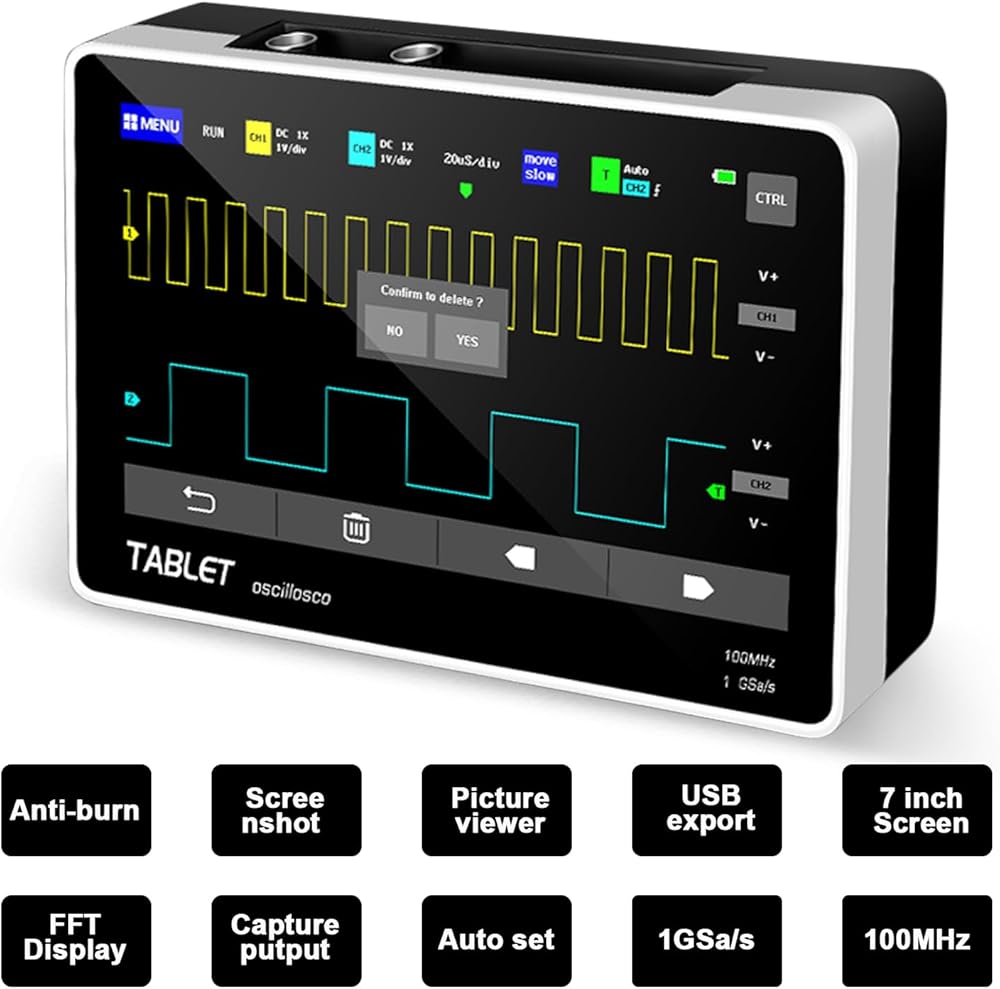

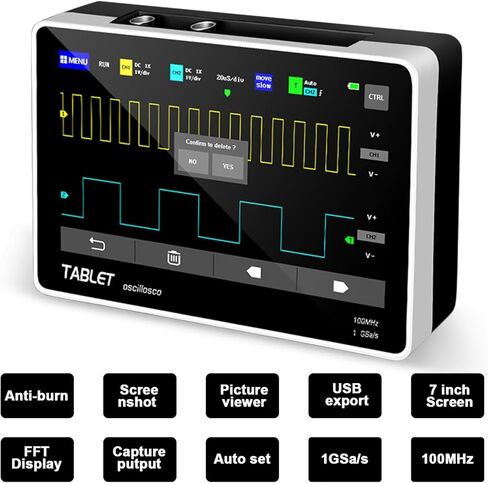

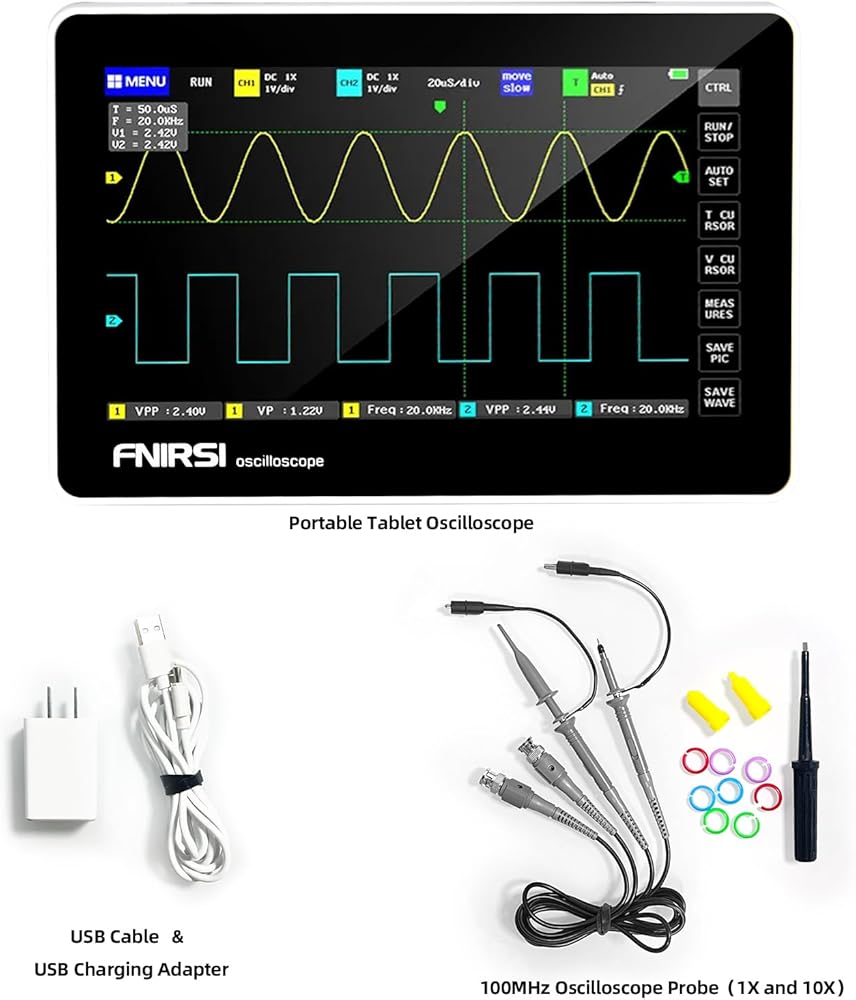

Portable Tablet oscilloscope: 7 inches, 800*480 resolution USB Type-C interface, not only supports mobile power supply, but also supports adapter charging and upper computer connection. The computer can read the saved pictures, and the oscilloscope can save up to 1000 groups of waveform picture
High performance: ultra-thin, easy to carry. Built-in high voltage protection module, can withstand up to 400V continuous voltage. 6000mAh high-performance lithium battery, fully charged can be used continuously for 4 hours.
Easy to operate: Equipped with efficient one-button automatic device. Save waveforms and screenshots with one key. Powerful waveform image manager supports thumbnail browsing, viewing, detailed viewing, page turning, deleting and waveform zooming in, zooming out, moving and other functions.
وصف
Handheld Tablet Oscilloscope Upgraded 2 Channel 100MHz Bandwidth 1GSa/s Sampling Rate 7" TFT LCD Touch Screen Oscilloscope & Function Signal Generator
Specifications:
Analog band width: 100MHz * 2
Number of channels：2 channels
Maximum real time sampling rate: 1GSa/s
Timebase：50S / div~10nS / div
Highest Test Voltage：1X : 40V / 10X : 400V
Frequency Precision：±0.01%
Vertical sensitivity: 50 mV/div ~ 500 V/div
Storage depth: 240Kbit
Input resistance: 1M
ADC precision: 8bits
Coupling mode: AC/DC
Trigger mode: Single, Normal, Auto
Trigger edge: Rising edge/Falling edge
Display: 7 inch - 800*480
Size: 7.2*4.9*2.1inches
Operating: Capacitive touch screen + gesture
Extension ports：USB picture export
Power supply: 6000 mAh lithium battery

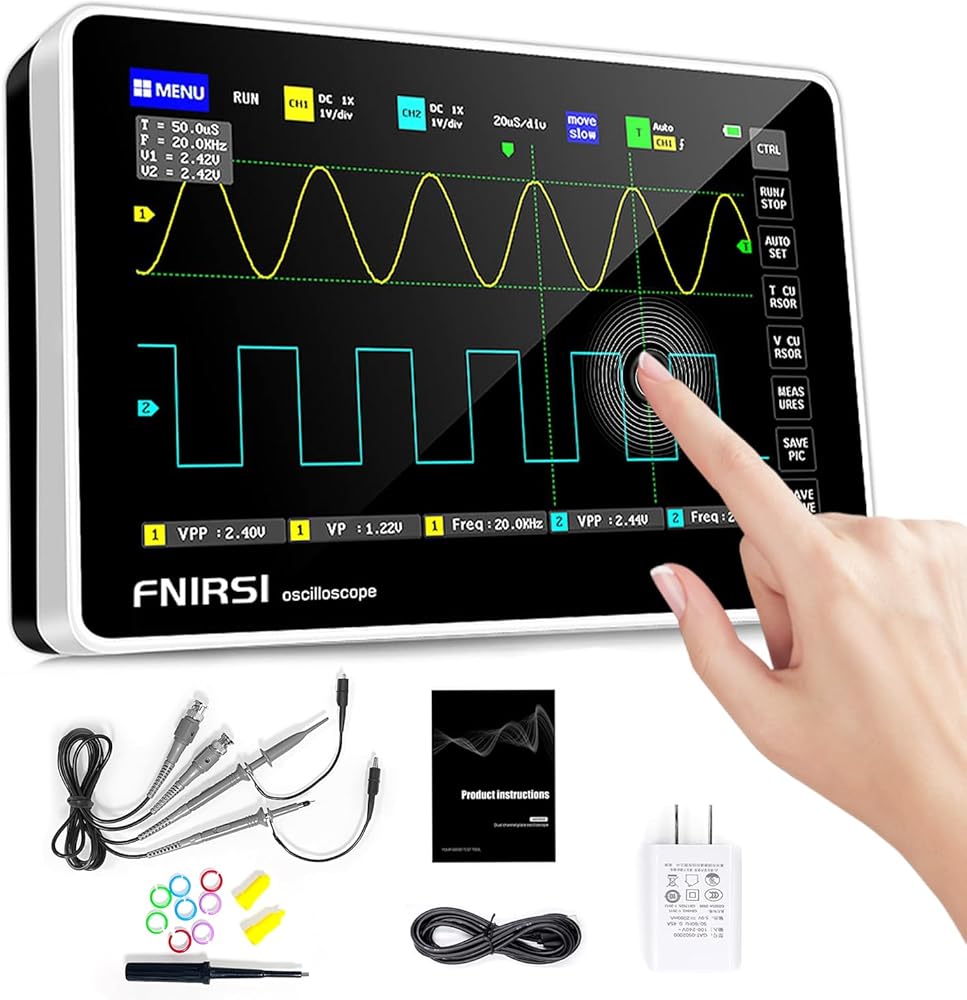

Package includes:
1 x Oscilloscope Host
