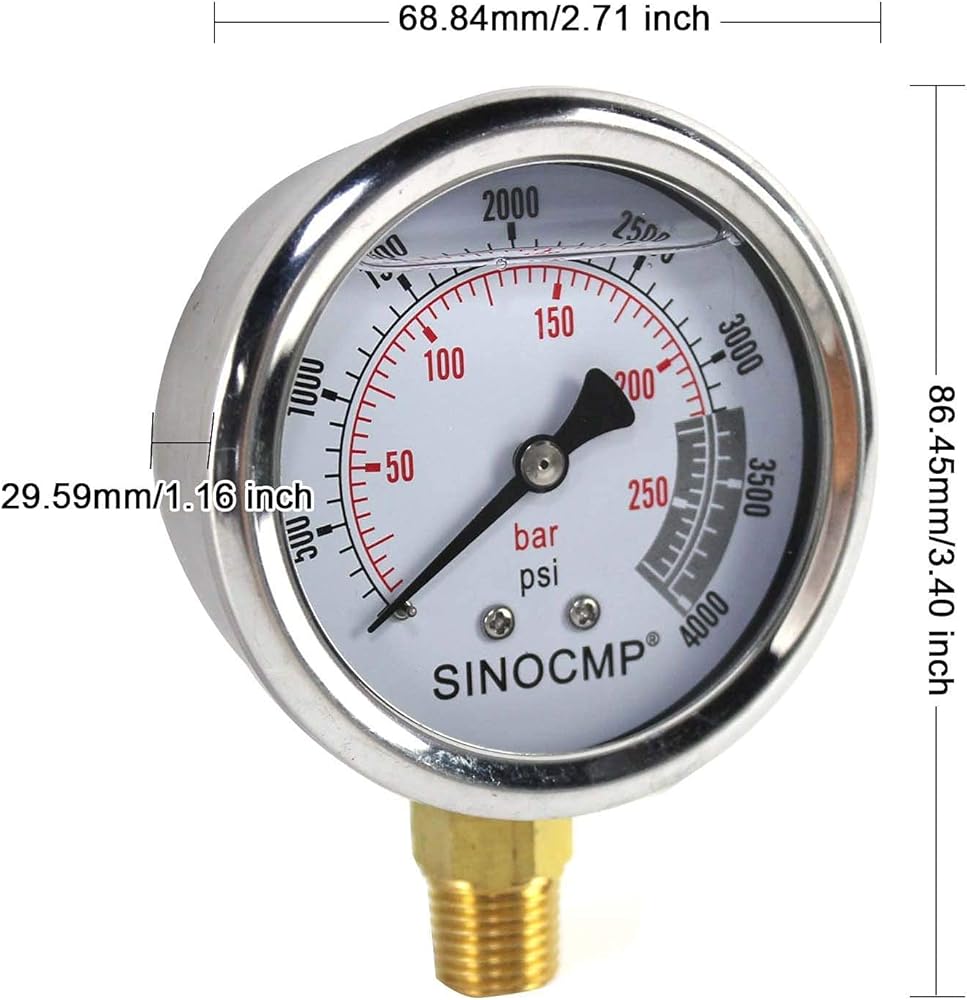

【Gauge Size】2.5" (63mm) dial, 0-4000 Psi, measures pressure with single (psi) or dual scale (psi/kPa)/(psi/bar)/(Hg. vacuum/kPa)/(Hg. vacuum/bar).
【Used for】pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments, where harmful vibration and pulsation are present.
【Material】Stainless steel case, brass internals and connector, glycerin filled.

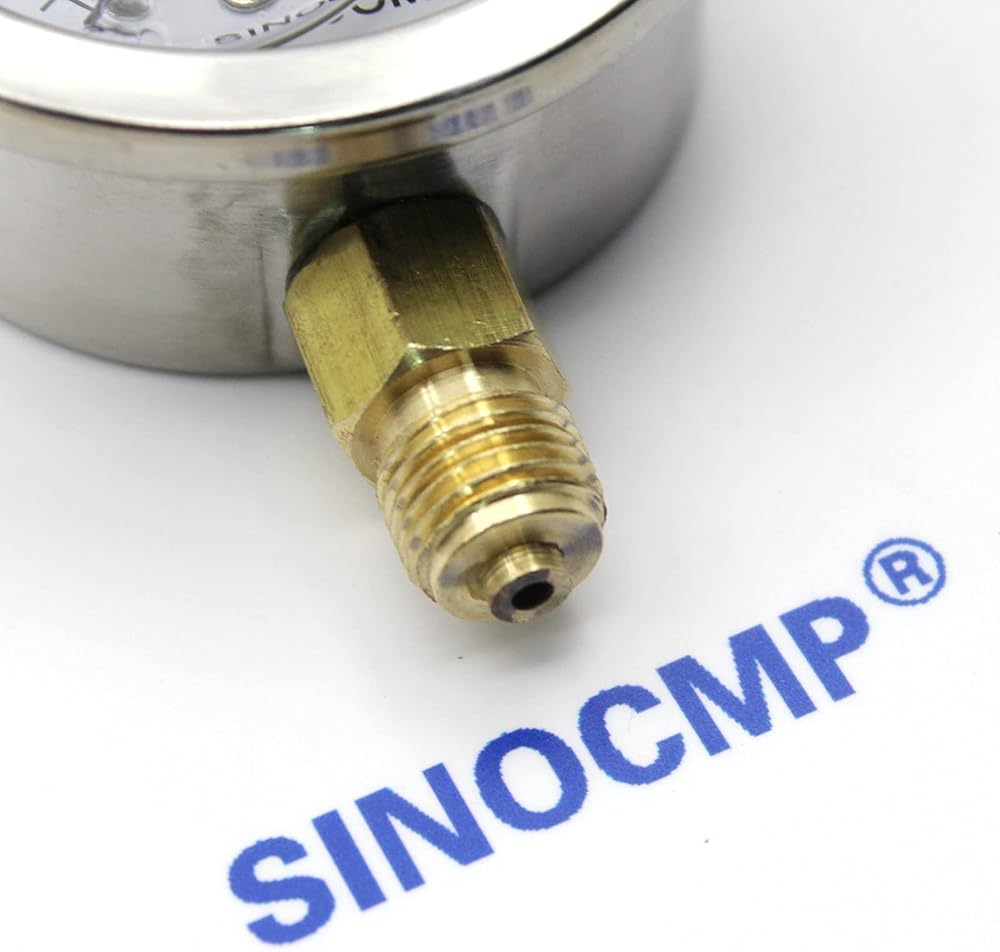

【Connector Size】Lower mount or center back male connection with 1/8", 1/4", or 1/2" NPT rate with restricted orifice.
【What You Can Get】Hydraulic pressure gauge * 1, 24h * 7 customer service.

وصف

25Mpa/0-250Bar/0-4000PSI Hydraulic Pressure Gauge

Product Specification:
Max Work Pressure: 25Mpa/0-250Bar/0-4000PSI
Contains:
Gauge: Ø63mm, 1 PC
Test coupling: NPT1/4
Material: 304 stainless steel case is corrosion resistant and is Ingress Protection certified IP65 for protection, against solid objects, including dust or liquids.

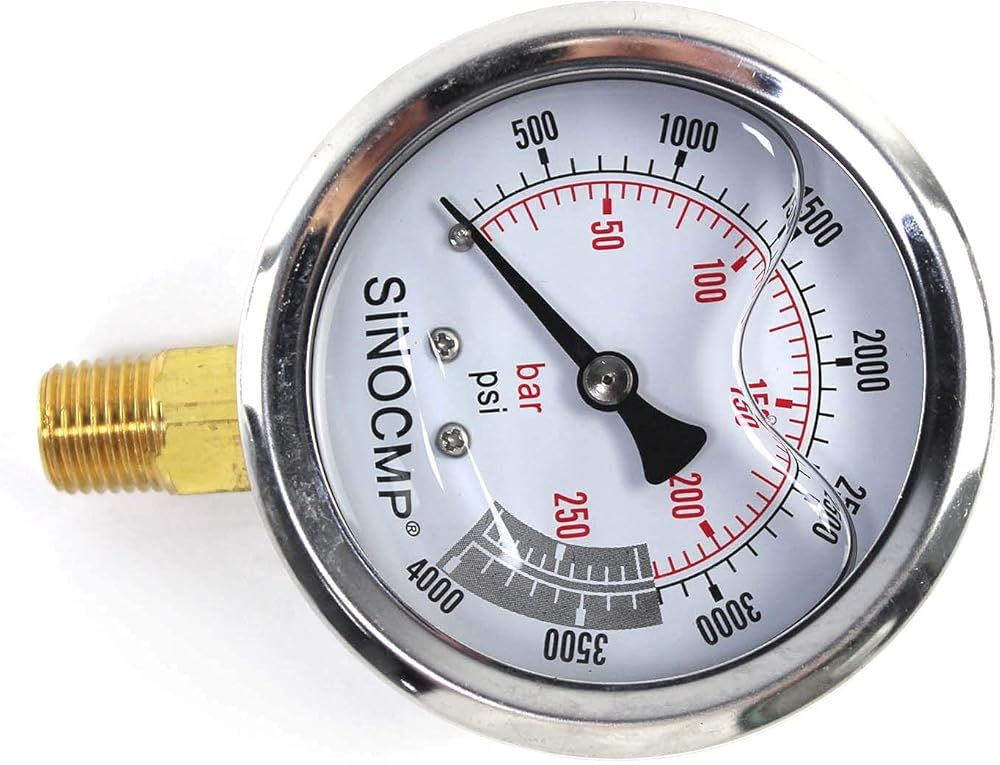

The dial is white aluminum with black and red markings. It has an aluminum, anodized black, pointer and the lens is polycarbonate for high impact resistance.
Fill Liquid: glycerin, protection against vibration and pulsation.
Operating Temperature: -4 to 150 degrees F (-20 to 65 degrees C)
Working Pressure: maximum of 75% of full scale value, The over-pressure limit is 25% for pressures up to 1,400psi (9,653kPa) and 15% for pressures over 1,400psi (9,653kPa).
Used for: pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments, where harmful vibration and pulsation are present.
Package: standard retail carton
DELIVERY DETAILS:
Please offer correct address and contact information.
Full name and your Physical Address ( home or office address) but not PO Box/APO/FPO address are necessary.
Products will be carefully checked be
The buyers are supposed to be charged for the possible additional cost such as import taxes and customs duties.
