Specification: Stroke length = 150mm(6"); Retracted length = 335mm(13.19"); Extended Length=485mm(19.09") ； Input: DC24V-7A; Maximum Load = 8000N(1700LB); Stable performance,with 3.3mm/s speed.DC 24V electric motor, this linear actuator can provide max.8000N pushing force and 8000N pulling force, and Self-locking force 6000N ,easily to lift up or down beds, industrial equipment.

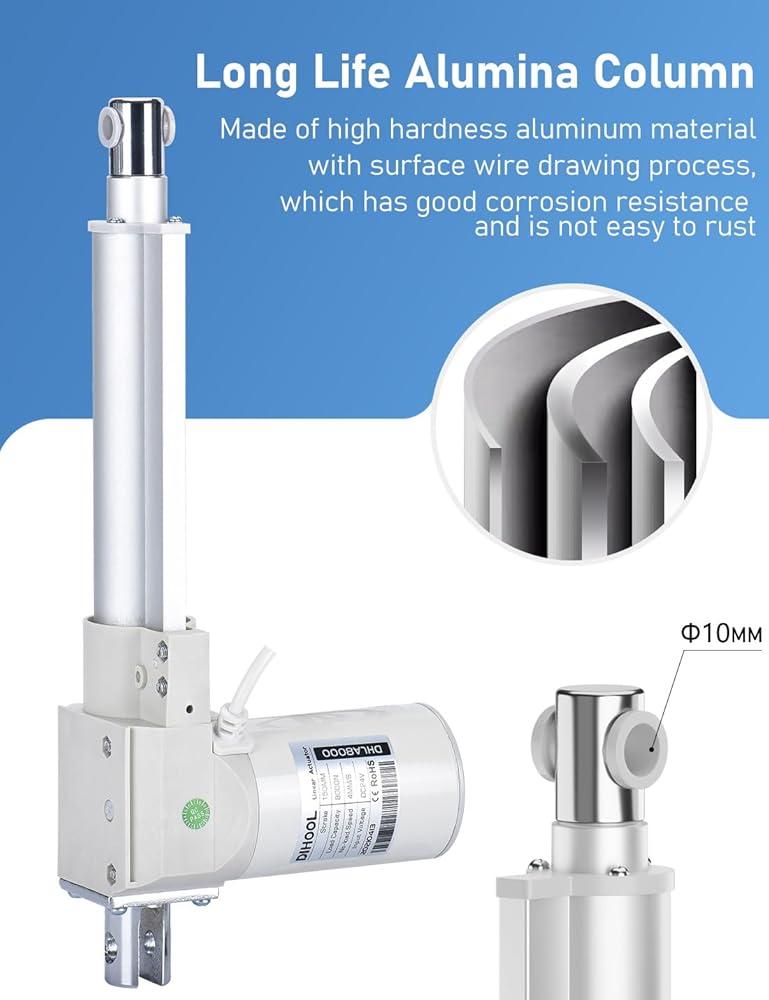

Material: High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch

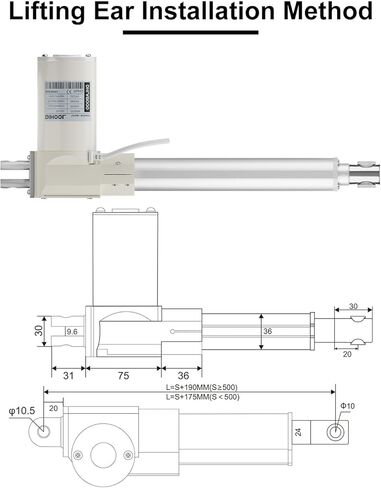

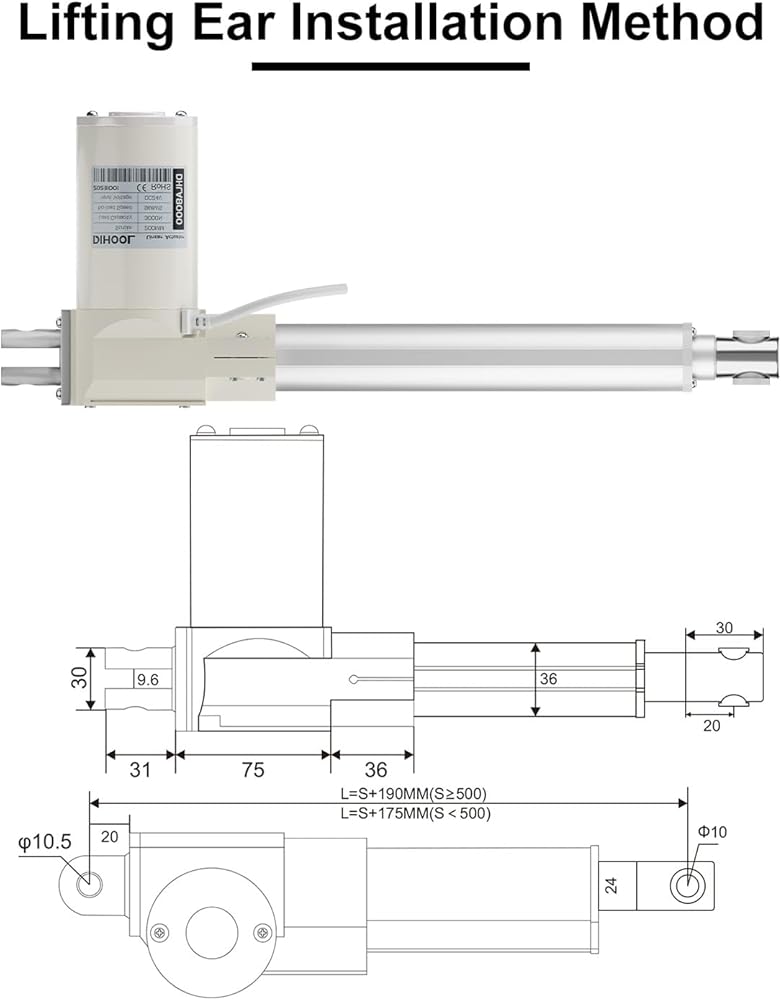

Installation method,Two replaceable installation methods at top and bottom,apply to various scenarios.
IP43 rated: (Indoor Use Only). Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.

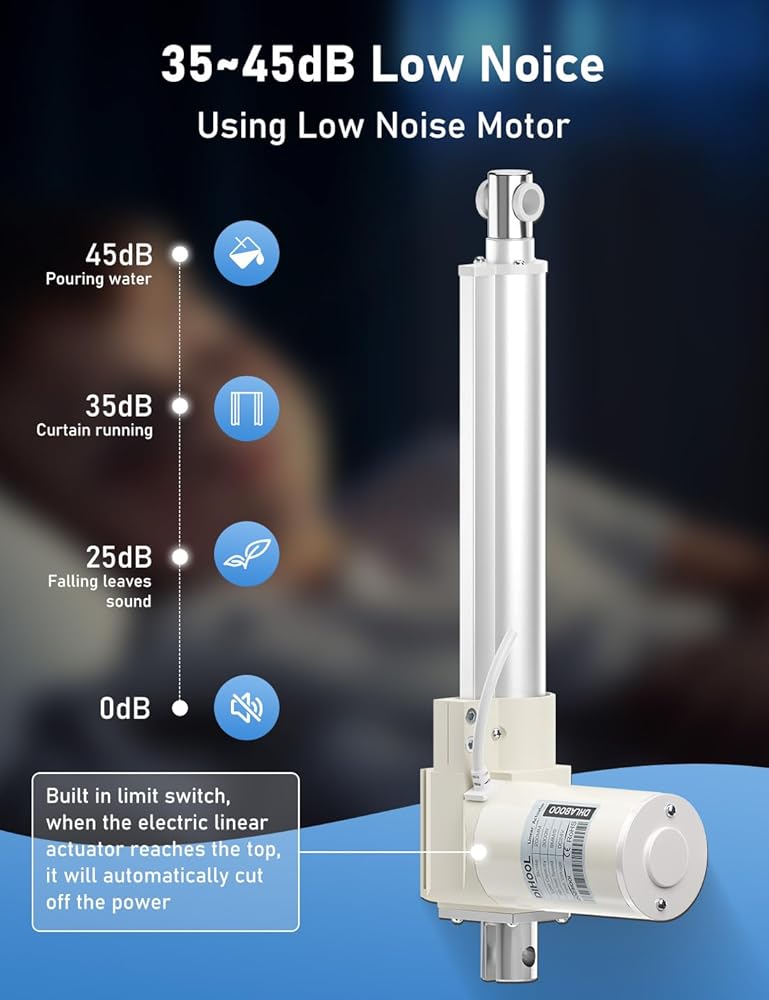

Low noise: - This linear actuator works with Max.55db sound, quiet on working, not to create annoying sound.

وصف

----- Product Description

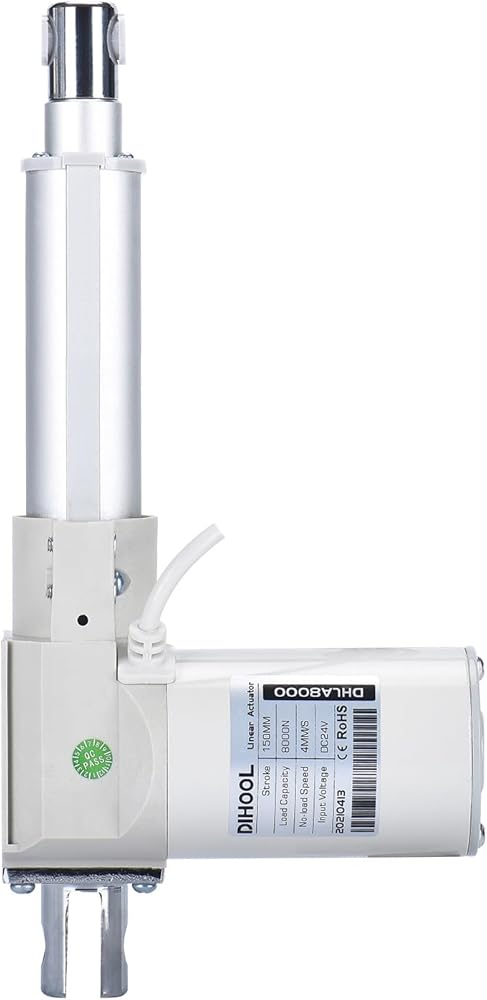

DHLA8000 is an improved high-power electric linear actuator based on the DHLA6000 series. The maximum load is 8000N, and the self-locking load capacity can reach 800KG.

----- Technical Parameters
Input Voltage: 24V DC

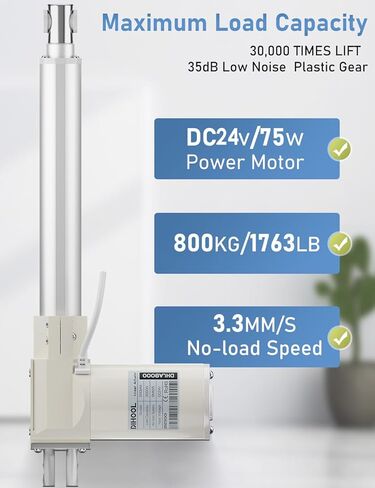

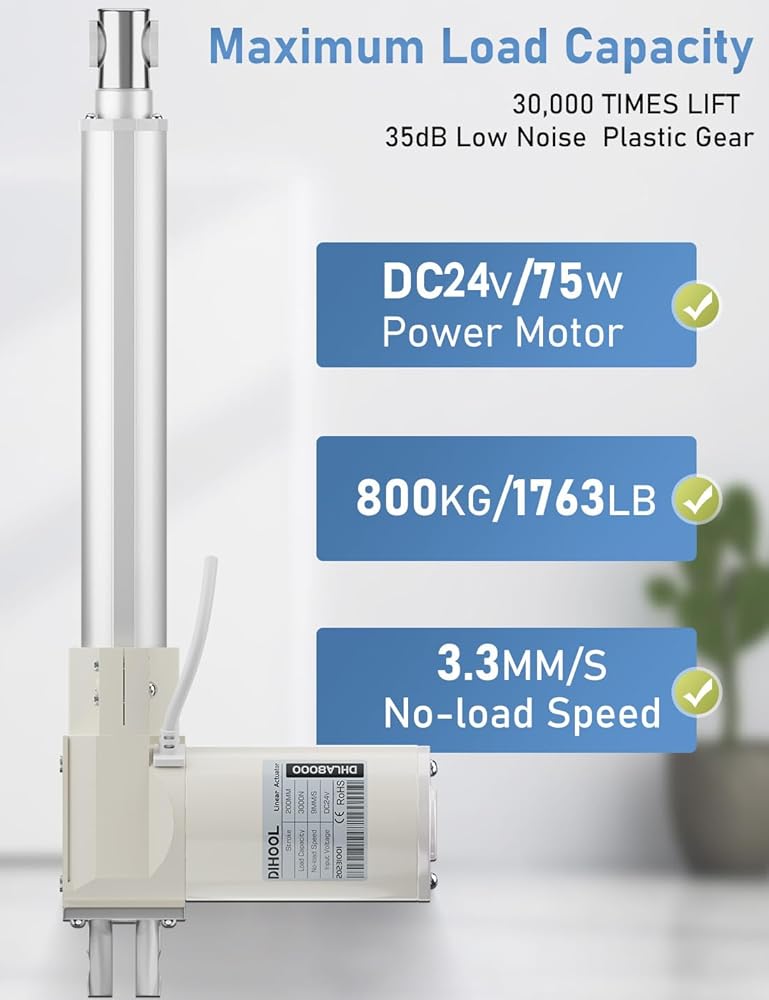

Max Load: 8000N 1700lb
Max Current: DC24V 7A
Motor Power: 75W
Max Speed: 3.3MM/S
Stroke: 150MM 6inch
Protection Level: IP43
Working environment temperature: -10℃ to 55℃
Color: Silver+White
Limit Switch: Built-in
Screw Type: T Type Screw Rod
Work Cycle: 10% Work System, Maximum 1 Hour Continue Working
Product Certification: CE
Mechanical Life: More than 30,000 times
Warranty: 12 Months
