محامل إبرة كأس مسحوبة، 10 قطع HK202620 محمل محبوس بنهاية مفتوحة، تجويف 20 مم، 26 مم OD، عرض 20 مم ST14 أسطوانة صف واحد من الفولاذ in Kuwait

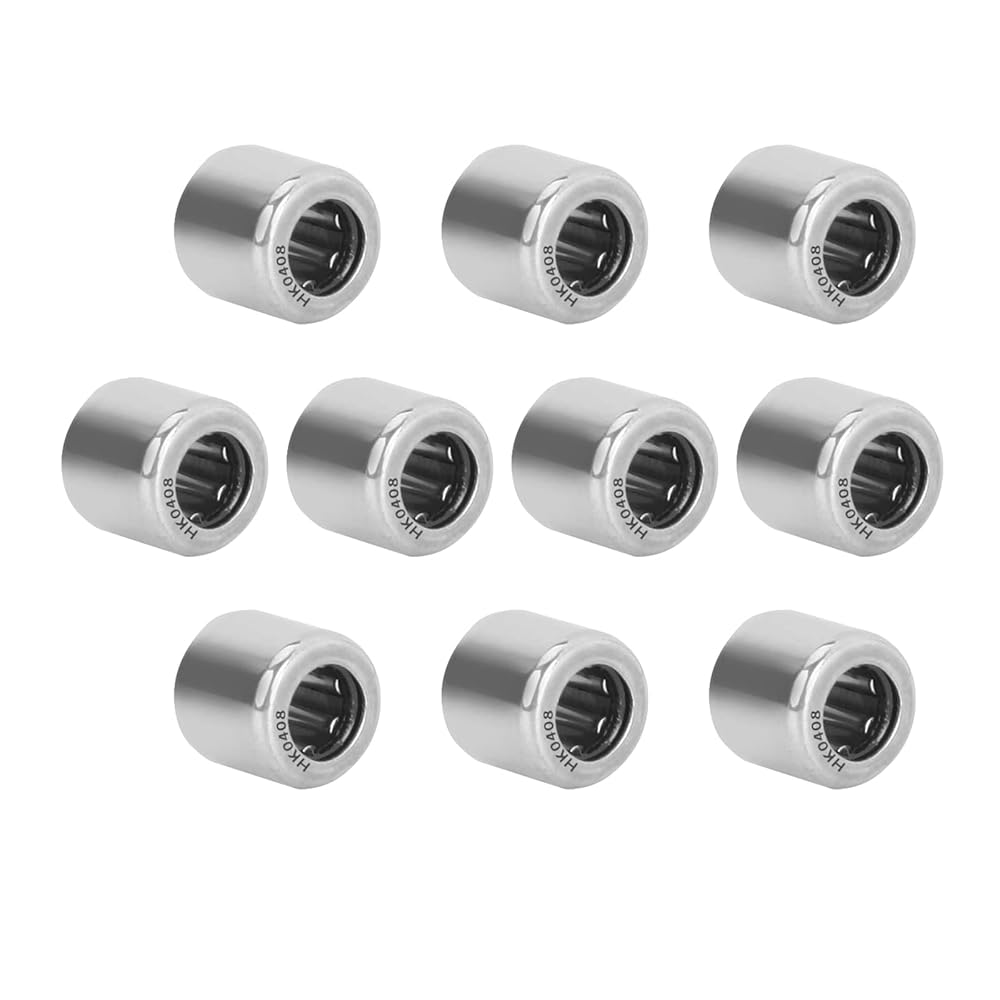

محامل إبرة كأس مسحوبة، 10 قطع HK0408 محمل محبوس بنهاية مفتوحة، تجويف 4 مم، 8 مم OD، عرض 8 مم ST14 أسطوانة صف واحد من الفولاذ

KWD 3.500
مقاس4 مم × 8 مم × 8 مم
عدد العناصر10
– 1 +

مميزات خاصة

  • [Model] - HK202620 (Bore Dia. (Fw)= 20mm, Outer Dia. (D)a= 26mm, Width (C)= 20mm)
  • [MATERIAL] - ST14 Steel Drawn Cup, ST13 Steel Cage, GCr15 Needle Roller, high load carrying capacity and stiffness, good heat tolerance.
  • [FEATURES] - The size is standardized, easy to install and disassemble, and easy to maintain; Pre-Lubricated. Good running properties; Low cross section, enable downsizing and suit for use in restricted mounting spaces.
  • [CAPABILITY] - Dynamic Load Rating (Cr): 13700N; Static Load Rating (Cor): 24000N; Limiting Speed (Oil): 10000rpm
  • [APPLICATION] - Needle bearings are used in automobile components such as rocker arm pivots, pumps, compressors, and transmissions, also used for office equipment, paper-towel dispensers, exercise equipment, appliances and two-speed gearboxes.

وصف

Specification:
Model: HK202620
Drawn Cup Material: ST14 Steel
Cage Material: ST13 Steel
Needle Roller Material: Chromium Steel (GCr15)
Bore Diameter (Fw): 20mm
Outside Diameter (D): 26mm
Width: 20mm
Static Load Capacity (Cor): 24000N
Dynamic Load Capacity (Cr): 13700N
Maximum Rotational Speed (Oil): 10000rpm
Number of Packs: 10 Pcs
Description:

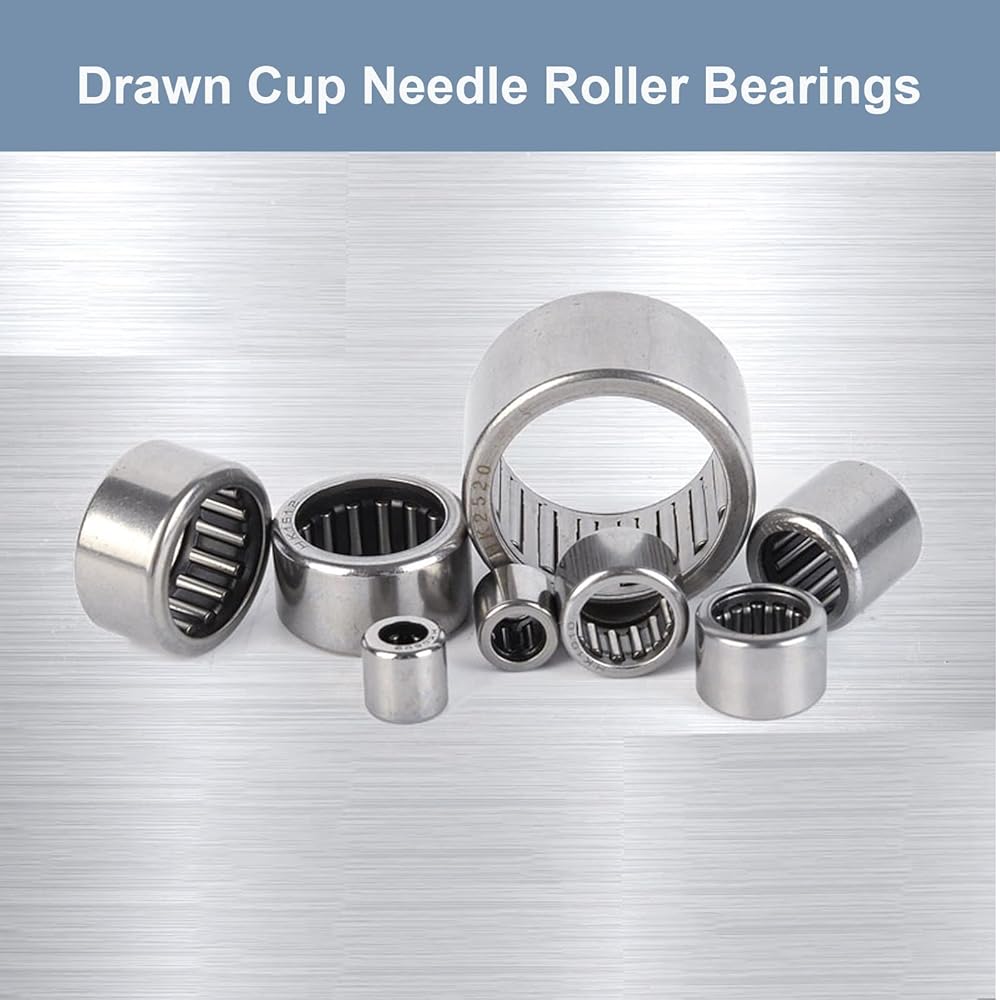

Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
For various applications such as planetary gears in automobiles, constant mesh gearboxes, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
NOTE:
Install with a press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture.
