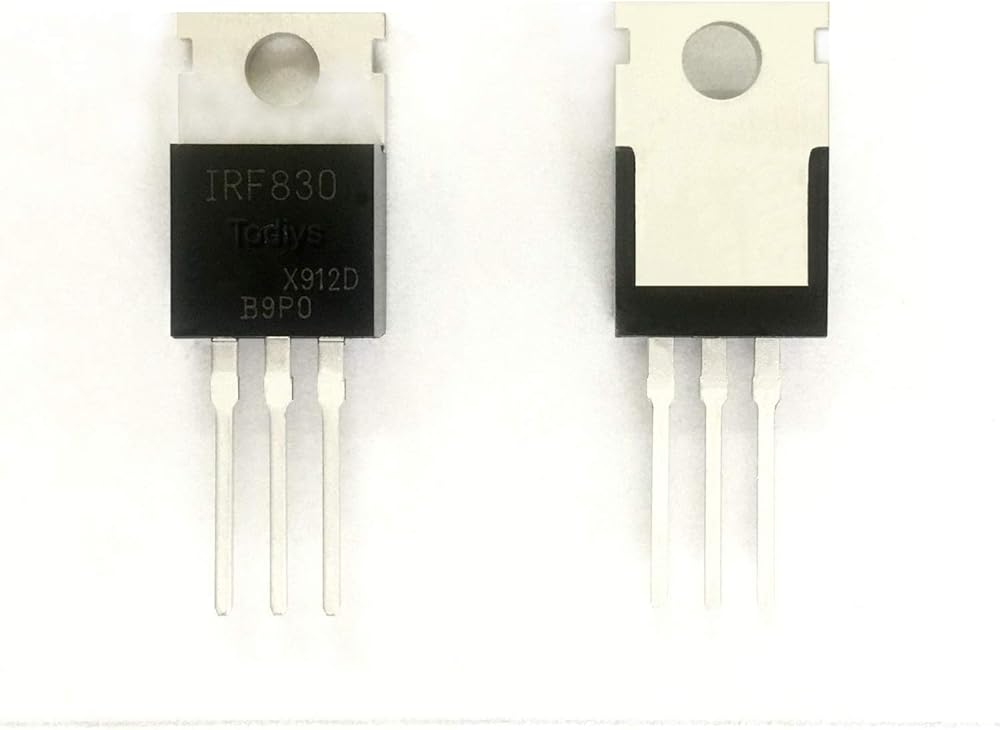

Compatible P/N:
IRF830 IRF830A IRF830APBF IRF830PBF IRF830BPBF IRF830ALPBF
Description:
Condition: 100% Brand New And High Quality
Material: Electrical Components
Color: See Pictures
Encapsulation: TO-220
Channel Type: N
Number of Elements per Chip: 1
Maximum Drain Source Voltage (V): 500
Maximum Gate Source Voltage (V): ±20
Maximum Gate Threshold Voltage (V): 4
Maximum Continuous Drain Current (A): 4.5
Maximum Gate Source Leakage Current (nA): 100
Maximum IDSS (uA): 25
Maximum Drain Source Resistance (mOhm): 1500@10V
Typical Gate Charge @ Vgs (nC): 38(Max)@10V
Typical Gate Charge @ 10V (nC): 38(Max)
Typical Gate to Drain Charge (nC): 22(Max)
Typical Gate to Source Charge (nC): 5(Max)
Typical Reverse Recovery Charge (nC): 1000
Typical Input Capacitance @ Vds (pF): 610@25V
Typical Reverse Transfer Capacitance @ Vds (pF): 68@25V
Minimum Gate Threshold Voltage (V): 2
Typical Output Capacitance (pF): 160
Maximum Power Dissipation (mW): 74000
Typical Fall Time (ns): 16
Typical Rise Time (ns): 16
Typical Turn-Off Delay Time (ns): 42
Typical Turn-On Delay Time (ns): 8.2
Operating Temperature: -55 °C~+150 °C
Size: 29mm x 10mm x 4.4mm
Quantity: 15 Pcs
NOTE: Kindly compare your original item with the photos provided for the listing to make sure that you are purchasing the correct part. we don't provide technical assistance please make sure you are familiar with the product before purchasing. apologize in advance.
