Name: طقم طائرة بدون طيار FPV مقاس 7 بوصة مع F405 FC 60A ESC، محرك بدون فرشاة 4S 2807 1350 KV، سباق بدون طيار RC بدون طيار
Brand: TCMMRC
Availability: InStock

مميزات خاصة

[Excellent Debugging] 7 inch FPV Drone using 60A 3-6S Blheli_4IN1_60V1 ESC, F405 Flight Controller, 2807 1350KV Motor, Caddx Turtle V2 1080p 60fps HD Camera
[3K Carbon Fiber] The racing drone is produced by TCMMRC, the frame is made of 3K carbon fiber. Connected by aluminum alloy posts, carbon fiber is low density and high hardness, which can make the flight more stable and not easy to tear, very suitable for drone frame
[Friendly Support] Support the world's professional remote control UAV simulator, easy to control, stable flight, with a stable digital image transmission system, so that the image of FPV UAV is stable and clear. No assembly and welding required, suitable for both beginners and experienced FPV pilots
[Package Includes] NO.7-inch drone (PNP) *1, 7040 propeller *8 , ELRS915M receiver *1, TCMM far-flung antenna 150MM *1(does not include batteries, chargers, receivers or remote control.)
[About Us] TCMMRC drone has a professional production, technical, assembly and after-sales team. When you have any questions, please write to us, we will provide the best customer service.

وصف

Product Description

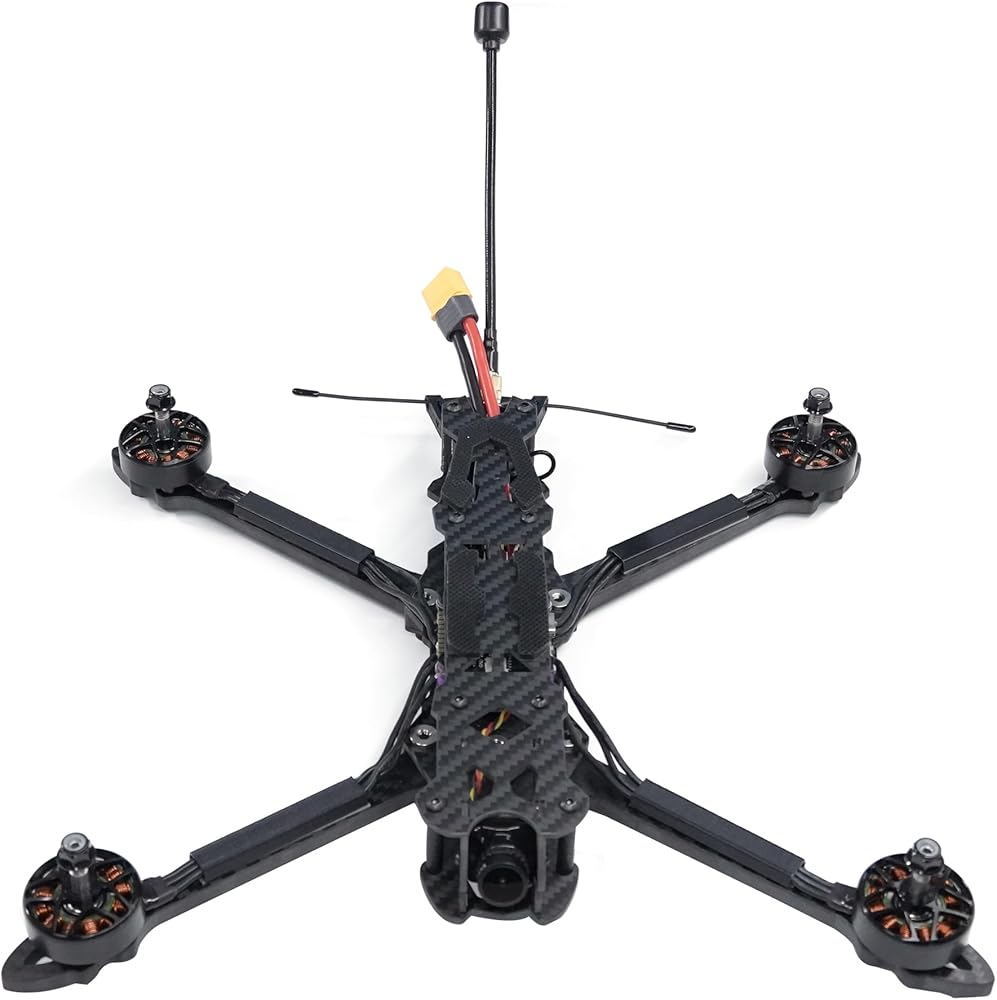

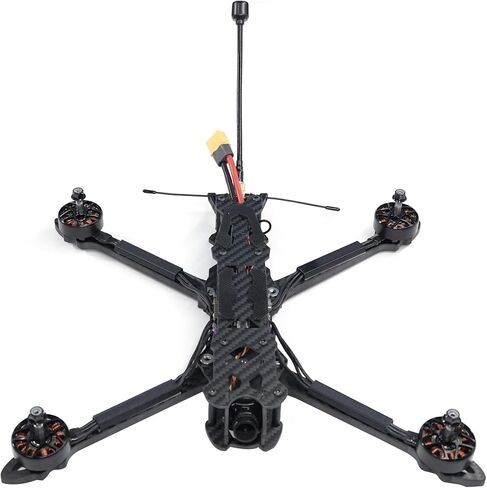

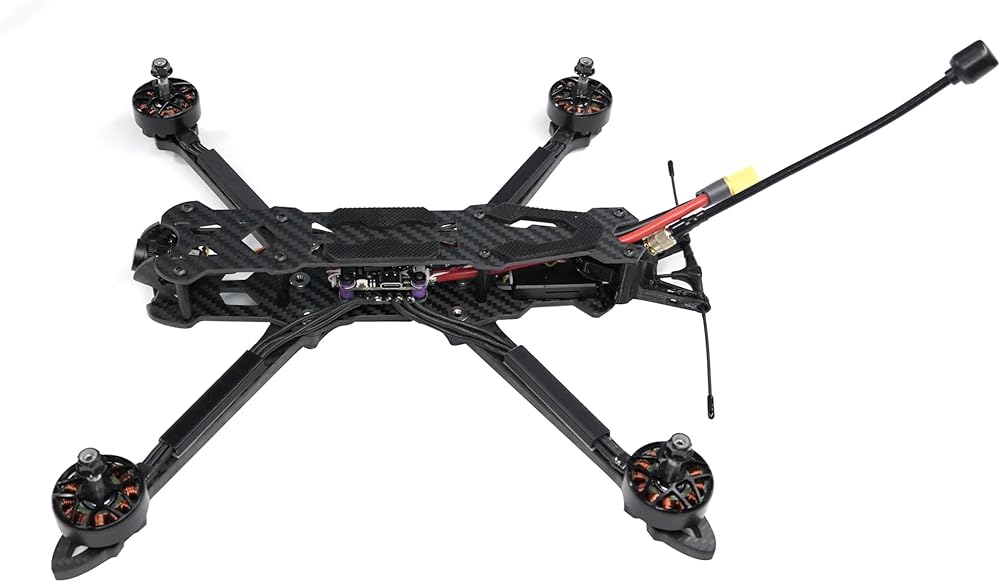

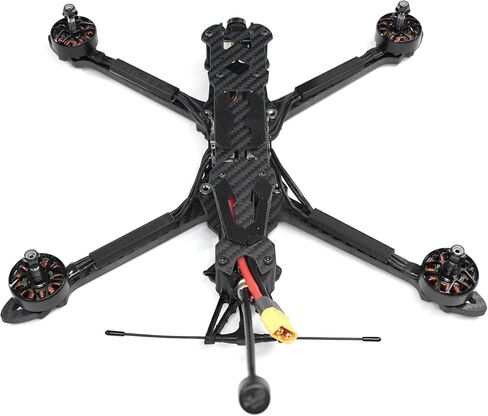

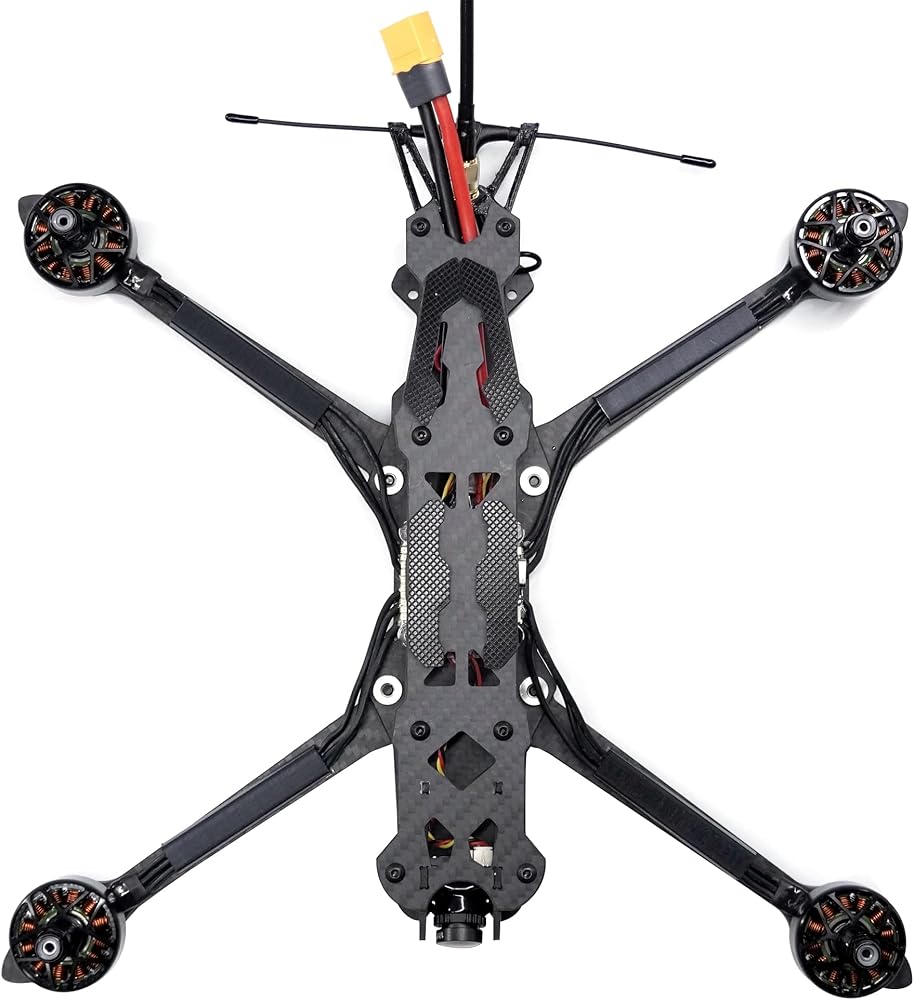

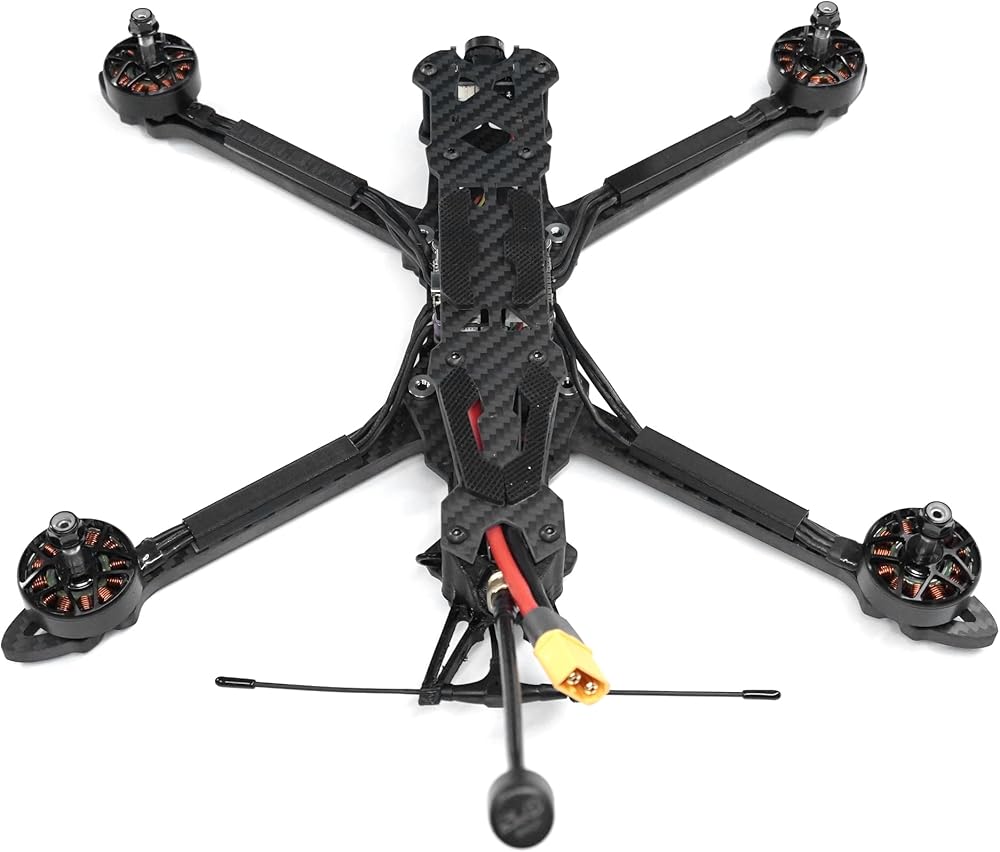

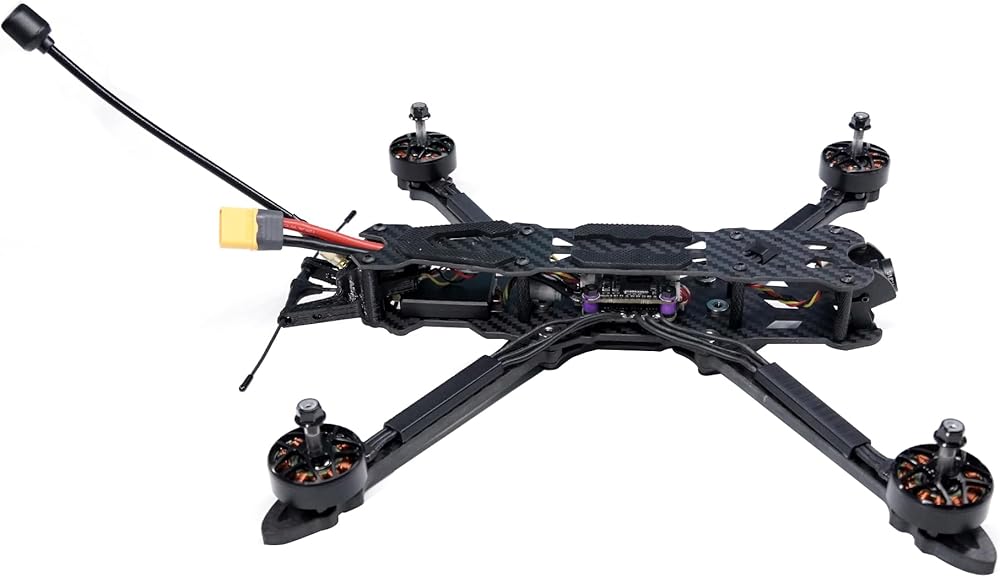

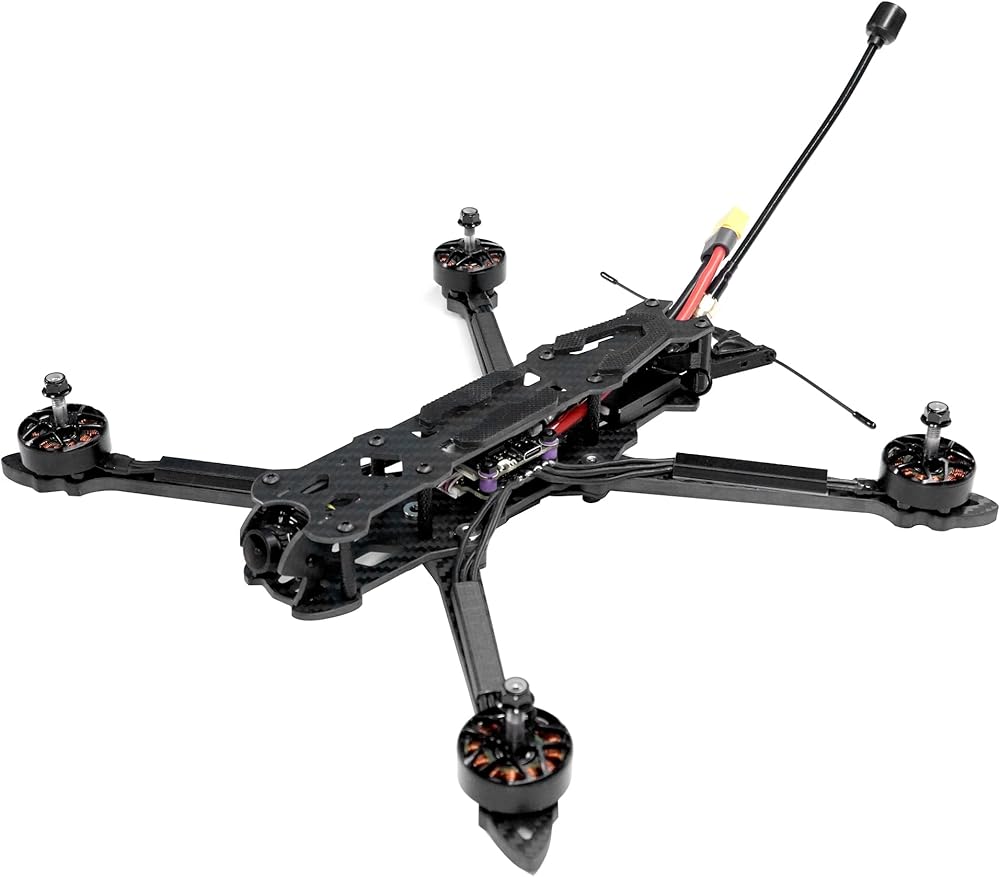

7" FPV Racing Drone
Weight: 540g

TCMMRC Motor 2807 1350KV
Voltage: 3-6S
No-load current (IO/10V): 0.8A/12V
Number of batteries (Lipo): 3-6S
Peak Current: 45.79A
Max. Power: 1153.9W
Maximum. Pulling Force: 2239g
Number of Slot Poles: 12N14P
Internal resistance: 58mΩ
Motor mounting hole size: M3
Recommended propeller: 7 inch

60A 3-6S Blheli_4IN1_60V1 ESC
Continuous current: 60A
Burst current: 70A (10s)
Input voltage: 3-6S
Current sensor: YES
BEC: NO
Firmware: BL-S
Maximum supported throttle signal: DSHOT600
Weight: 12g
Mounting hole: M3*30.5*30.5MM
Dimension: 37*42.7mm

F4DUALBEC8MOTOR0616 Flight Controller
Main control chip: STM32F405
Gyro: MPU6000/ICM42688-P
BEC:9V2A/5V3A/3.3V
MCU:STM32F405
OSD:AT7456E
Size:37*37mm
Mounting hole:M3*30.5*30.5mm
Weight: 8g
Firmware: TCMM405
Black Box: 16M
GPS access can support compass
All interfaces are socket Support DJI

FPV Race Camera
Horizontal resolution: 1800TVL
TV system: NTSC/PAL, switchable
Power input: DC 5-20V
Lens: 2.1mm lens
Horizontal field of view: 165°
Picture ratio: 16:9
Day & Night: External/Internal/Black & White/Color
Language: (ENGLISH / CHINESE / TRADITIONAL CHINESE / pycckиR / ESPANOL / ITALIANO / FRANCAIS / POLSKIM PORTUGUES / JAPANESE)
Electronic Shutter:PAL:1/50~100,000;NTSC:1/60~100,000
Wide voltage input: 5-40V
Operating Temperature:-20°C~+60°C

5.8G Graphic Transmission 1.6W
Frequency: 5.8G
Channel:40CH
Input Voltage:7V~28V
Output Power: PIT 25/200/600/1600/mw
Protocol: Smart Audio

7040 Three-blade propeller
Material: PC
Blades: 3
Color: Transparent
Center thickness: 5.5mm
Center hole inner diameter: 5mm
