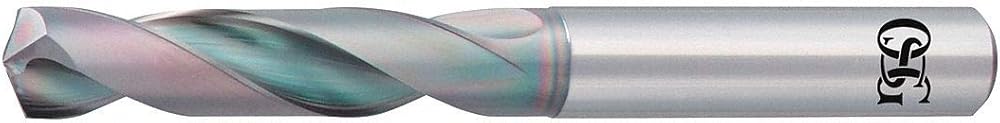

This production grade screw machine length solid carbide EXOCARB AD bit from OSG has 140 point angle is for use with ferrous and nonferrous materials. EgiAs, coating features high wear and heat resistance characteristics. Suppresses friction with the wear resistance layer and prevents breakage with the nano periodical layer. R-thinning point type, or radial point thinning, creates a highly rigid cutting edge for heavy drilling. Wavy point form breaks chip into small, manageable pieces. Creates cutting action for reduced thrust forces. Wide flute room facilitates stable chip evacuation.
Specification:
Drill Bit Grouping: Drill Bit
Item: Carbide Drill
Drill Bit Dimension Type: Fractional Inch
Drill Bit Size: 3/4"
Decimal Equivalent: 0.7500
Drill Bit Point Angle: 140 Degrees
Drill Bit Material: Solid Carbide
Drill Bit Finish: EgiAs
Shank Type: Straight
Flute Type: Spiral
Coolant Through: No
Overall Length: 131.00mm
Cutting Direction: Right Hand
Grade: High Performance
Shank Dia.: 19.00mm
Flute Length: 79.00mm
Point Type: R Thinning
List Number: 6300
Application: Metalworking
Number of Flutes: 2
Depth:Dia. Ratio: 3xD
