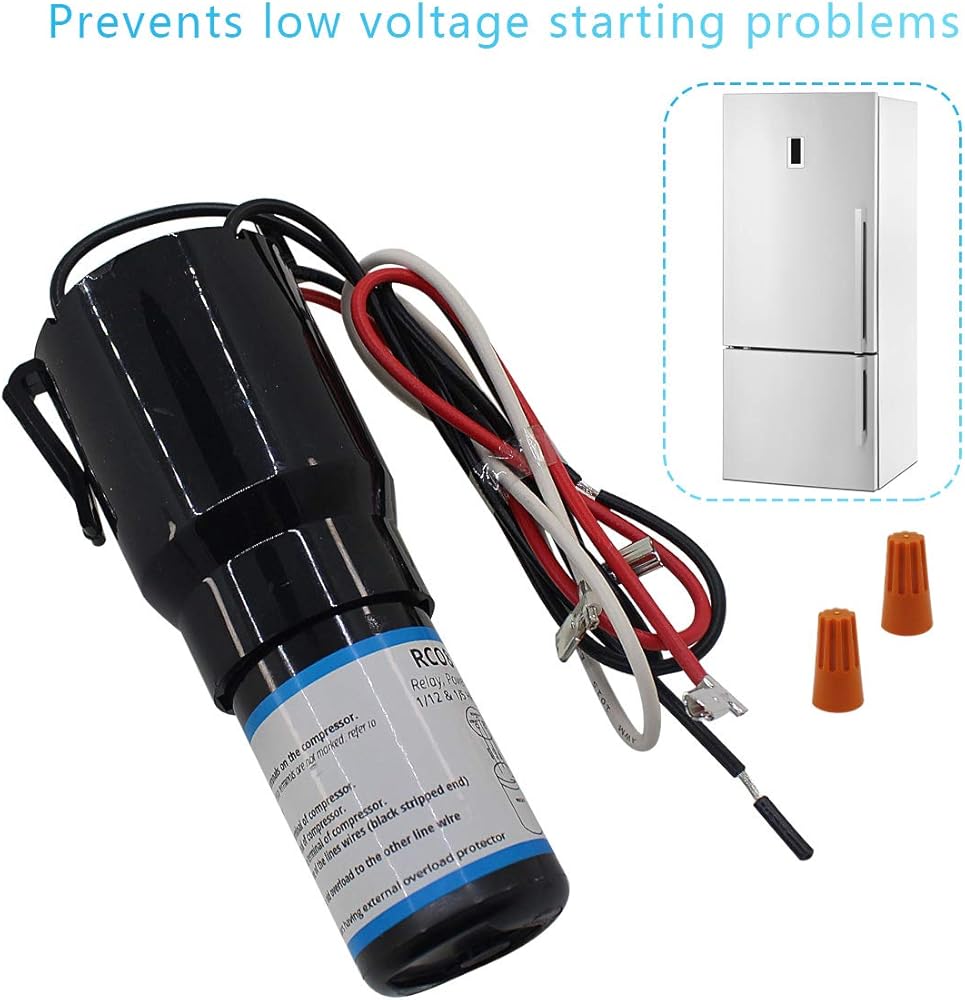

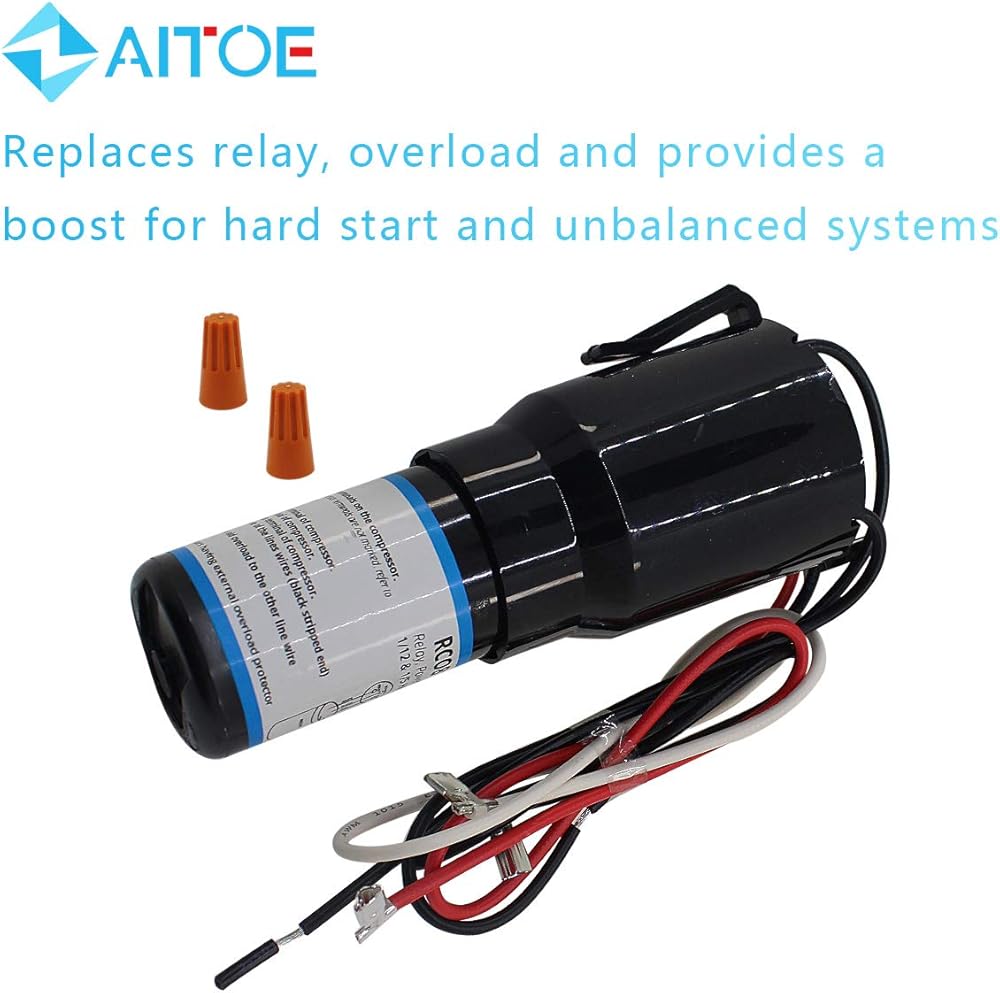

110 to 125VAC Solid-state Hardstart Relay, includes relay, overload, and start capacitor.

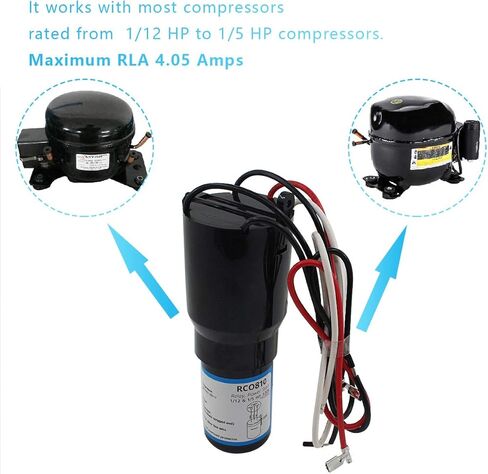

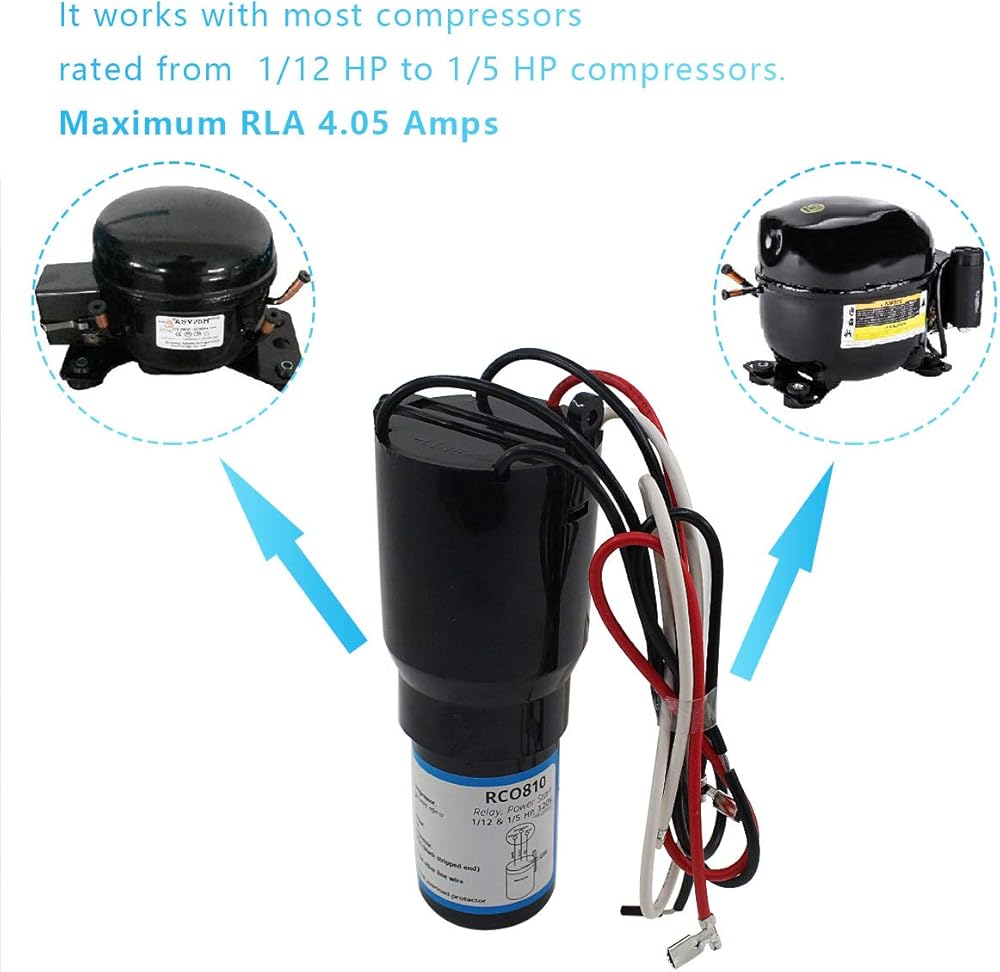

It works with most compressors rated from 1/12 HP to 1/5 HP compressors. Maximum RLA 4.05 Amps.

Used on refrigeration systems with or without run capacitors.

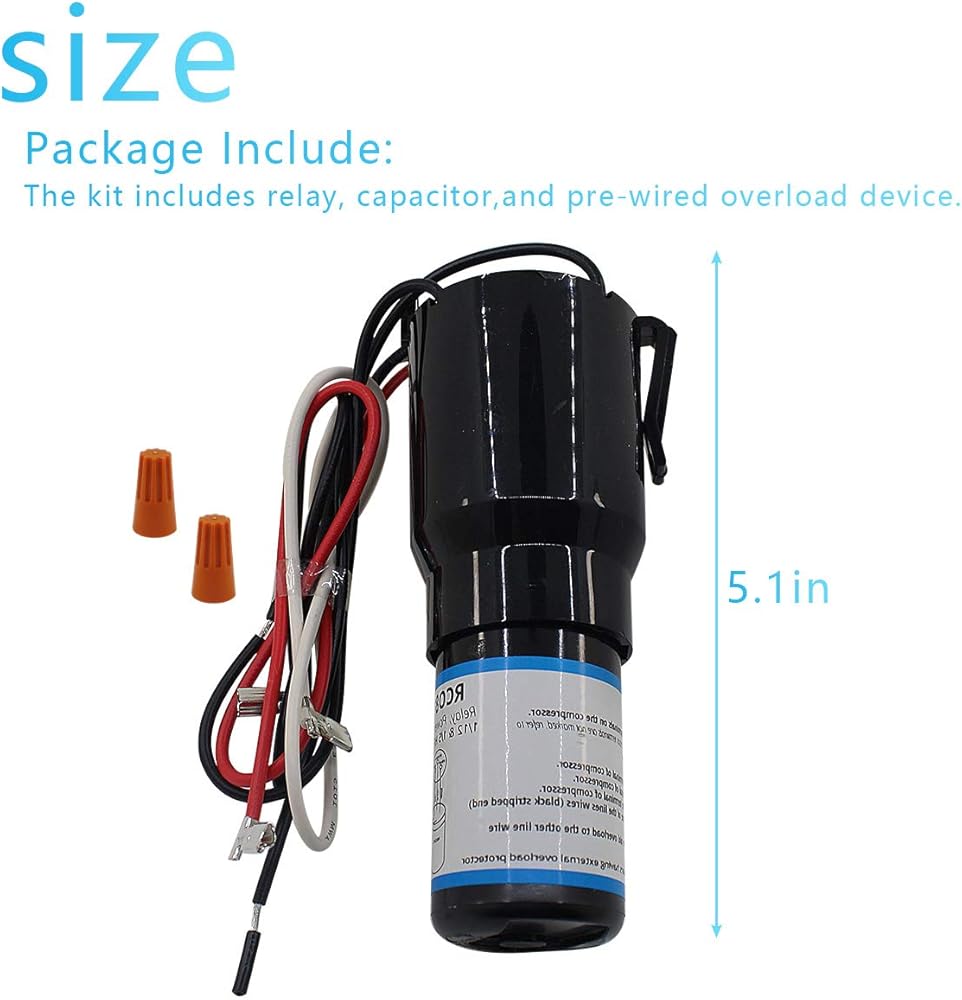

Specification:

Capacitance: 145 to 175 MFD

Maximum Continuouis RLA: 4.05A

Voltage: 115v

HP rating: 1/12 - 1/5

Mounting: Quick connect

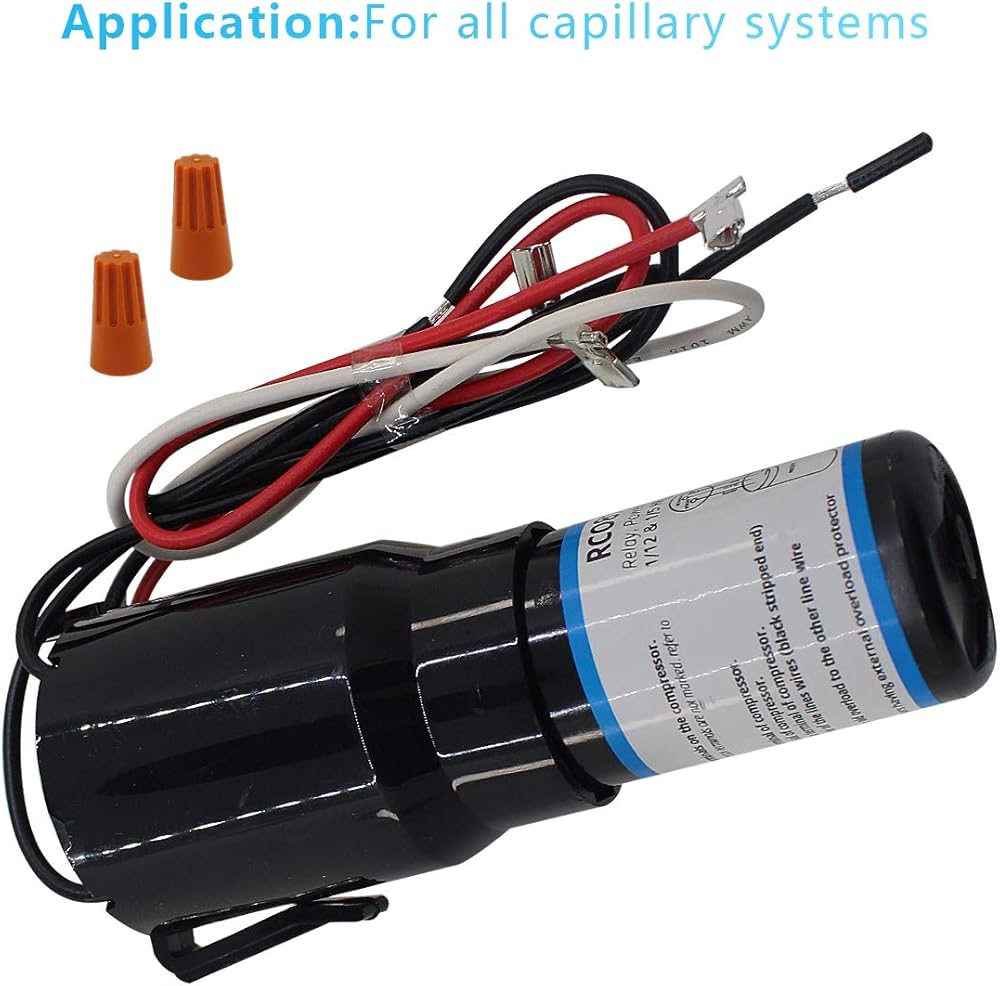

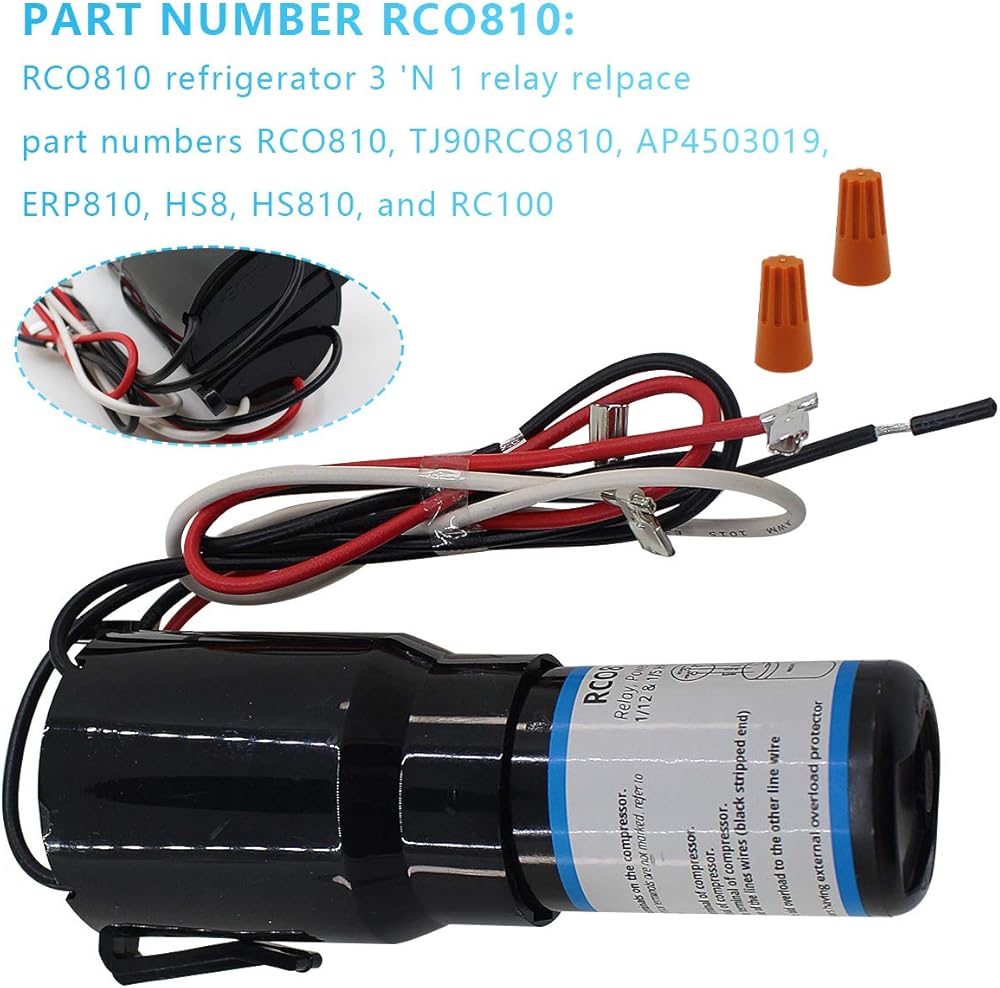

Application:For all capillary systems.Select the right match to replace refrigerator compressor relay and overload units from 1/12 through 2/3 hp, 115-230 VAC

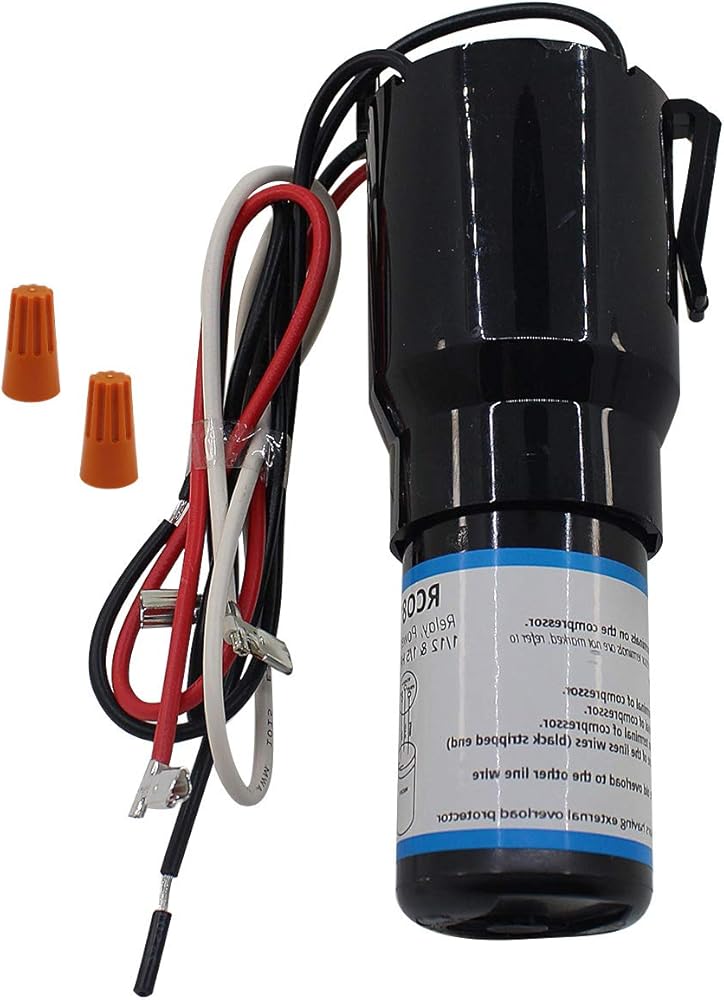

Installation Instructions
1.Disconnect electrical power compressor.

2.Note the locations of the start,run and common terminals on the compressor.

3.Remove old rely overload and discard.

4.Install white wire with pin terminal on the start terminal of compressor.

5.Install red wire with pin terminal on the run terminal of compressor.

6.Install black wire with pin terminal on the common terminal of compressor.

7.Connect line wire removed from the old relay to one of the lines wires(black stripped end) on the Power supply.

8.Connect the line wite which was removed from the old overload to the other line wire(black stripped end) of the Power Supply.

Note:This device can only be used on compressors having external overload protector.
