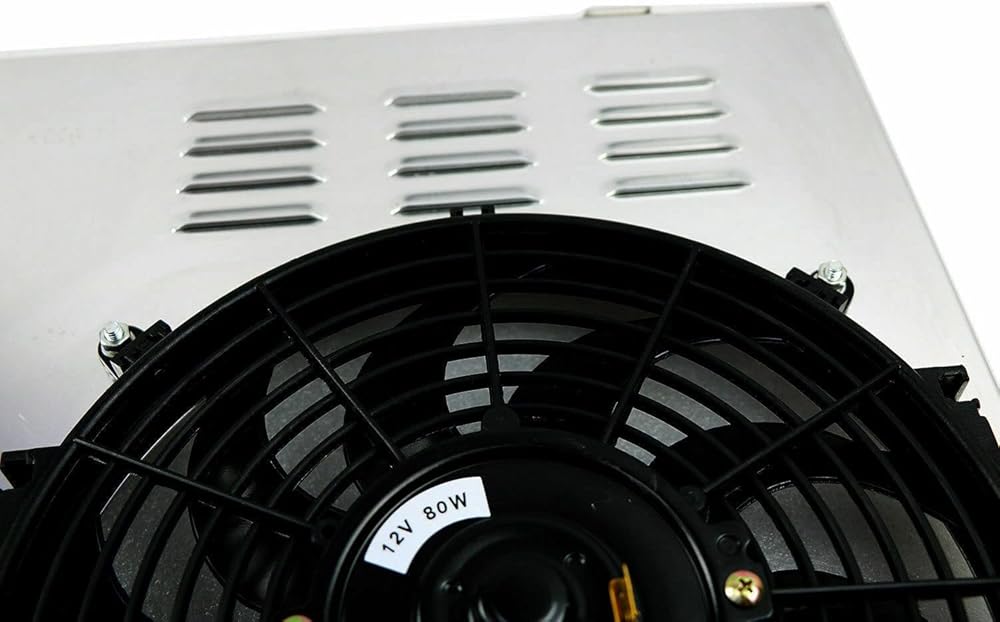

Fan Specification:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Application:
For 1970-1981 Chevy Camaro/75-79 Nova/68-73 Chevelle El Camino
For 1980 Buick Century 4.3L 4.9L 5.0L
For 1979-1980 Buick Regal 3.8L 4.9L
For 1979 Buick Estate Wagon 5.7L
For 1979-1980 Chevy C10/C20 /C30 /G10 4.1L 4.8L 5.7L
For 1979 Chevy C10 Suburban/C20 Suburban/ G20 / G30 4.1L 5.0L 5.7L
For 1979 Chevy Camaro /El Camino 3.3L 4.1L 4.4L 5.0L 5.7L
For 1980 Chevy Impala / Monte Carlo /P30 5.0L 5.7L
For 1979-1980 Chevy K10/K20 /K30 4.1L 4.8L 5.7L
For 1979 Chevy K10 Suburban / K20 Suburban 5.0L 5.7L
For 1979-1980 Chevy Malibu 3.3L 3.8L 4.4L 5.0L 5.7L
For 1980 GMC C1500/ G1500 /C1500 Suburban / C2500 /Jimmy/ K1500 Suburban/K2500 Suburban
For 1980 Oldsmobile Cutlass/Cutlass Cruiser/ Delta 88 5.0L 4.3L
For 1980 Pontiac Catalina / Grand LeMans/ LeMans

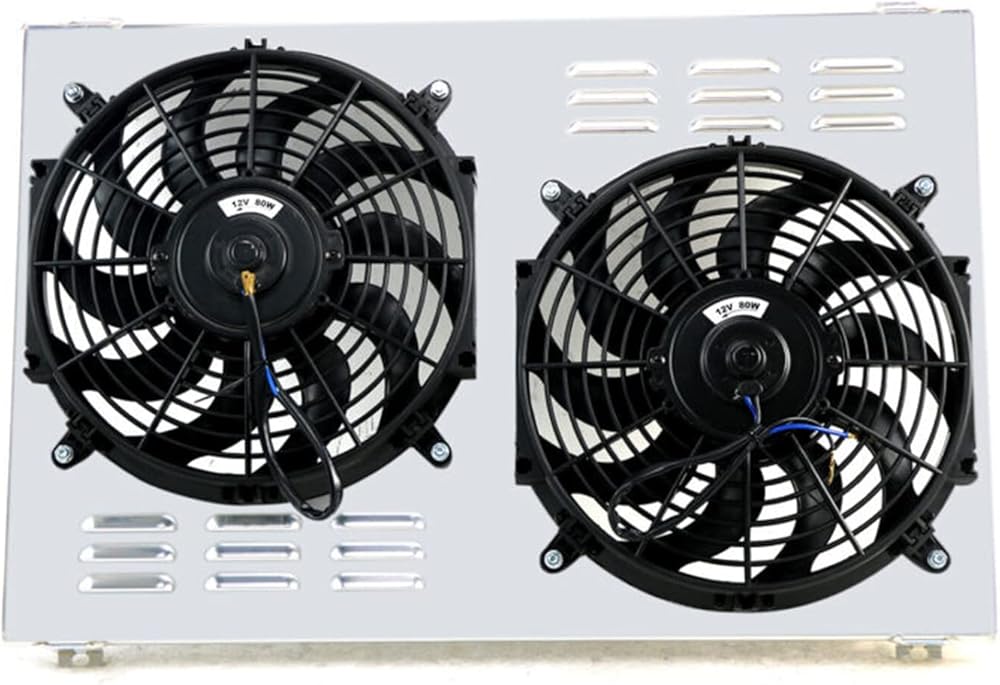

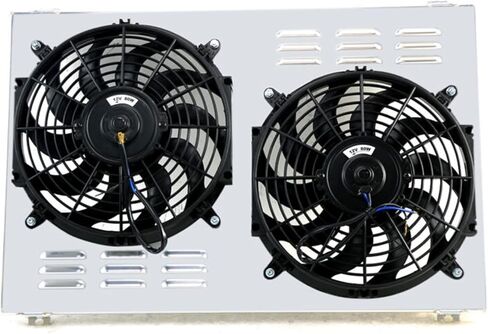

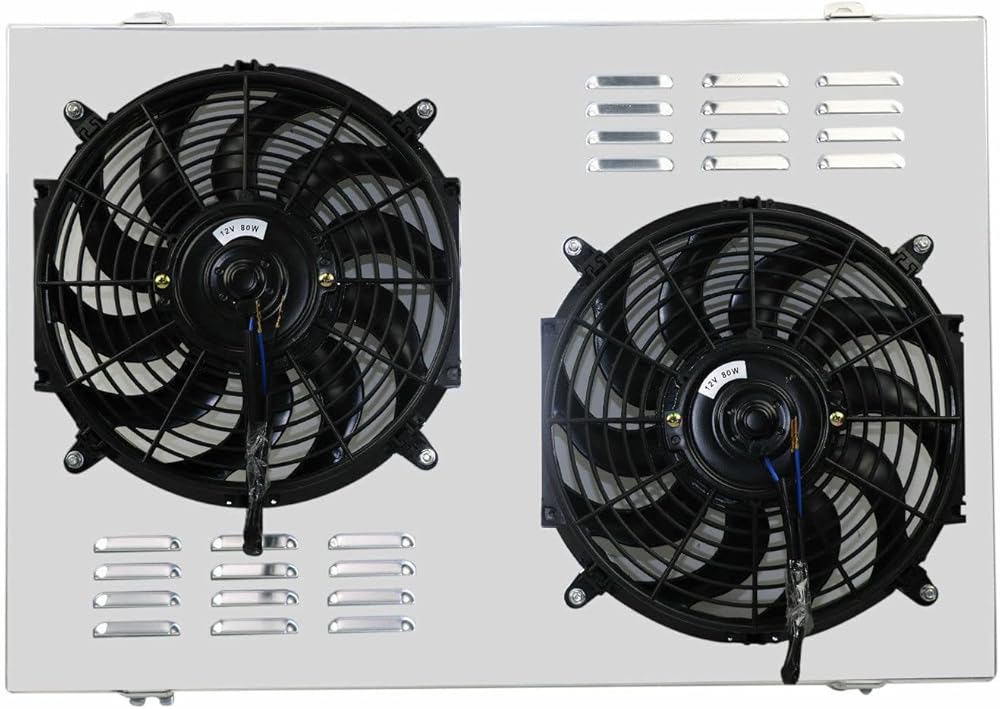

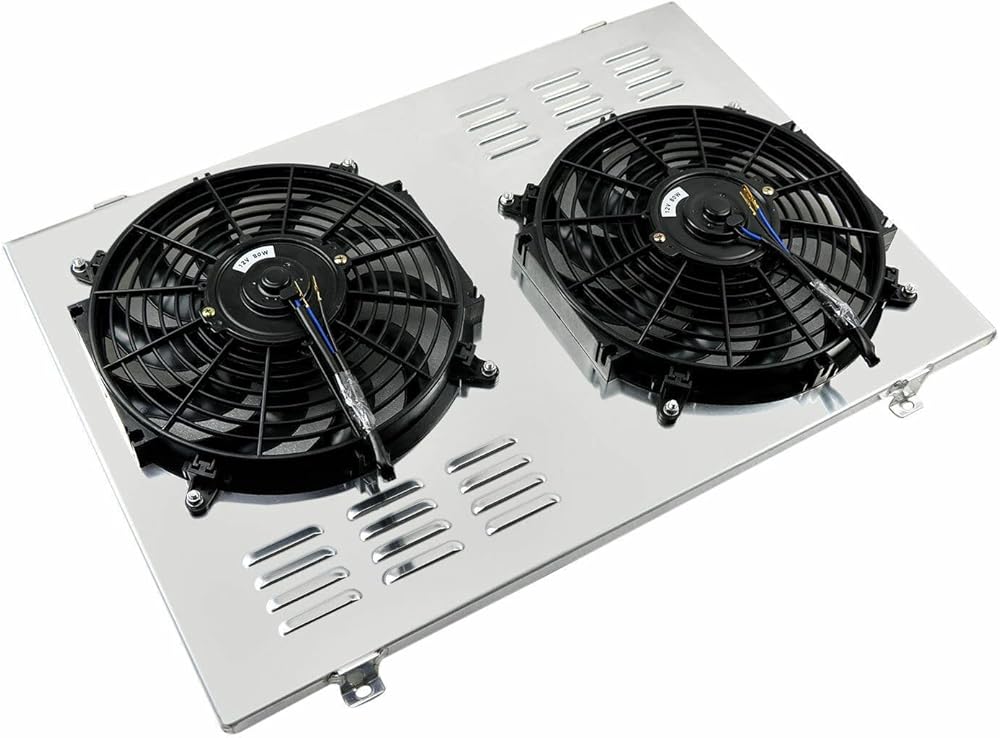

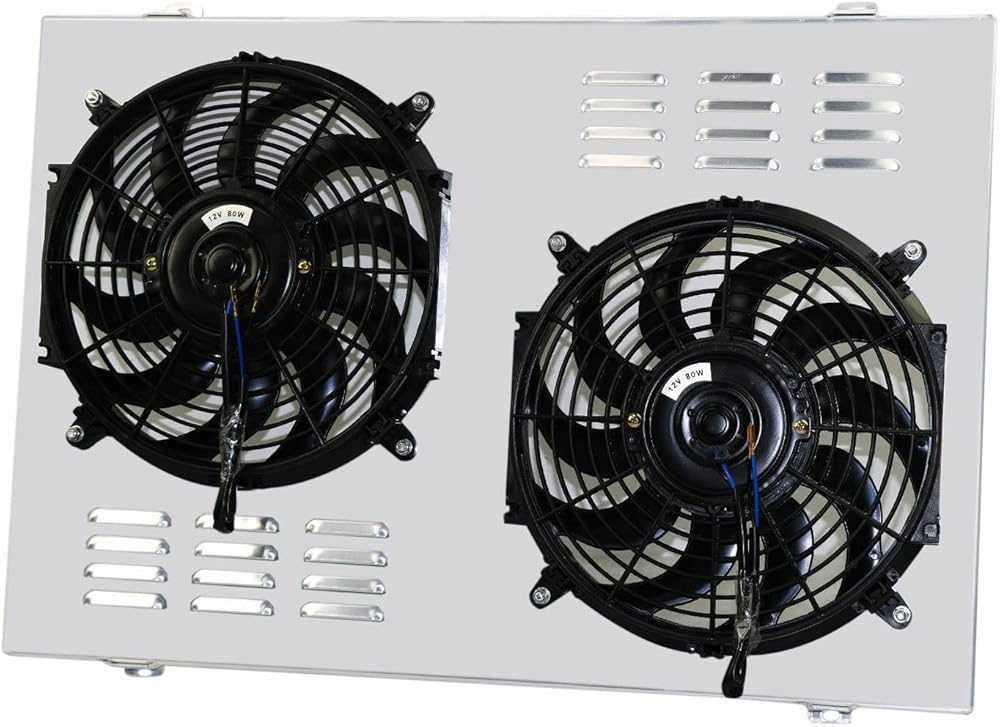

Shroud and Fans:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine.
The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine.
With excellent operating temperature management, allowable levels of engine temperature are stabilized.
Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

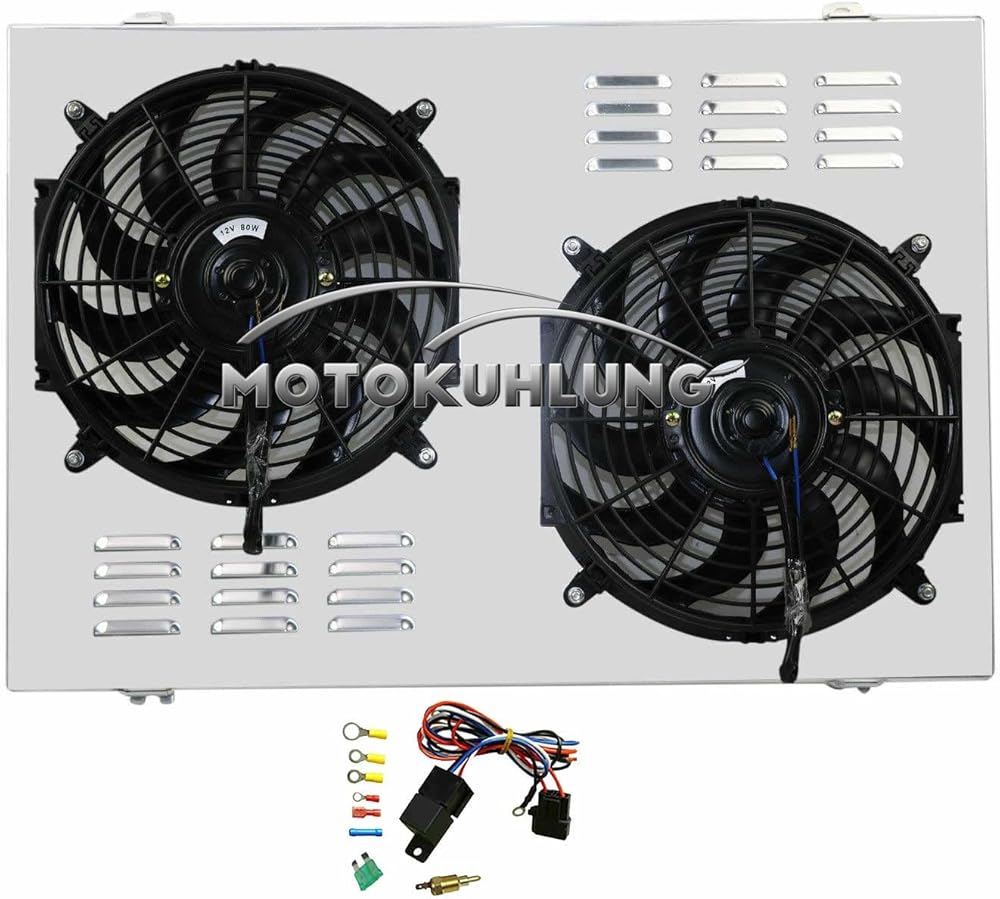

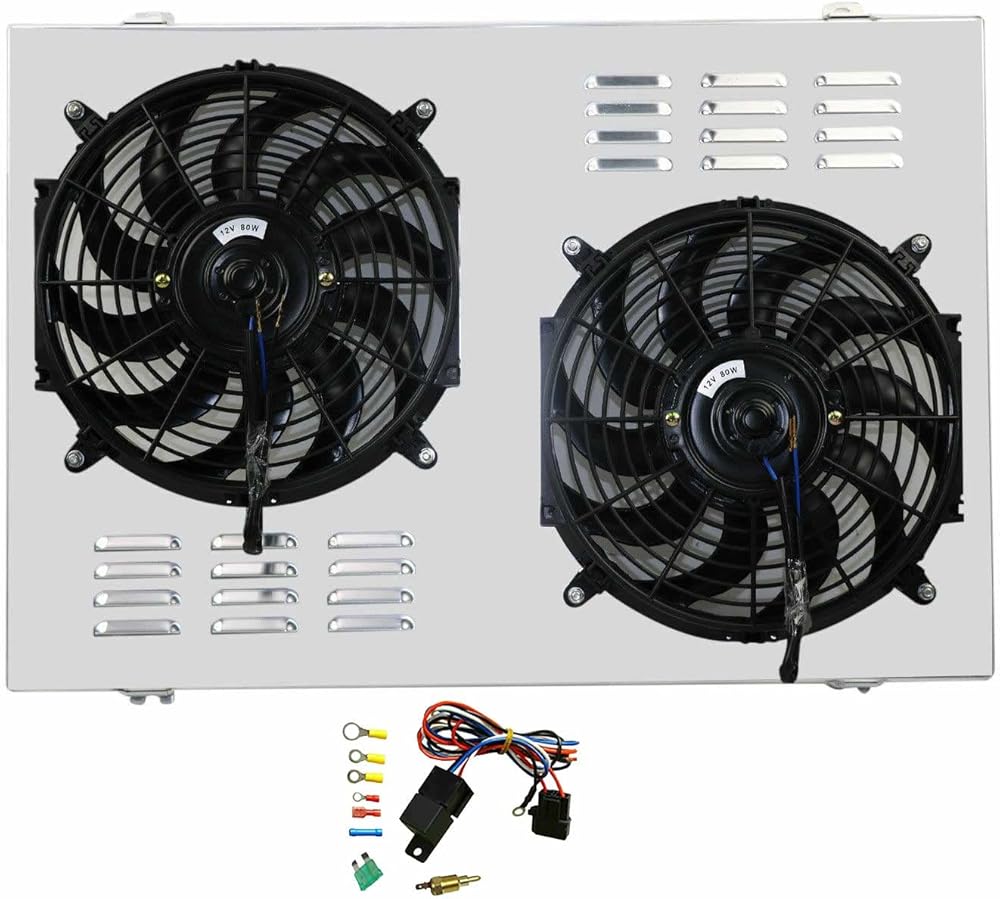

This Listing Is Including:

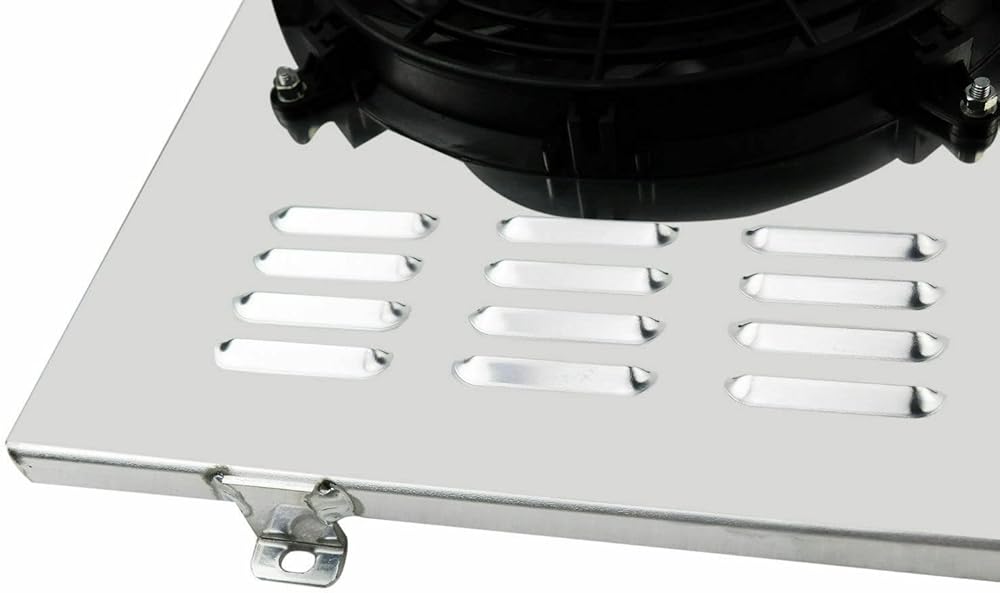

1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
If you have any questions about the product, you can contact us in anytime, we will help you soon.
