Specifications:
Product name:Ball Lock Pins/ Lock Pins/ Ball Locking Pin/Push-Button Quick Release Pin
Material:zinc alloy handle +Stainless steel Body
Pin Dia(MM): 12
Usage Length(MM): 20/25/28/31/35/41/50
Handle surface treatment: Electroplating zinc
Lanyard Cable Length: 250mm /9.84"

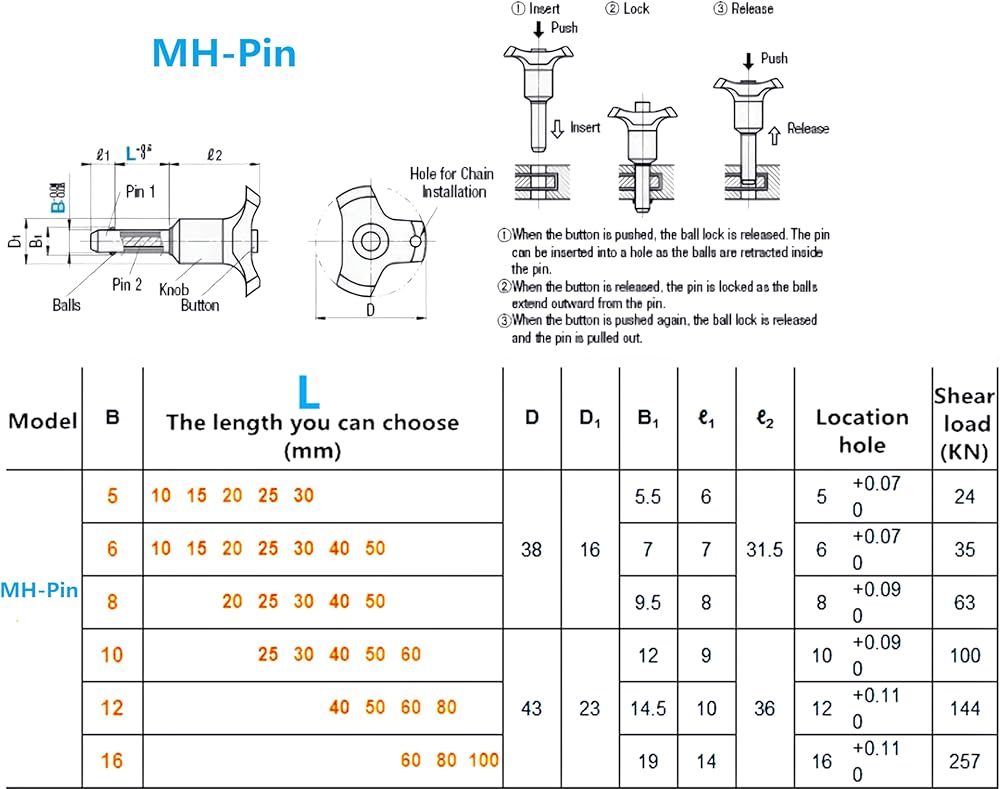

Detailed dimensional drawings of specific dimensions. Package Content:
2x Ball Locking Pin
2XLanyard Cable
[Installation]:
-Press the button on the handle to retract the steel ball on the head of the pin body, then pass the quick-release pin through the pinhole.
- When the button is released, the steel ball pops out, the quick-release pin cannot be pulled out from the pinhole.
Note:
1.Please allow 0.1-0.5 inch difference due to manual measurement.(1 inch=2.54cm)
2.The color of the actual items may slightly different from the listing images due to different computer screen.
3.Pay attention to the diameter and usage length of the pin for choosing the right one.
