مميزات خاصة

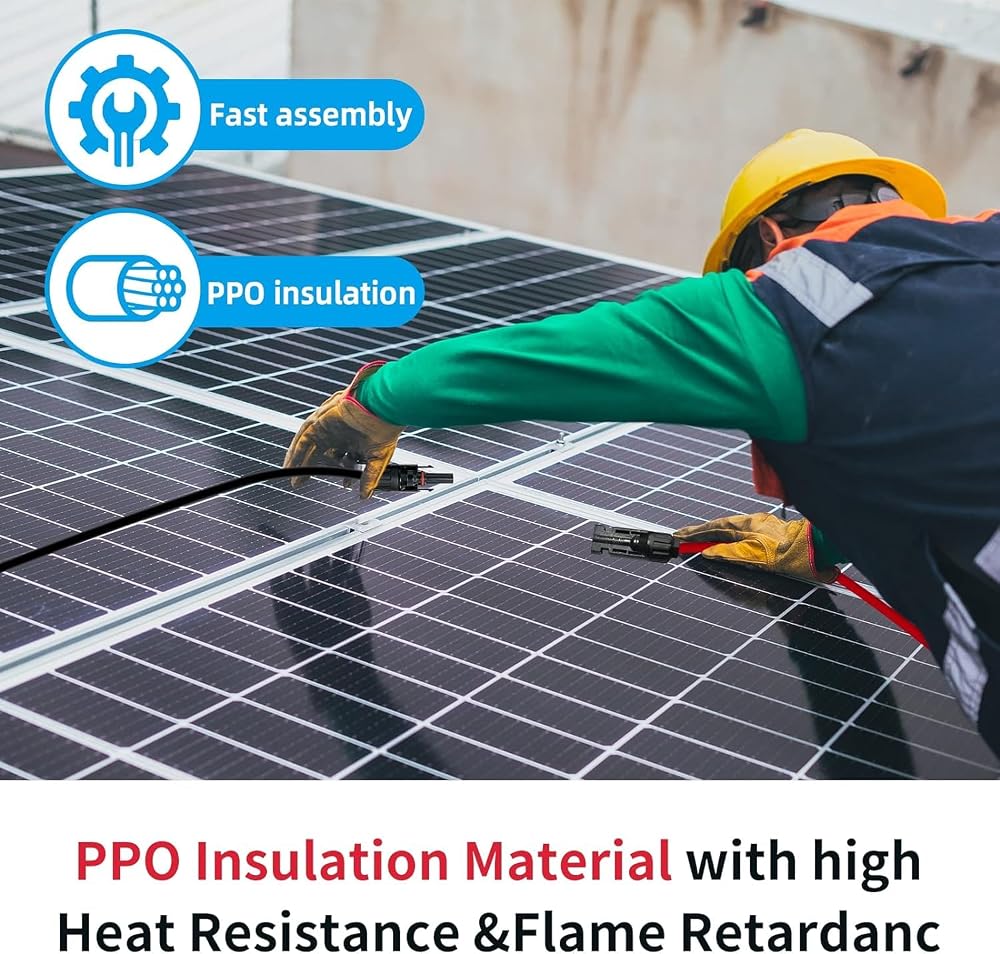

🔆High quality: The conductor is made of tinned copper, the connector is made of PPO and the cable is made of XLPE. Good contact materials ensure the transmission under stable conditions. The outer wrap insulation has excellent aging resistance and UV resistance, High temperature resistance, wear resistance, corrosion resistance.
🔆Good compatibility: Compatible with PV cables with different insulation diameters (2.5mm2--6mm2).
🔆Easy to install and remove: Quick and easy installation and removal of the plug without additional equipment, which is very convenient.

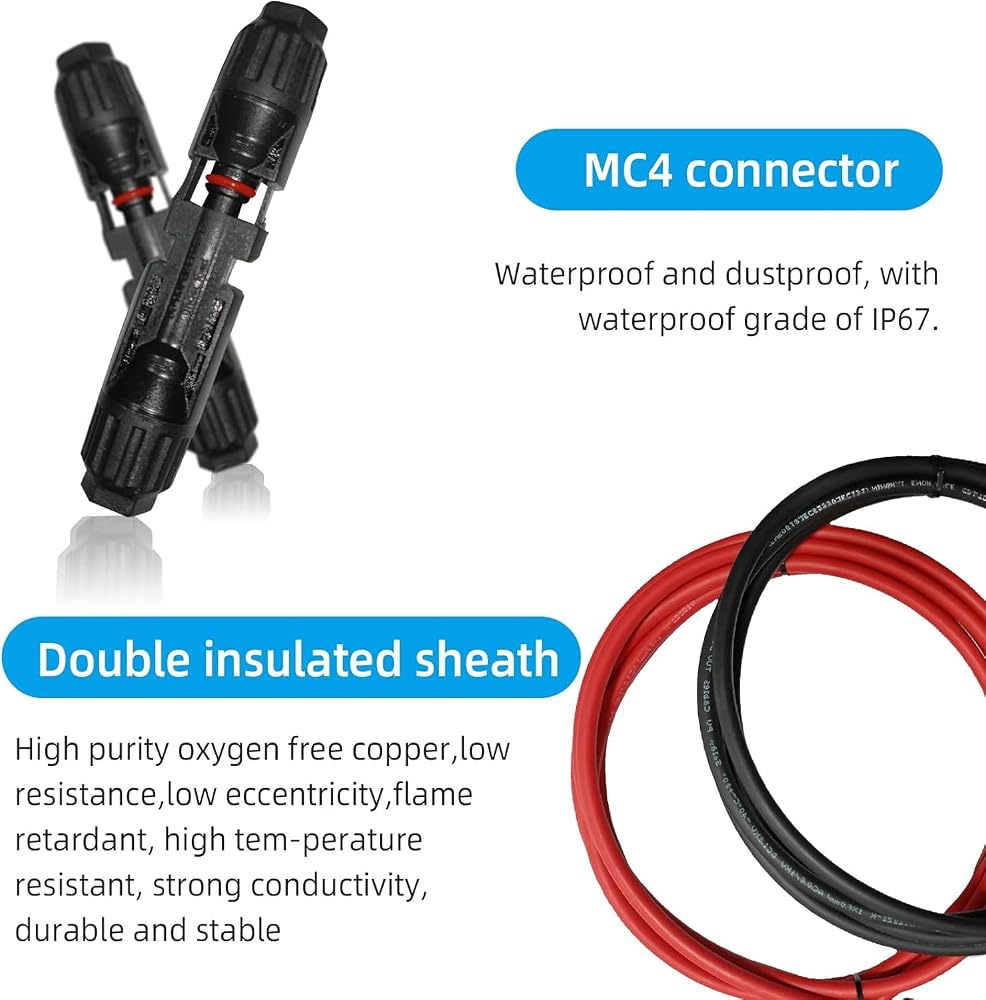

🔆Excellent water resistance: Waterproof and dustproof, , IP67 waterproof rating and can be used in harsh environments.
🔆Professional: Specially developed for connecting photovoltaic systems with high mechanical requirements and extreme weather conditions.

وصف

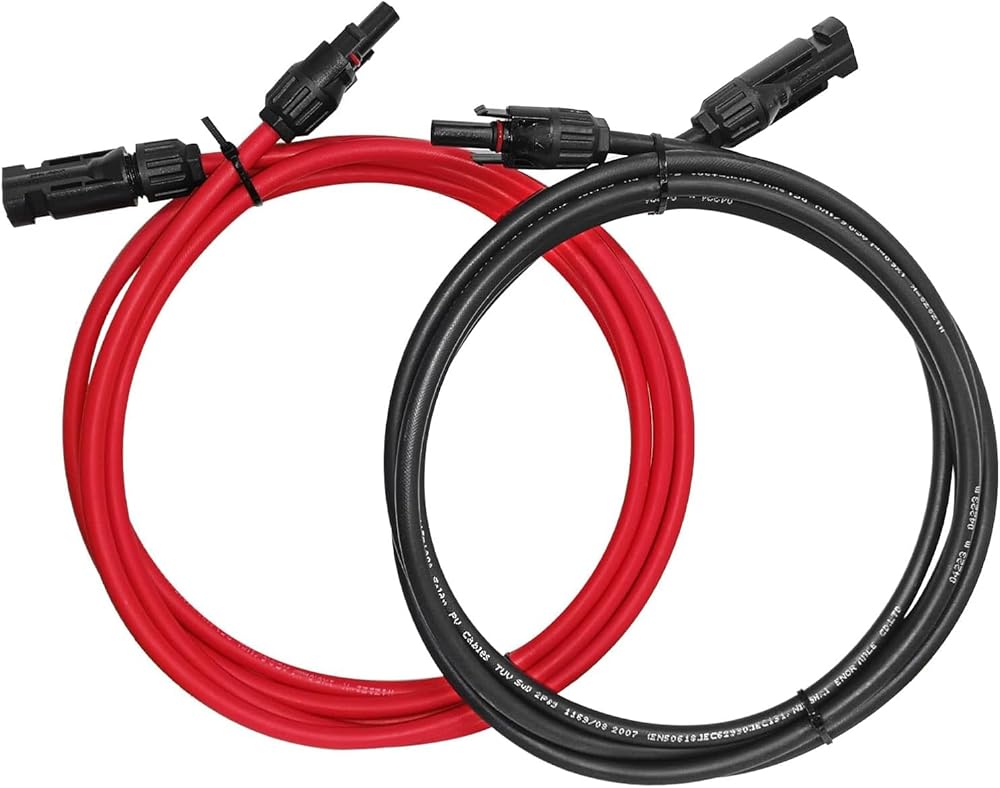

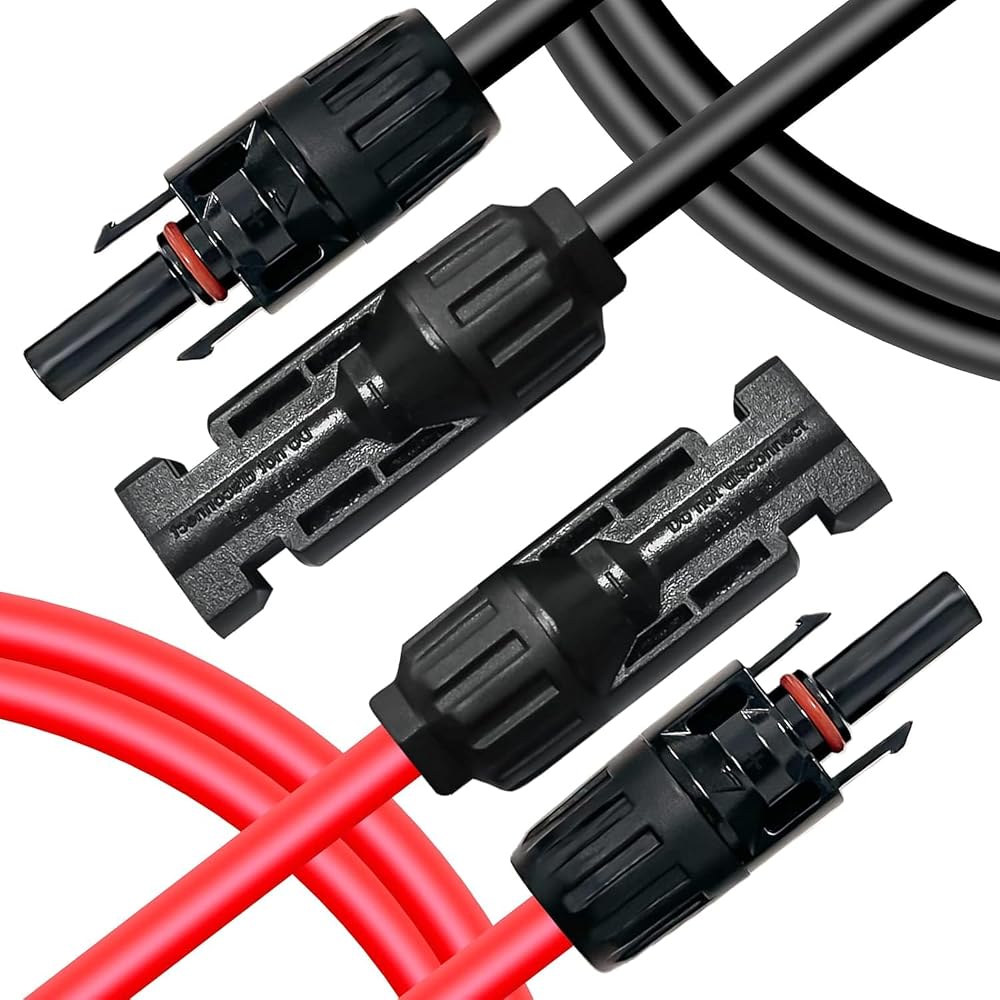

Connection cable with MC4-compatible plug and wire sleeve ready-made plus and minus set - for wiring parallel circuit

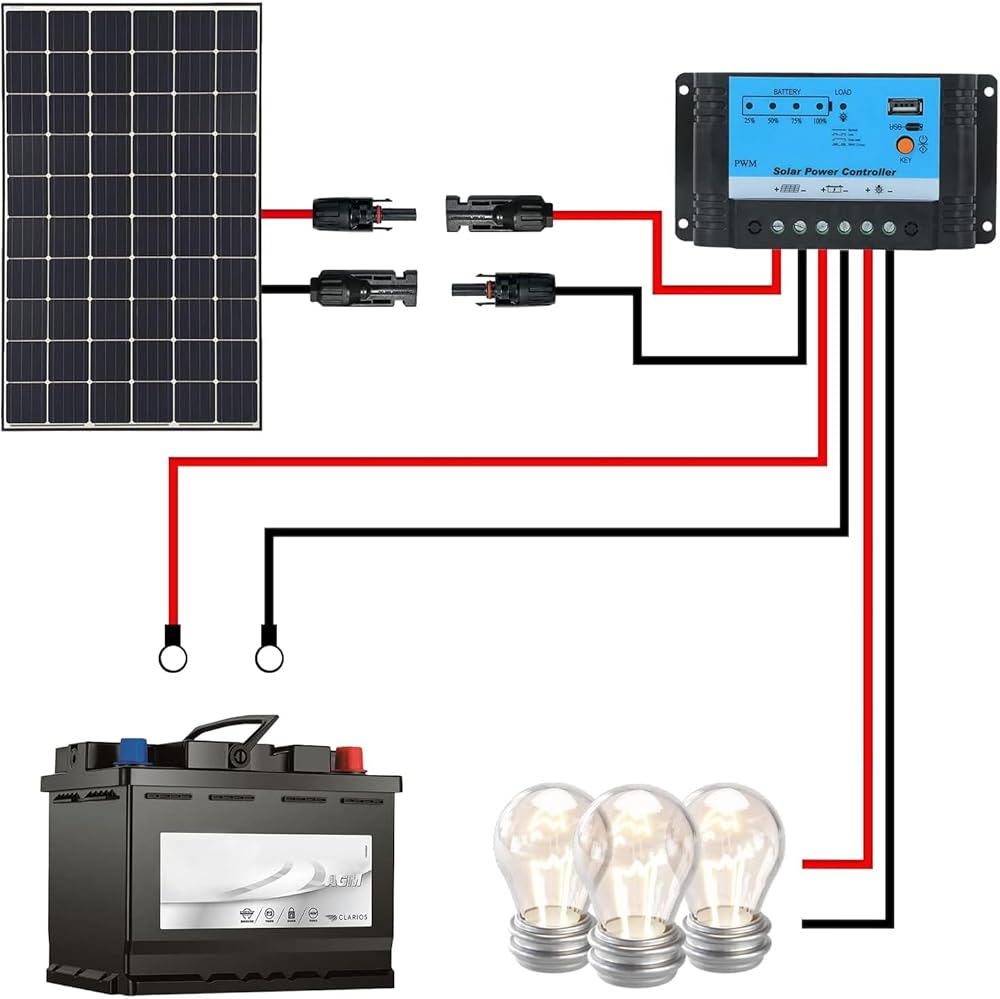

Simply plug into the connection cable of the junction box on the module, or to the distributor plug of your photovoltaic system, to the solar charge controller.

Technical data:
Protective voltage/system voltage max. 1000V
Plug and crimp contact
Dimensioned current min. 30A
Cable cross section 6mm²
Protection class mated IP67

Properties:
Conductor according to DIN EN 60228 class 5 copper tin-plated
ozone-resistant, UV-resistant, halogen-free, acid- and alkali-resistant
Short-circuit resistance: up to 200 °C / 5s
Heat expansion test at 200 °C
Nominal voltage (Uo/U): AC 0.6/1.0 kV / DC 0.9/1.5 kV
Ac voltage test: AC 6.5 kV
Maximum permissible voltage: 1.8 kV
Temperature range: -40 °C to 90 °C
Maximum temperature at conductor: 120 °C

List of goods： 1 x red and 1 x black

Translated with www.DeepL.com/Translator (free version)
