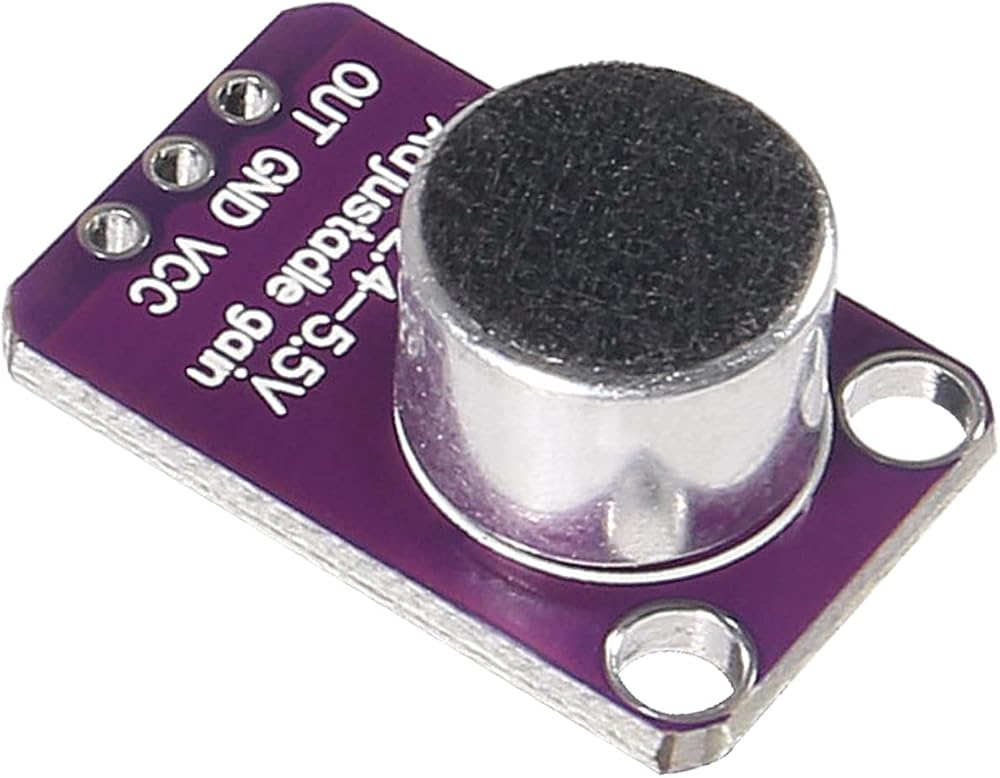

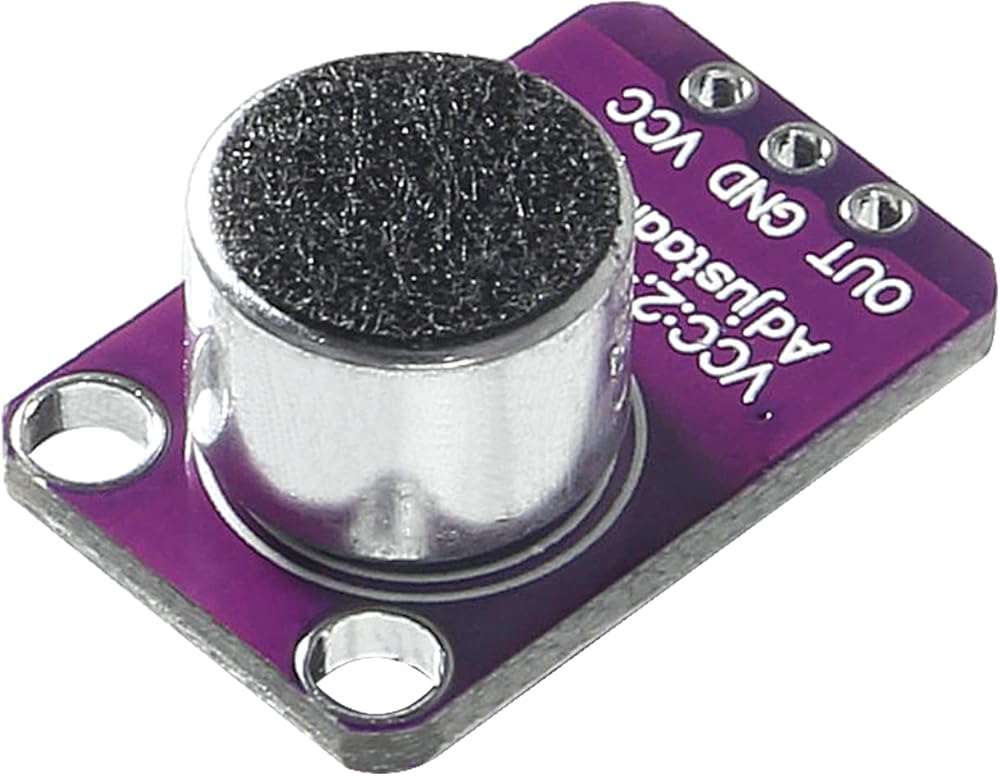

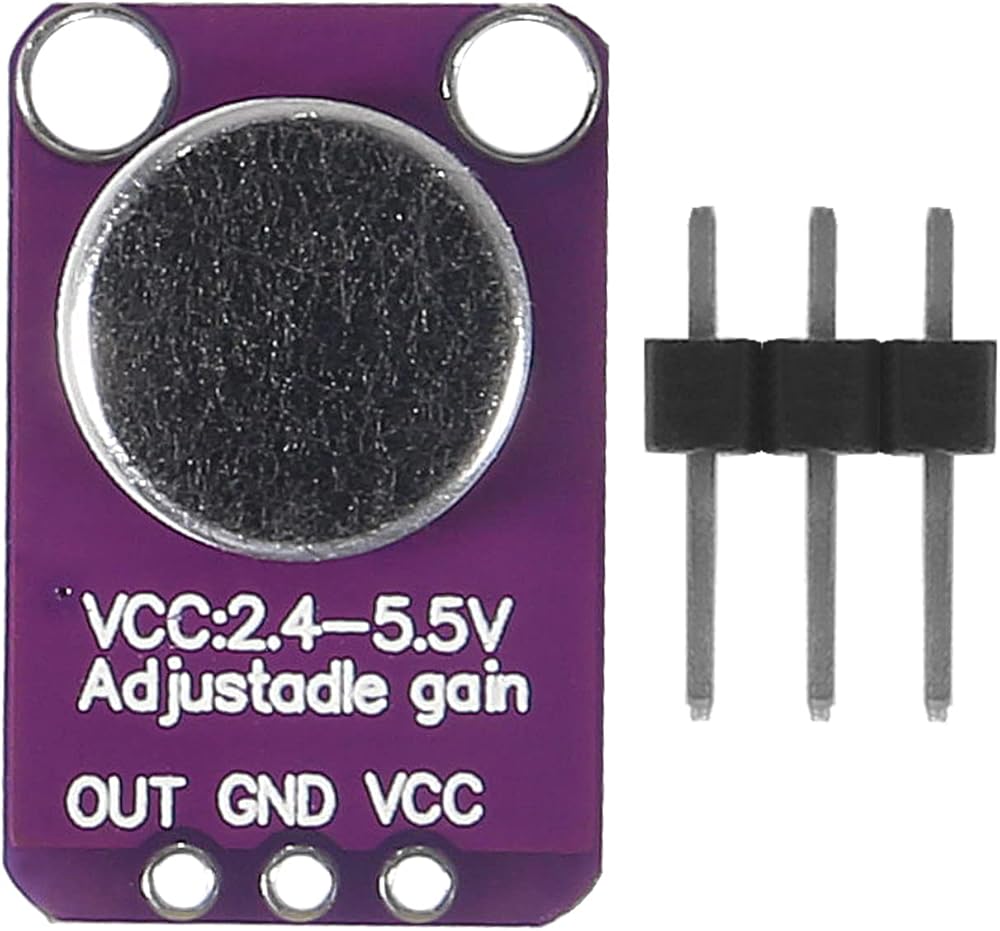

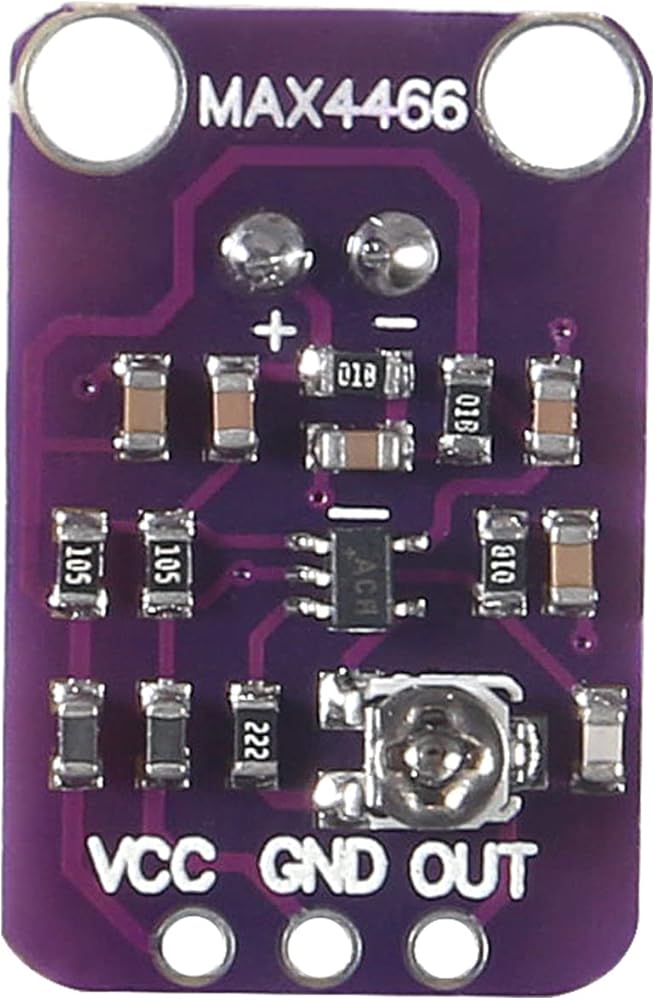

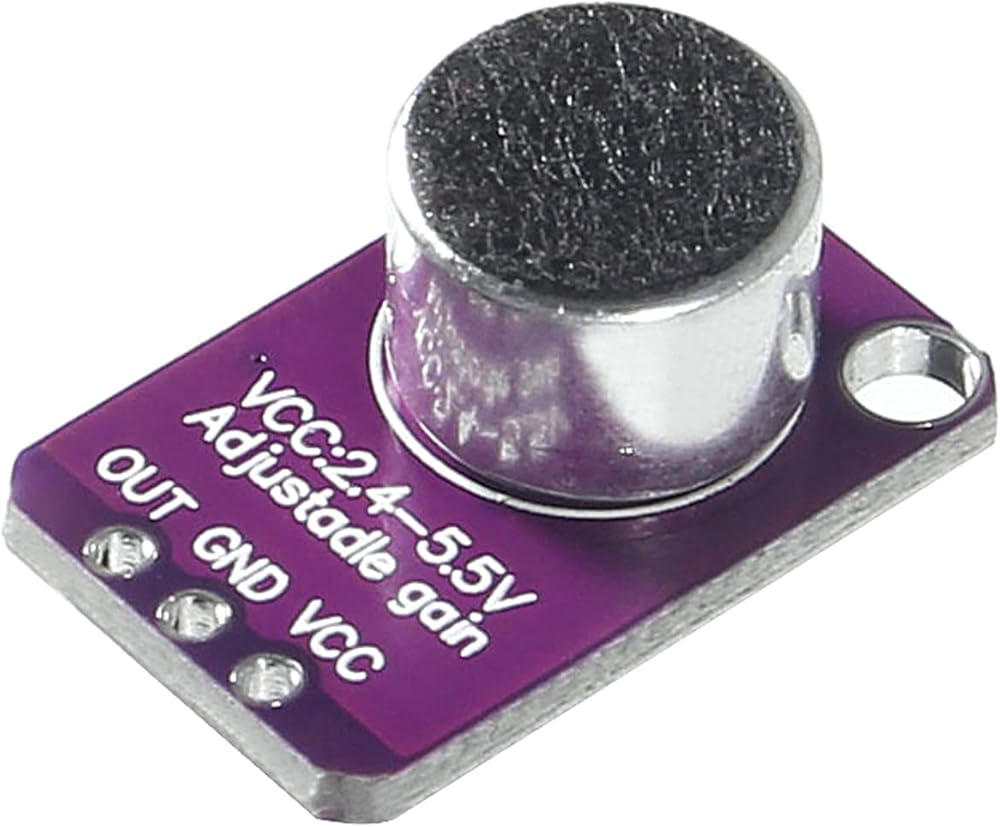

MAX4466 electret microphone amplifier module
power supply voltage: +2.4V to +5.5V (can be compatible with STM, Raspberry Pi and other development board motherboards);
Power supply rejection ratio: 112dB;
Common mode rejection ratio: 126dB; AVOL: 125dB (RL = 100 thousands of ohm meter) rail-to-rail output;
Quiescent power supply current: less than 24 microamp; Gain bandwidth: 600kHz

Using it is simple:
Connect GND to ground, VCC to 2.4-5VDC.
For the best performance, use the ""quietest"" supply available (on an for Arduino, this would be the 3.3V supply).
The audio waveform will come out of the OUT pin. The output will have a DC bias of VCC/2 so when its perfectly quiet, the voltage will be a steady VCC/2 volts (it is DC coupled).
If the audio equipment you're using requires AC coupled audio, place a 100uF capacitor between the output pin and the input of your device.
If you're connecting to an audio amplifier that has differential inputs or includes decoupling capacitors, the 100uF cap is not required.
The output pin is not designed to drive speakers or anything but the smallest in-ear headphones- you'll need an audio amplifier (such as 3.7W stereo amp) if you want to connect the amp directly to speakers.
If you're connecting to a microcontroller pin, you don't need an amplifier or decoupling capacitor - connect the OUT pin directly to the microcontroller ADC pin.
for audio-reactive projects, we suggest using an FFT driver library which can take the audio input and 'translate' it into frequencies.

Package include:
8 x Electret microphone amplifier adjustable mAX4466 module
