0-100% percentage speed display accurate positioning

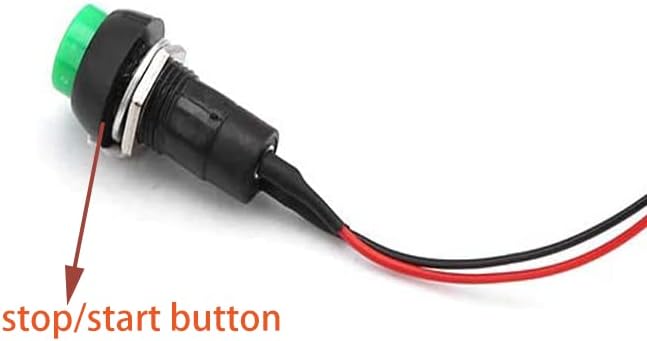

With inching start/stop switch 6-60V wide voltage

Technical parameters

Working voltage: 6V-60V

Output voltage: linear under load

Output current: 30A

Continuous current: 20A

Speed adjustment range: 0%-100%

Installation method: plate type

Speed control method: Potentiometer

Speed control type: Flow control

Panel opening: 92mm*56mm

Support motor: brush motor

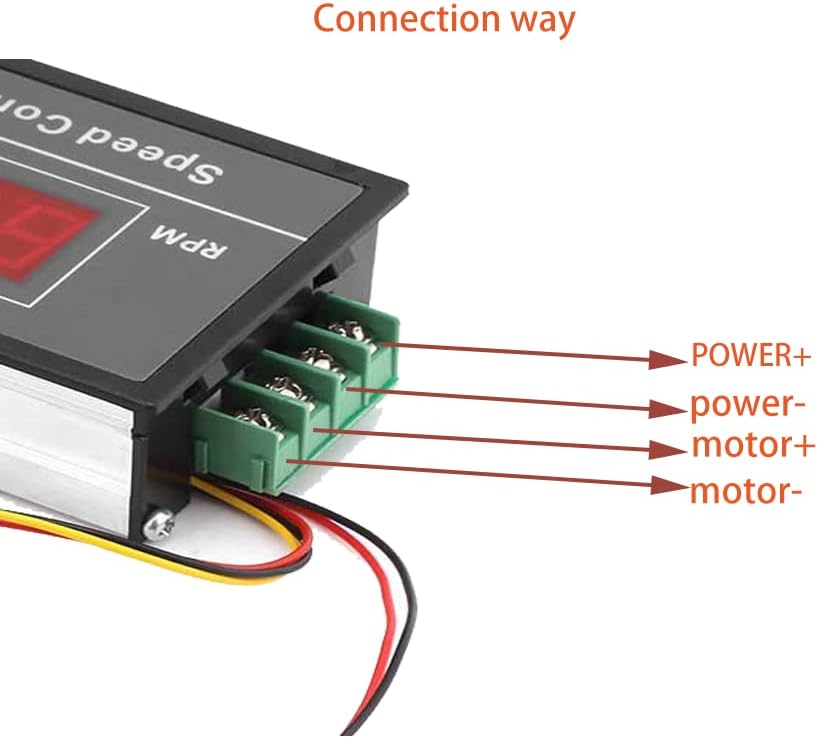

Wiring mode: barrier terminal block

Product frequency: 15KHZ

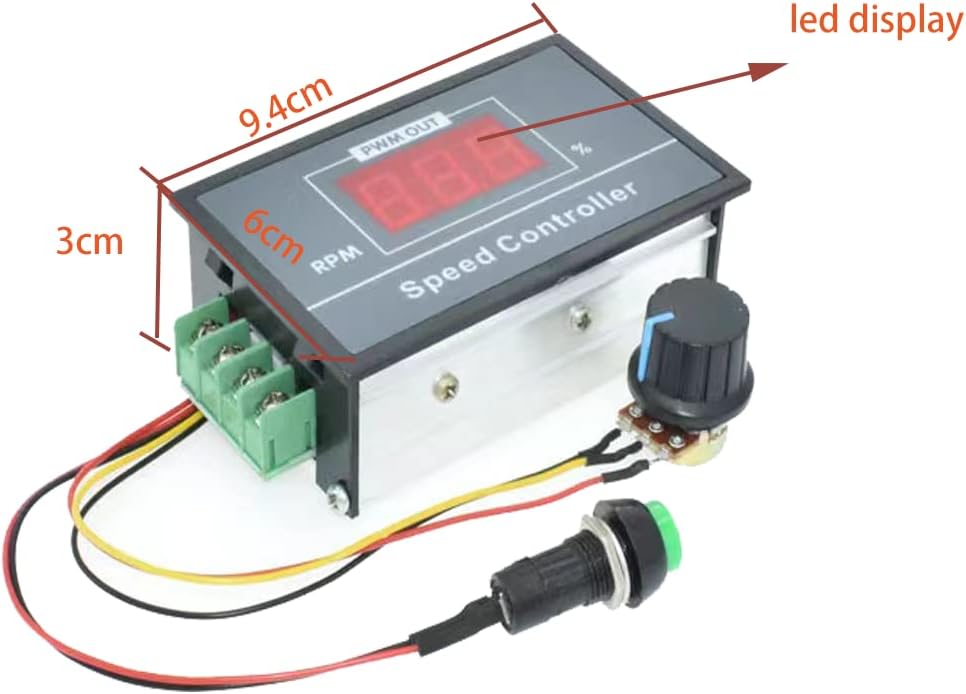

Shell size: 96mm*61mm*34mm

Net weight of the product: 120g

Notice:

The digital display only shows 0-100 percent, not the actual speed of the motor

The input voltage must be positive and negative. Cannot input 220V.

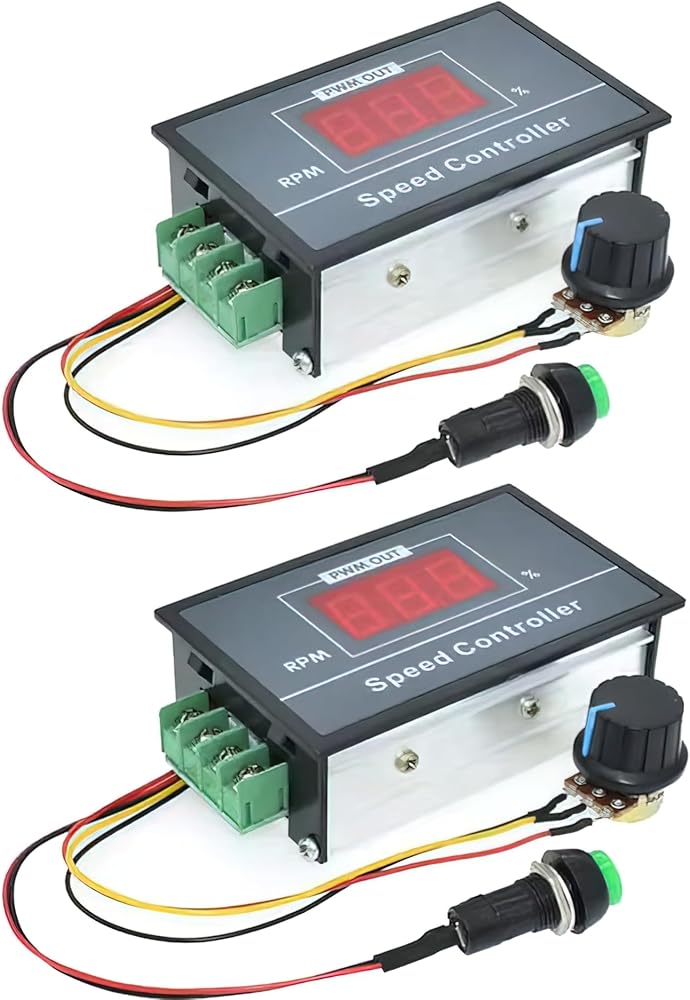

Packaging: 2x motor speed controller
