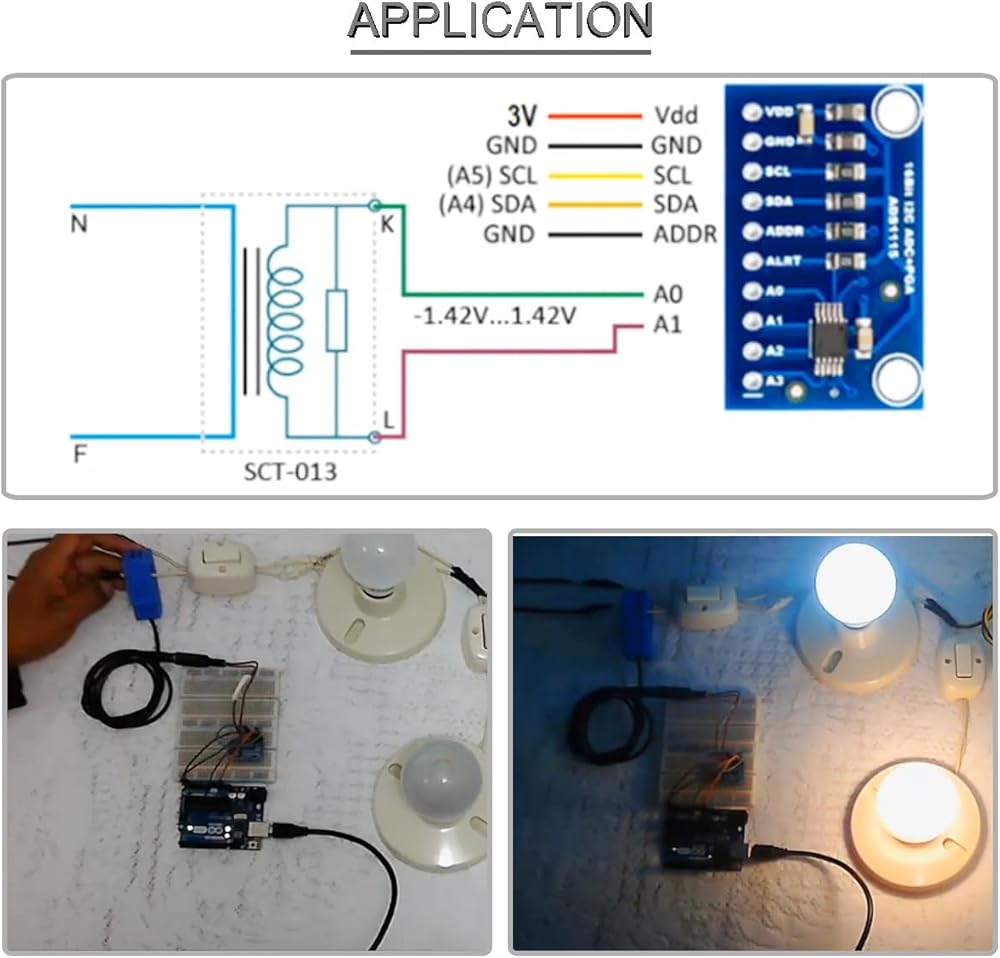

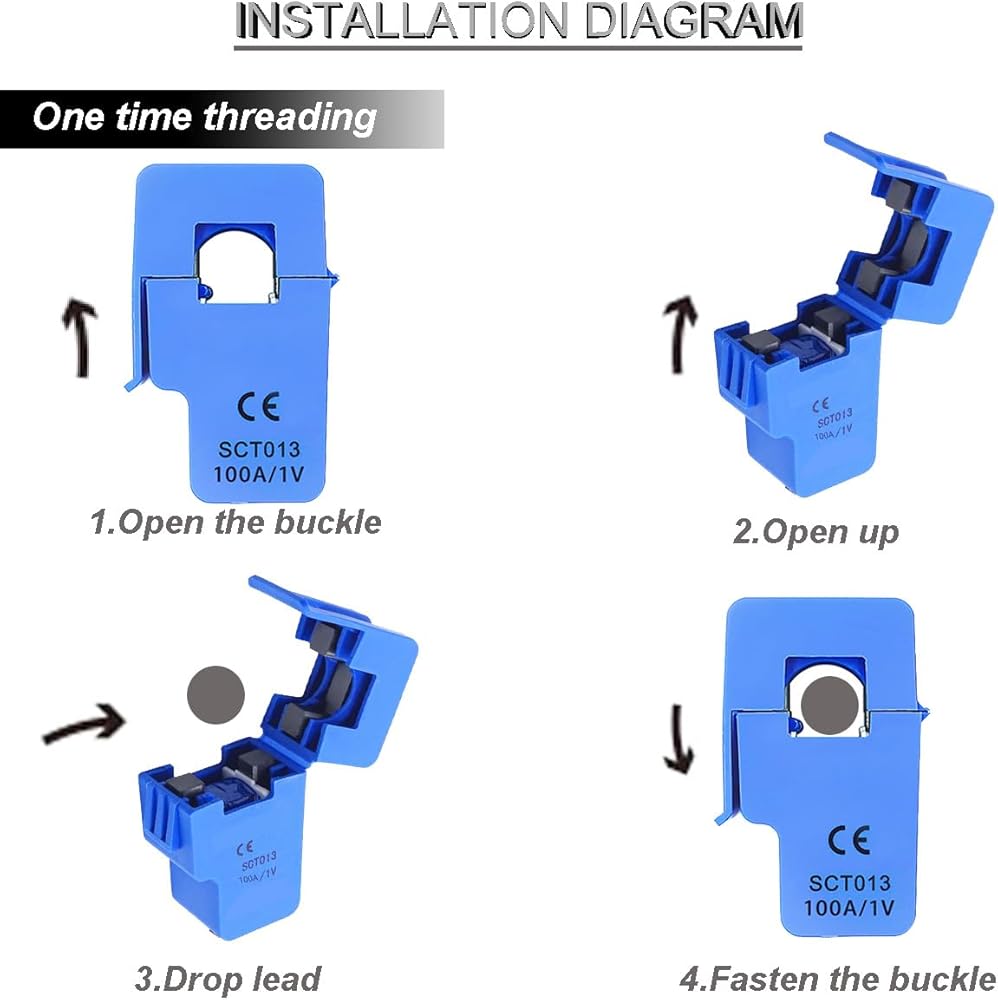

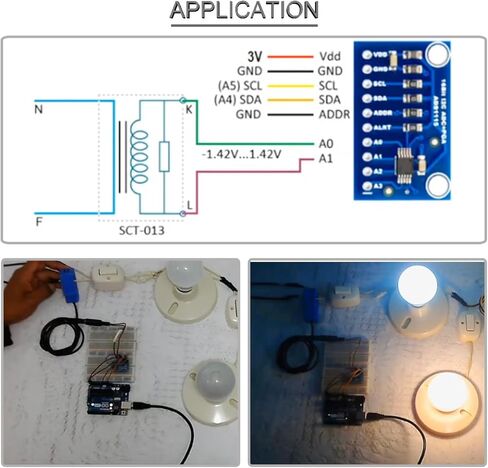

The standard Φ3.5 three-core plug output, the current and voltage two kinds of output.Hanging installation, lead output.For AC motors, lighting equipment, air compressors and other current ,monitoring and protection.

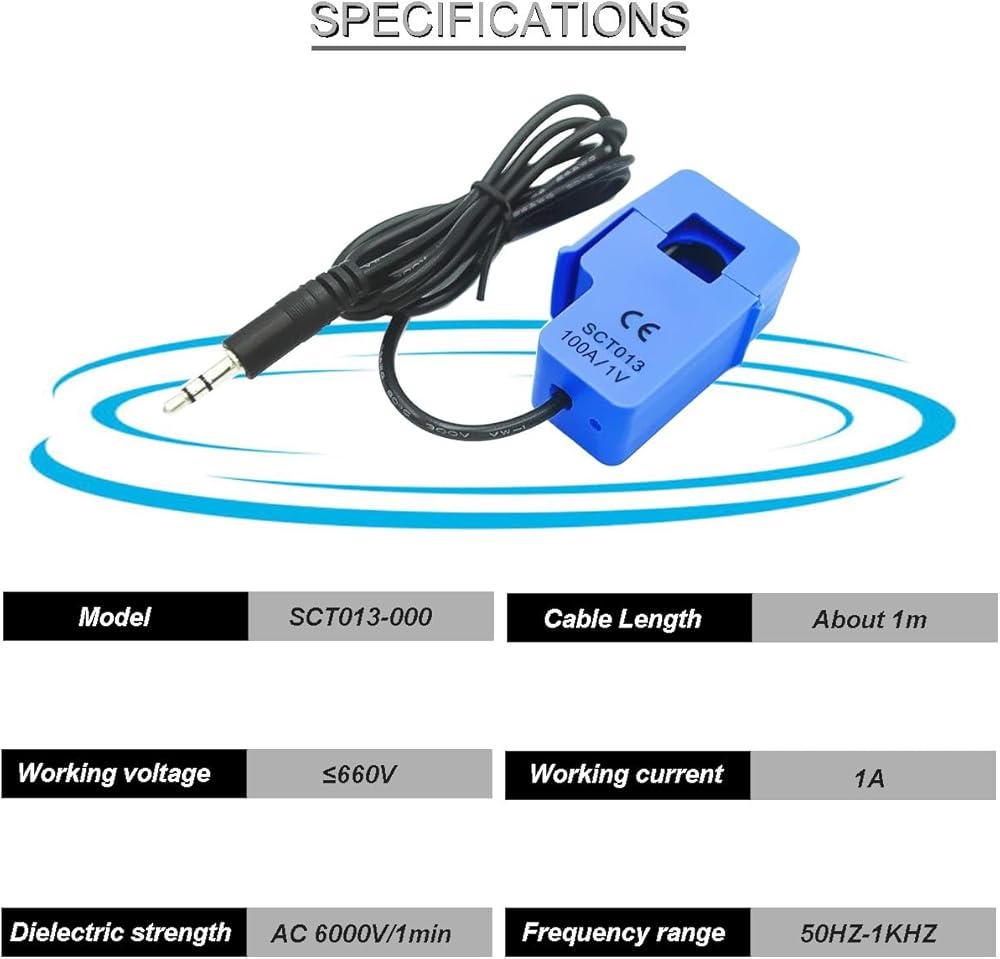

Current Transformer Specification:

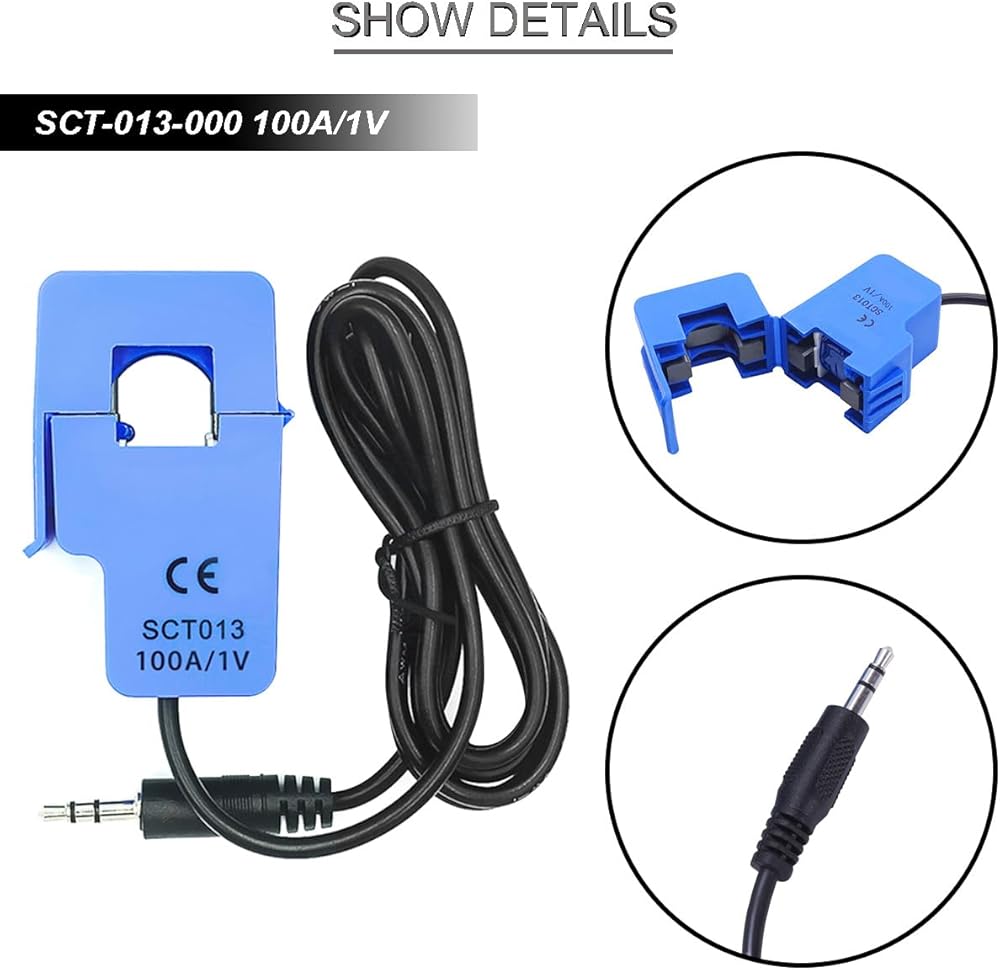

Model: SCT013-000
Material: Ferrite
Lead Wire Length: About 1m

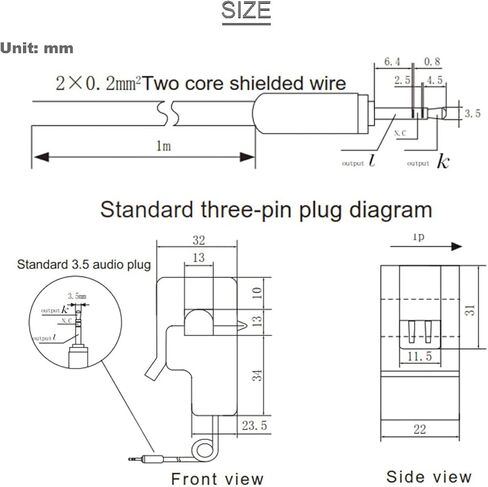

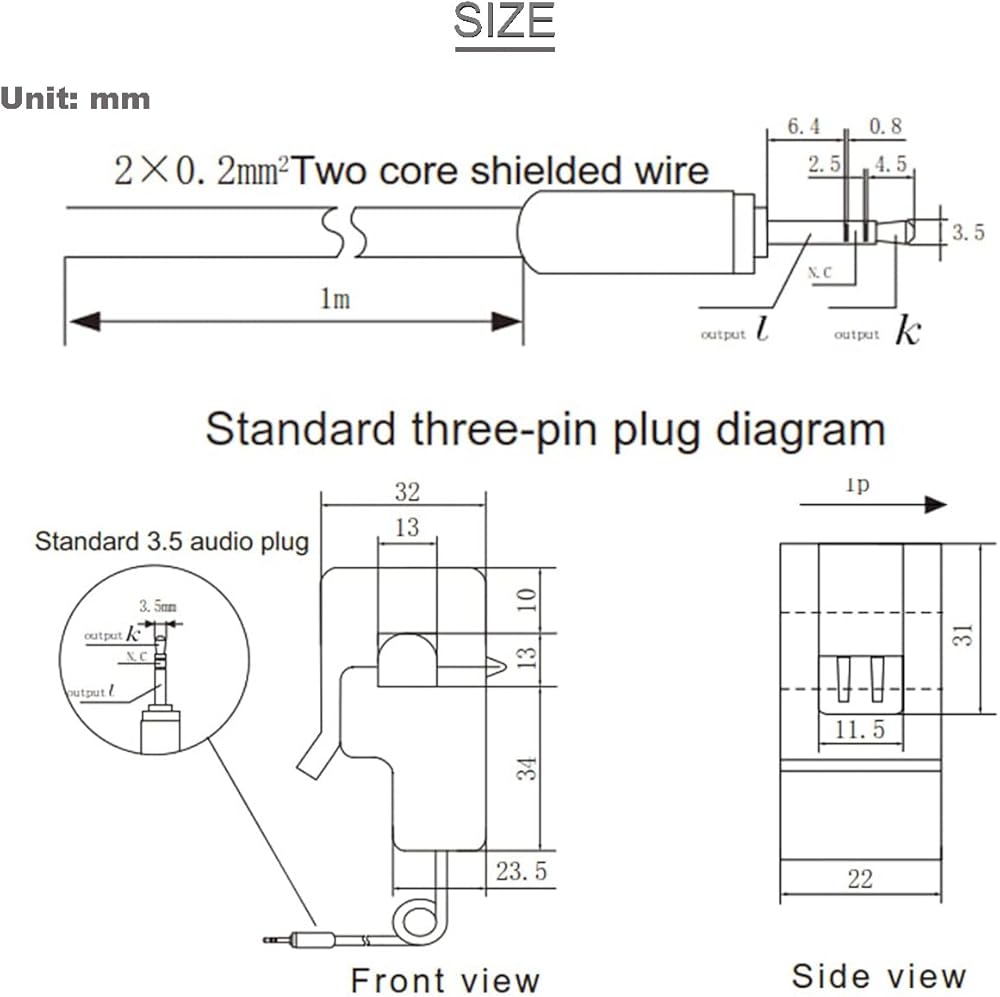

Opening Size: 0.51 * 0.51inch / 13 x 13mm
Working temperature: -25℃～+60℃
Storage temperature: -30℃～+90℃
Working voltage: less than or equal to 660V
Frequency range: 50HZ-1KHZ
Dielectric strength: 3.5KV 50Hz 1min
Fire resistance property: UL94-V0
Standard: GB1208-2006
Turns Ratio: 1: 2000
Max Sampling Resistance: 10Ω
Linearity: less than or equal to 0.2%
Accuracy: ±1%
Dielectric strength: AC 6000V/1min
Mechanical strength: opening and closing times, no less than 1000 times(20℃).

ADS1115 ADC module Specification:
Resolution: 16 Bits
Programmable Sample Rate: 8 to 860 Samples/Second
Power Supply/Logic Levels: 2.0V to 5.5V
Low Current Consumption: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down
Internal Low-Drift Voltage Reference
Internal Oscillator
Internal PGA: up to x16
I2C Interface: 4-Pin-Selectable Addresses
Four Single-Ended or 2 Differential Inputs
Programmable Comparator

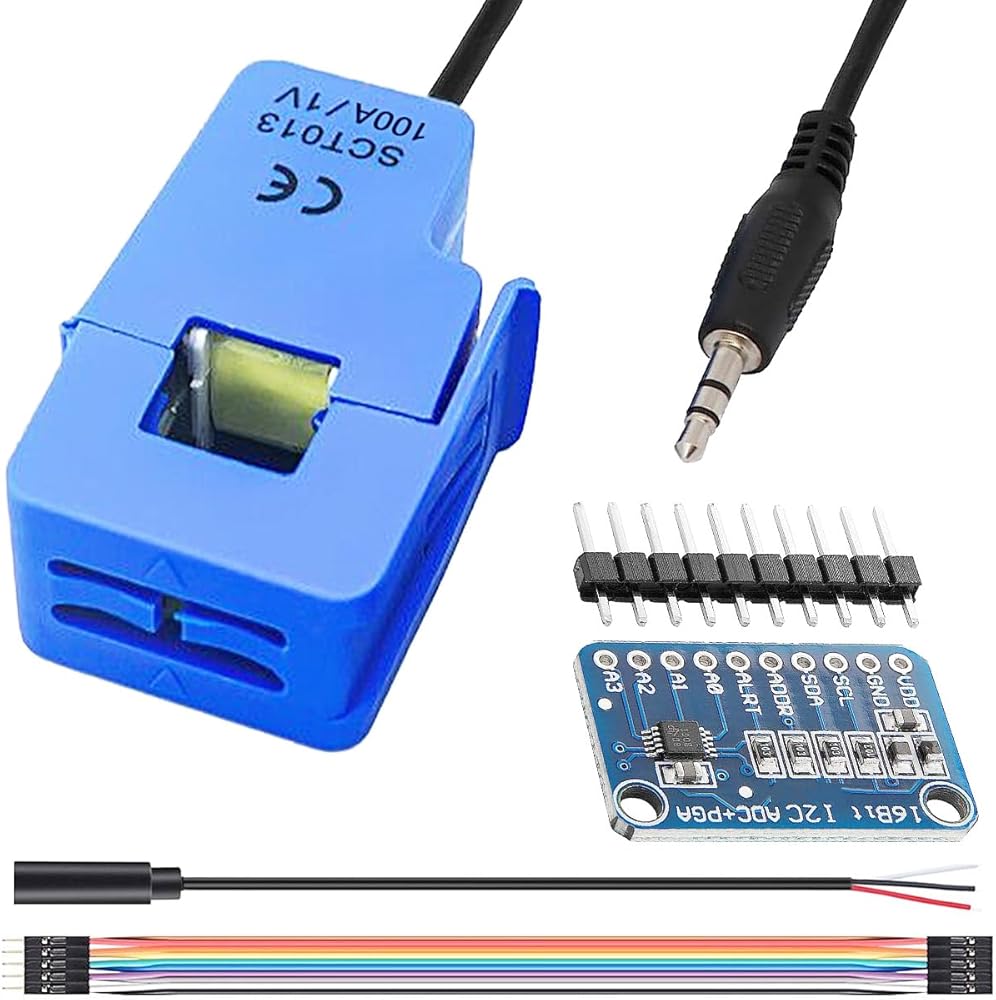

Package Inlcudes:
1 x SCT-013-000 100A/1V Current Transformer
1 x ADS1115 ADC module
1 x 10-pin header
1 x Three-wire core audio female cable
10 x Male and female Dupont cable
