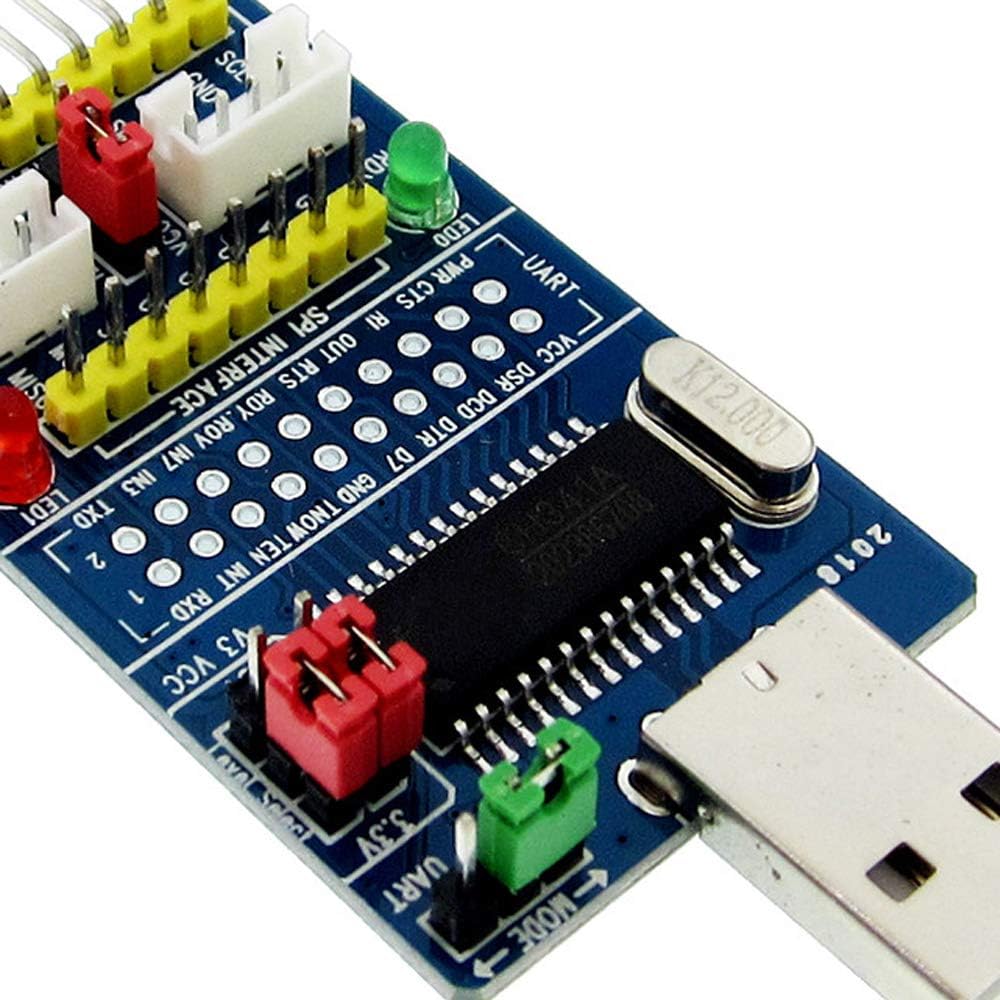

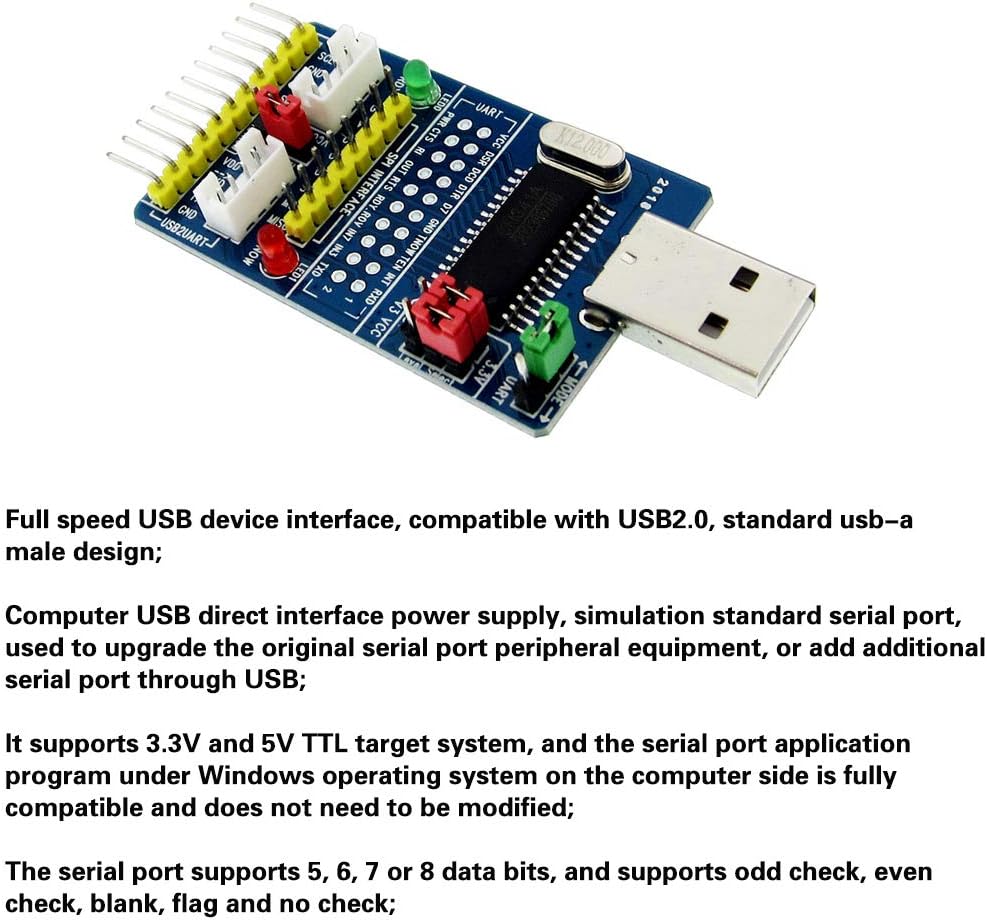

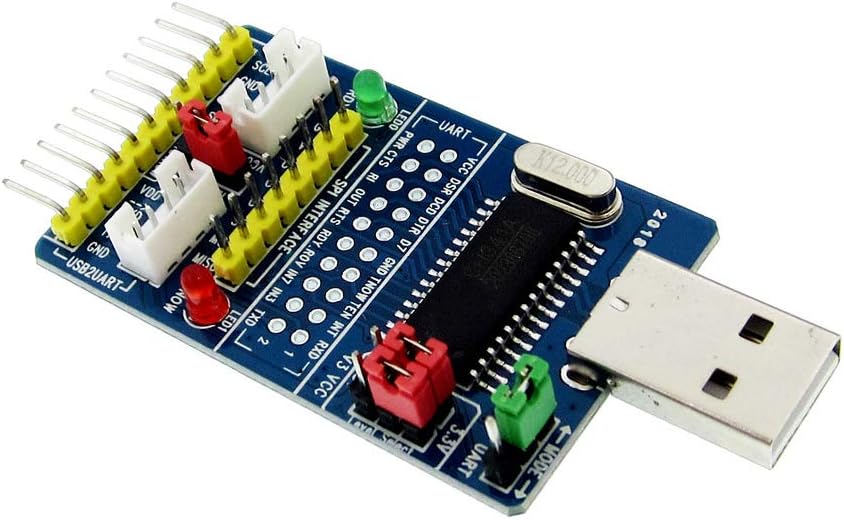

Full-speed USB device interface, compatible with USB V2.0, Standard USB-A male design;Direct power supply from USB connectin to PC.Analogue standard serial port, for upgrading original serial peripherals, or increased additional serial port via USB.
Support 3.3V and 5V TTL target system, the serial application is fully compatible with the computer under the *Windows operating system, without need for modification;Support 5, 6, 7 or 8 data bits, to support odd parity, even parity, blank signs and no parity;Support the serial port to send control signal and MODEM liaison signal of transmission rate and serial receiver ready signal .

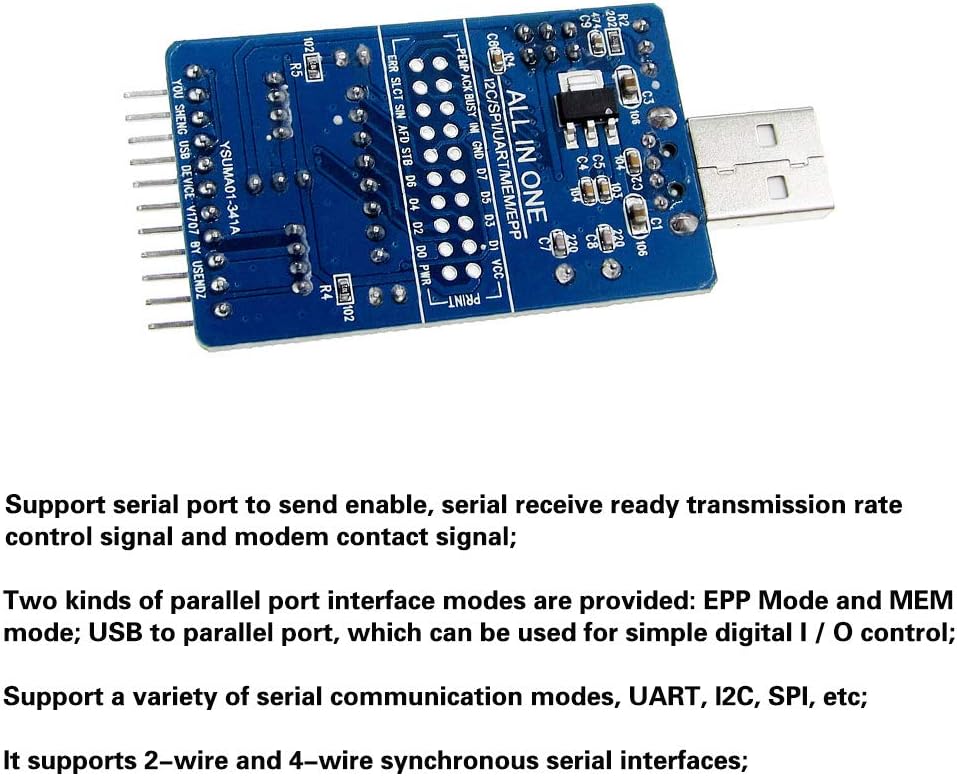

Two parallel port interface way: EPP mode and MEM way; USB to parallel port can be used for simple digital I / O control;Support a variety of serial communication mode, UART, I2C, SPI, etc.;Support 2-wire and 4-wire synchronous serial interface, I2C support 4 kinds of transmission speed;Perfectly support STC MCU program download and debug, STC official recommended program.
Support the outwards output voltage, optional 3.3V/ 5V or no output;Support working status indication;Dual interface output;Hardware full-duplex serial port, built-in transceiver buffer area, support the communication baud rate 50bps ~ 2Mbps;Support WINDOWS 98/ME/2000/XP/server 2003/VISTA/server 2008/WIN 7/64/32-bit.

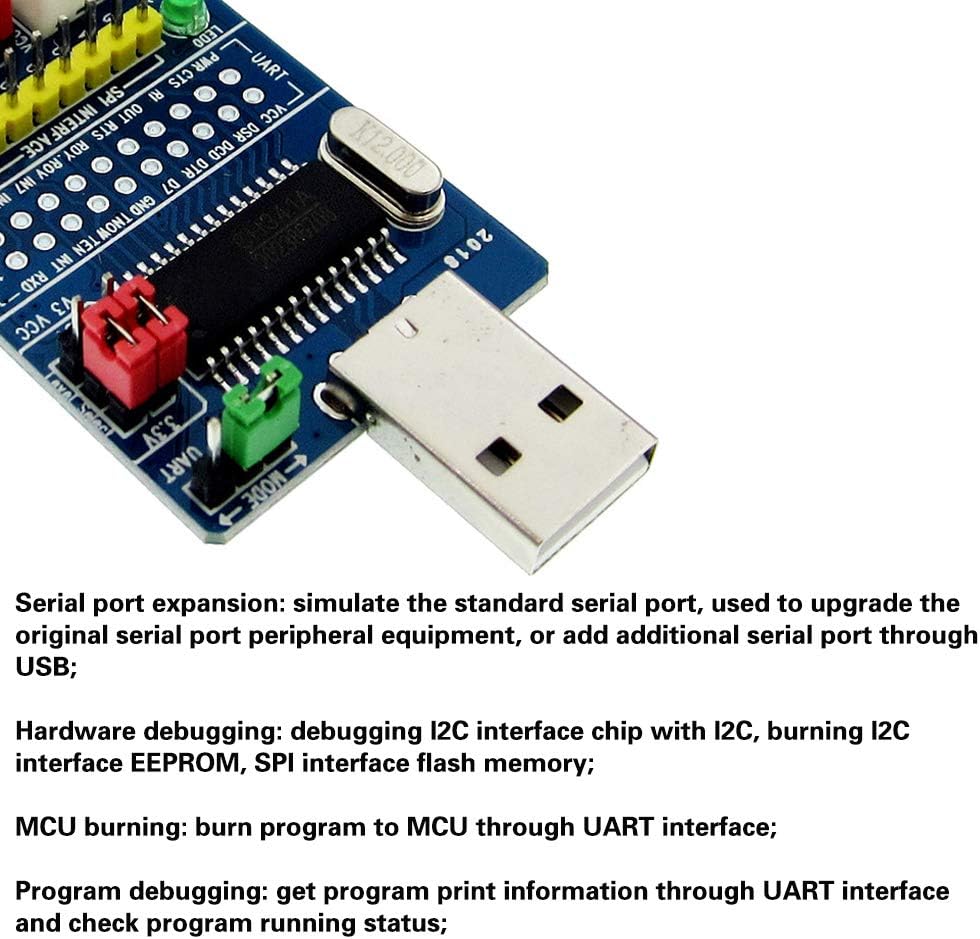

Application:Simulation standard serial ports, for upgrading original serial peripherals, or increased via USB;Need I2C, SPI, UART, TTL serial port and other occasions;Electronic engineers debugging Downloads;Debugging of a variety of hardware systems, software systems, ;Serial ports flash.
وصف
Features:
Single chip integrates multiple functions, all hardware implementation, can be complete.

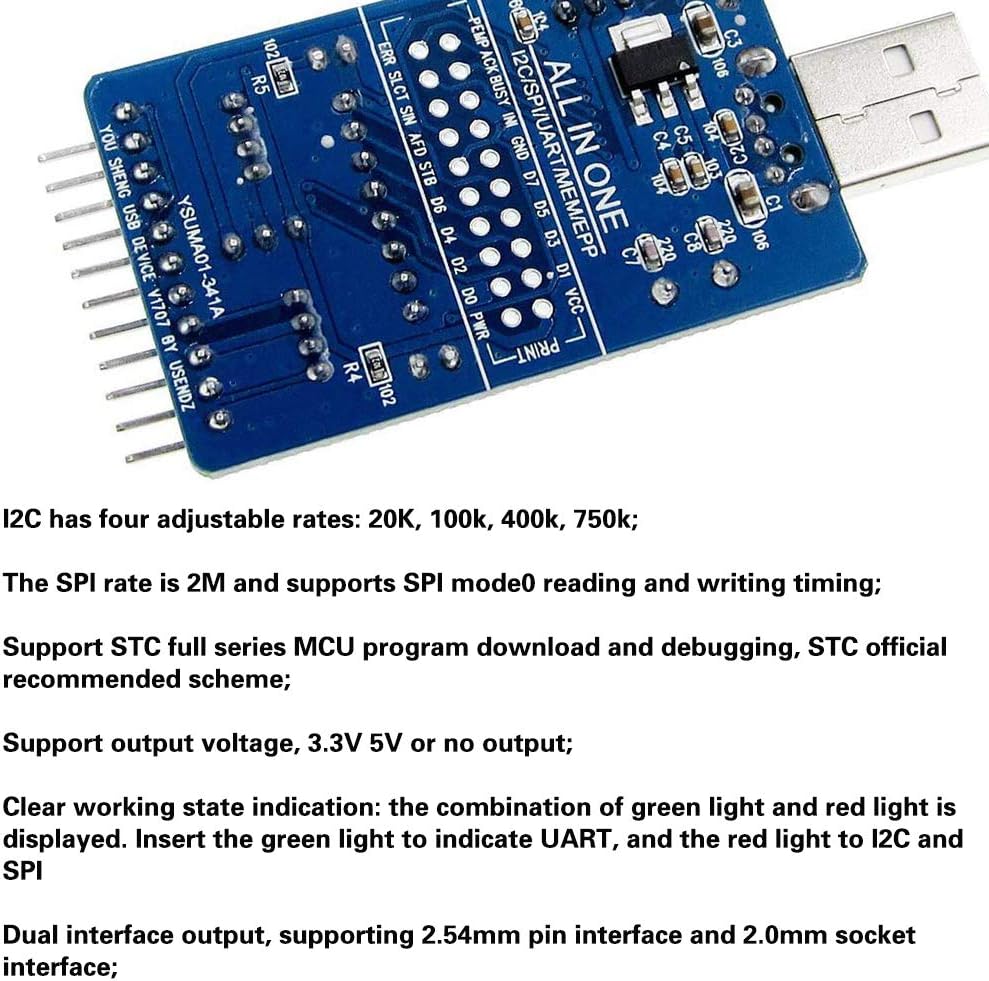

USB->I2C Master multiple rate adjustable, 20K 100K 400K 750K
USB->SPI Master 2M rate, not adjustable
USB->UART supports communication baud rate 50bps～2Mbps, unconventional baud rate can be configured
USB->EPP/MEM parallel port
Note:
Actual color may be slightly different from the image due to different monitor and light effect. Please allow minor deviation due to manual measurement.
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
