Features

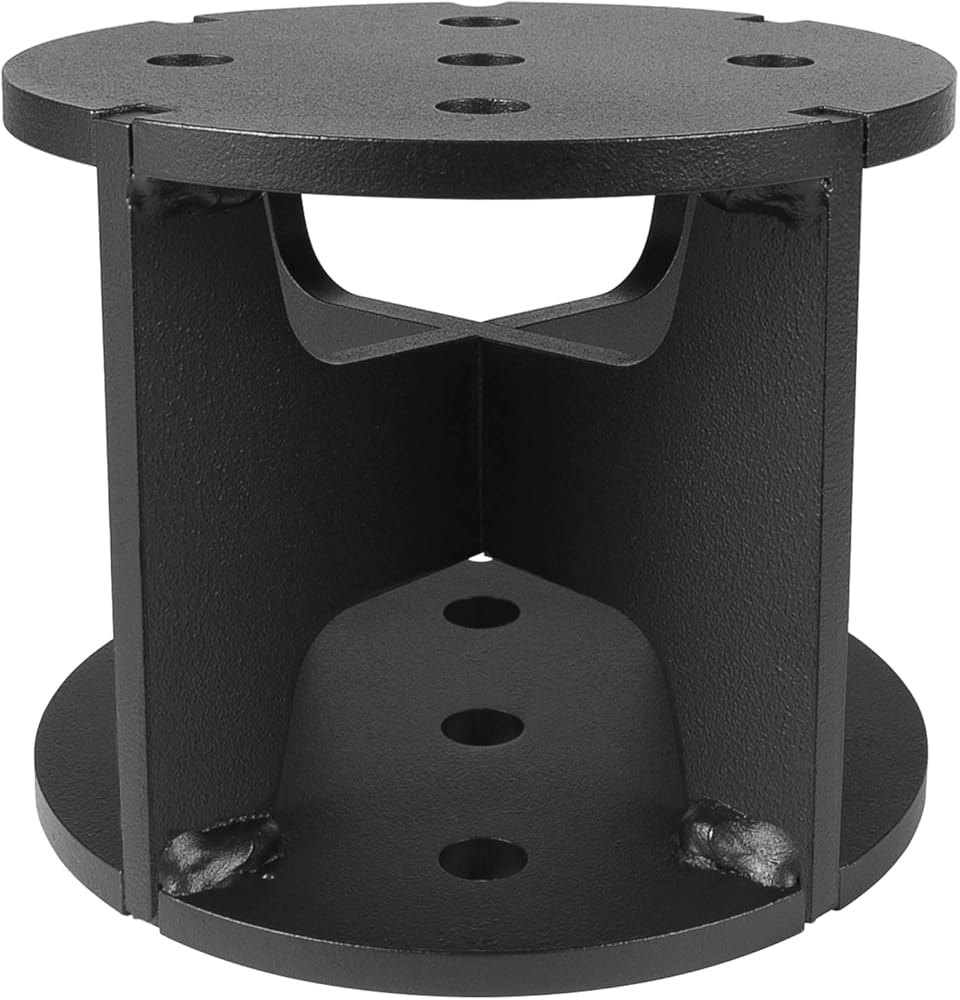

1. Universal Air Spring Spacers

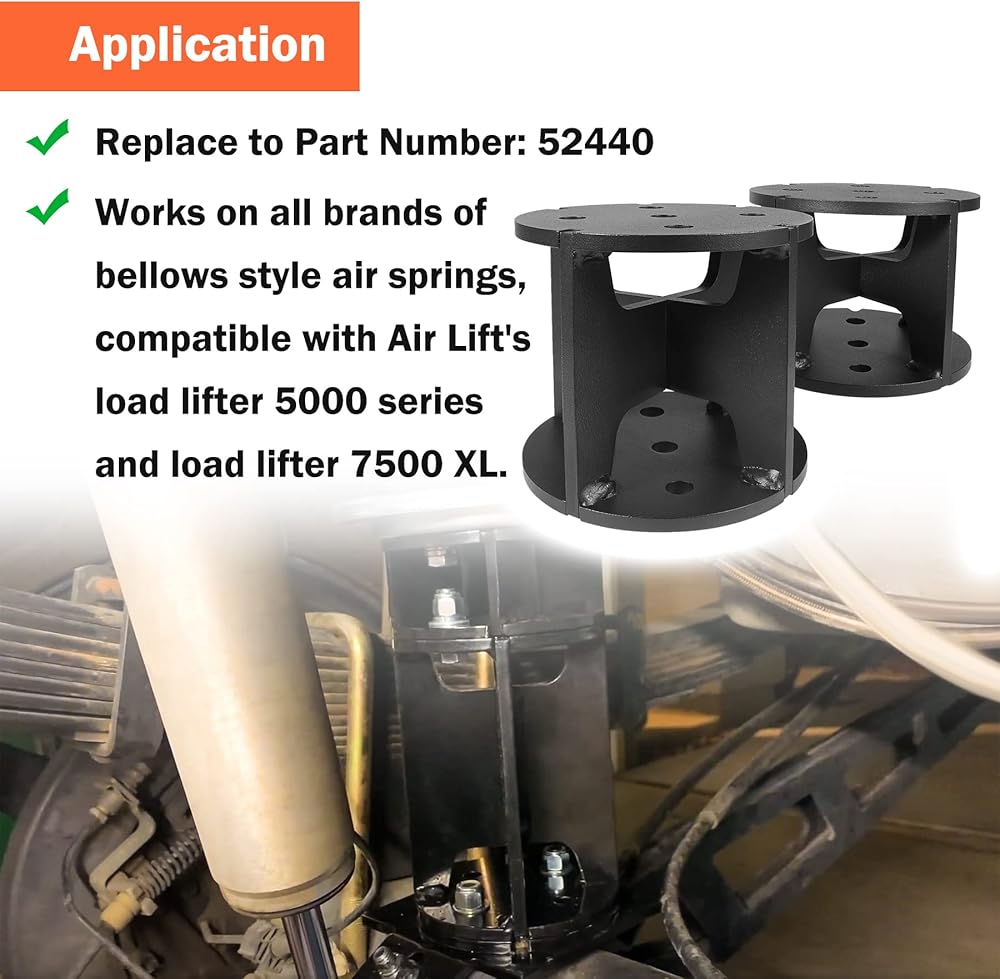

Replace to Part Number: 52440. Works on all brands of bellows style air springs, compatible with Air Lift's load lifter 5000 series and load lifter 7500 XL.

2. Level Your Load When Lifting

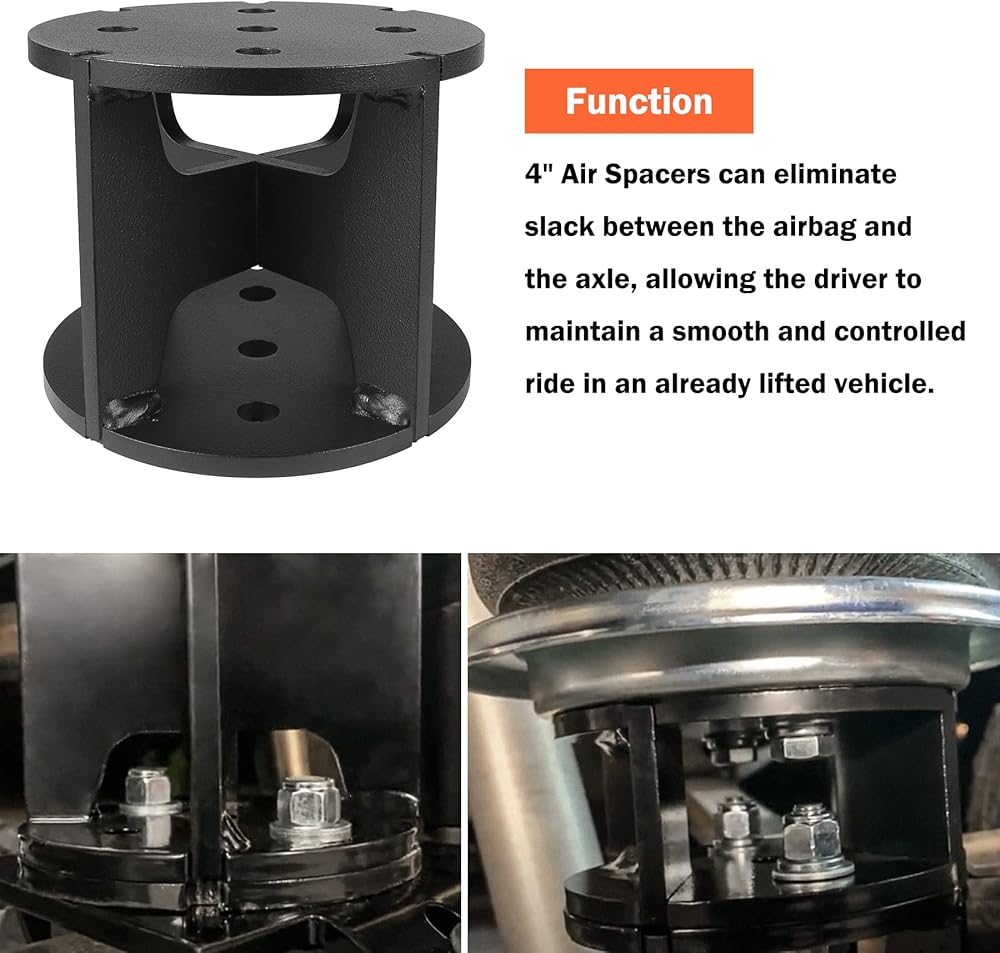

4" air spacers allow you to add an air spring kit to an already lifted pickup truck.

3. Handle 10 Tons of Force

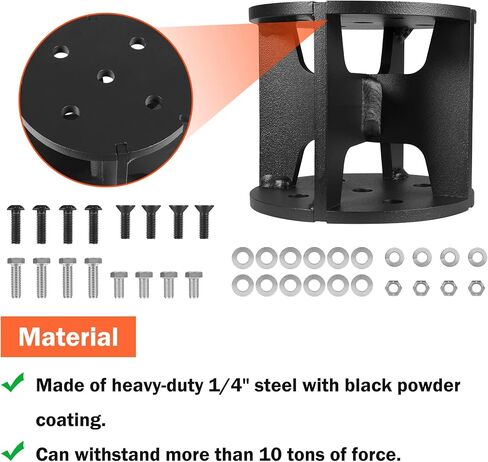

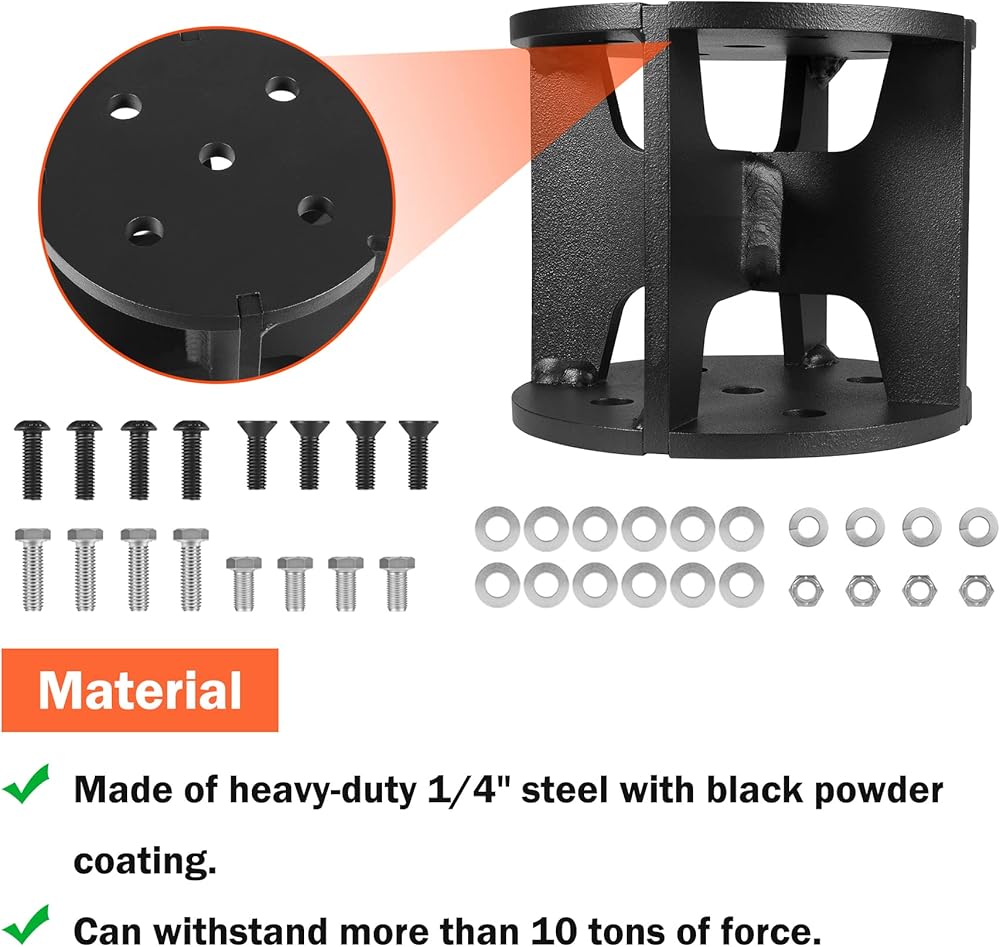

Made of quality 1/4" steel and can withstand more than 10 tons of force. Simply connect between the lower air spring bracket and the air spring.

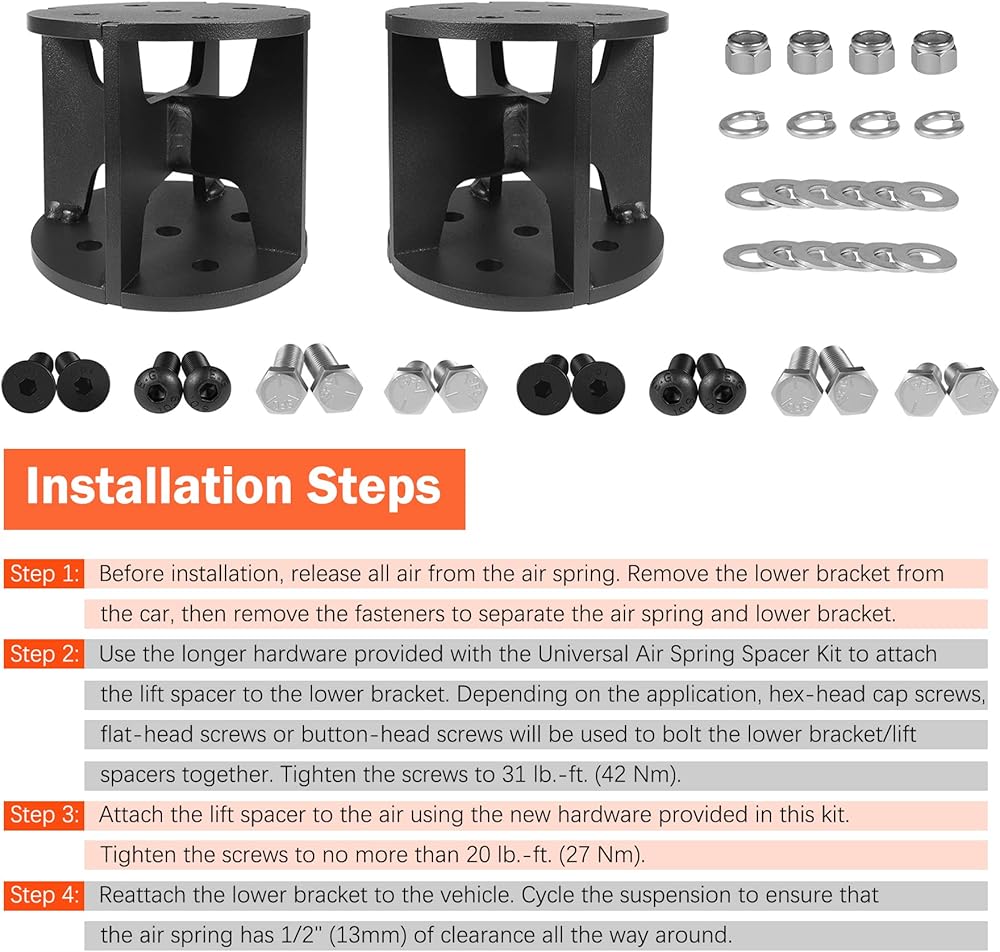

Installation Steps
1. Before installation, release all air from the air spring. Remove the lower bracket from the car, then remove the fasteners to separate the air spring and lower bracket.

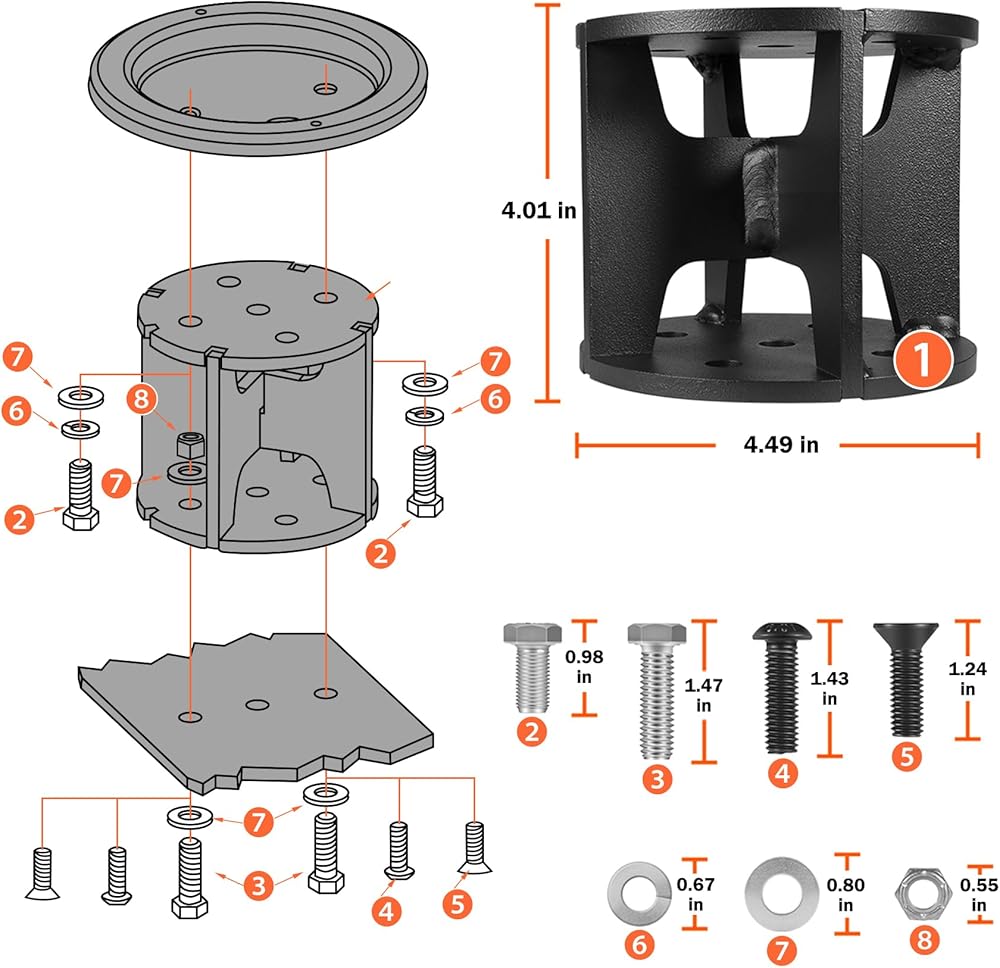

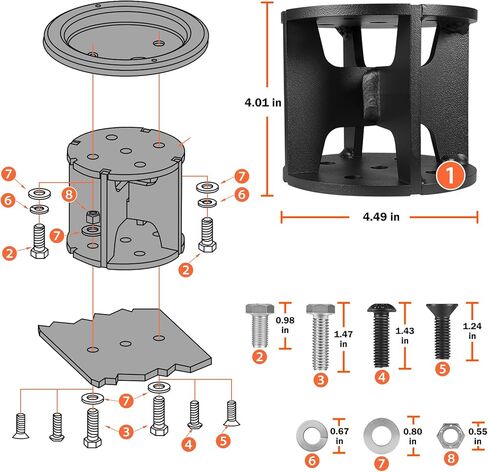

2. Use the longer hardware provided with the Universal Air Spring Spacer Kit to attach the lift spacer to the lower bracket. Depending on the application, hex-head cap screws, flat-head screws or button-head screws will be used to bolt the lower bracket/lift spacers together. Tighten the screws to 31 lb.-ft. (42 Nm).

3. Attach the lift spacer to the air using the new hardware provided in this kit. Tighten the screws to no more than 20 lb.-ft. (27 Nm).

4.Reattach the lower bracket to the vehicle. Cycle the suspension to ensure that the air spring has 1/2" (13mm) of clearance all the way around.

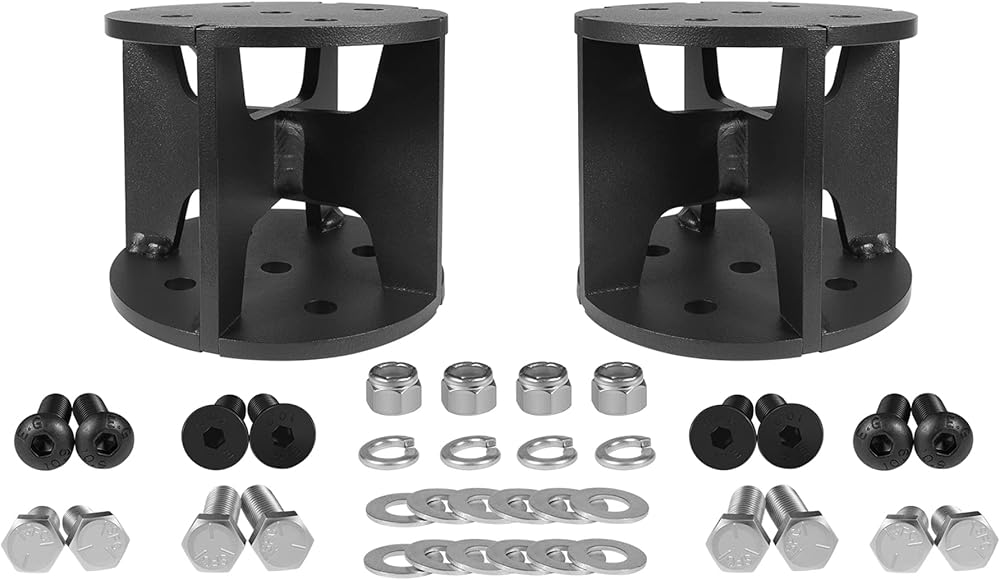

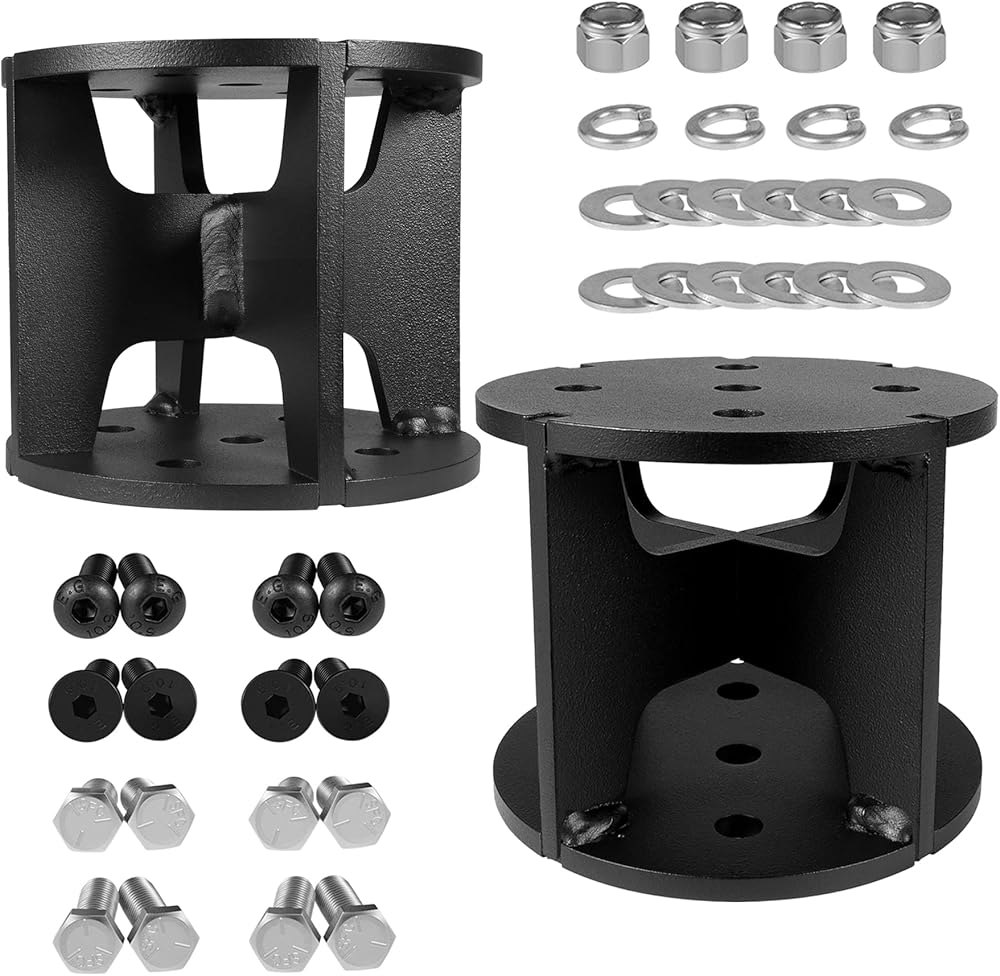

Package Includes
2 Steel Spacers
Hardware for attaching to lower bracket and air spring
