مميزات خاصة

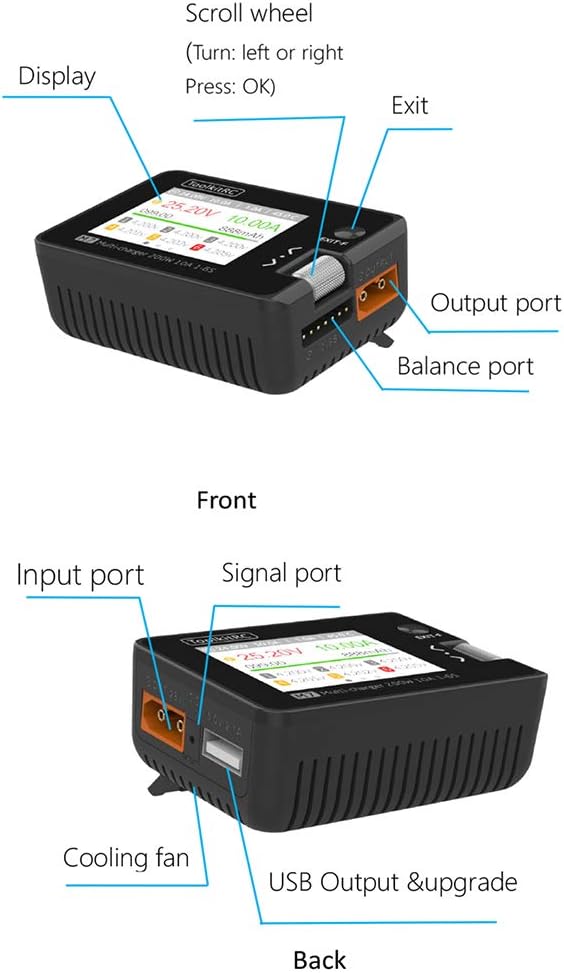

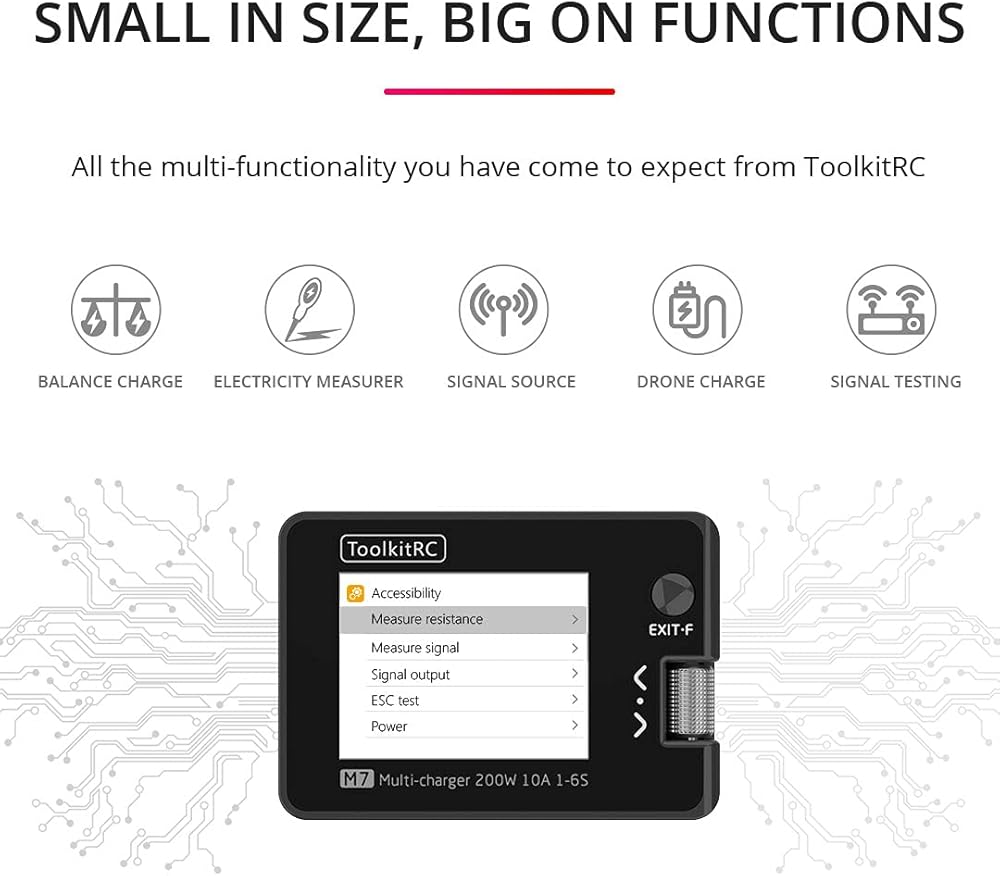

【Multi-function】: M7 balance charger small size and multi-function, can balance charging, power meter, signal source, drone charging, and signal testing

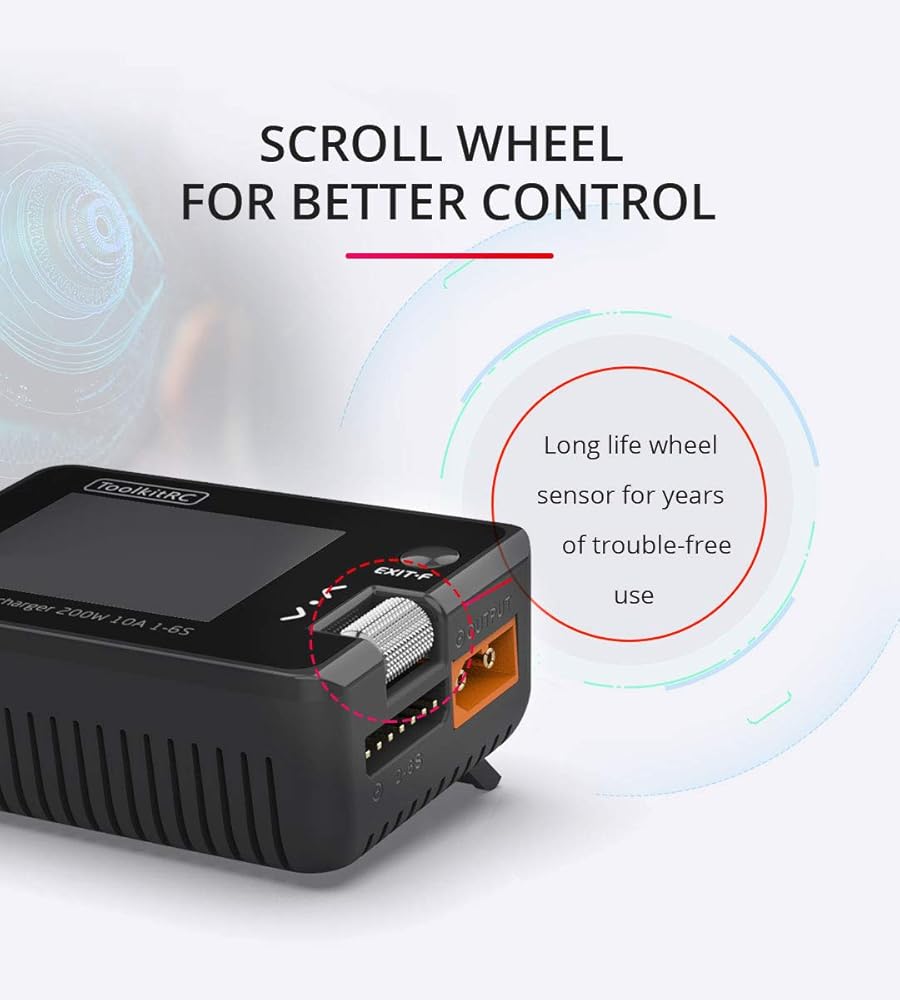

【Rolling Wheel Control】: Rolling wheel control sensor, high quality and long use time, trouble-free and precise control

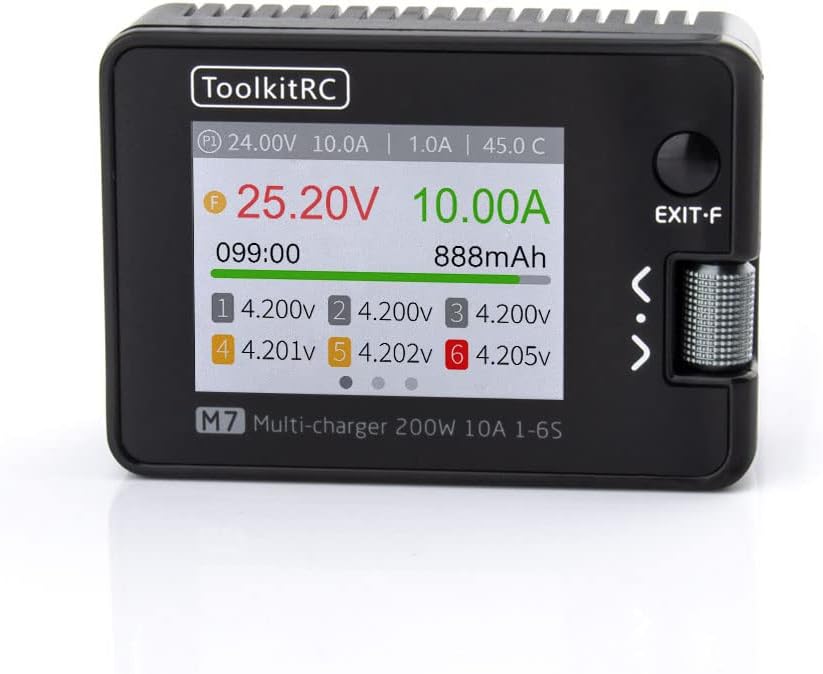

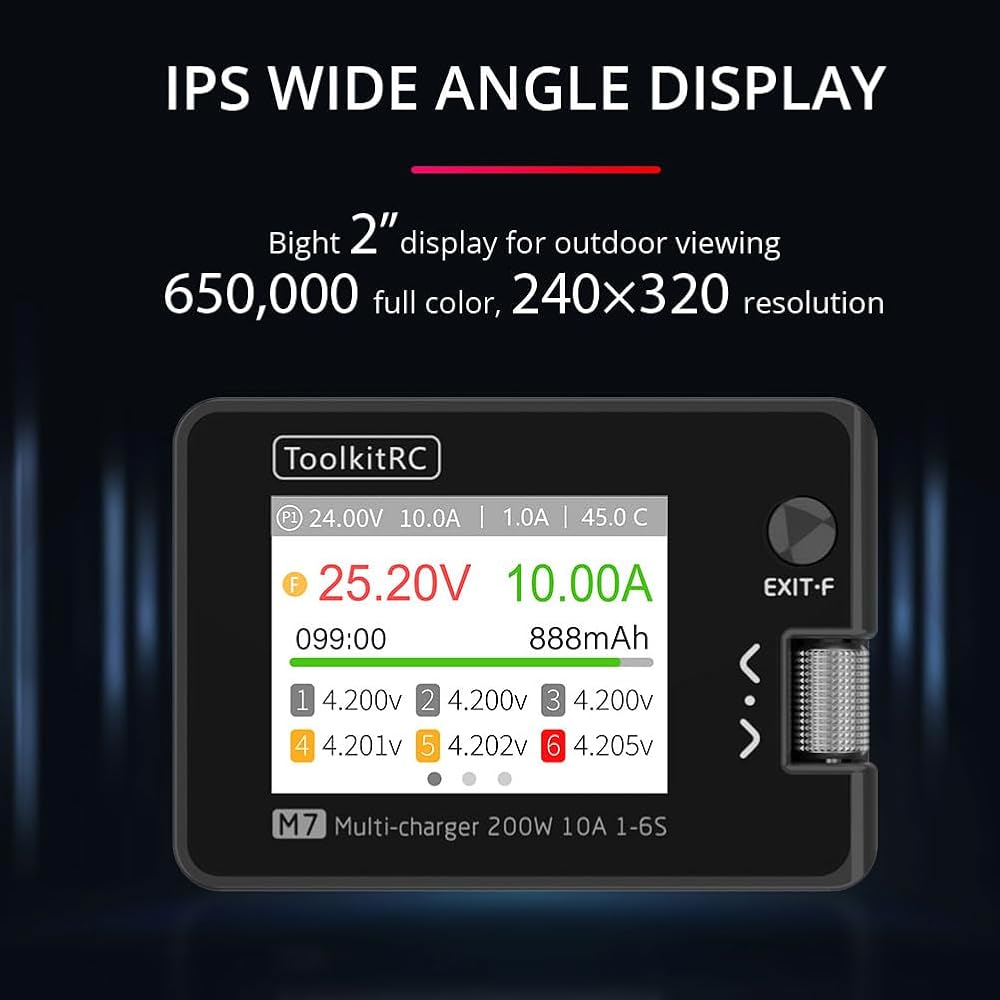

【IPS Display】: Balance charger has 2-inch wide-angle display, 650,000 full color, 240*320 resolution, new simplified interface provides the information you need

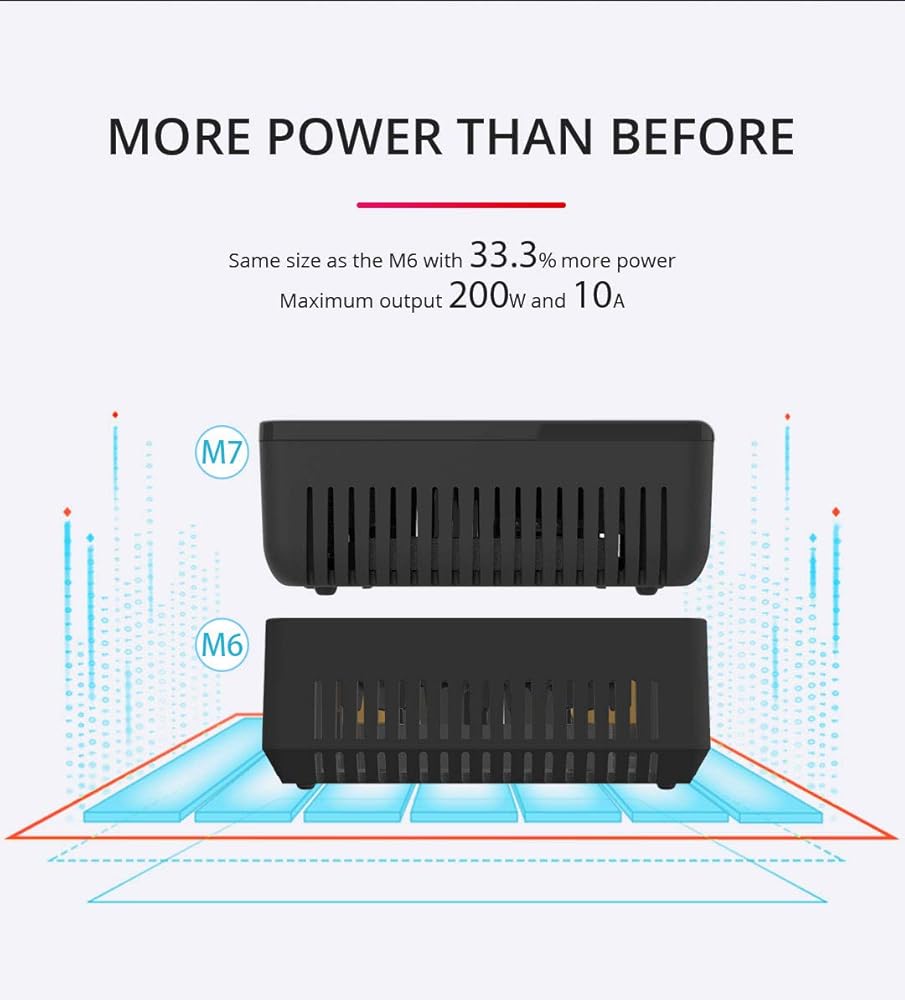

【More Powerful】: This rc battery charger power increased by 33.3%, the maximum output power of 200W and 10A
TIPS: M7 drone battery charger allows an input voltage of 7-28V, to ensure that the power supply voltage is consistent, pay attention to the positive and negative polarity of the power supply when connecting.

وصف

M7 SPECS

Product size: 73*51*27 mm
Product weight: 90g
Pack size: 84*79*39 mm
Pack weight: 150g
LCD: IPS 2.0inch LCD 320*240 Pixel
Input voltage: 7.0-28.0V @MAX 12A
Type of battery: Lipo LiHV LiFe Lion@1-6
NiMh @1-16S Pb @1-10S
Balance current: 400mA @2-6S
Charger power: 200W @MAX 10A
Discharge power: 200W @MAX 10A Recycle mode
10W@3A Normal mode
USB: 2.1A @5.0V or Upgrade

Input

PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
Internal resistance: 1-99mR @1-6S
ESC: 200W@10A PWM Output

Output

PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
OverCurrent Cutoff time:
