مميزات خاصة

1.Rated voltage: DC12V; No-load speed: 10RPM; Rated torque: 40kg.cm; Rated Current: 850mA.
2.DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L); Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H); Output Shaft: 8mm; Main Material: Metal, Electronic component.
3.Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
4.Feature: -Motor rotation can be changed by changing the wiring-connection. -Motor will be self-locking when the power goes out. -The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
5.Package: 1 x DC Geared Motor; if you need other voltage and rpm, pls contact us, more models of this motor in store.

وصف

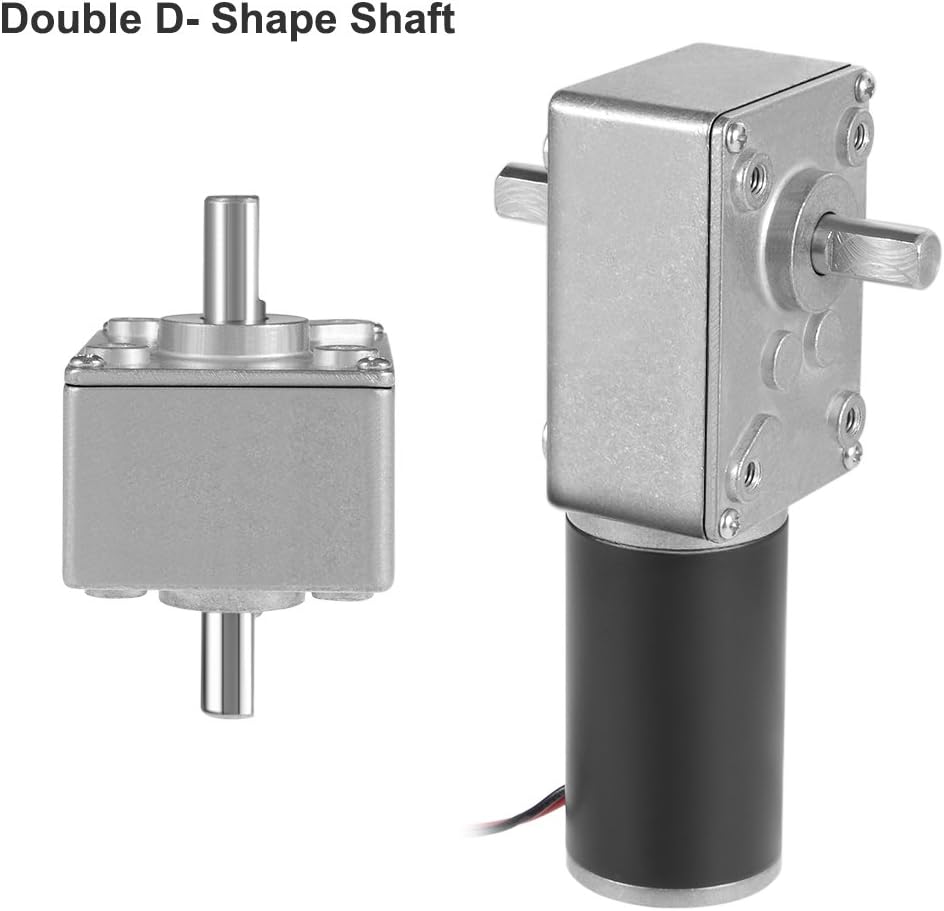

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed. It is also have addition two characteristics:
1 With self-locking, the output shaft can not rotation when switch off, that is self-locking.
2 Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special installation size.

Specification:
Rated Voltage: 12V DC;
No-Load Speed: 10 RPM;
Output Shaft: 8mm x 15mm/1.22inch x 2.24inch(D*L);

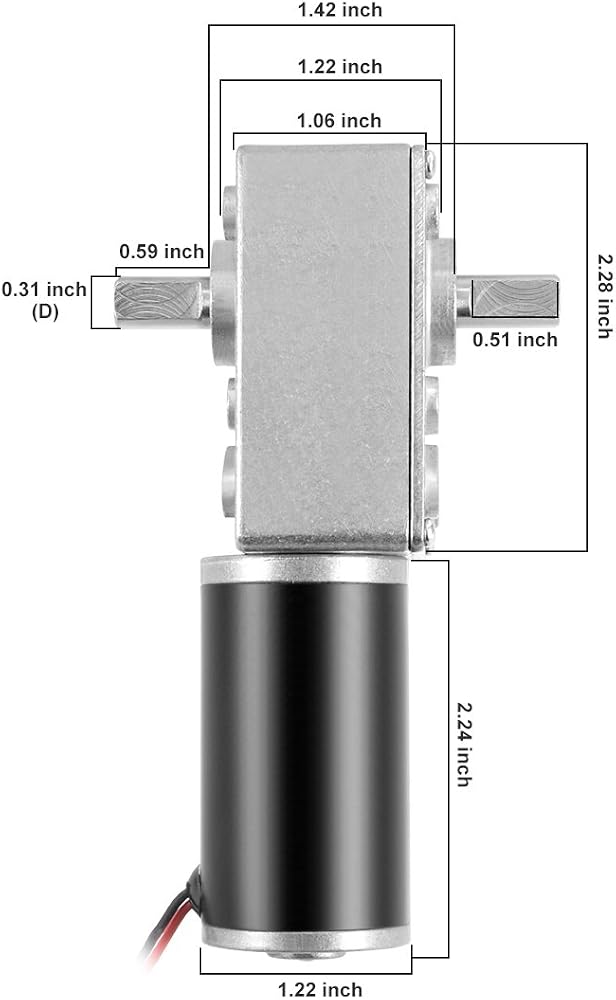

DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L);

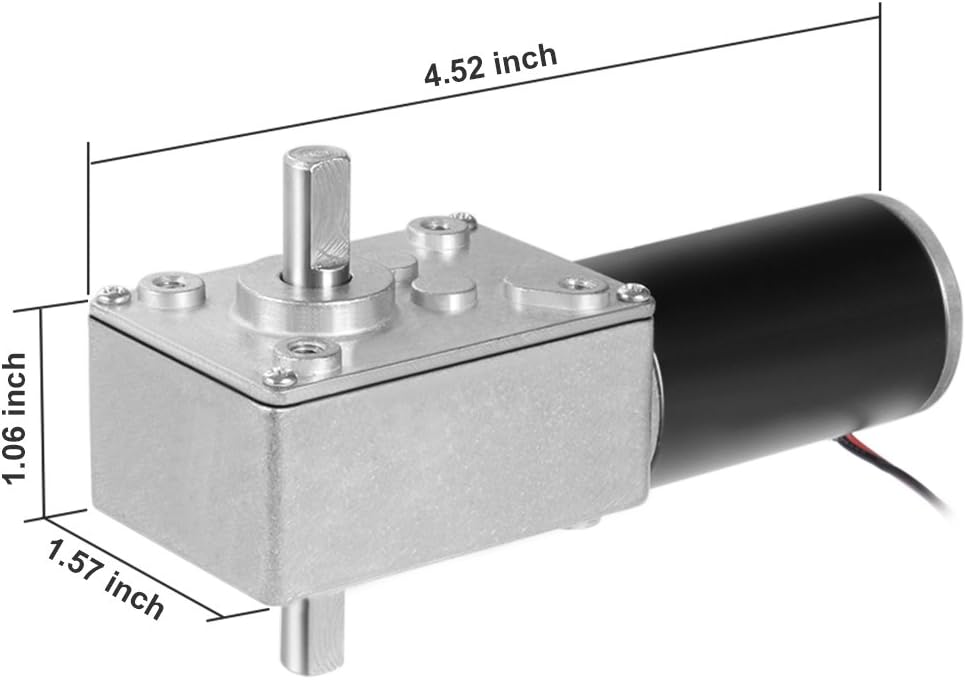

Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H);

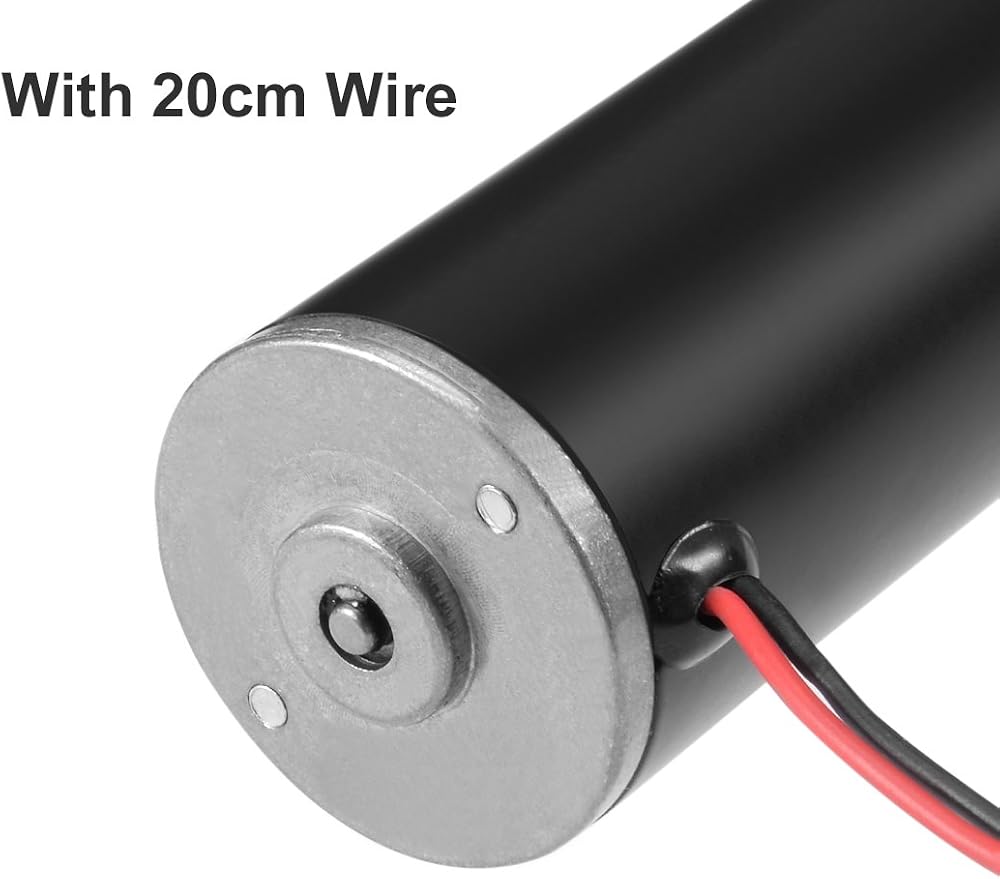

Wire Length : 20cm;

Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, , safe, wet towel , vending machines, automatic monitoring and other modern art.

Package Contents:1 x Worm Motor
