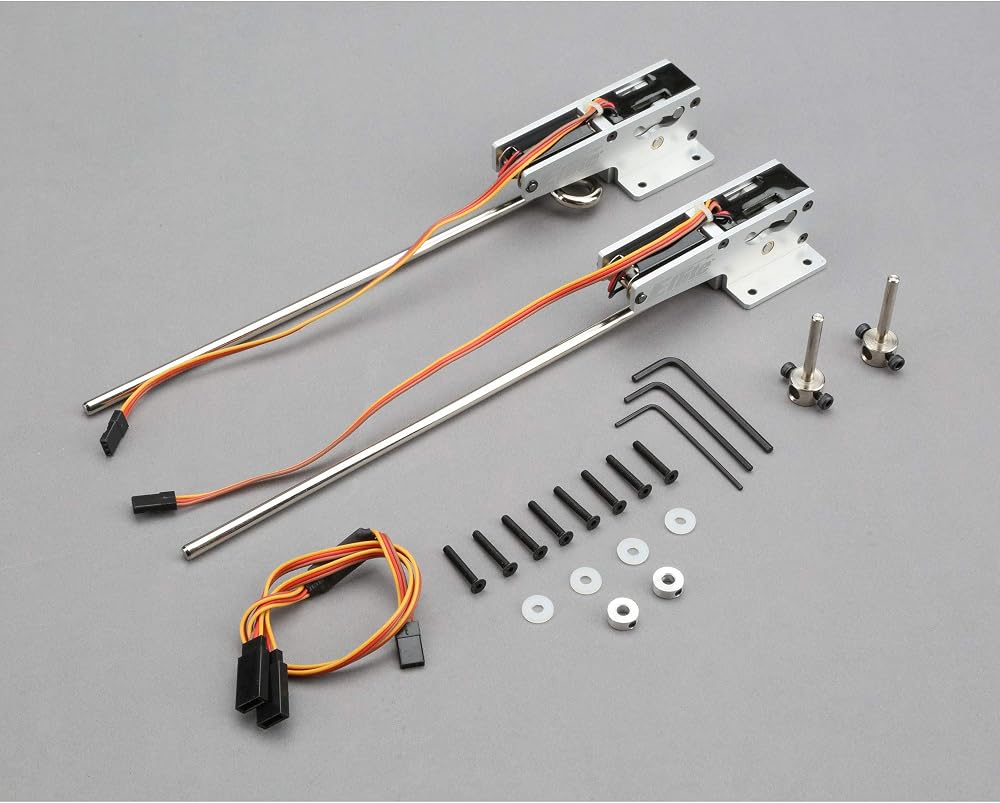

This is an optional E-flite 60-120 Size 85° Strut Ready Main Electric Retract System and is intended for use with the Hangar 9 P-47D-1 Thunderbolt 60 ARF. You don't have to be a master modeler to add the realism of functioning retracts to your airplane. E-flite's completely self-contained retract system doesn't require an air tank, complex linkages or even an extra servo. Simply bolt it into place and plug it into the receiver.

NOTE:Must use with E-flite 60-120 P-47 Main Strut Set (EFLG510P47).

Specifications:

Current Draw:

Idle: 5mA
Operating: 900mA (maximum)

Operating Voltage Range: 4.8–7.4V
Recommended Aircraft Weight: 8.0–15.0 lb (3.63–6.80 kg)
Unit Weight:130g (4.6 oz) each
Pulse width:
Trigger Points Down: 1.331ms
Trigger Points Up:1.690ms

Operation FM and DSM:
FM: 22ms frame rate, 5V signal
DSM: 20ms frame rate, 3.3V signal

Sequence Time:
@ 4.8V: 1.25sec
@ 6.0V:1sec
@ 7.4V: 0.8sec
