Replace Part Number:
Weber 32/36 DGEV DGV DGAV
22680033B, 22680.033B
99004.300, 99004300
99005.068, 99005068
99217.332S, 99217332S
Application:
For Toyota Pickup Celica Corona 20R and 22R engines
1969-1972 Datsun Pickup L16 (1600cc) PL521 also fits Datsun 510
1973-1974 Datsun Pickup L18 (1800cc) PL620 also fits 510, 610, and 710
1975-1980 Datsun Pickup L20 (2000cc) PL620 also fits 510, 610, and 710
1982- 1978 Datsun 200SX 2.2L
1981-1982 Nissan Pickup Z20 (2000cc) PL720
1981-1983 Nissan Pickup Z22 (2200cc) PL720
1980-1981 Nissan 200SX
Nissan Sentra 1.5L 1.6L 1986
Nissan 720 2.0L 2.2L 1984
Nissan Pulsar 1.6L 1983
1972-1990 CJ5, CJ7, CJ8, Wrangler Cherokee with a 258Ci W/ 2BBL Carter BBD Carb
1986-1987 Mazda B2000 2.0L
1987-1993 Mazda B2200 2.2L
( Please double check the fitment before making an order. )
Specifications:

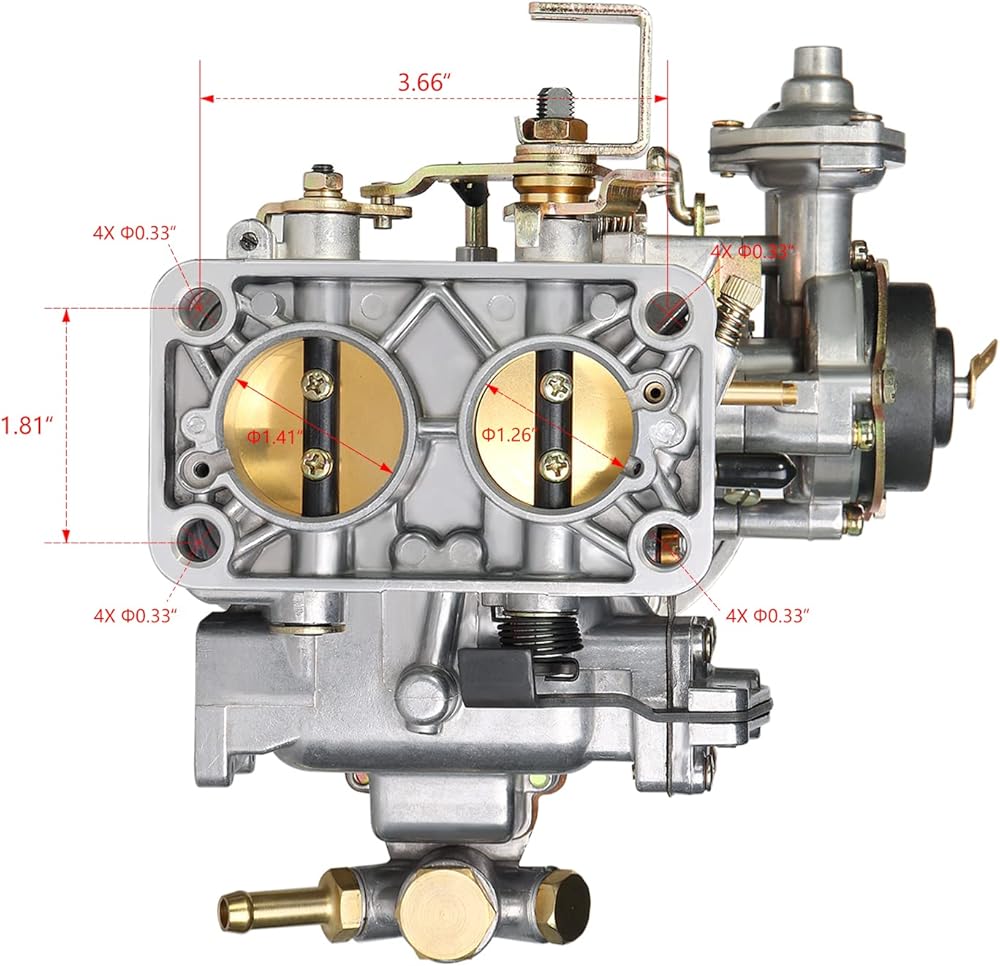

primary Venturi: φ26mm
Secondary Venturi;φ10.5mm
Primary Auxiliary Venturi; φ27mm
Secondary Auxiliary Venturi;φ10.5mm
Primary Main Jet;1.4mm
Secondary Main Jet; 1.4mm
Primary Air Corrector Jet;1.7mm
Secondary Air Corrector Jet :1.6mm
Primary Emulsion Tube; F50
Secondary Emulsion Tube; F50
Primary idle Jet;0.6mm
Secondary Idle Jet; 0.5mm
Pump Jet;φ0.5mm
Needle Valve; 2.0mm
Float Measurement :47mm
Package Include:
1 piece Carburetor Electric Choke
1 set Manual Choke Conversion Kit
