Matek SERVO PDB مع BEC 5.5-36V إلى 5-8.2V لطائرة RC ذات الجناح الثابت FPV in Kuwait Matek SERVO PDB مع BEC 5.5-36V إلى 5-8.2V لطائرة RC ذات الجناح الثابت FPV in Kuwait Matek SERVO PDB مع BEC 5.5-36V إلى 5-8.2V لطائرة RC ذات الجناح الثابت FPV in Kuwait Matek SERVO PDB مع BEC 5.5-36V إلى 5-8.2V لطائرة RC ذات الجناح الثابت FPV in Kuwait

Matek SERVO PDB مع BEC 5.5-36V إلى 5-8.2V لطائرة RC ذات الجناح الثابت FPV

KWD 6
– 1 +

مميزات خاصة

  • 5.5V to 36V Operating Input Range, suit for up to 8s lipo battery

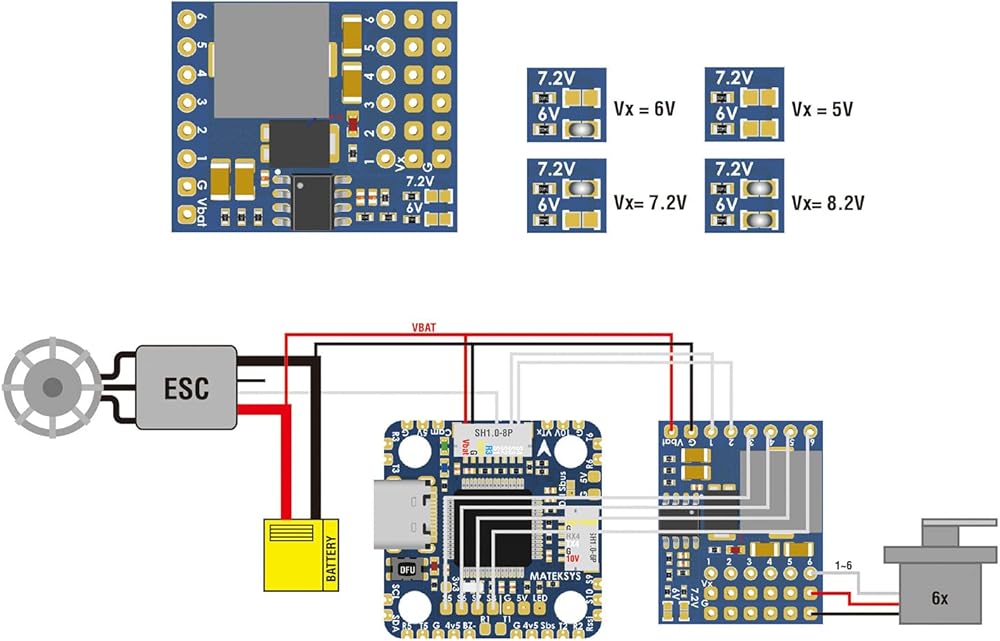

  • Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. 5V by default. 4A Continuous load current, 7A Burst
  • Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
  • Output Short-circuit tolerant (3 seconds). NO protection for reversed input polarity
  • Suit for Flight controllers without dedicated BEC for servos, Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

وصف

5.5V to 36V Operating Input Range
Vx for servos, 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
4A Continuous load current, 7A Burst
Maximum Duty Cycle: 100%, when input voltage Output Short-circuit tolerant (3 seconds)
No protection for reversed input polarity
Pins distance: 2.54mm

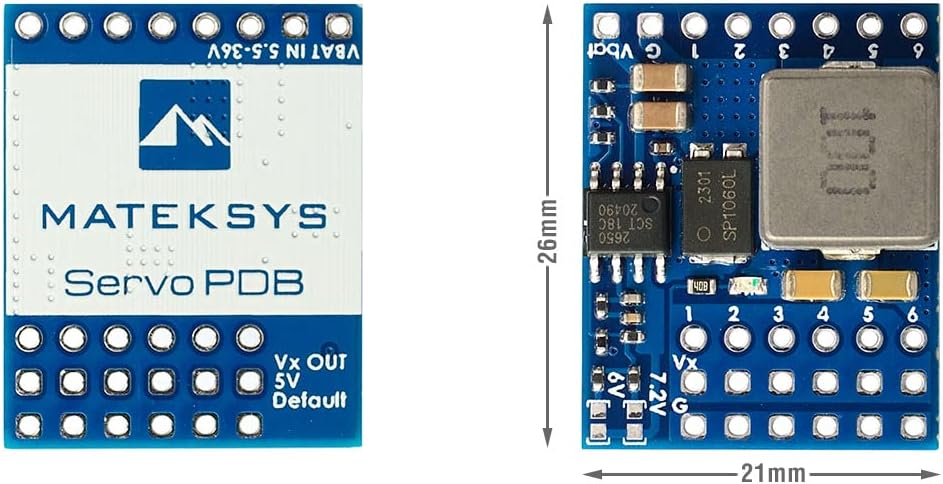

Size & Weight: 26 x 21 x 5mm, 4g
Applications
Flight controllers without dedicated BEC for servos
Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
Package includes: 1x SVPDB-8S, Dupont 2.54mm pins
