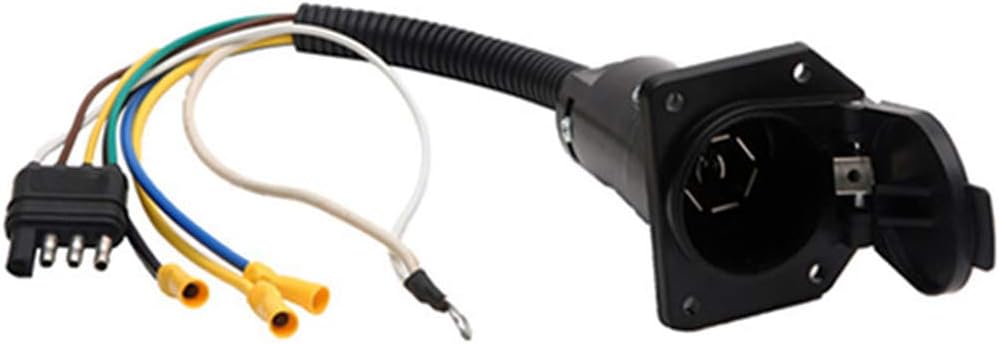

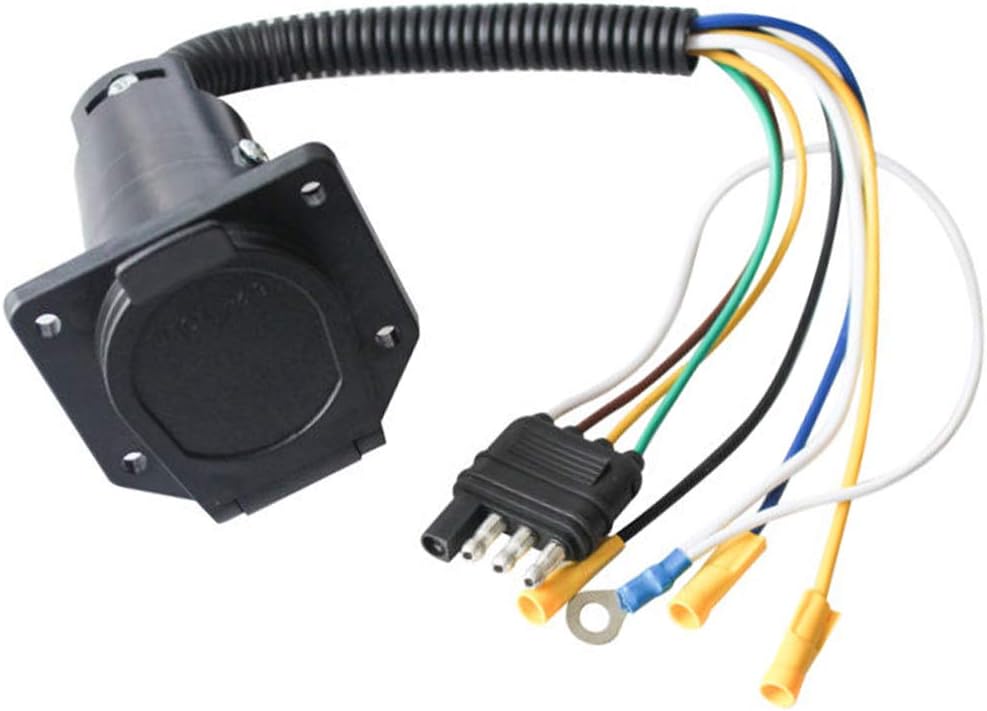

4 Way plug to 7 way, converts your 4-way flat plug to a 7-way RV-style connector

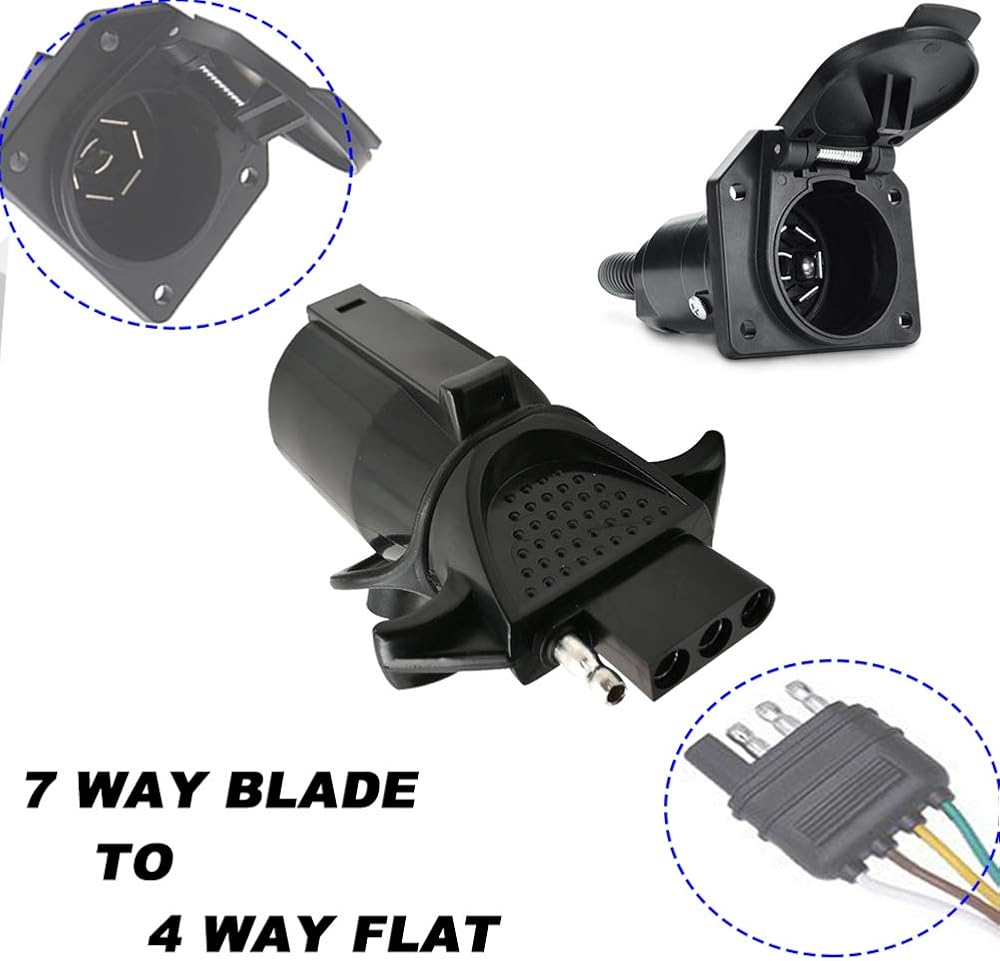

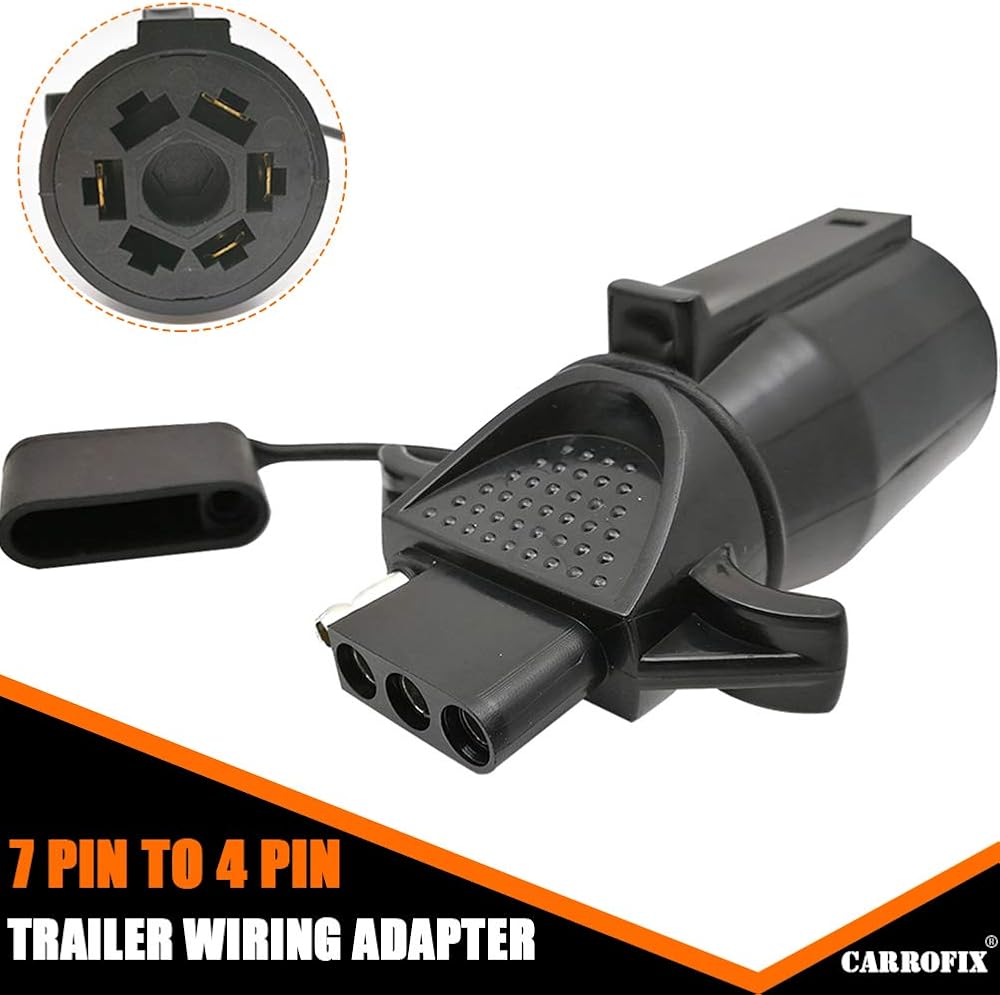

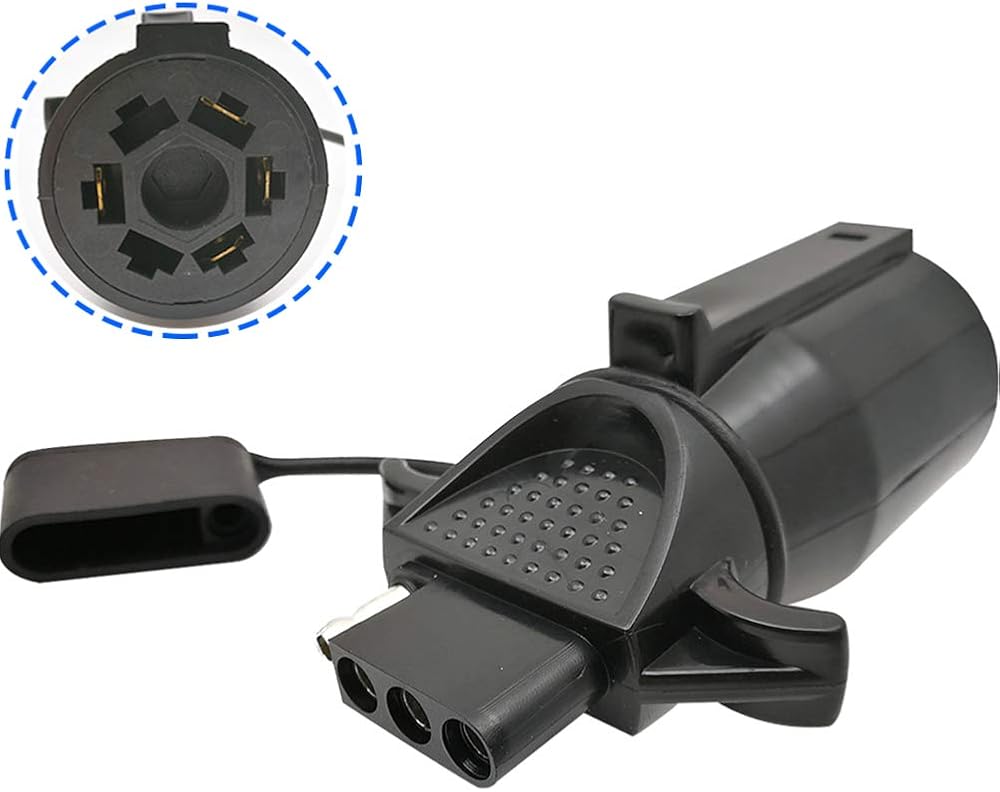

7 Way to 4 way adapter, converts your 7 way RV blade plug to a trailer 4-way flat pin connector
Pure copper contact points, good conductivity, surface plating, better corrosion resistance
Additional wire leads for brake controller, 12V power, and auxiliary or reverse function
Widely applicable for standard American car modification, trailer light socket converter
وصف
Carrofix Wiring - 0149
Vehicle End Trailer Light Plug Connector and Adapter Set 4 to 7 & 7 to 4
PRODUCT FEATURES:
√ 7 Way RV blade trailer end to 4 wire flat connector
√ 4 Way to 7 way RV style adapter with wiring harness and bracket
√ Designed for horse trailers or Utility/cargo trailers fitted with electric brakes
√ Simple plug-and-play design reduce the trouble of cutting or splicing
√ Spring-loaded dust cover protects 7 way connector from the elements
Well Made 4 Wire Flat and 7-Way Vehicle End Connector RV Trailer Light Wire Harness Adapter and Bracket

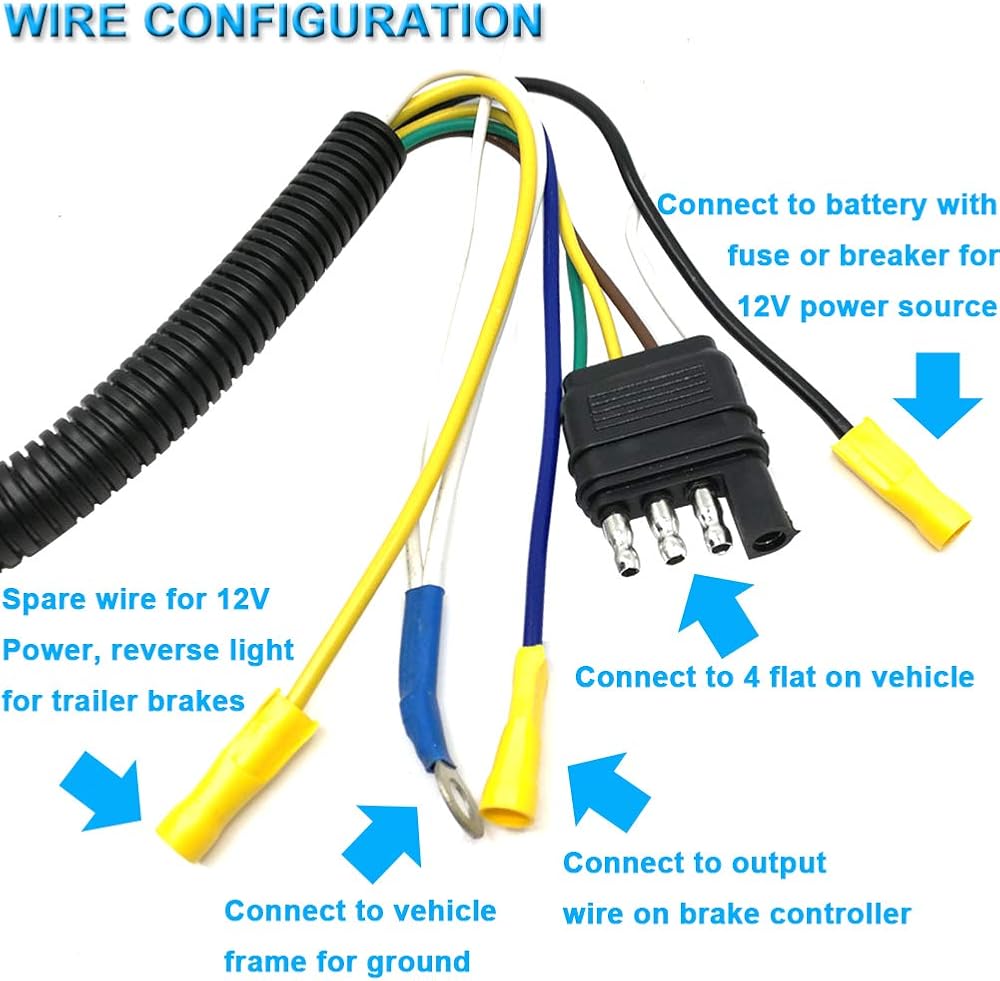

WIRE CONFIGURATION:
√ Green (from 4-way plug): Right turn signal and brakes
√ Yellow (from 4-way plug): Left turn signal and brakes
√ Brown (from 4-way plug): Tail lights
√ PIN 1 - White wire: Ground wire
√ PIN 2 - Blue Wire: Electric brake controller
√ PIN 3 - Yellow Wire: 12V power supply or auxiliary
√ PIN 4 - Black Wire: Battery

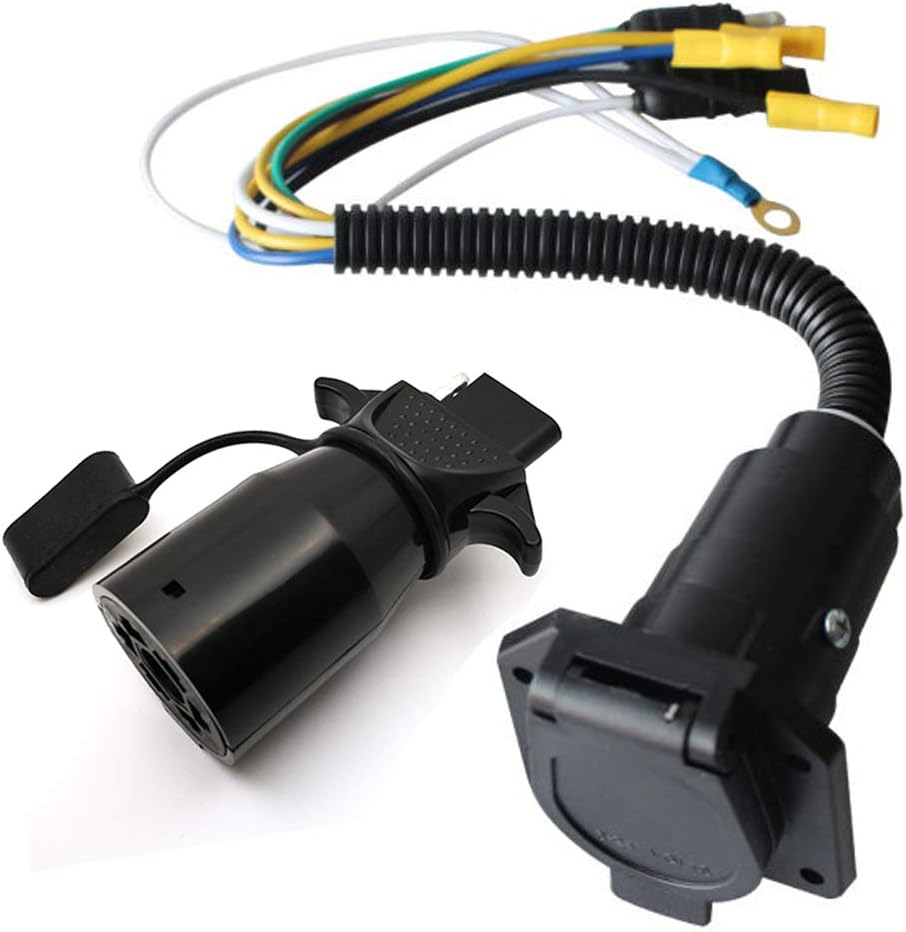

PACKAGE CONTENT:
√ 1 x 4-way to 7-way trailer connector - 14" wiring harness
√ 1 x 7 way to 4 wire flat adapter plug
√ 1 x Metal mounting bracket for 7 way socket
√ 1 x Wiring diagram
