This is a must for people replacing the front or real main seal in a GM LS Series engine.

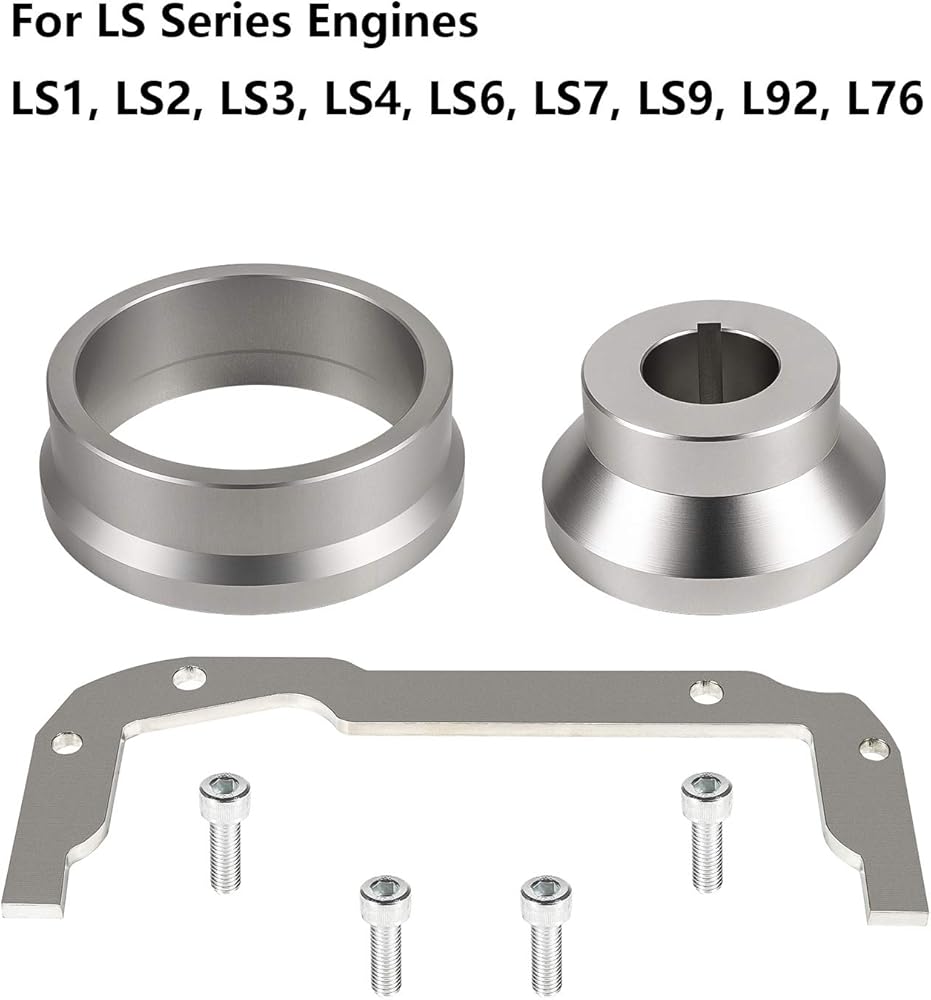

Will work on all LS series engine. LS1, LS2, LS3, LS4, LS6, LS7, LS9, L92, L76

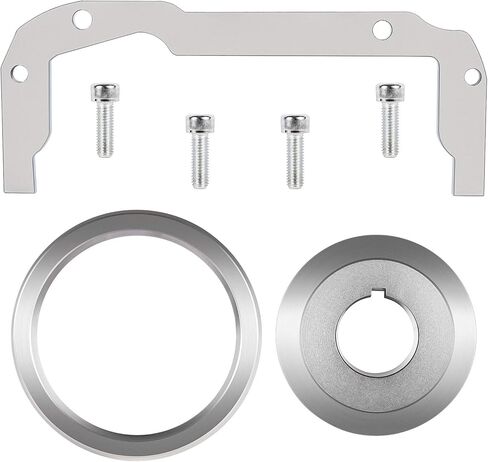

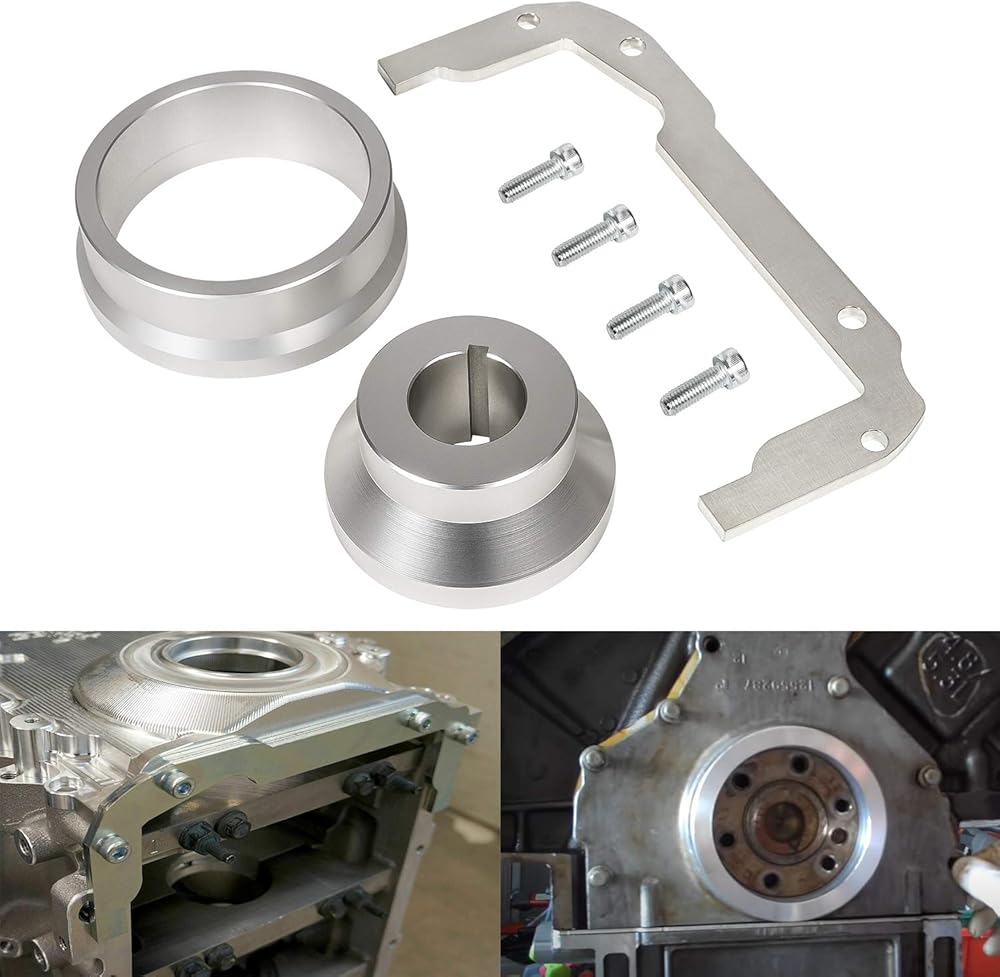

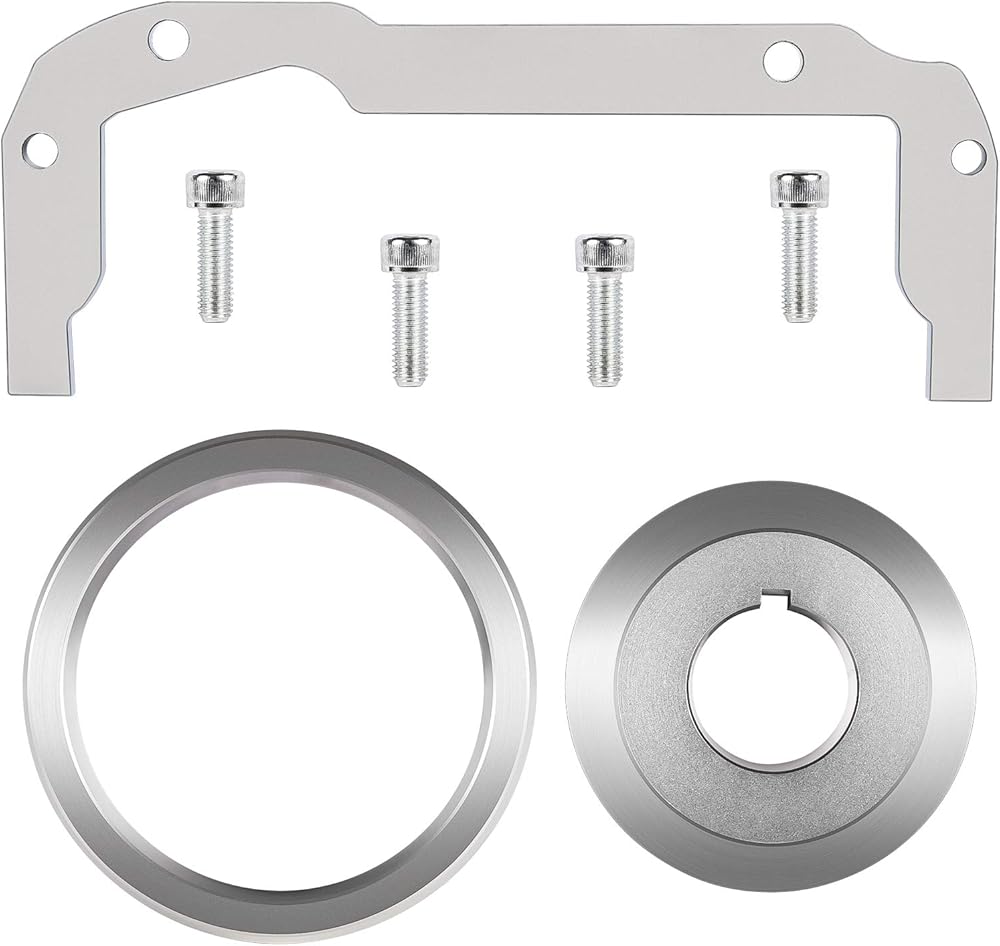

LS Front and Rear Cover Alignment Tool Kit

4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92

LS Front Rear Cover and Oil Pan Alignment Tool Kit 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92
GM LS1, LS2, LS3, LS7, LSA and LS9 V8 engines utilize front and rear seals with Teflon inner sealing lips.

For proper seal function and longevity it is critical that the seals be aligned perfectly concentric to the front diameter on the balancer hub and rear sealing surface on.

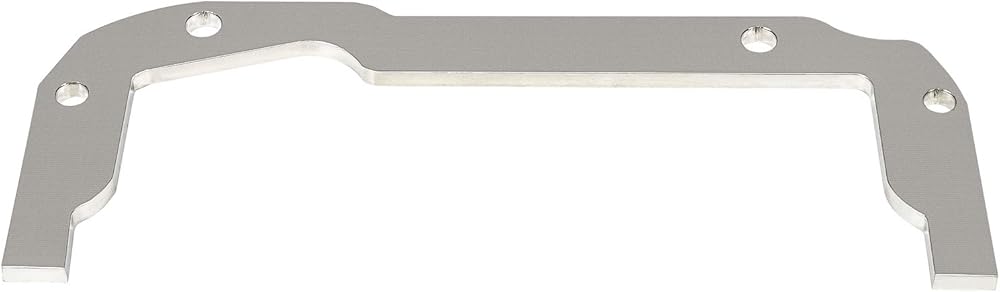

On the LS engine, the oil pan is a stressed member and adds to block rigidity.
For this reason, it can't simply be slapped in place; along with the front and rear engine covers, it must be carefully aligned with the block.

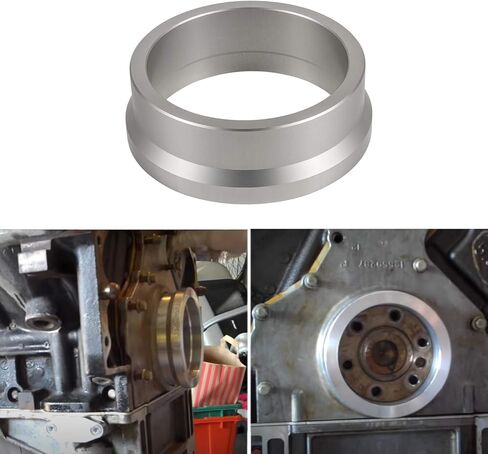

You are buying a tool that is used to install the front cover on any GM LS engine. This tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed.You will have to exercise care to align horizontally the cover to the oil pan. See product description for install instructions.

Instructions:

You are buying a tool that is used to install the front cover on any GM LS engine.

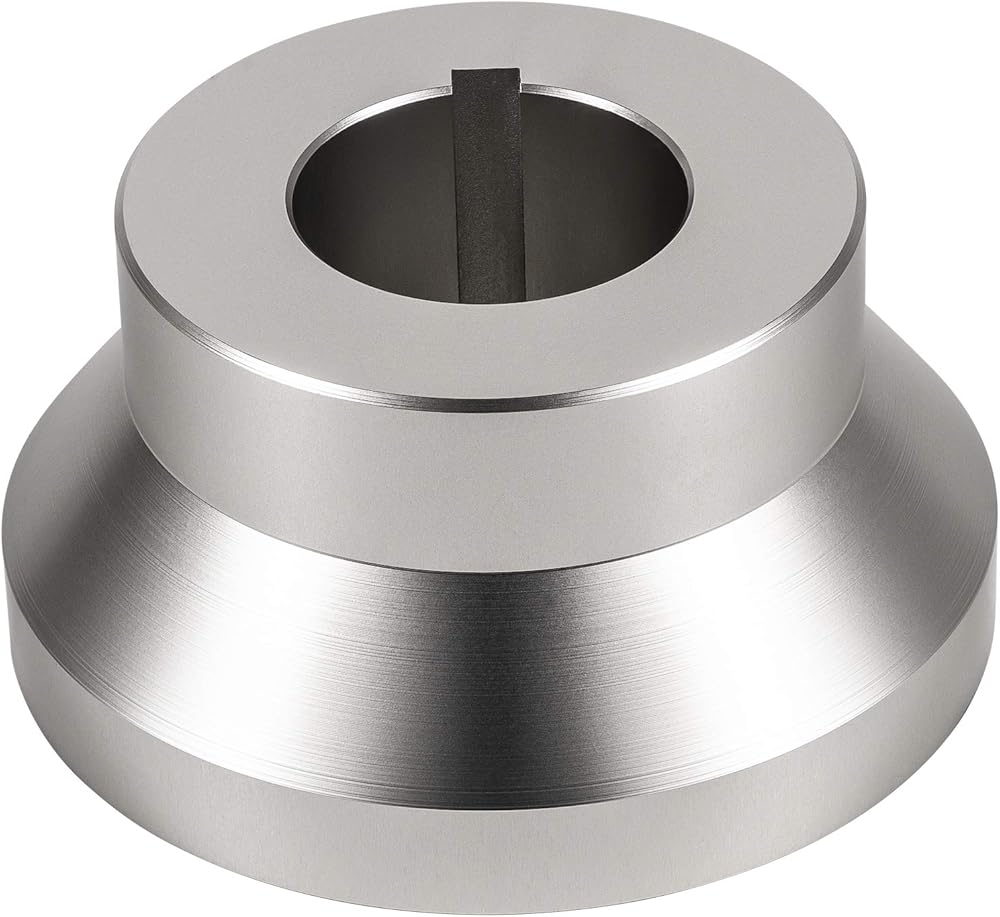

This tool mimics the balancer to center the cover on the front seal OR locates on the ID of the seal bore in the cover without the seal installed.

You will have to exercise care to align horizontally the cover to the oil pan.

Installation of front cover: (no seal installed in Front cover):

-Loosely install the front cover
-Install the seal tool over the snout of the crankshaft usin
