Name: فلاش هوبي آرثر 2306.5 محرك بدون فرشاة 2300KV 2 ~ 4S محرك طائرة بدون طيار خفيف الوزن لطائرة RC بدون طيار FPV كوادكوبتر RC طائرة ثابتة الجناح
Brand: FLASH HOBBY
Availability: InStock

مميزات خاصة

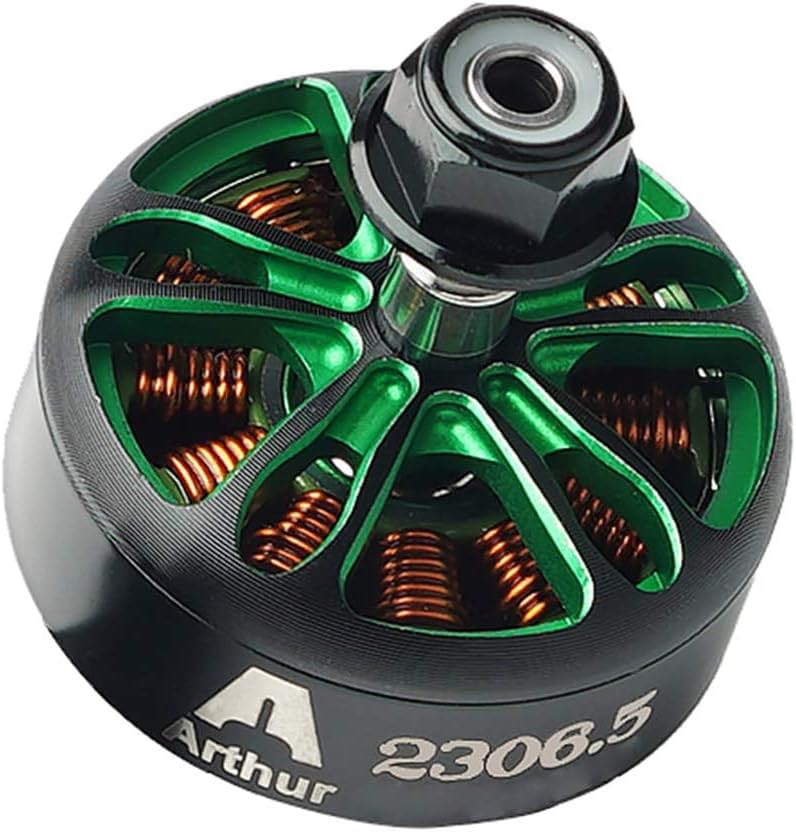

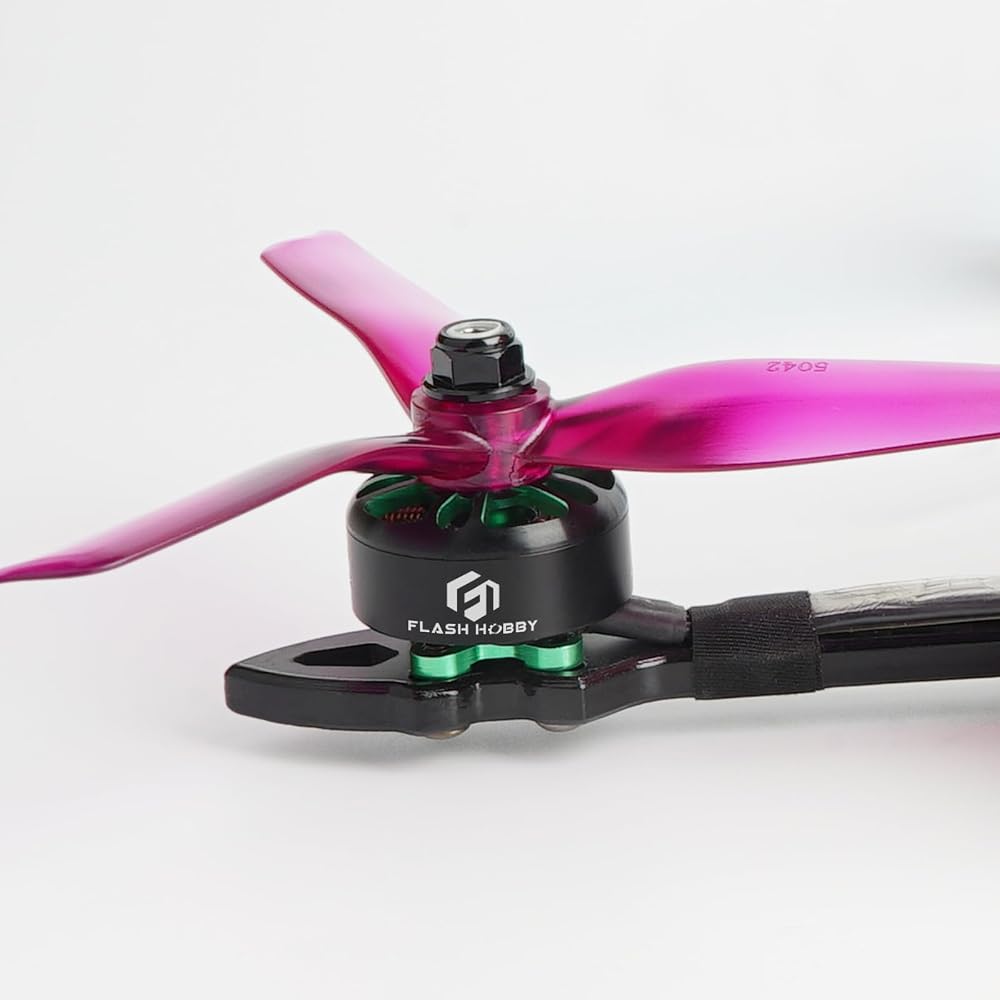

Brushless Motor 2306.5 designed for the quads like 5~6 inch quad frames, which is with better efficiency in this range frames. Very suitable for your requirement with your drone
The 2306.5 motor is 2300KV, adopt 684 NSK bearing, lipo is 2~4s, highly responsive and extremely smooth flight characteristics, providing instant power to save your model from those crazy mountain dives last minute
FPV motors designed with high power and rotation speed to provide longer run time for RC airplane fixed-wing, which is more smoothly, reliable, powerful and stable
Each brushless RC motor has been dynamically balanced, crush-resistant damping bearing, eliminate vibration effectively. Very suitable for you to equip it with your model
Motor cable length 20#AWG 145mm. The shaft diameter is 4mm, configuration is 12N14P. Package included one FLASH HOBBY 2306.5 brushless motor, four M2 x 5mm and one M5 nut

وصف

1400KV:
Max pull: 1741g(6S/GF7056 3R)
Input Voltage: DC7.4-24V(2-6S)
Current: 35.16A
Suggested ESC: 30A~50A
Maximum Power: 843W
Suggested Prop: 6~7 inch prop

1900KV:
Max pull: 1961g(6S/GF6042 2R)
Input Voltage: DC7.4-24V(2-6S)
Current: 51.32A
Suggested ESC: 30A~60A
Maximum Power: 1231W
Suggested Prop: 5~6 inch prop

2300KV:
Max pull: 1472g(4S/GF6042 2R)
Input Voltage: DC7.4-16V(2-4S)
Current: 42.96A
Suggested ESC: 30A~60A
Maximum Power: 687W
Suggested Prop: 5~6 inch prop

2550KV:
Max pull: 1718g(4S/HQ6045)
Input Voltage: DC7.4-16V(2-4S)
Current: 47.34A
Suggested ESC: 30A~60A
Maximum Power: 757W
Suggested Prop: 5~6 inch prop

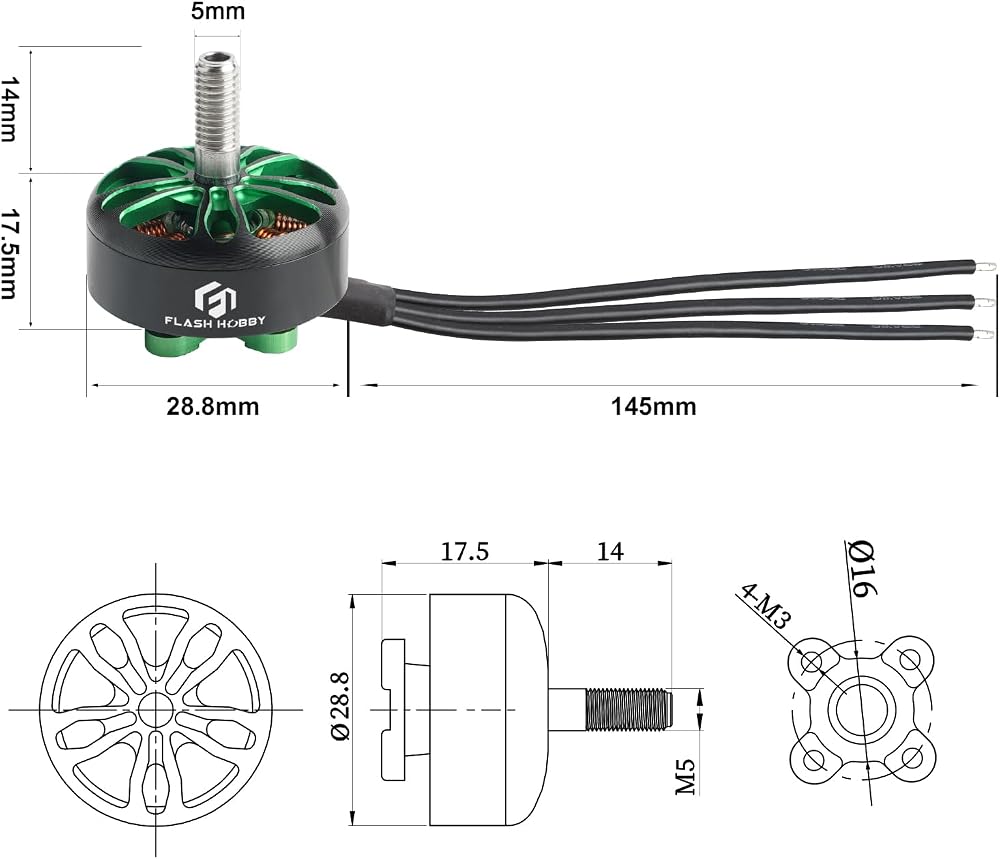

Specification:

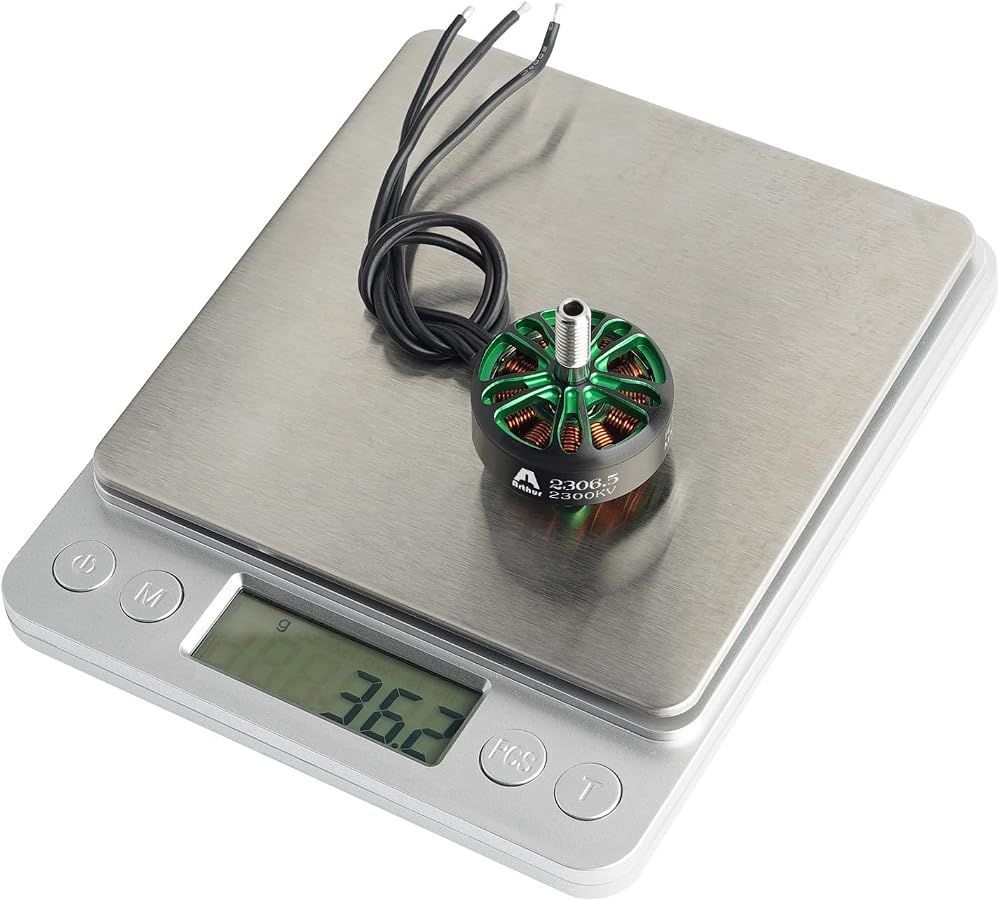

Weight (Include Cable): 36.5g
Motor Dimension: Φ28 x 17.5mm
Motor Cable: 20#AWG 145mm

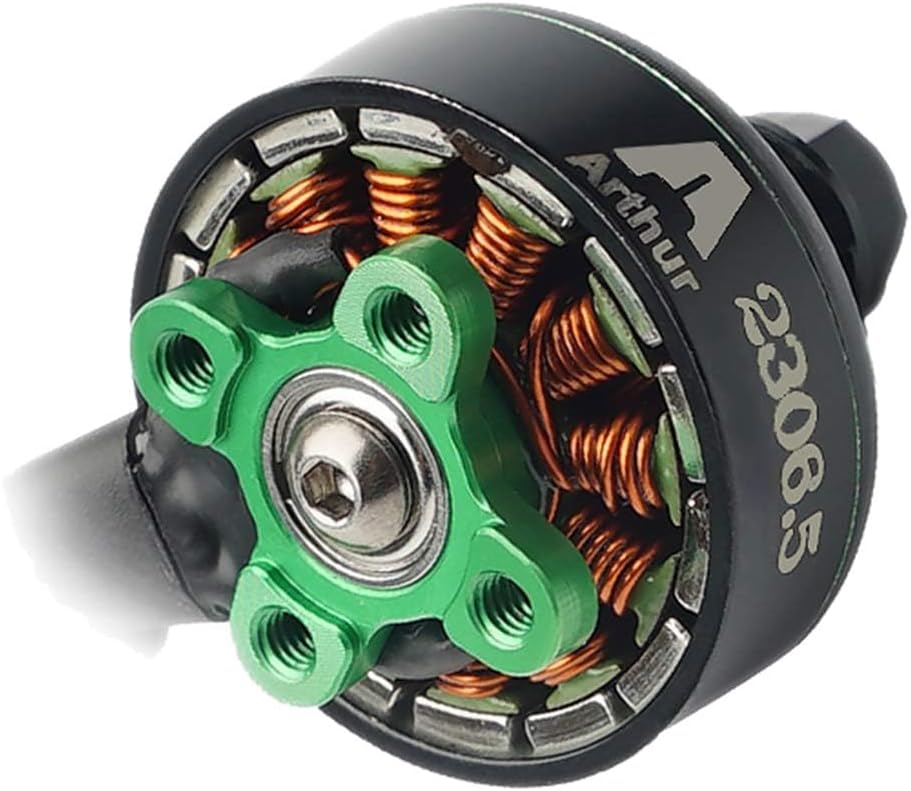

Configuration: 12N14P
Shaft Diameter: 4mm
Propeller Shaft Size: M5
Stator Diameter: 23mm
Stator Height: 6.5mm

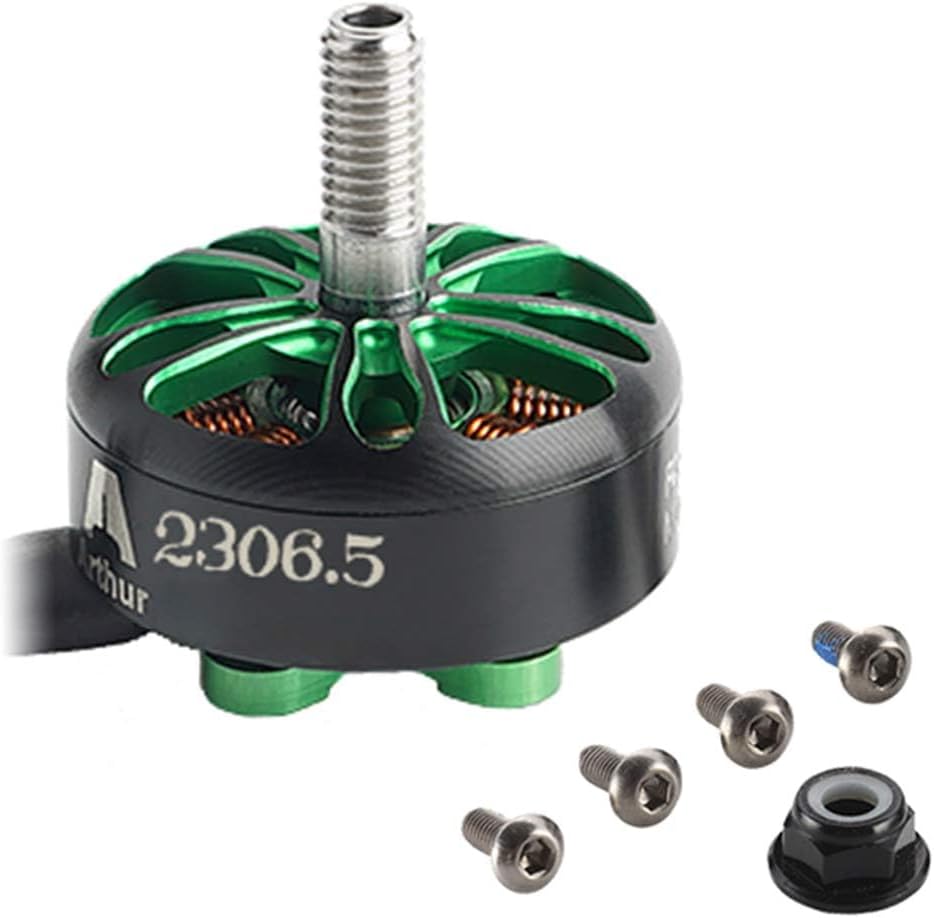

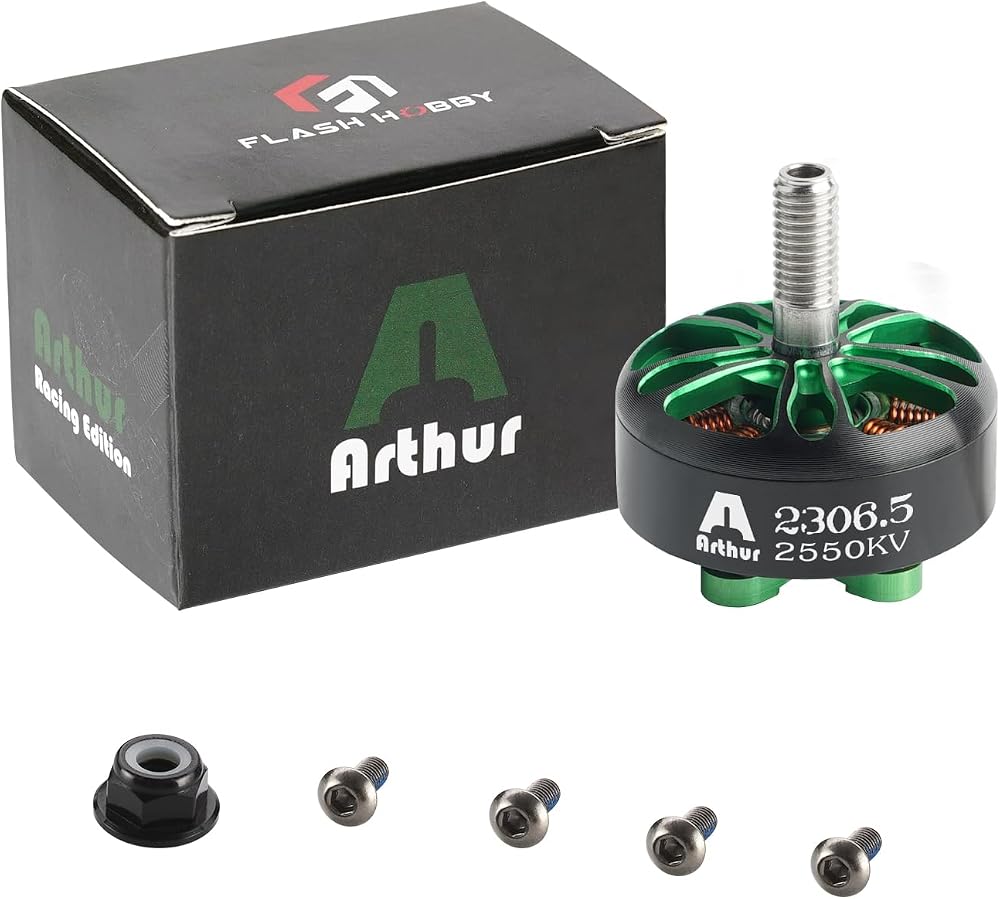

Package Included:
1 x FLASH HOBBY 2306.5 Brushless Motor
4 x M2x5mm
1 x M5 Nut
