مميزات خاصة

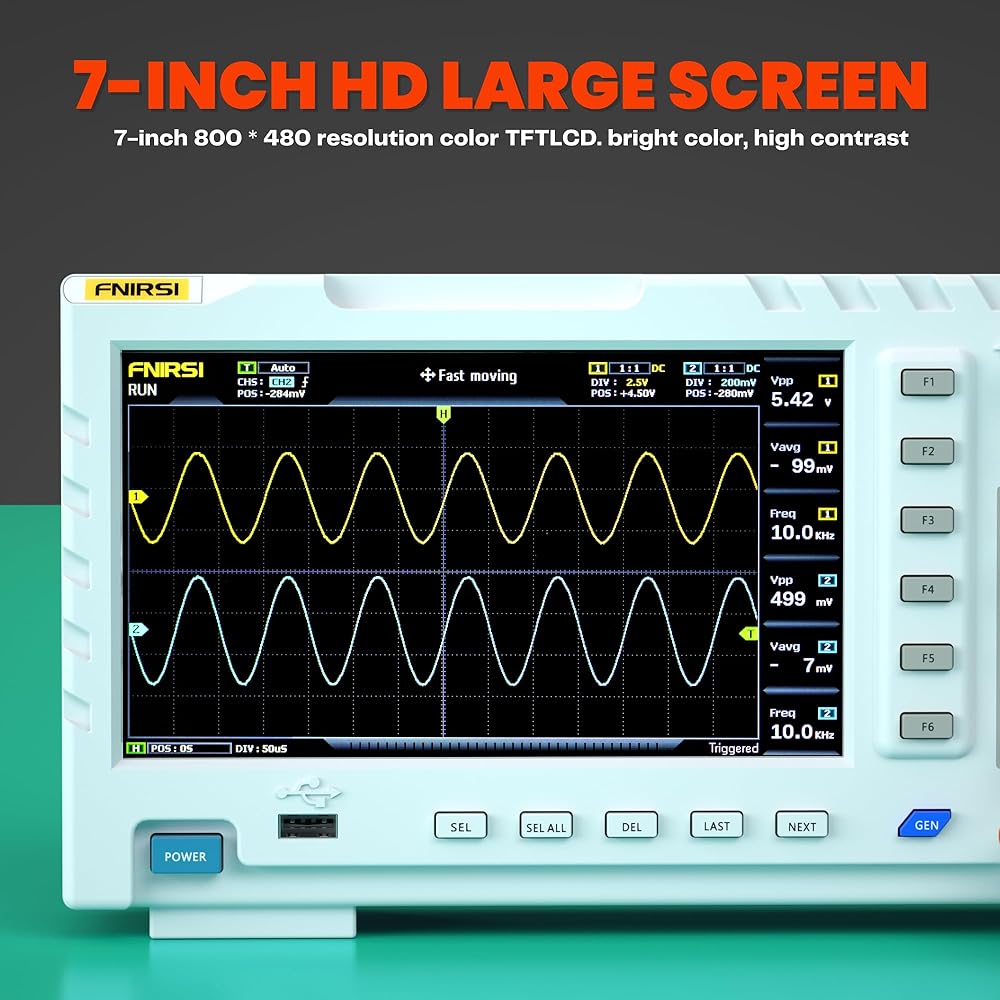

7-inch colorful LCD screen with 800*480 resolution, the screen brightness and background grid brightness of our oscilloscope is adjustable according to your needs.
The oscilloscope supports 12 kinds of functional signals with cursor measurement function, convenient to measure period, frequency and voltage.

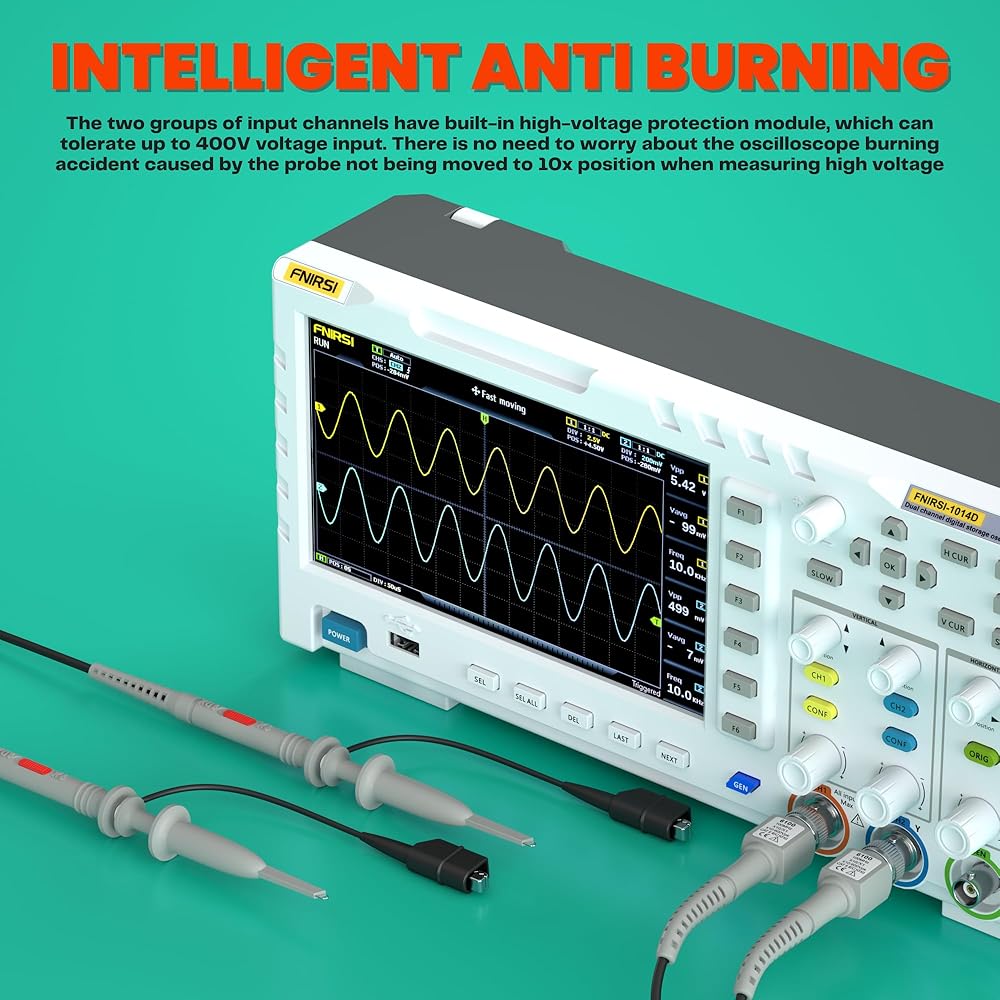

Built-in high voltage protection design, our oscilloscope can bear as large as 400V continuous voltage without burning out.
With one-button automatic operation, you just need one key to save the waveform and can store up to 1000 screenshots and 1000 groups of waveform data.
Equipped with USB port, the oscilloscope can be connected to computer, convenient to use and carry around for secondary analysis.

وصف

Specification:
Analog band width: 100MHz * 2

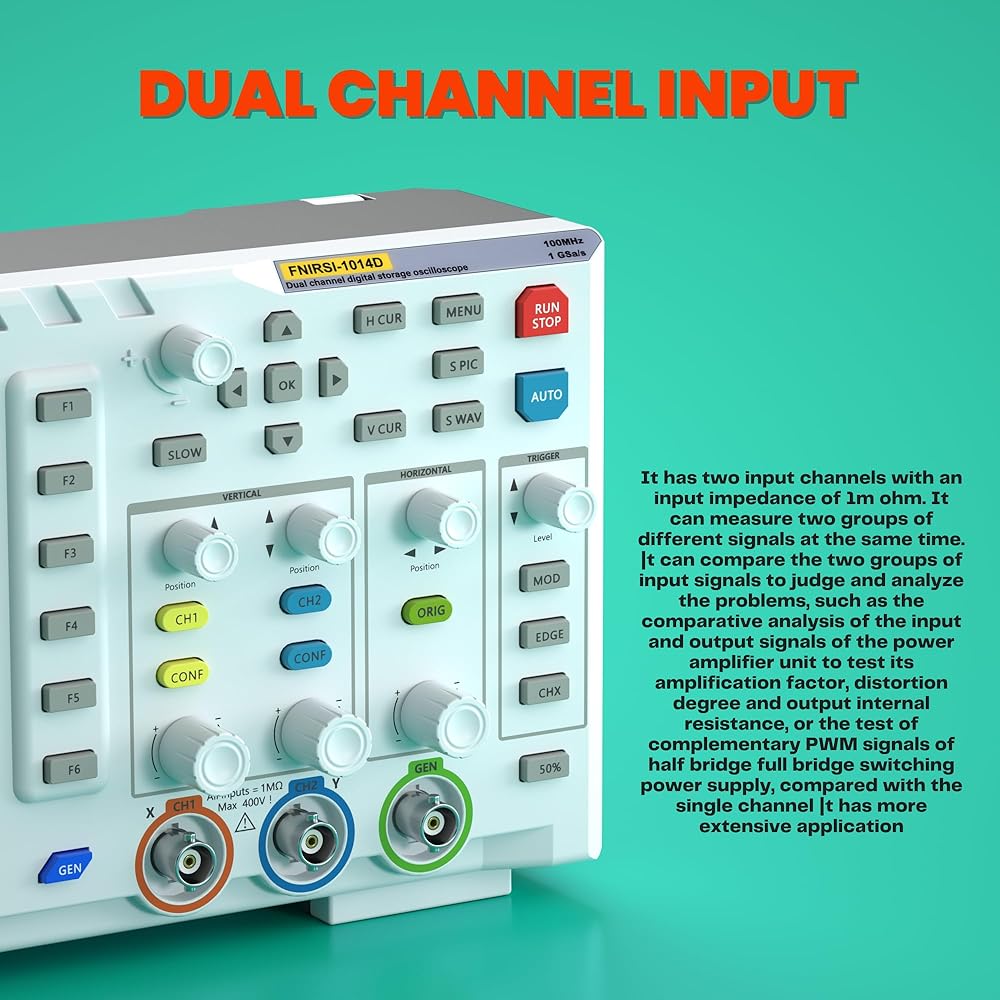

Number of channels：2 channels
Maximum real time sampling rate: 1GSa/s
Vertical sensitivity: 50 mV/div ~ 500 V/div
Horizontal time base range: 50S/div ~ 10nS/div
Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
Storage depth: 240Kbit
Input resistance: 1MΩ
ADC precision: 8bits
Coupling mode: AC/DC
Trigger mode: Single, Normal, Auto
Trigger edge: Rising edge/Falling edge
External trigger voltage 0 – 40 V
Extension ports：USB picture export

Packing List:

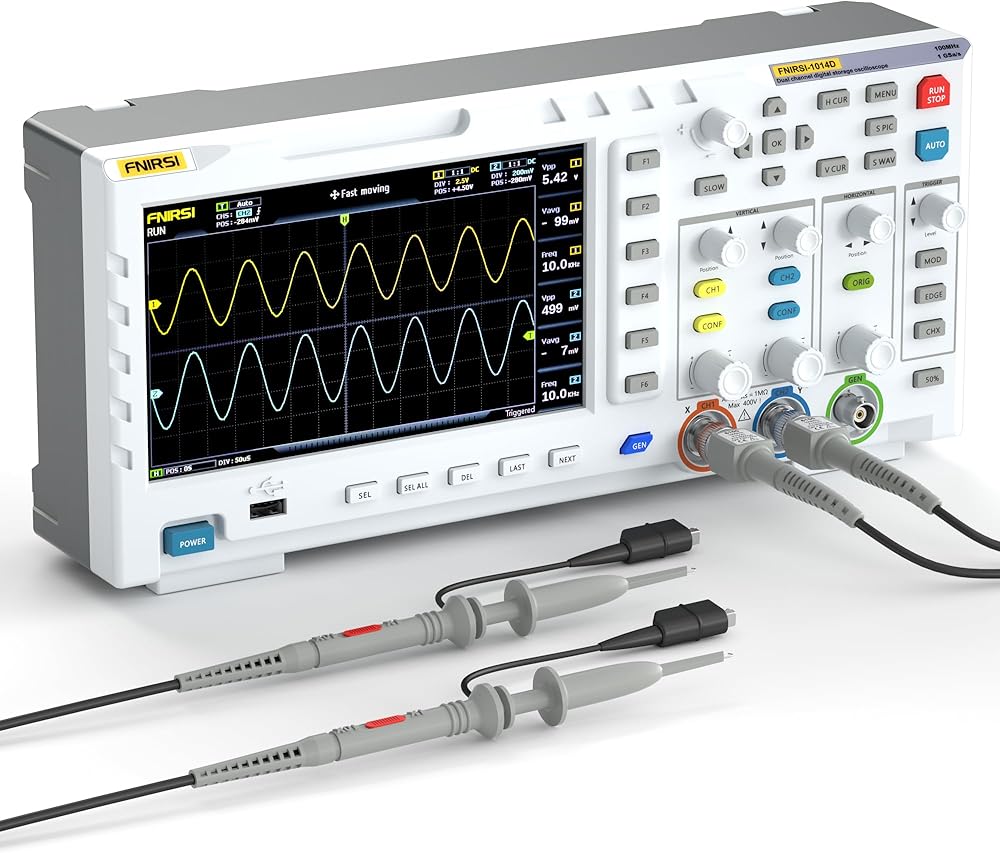

1 x FNIRSI-1014D Oscilloscope Host
2 x Matching 100MHz Probe（1X and 10X）
1 x Crocodile Clip
1 x 5V2A Power Adapter
1 x USB Data Line
1 x User Manual
