[3-in-1 oscilloscope and multimeter] Oscilloscope – two-channel input, bandwidth 200 MHz, sampling frequency 1 GSa/s. Multimeter – True RMS, 20000 counting, automatic, orange, voltage/current/resistance/diodes/capacity/continuity test.

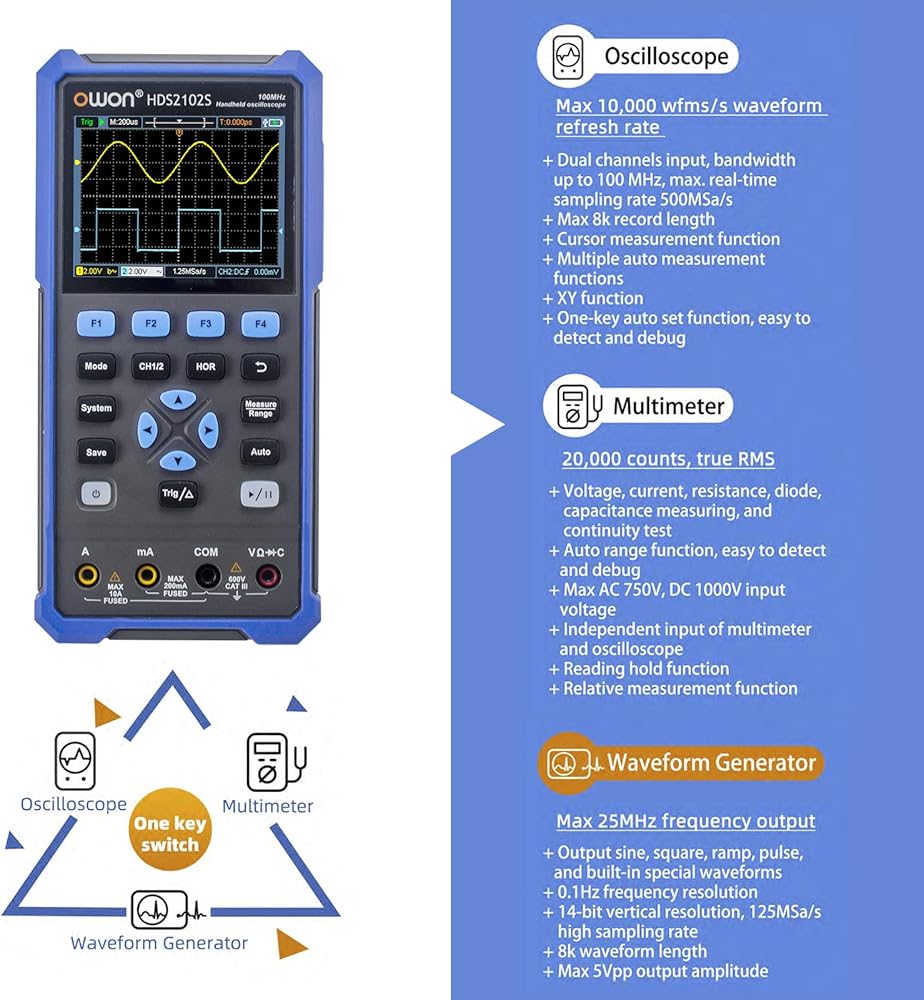

[Short introduction to function] Oscilloscope – dual channel input, 100 MHz bandwidth, sampling frequency 500 MSa/s. Multimeter – True RMS, 20000 counting, automatic, orange, voltage/current/resistance/diodes/capacity/continuity test. Wave shape generator – emission of sinusoidal, rectangular, ramp, pulse and integrated special wave shapes; sampling frequency 125 MSa/s, wavelength 8 K.

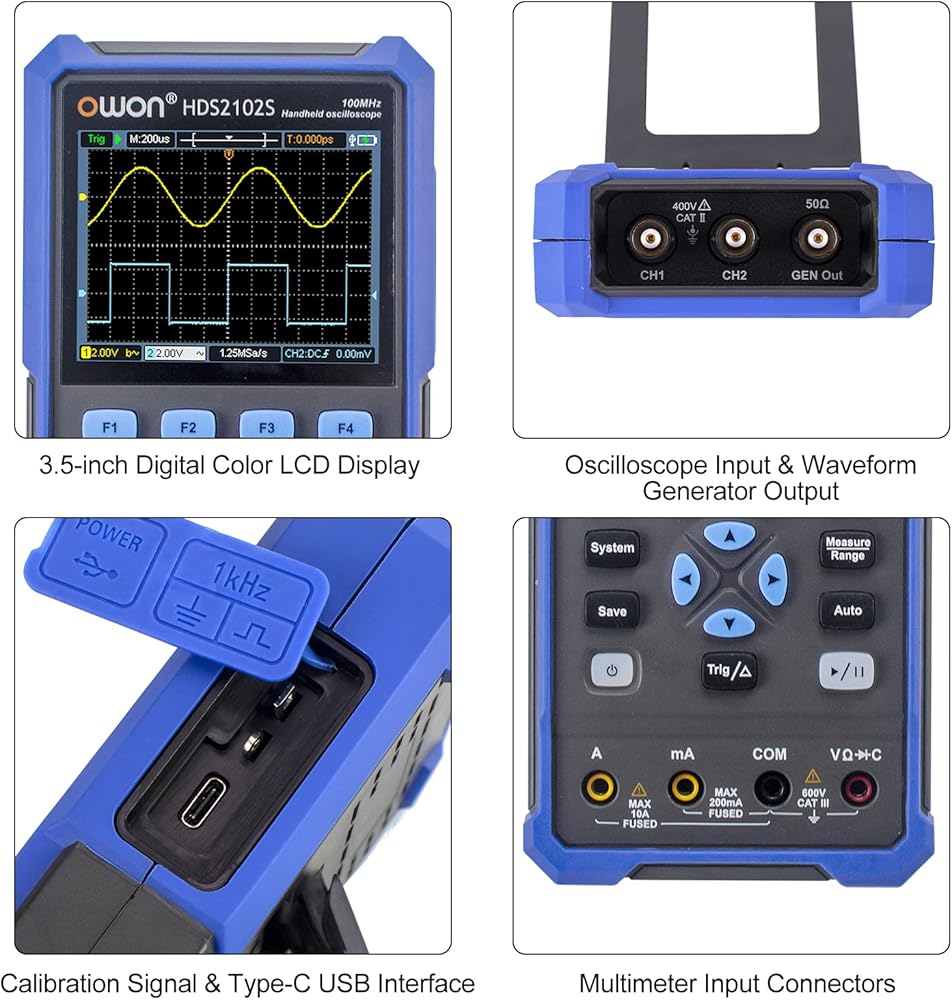

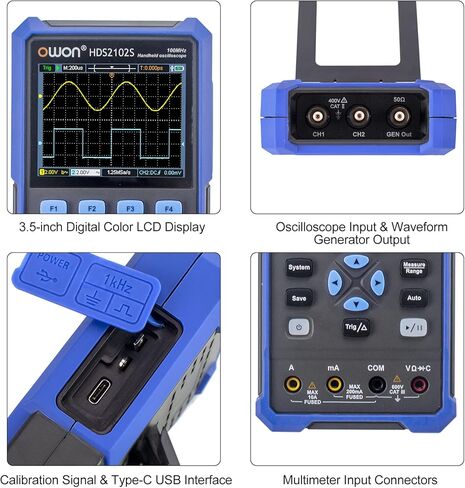

[Digital LCD Display] 3.5-inch color LCD display with high resolution and high contrast, clear at first glance and easy to read even in dark environments. Supports self-calibration function. SCPI, facilitates secondary development.
[Reloadable, supports computer software] Less than 5 W, very low power consumption, energy saving. USB Type-C interface, supplied with USB cable and power supply for easy and fast charging, supports connection to PC software.
[Wide spectrum of application] Device in hand, trouble-free testing in many situations. Suitable for outdoor maintenance, quick on-site measurements, car maintenance, current detection, etc.

وصف

Color: Black, Blue
Material: ABS
Display: 3.5-inch LCD
Bandwidth: 200 MHz
Oscilloscope channel: 2
Oscilloscope sampling rate: 1 GSa/s
Multimeter: 20000 counts
Test modes: voltage (AC 750 V, DC 1000 V), current (AC 10 A, DC 10 A), resistance, capacitance, diode (0-2 V), continuity
Signal generator: 25MHz
Signal generator channel: 1
Signal generator sampling rate: 125 MSa/s
Built-in battery: 2.3.3 V 2200 mAh lithium battery
Interface: Type-C USB interface

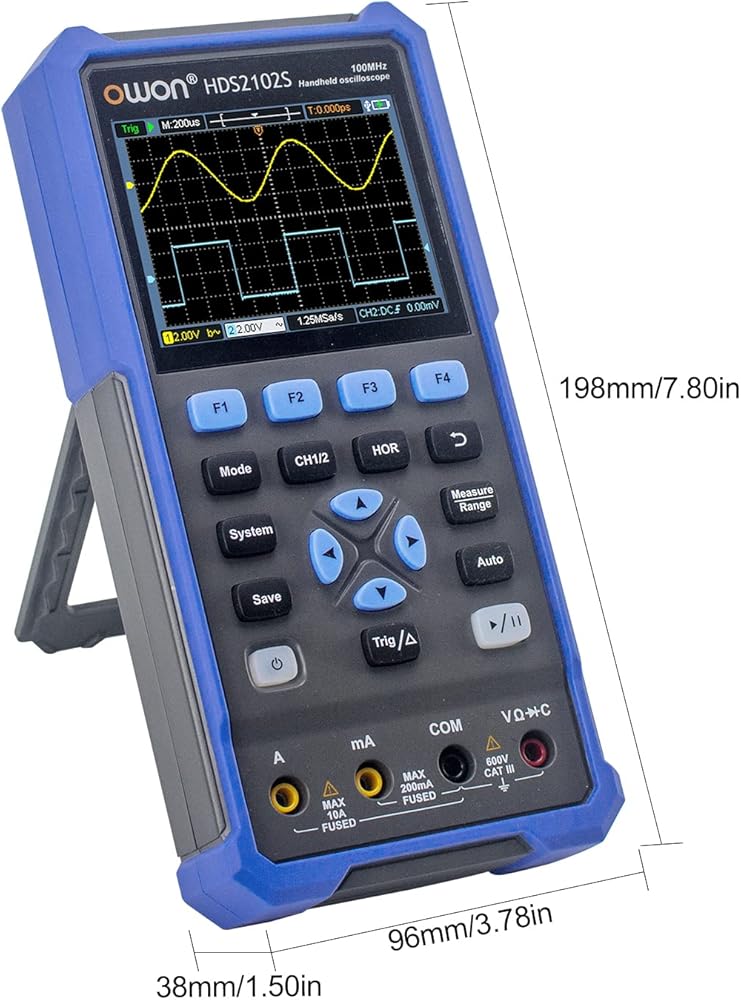

Item size: 198.96.38 mm.7.80.3.78.1.50 inch
Item weight: 518 g to 1,14 lbs
Packaging size: 24.16.9 cm.9.45.6.30.3.54 inch
Package weight: 1092 g to 2.41 lbs

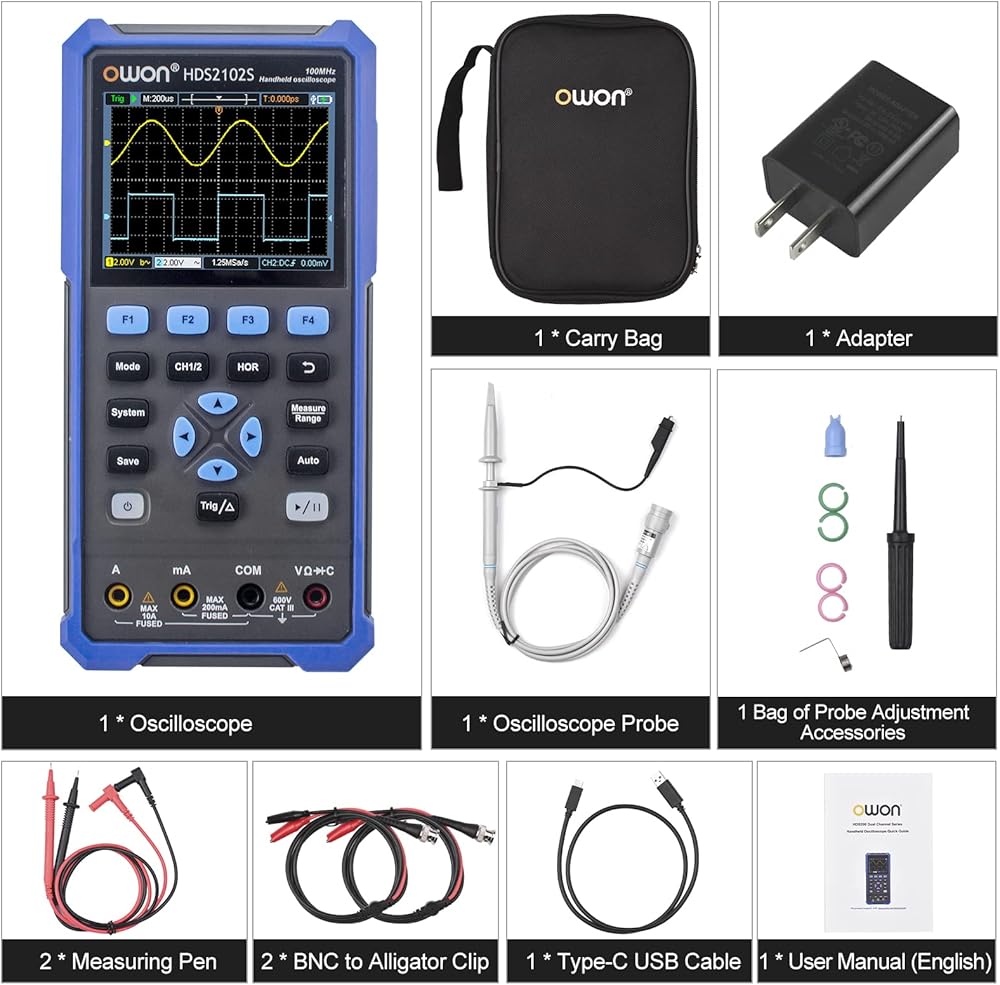

Package List: 1x Oscilloscope
1x Oscilloscope probe
1x Bag of probe fitting accessories
2x Measuring pin
2x BNC on crocodile clamp
1x Adapter
1x Type C USB cable
1x User Manual (English)
1x Carrying bag
