Specification:
Descriptions:

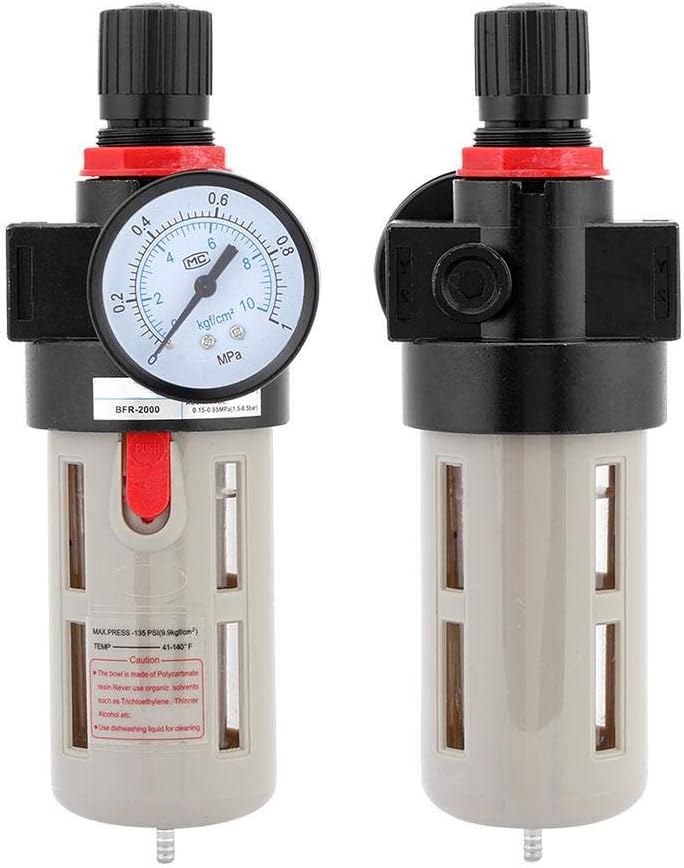

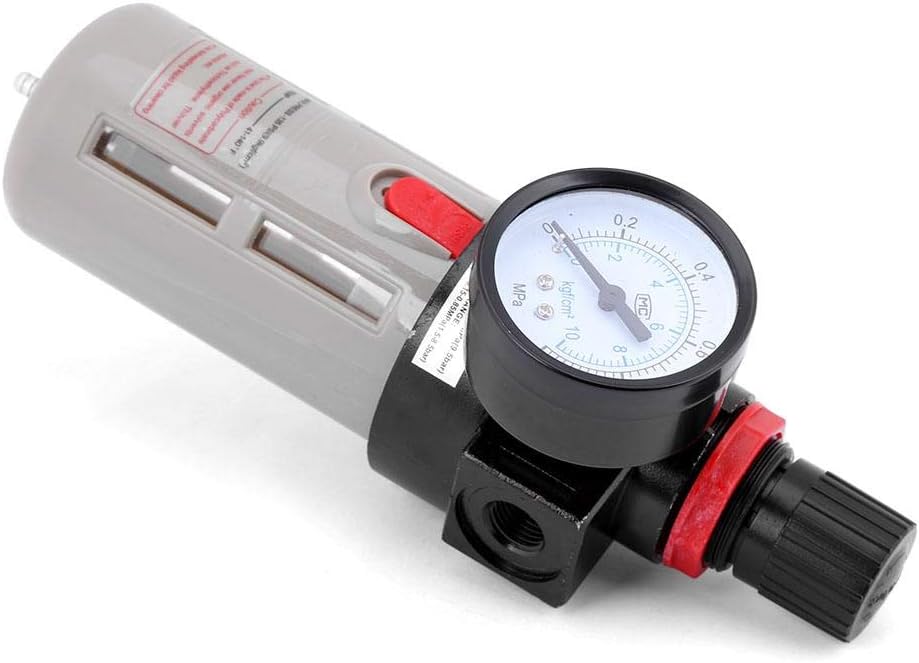

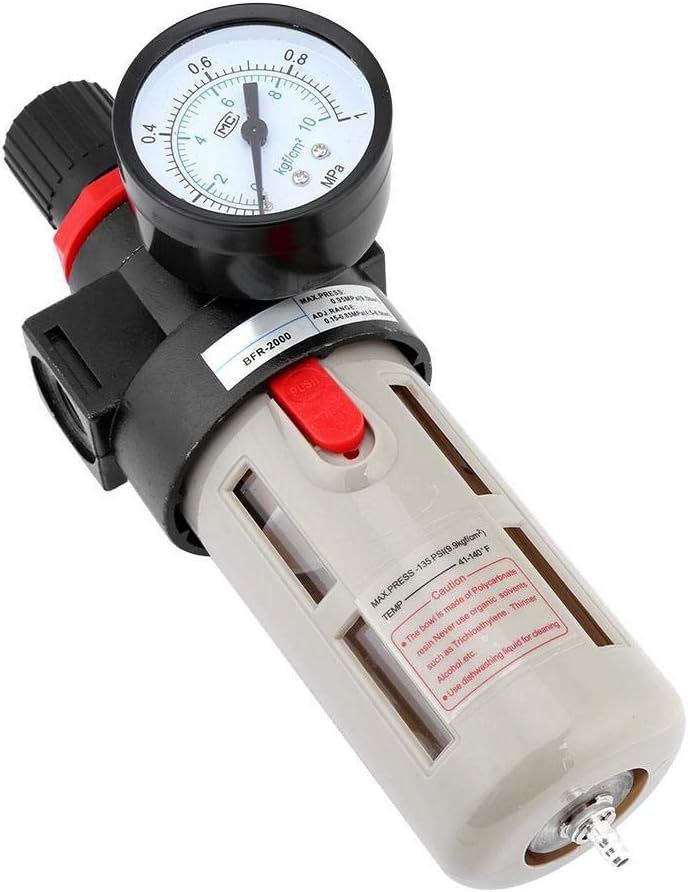

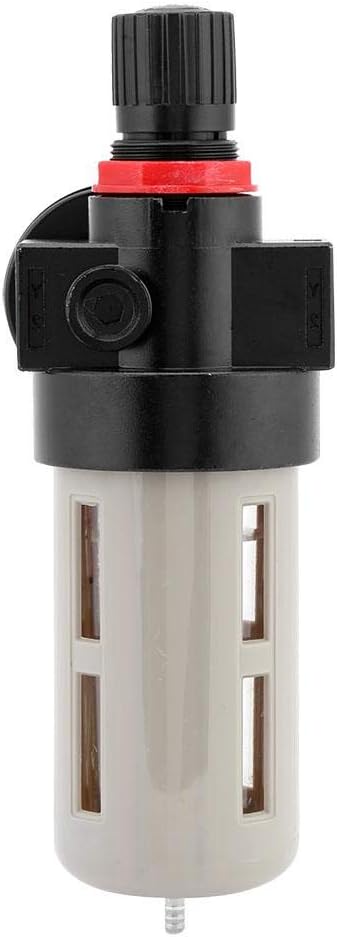

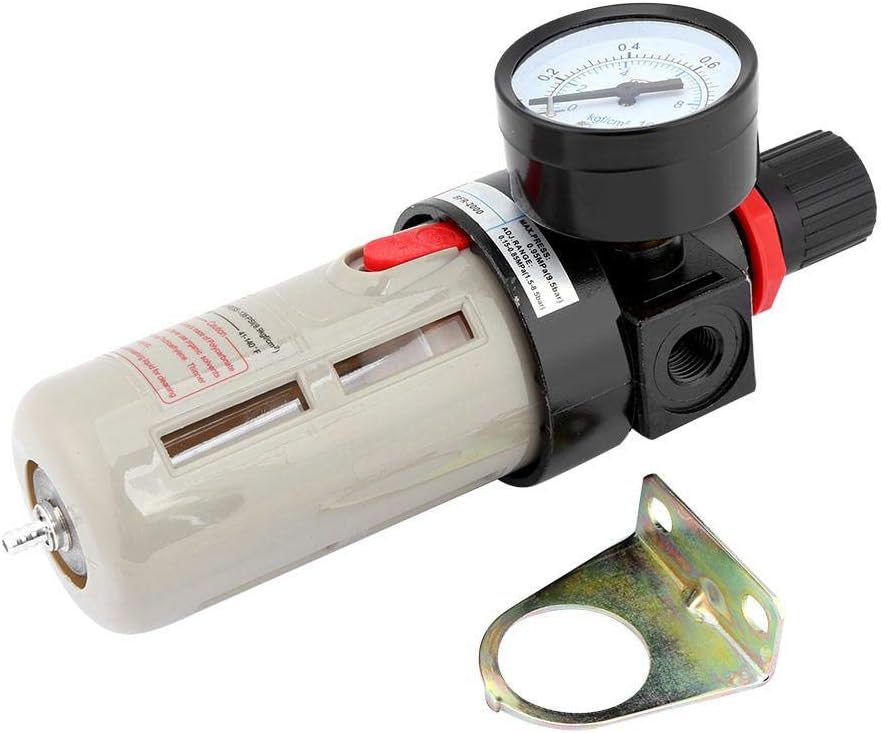

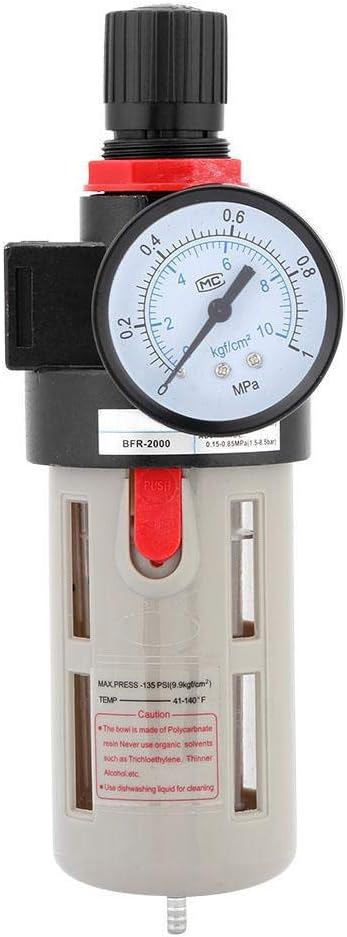

This air filter regulator is compact structure, easy to install and use. The pressure-entry self-locking mechanism can prevent the pressure from being disturbed by external interference. Small pressure loss, high water separation efficiency.
Features:
Compact structure, easy to install and use.
The pressure-entry self-locking mechanism can prevent the pressure from being disturbed by external interference.
The reasonable product design is easy to use and small in horizontal space, which can meet the different requirements of pneumatic system.
Small pressure loss, high water separation efficiency.

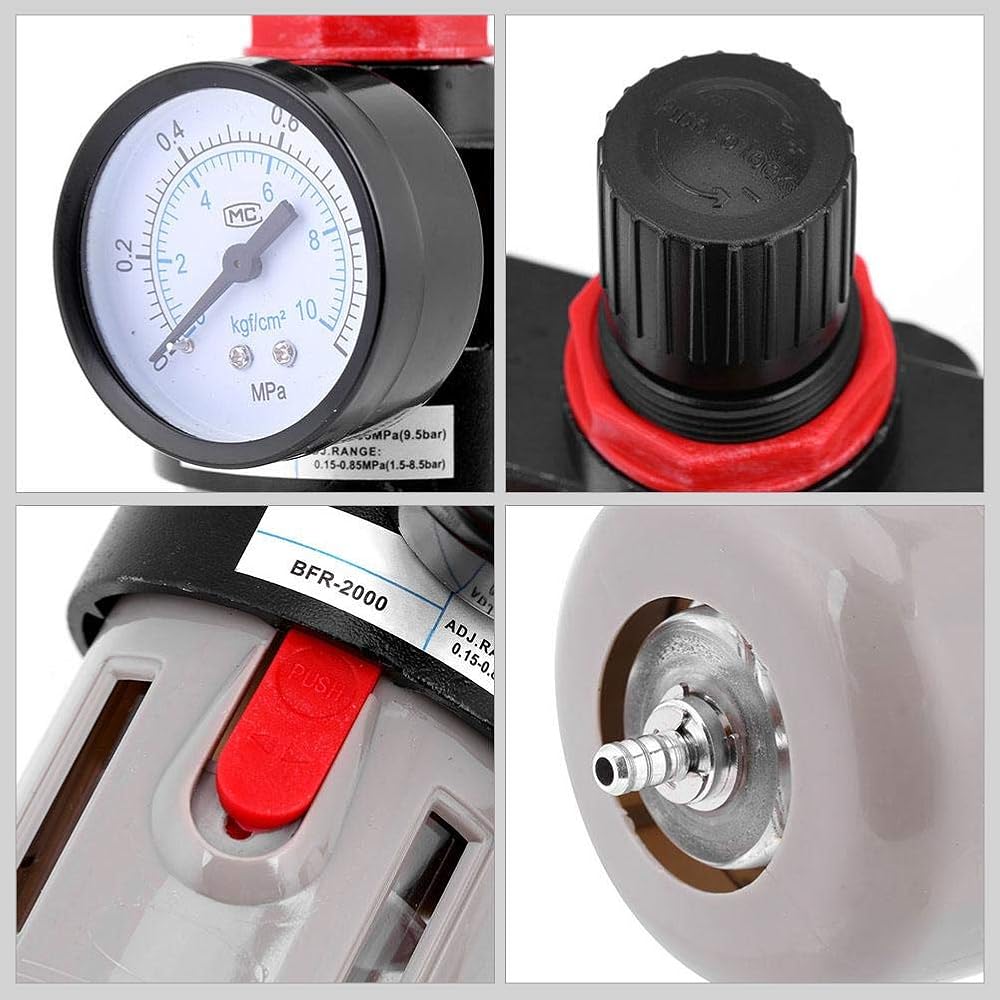

Transparent observation cover, can directly observe the drops of oil quantity size.
Specifications:
Model:BFR-2000
Working medium: air
Port diameter: G1/4\"
Pressure gauge diameter: G1/8
Filter core accuracy: 40u
Pressure regulation range: 0.15 to 0.9Mpa
Maximum regulation pressure: 1.0Mpa
Guaranteed proof pressure: 15kgf/c㎡
Temperature range: 5-60 ℃
Filter cup capacity: 60CC

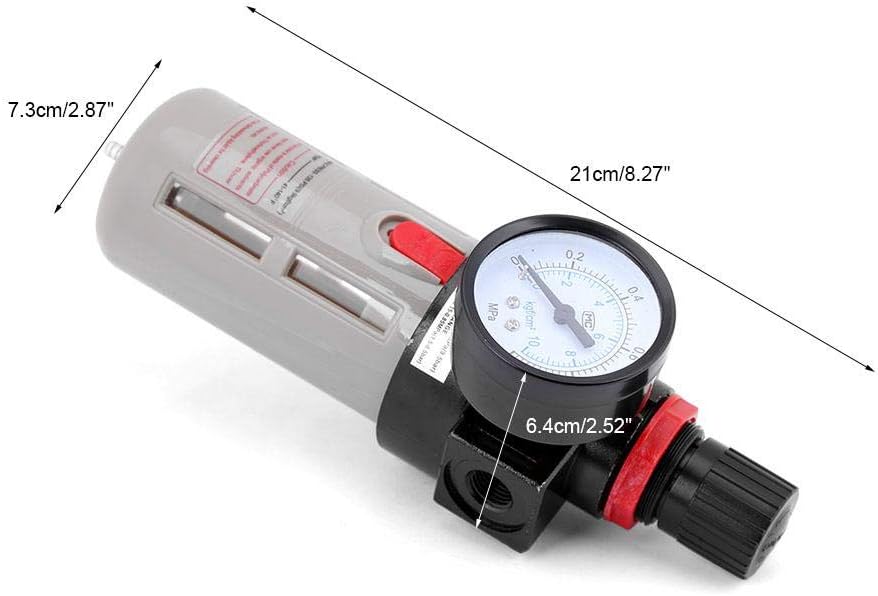

Size: 21 x 7.3 x 6.4cm/8.27 x 2.87 x 2.52inch
Weight: 446g
Package Included:
1 x Air filter regulator
