Feature:

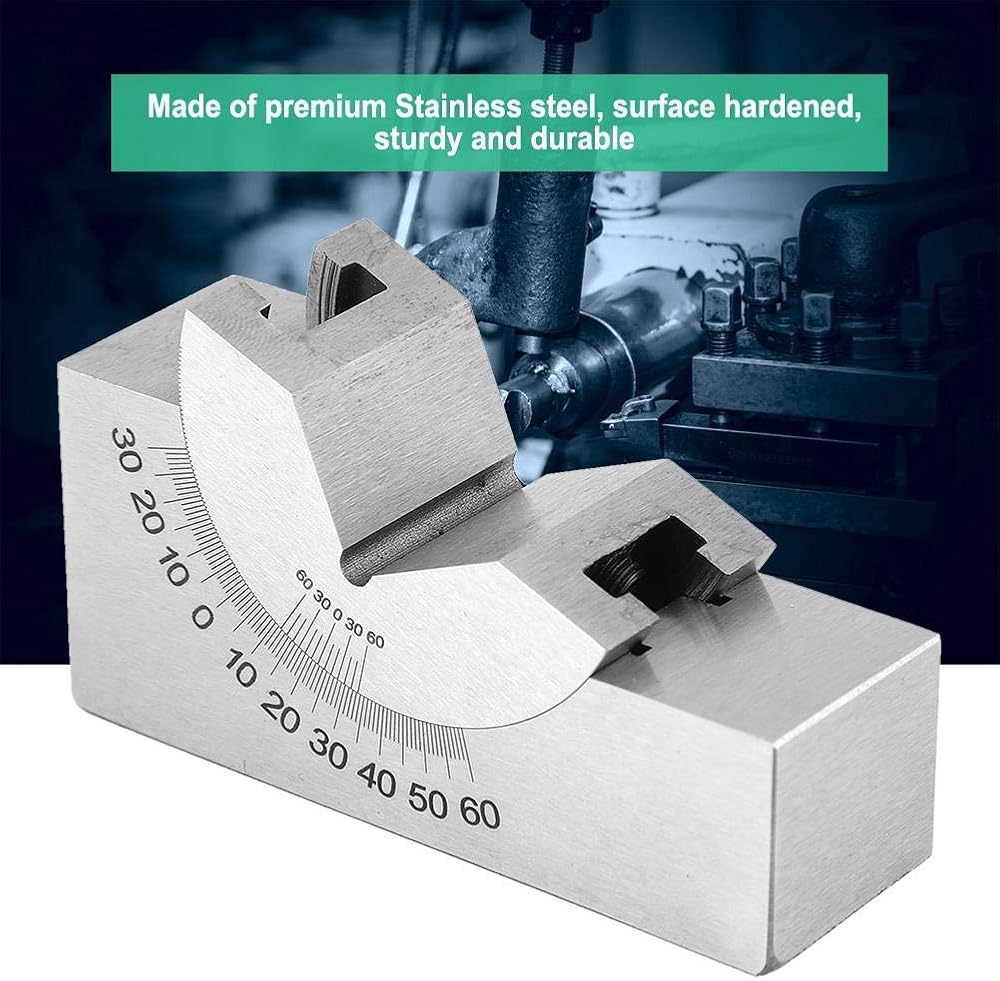

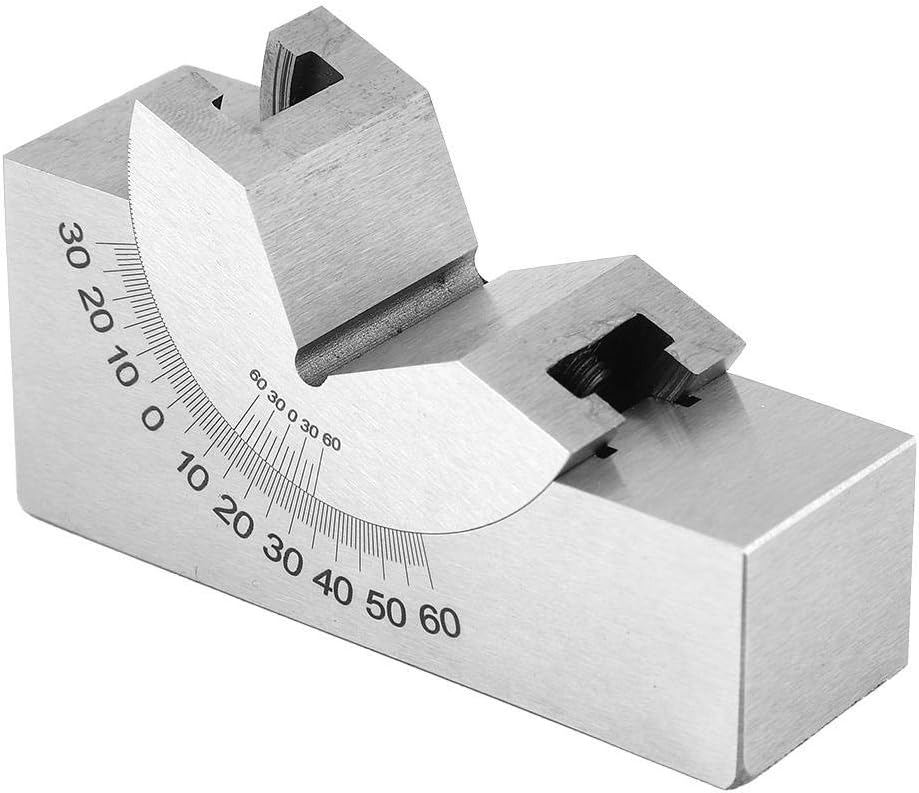

Made of premium Stainless steel, surface hardened,sturdy and durable Application: In the milling machine, planer, drill press with adjustable angle grinder and regulations on the blade, crossed with other fixtures or clamping the workpiece after the workpiece processing, such as processing slope, slant-hole drilling and the like. It can be a cursor indicates stepless tilt adjustment angle, and then be secured with screws, used to create a variety of fixed angle processing, testing of workpieces. plated, rust parallelism and verticality grinding of each working face to 0.01mm. This Angle V Block features high accuracy and is easy to operate
Specification:
Material:Stainless steel

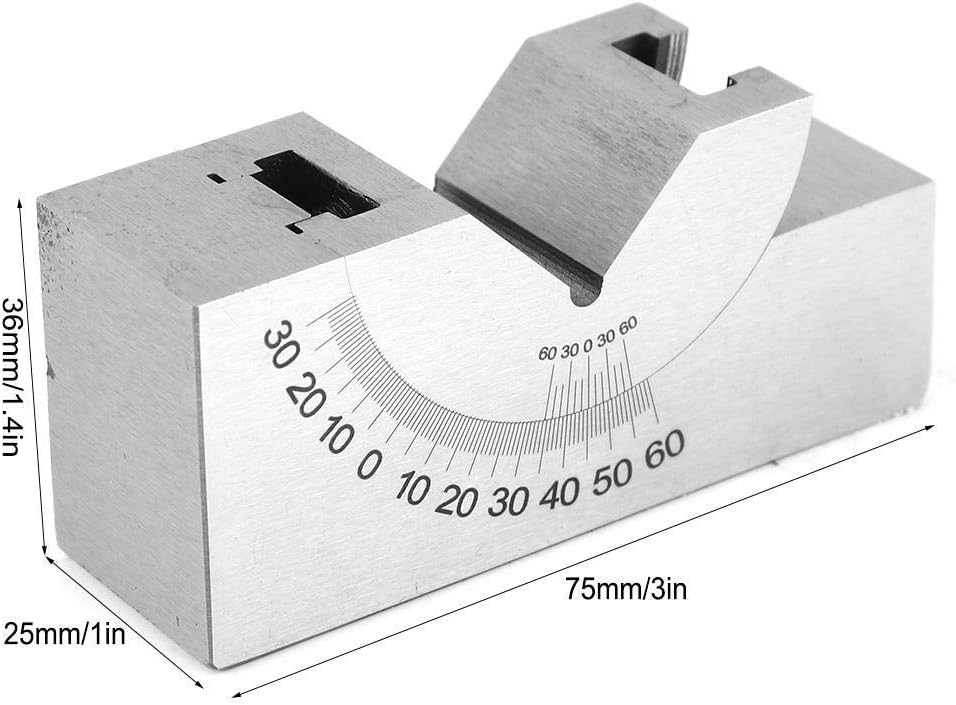

Dimensions: approx. 75 * 25 * 36mm / 3 * 1 * 1.4in
Color: as picture shows

Use method:

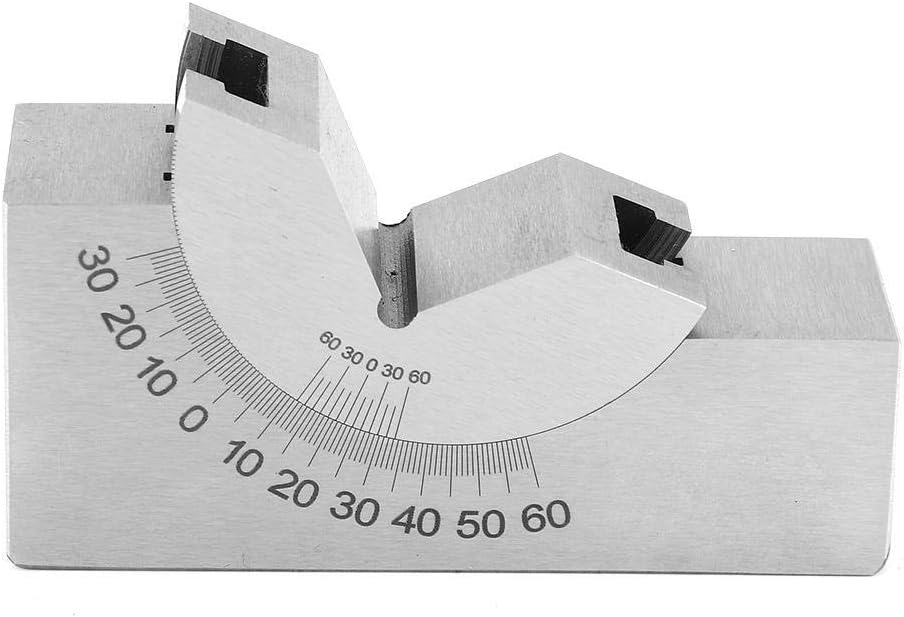

after loosening the screws, pull the v-shaped block along the base of the guide rail rotation, looking for the target Angle. 2, using the cursor principle readings, points on the main scale degrees 1°, cursor dividing for 10 '. When the 0 line on the cursor is aligned with the 0 line on the main scale, it means that the measuring surface A is parallel to the datum level and the datum level, B is perpendicular to the datum level.
1) when the cursor 0 the right of the line in the main dial 0 line, degree, with cursor 0 read scores with the right of the cursor 0 line scale reading (reading the same as the vernier caliper) read out the degrees (°), A and B measurement plane counterclockwise (') said the turning Angle.
When the cursor 0 line in the main scale 0 line left, the degree is still read with the curso
