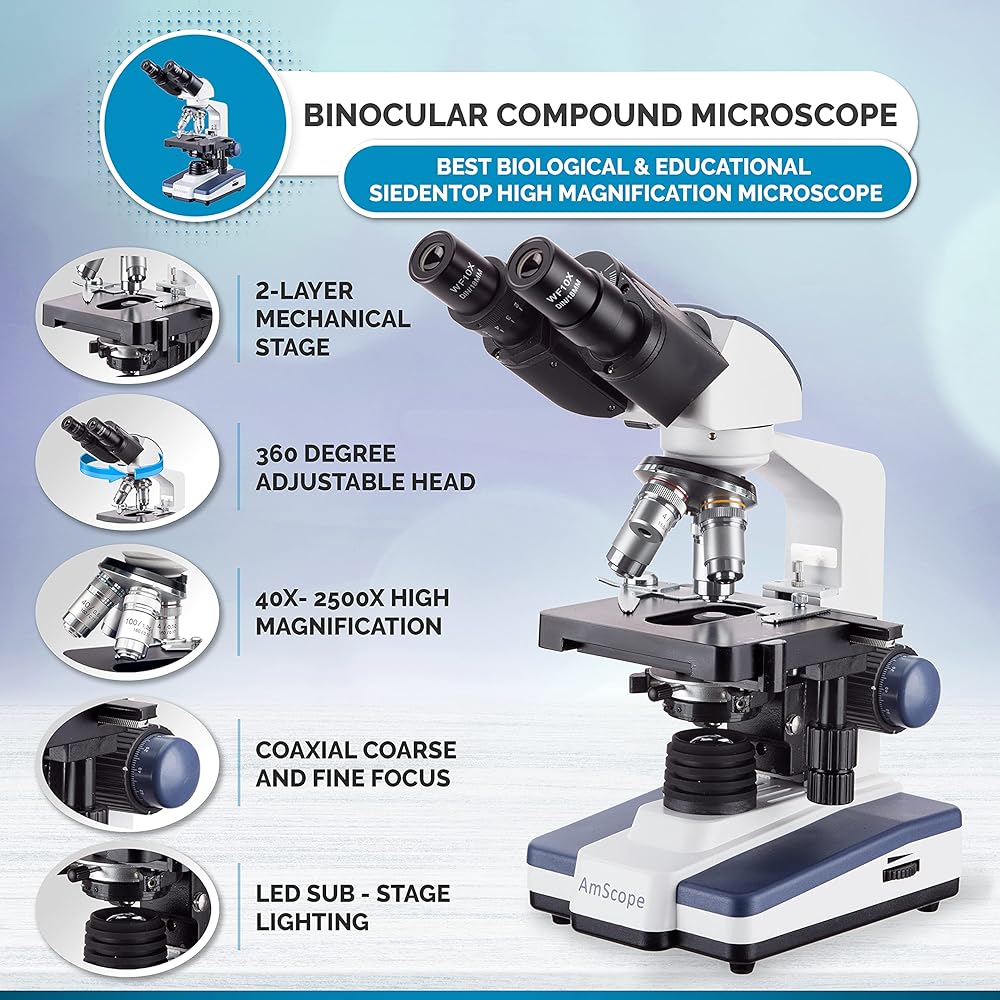

The B120 binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is an ideal microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting, centerable condenser, and Siedentopf head adjustments. Use the microscope for studying fixed or live cells, bacteria, plants and soil, or water samples.

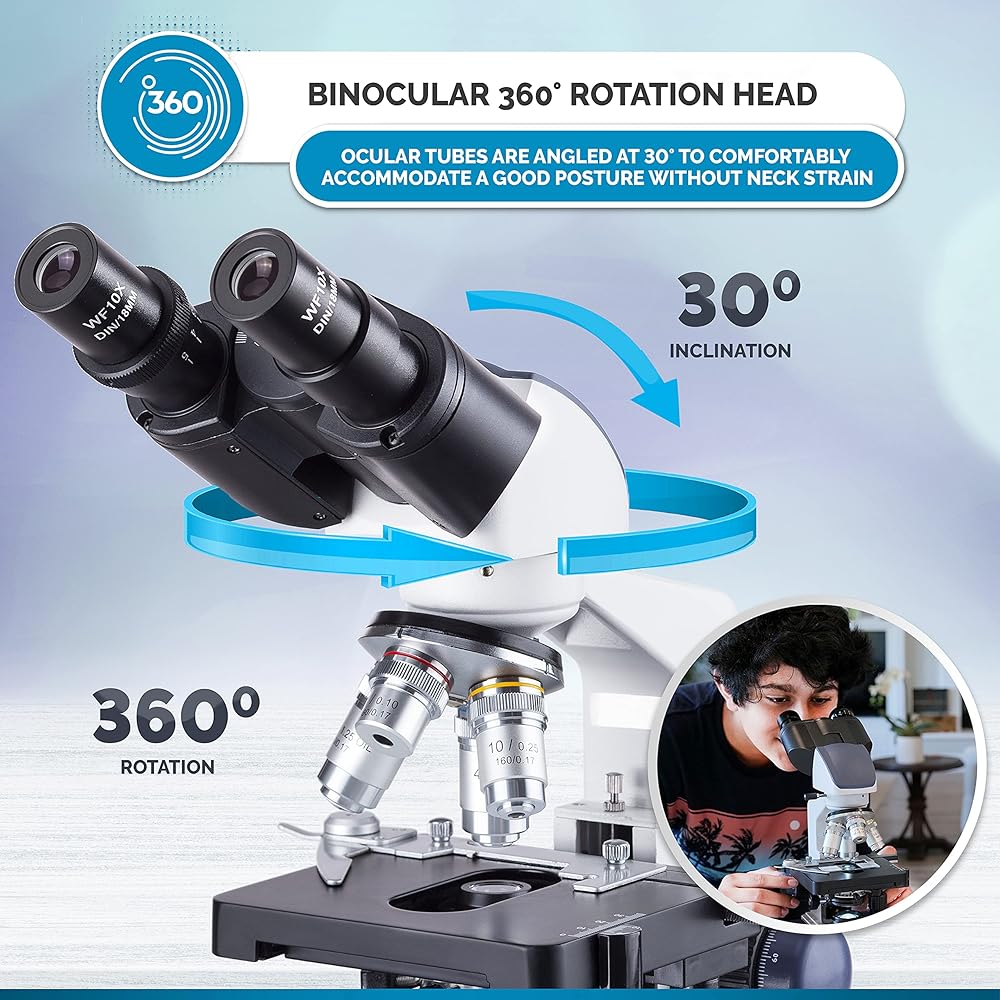

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical magnification.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces expand the maximum magnification to 2500X with 6 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution. Illumination is further enhanced by a centerable Abbe condenser, which can be realigned for any magnification to guarantee proper lighting.
Optical System Finite-conjugate Mechanical Tube Length 160mm Head Binocular, 30° incline, 360° rotatable Interpupillary Adjustment Siedentopf, 53-77mm Ocular Diameter 23mm Eyepieces 10X, 25X Objective Lenses DIN standard Objective Parfocal Distance 45mm Objective Mounting Thread RMS 20.32mm Objective Turret quadruple Focusing System Coaxial coarse and fine focus Focus Range 30mm Division of Fine Focus 0.002mm Stage Design Double-layer with caliper Stage Dimensions 118mm x 127mm X-Y Translation Range 70mm x 21mm Transmitted Illumination Variable-intensity 1W LED, fly-eye lens Condenser NA1.25 Abbe condenser with iris diaphragm Sub-stage Condenser-holder rack and pinion, centerable Power 100-240VAC 50/60Hz wide-band Dimensions 11" x 7" x 13-3/4" (28cm x 17.8cm x 35cm) Magnification Corrections NA Immersion Medium Cover-glass Thickness 4X achromatic 0.10 — 0.17mm 10X achromatic 0.25 — 0.17mm 40X achromatic 0.65 — 0.17mm 100X achromatic 1.25 oil 0.17mm

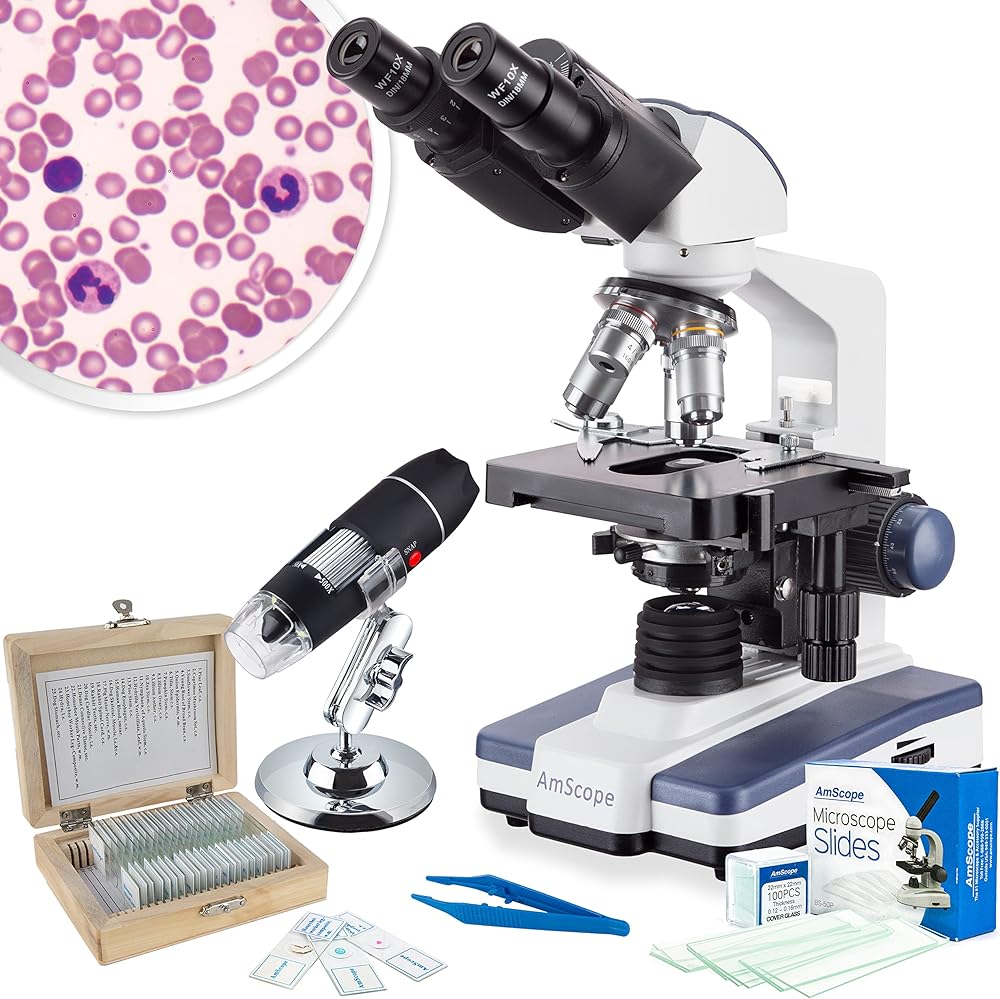

One binocular microscope head
One microscope body
Four objective lenses: 4X, 10X, 40X, 100X
One pair 10X eyepieces
One pair 25X eyepieces

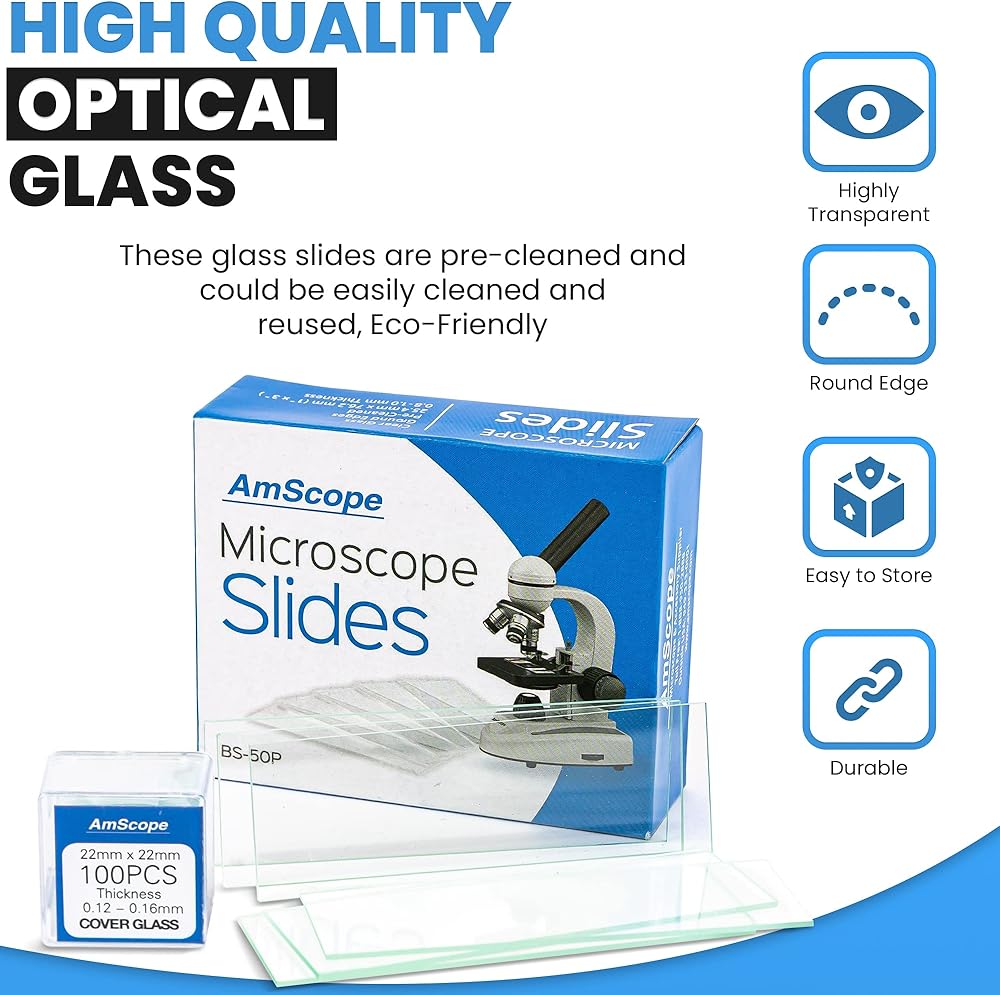

72 Pre-Cleaned Blank Microscope Slides and 100 22x22mm Square Cover Glass
One dust cover
AmScope High Precision 5 in. Straight Precise Tip Tweezers
AmScope 3 1/2 in. General Purpose Square End Smooth Tip Tweezers
AmScope 4 3/8 in. General Purpose Curved Serrated Tip Tweezers
50pc Prepared Glass Microscope Slides in Wood Case with Plant, Fungus, Insect and Mammal Specimens
5MP USB 2.0 Color CMOS Digital Eyepiece Microscope Camera
