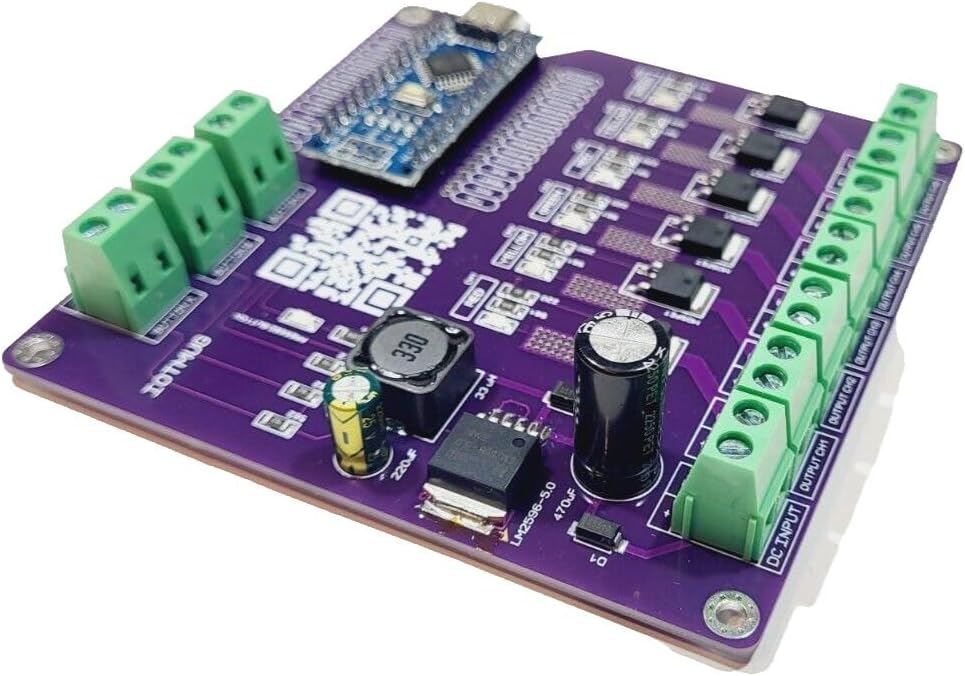

Versatile Lighting Control: This Arduino-based, 6-channel programmable light controller is built for users with basic ARDUINO programming skills. It features a USB-Type C Nano for easy computer connection, enabling convenient customization. Additionally, the controller comes with a preloaded pattern to demonstrate how lights and buttons work, providing a quick start for users exploring its capabilities.

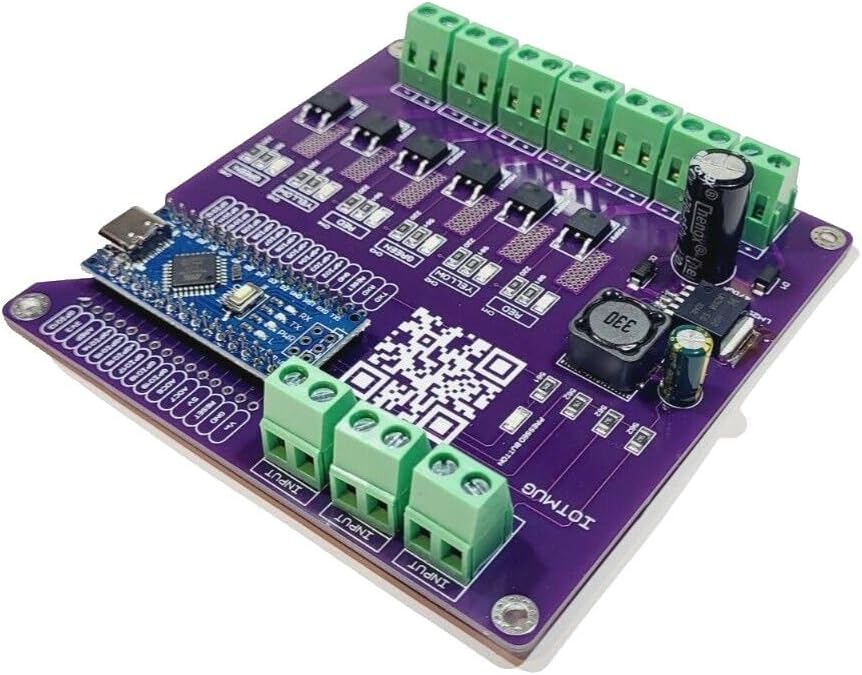

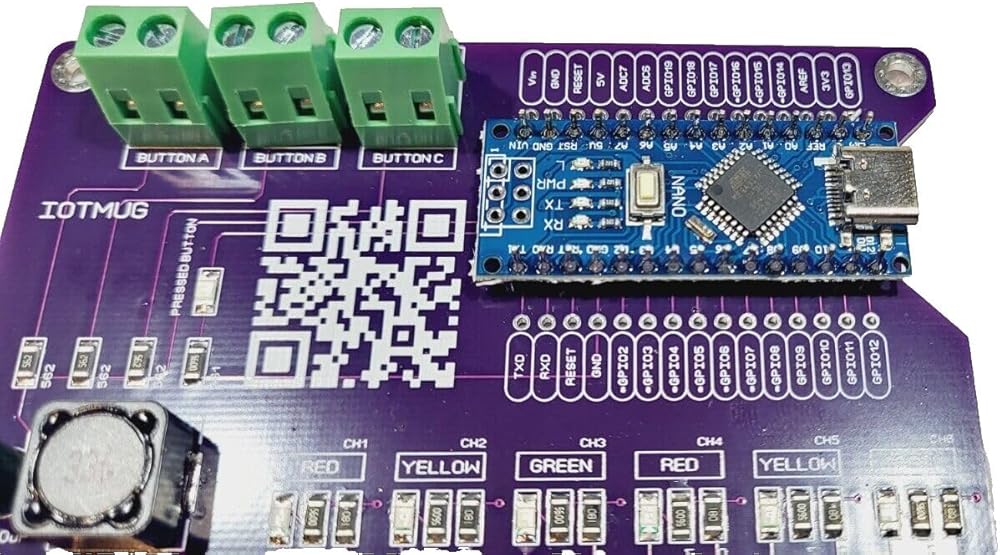

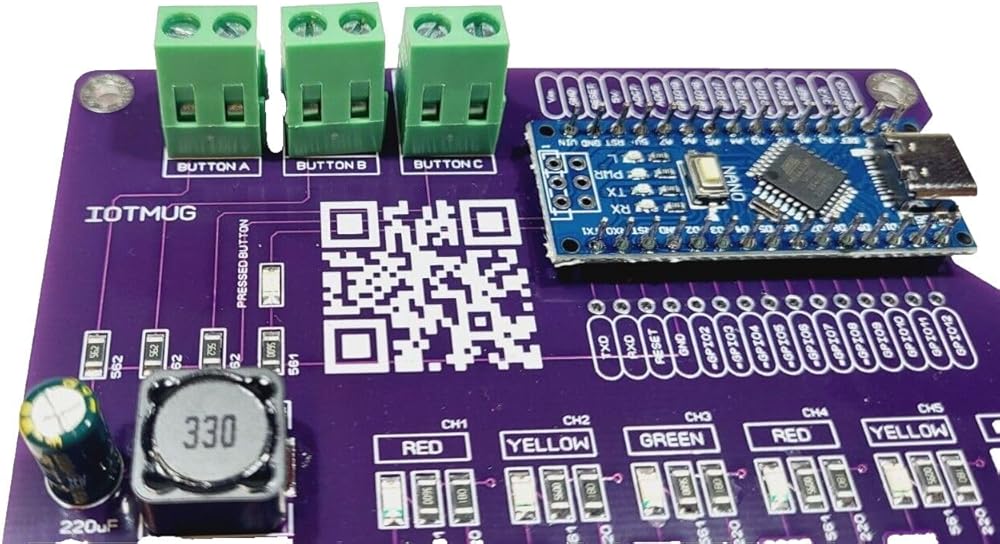

Pedestrian Crossing Integration: With 3 dedicated button pins, this controller simplifies the programming of pedestrian crossing signals. Customize signal behavior effortlessly to meet specific crossing requirements
Flexible Channel Configuration: Capable of handling 5A long-term current with a peak capacity of 10A per channel, this controller offers adaptability. It can be configured as a 1-channel, 2-channel, or up to a 6-channel controller to suit diverse applications.
Built-In LED Indicator: The integrated LED indicator allows for easy visualization and testing of light behavior. Compatible with a wide voltage range (7-35 DCv), this controller ensures versatility for use in various applications.
Enhance the functionality of your controller by integrating various sensors such as motion detectors, light sensors, or temperature sensors. This opens up possibilities for sensor-driven automation, allowing the Arduino to respond intelligently to environmental changes. Use it to control not only lighting but also other connected devices in a smart and adaptive system.

وصف

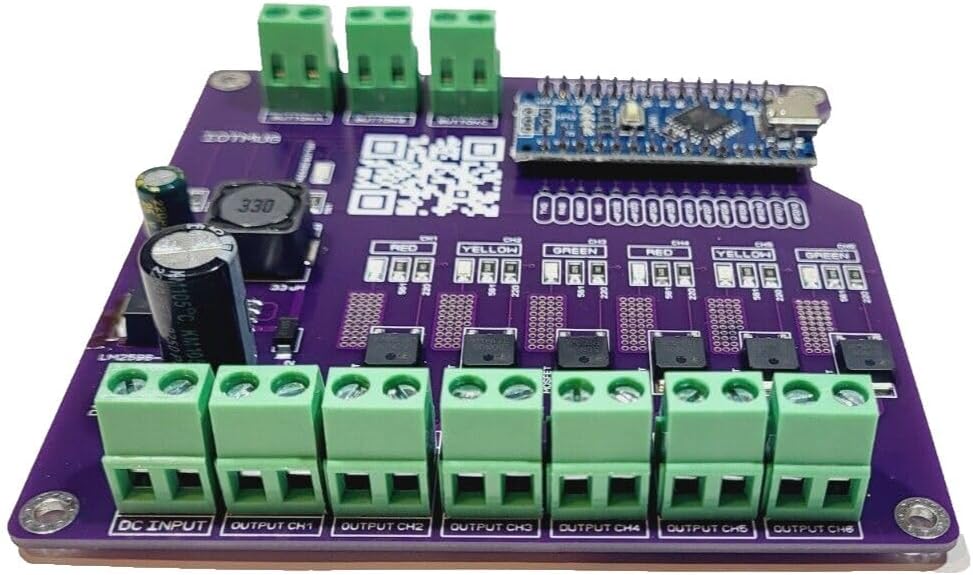

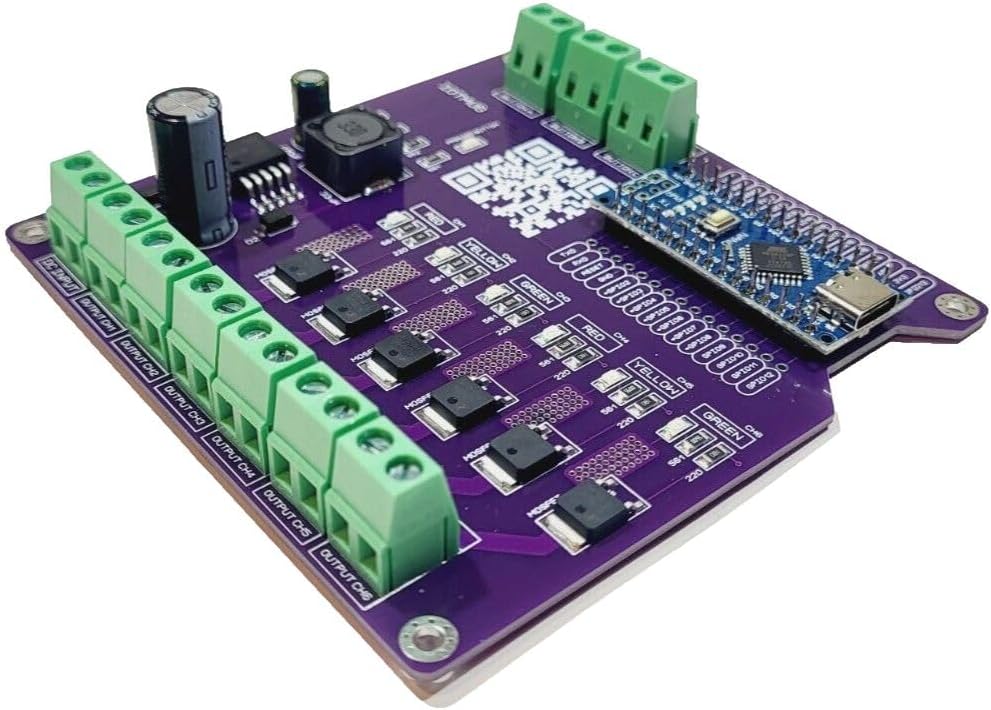

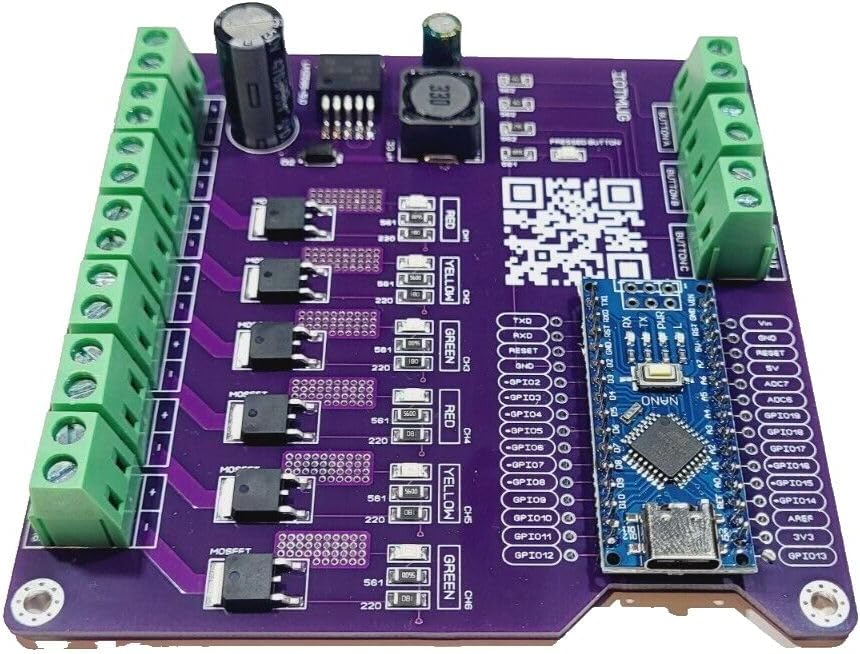

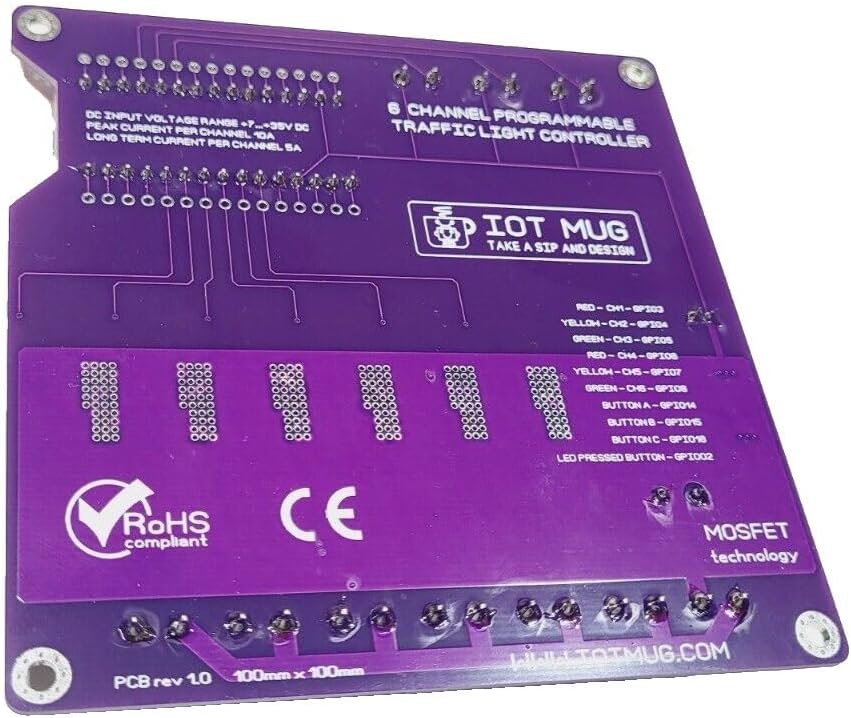

Title: Programmable Light Controller - Arduino Based, Universal, 6 Channels with 3 Pair Button Pins.
Description: If you're searching for a comprehensive and versatile solution for your lights, our device offers precise control over your lighting configuration. With just basic ARDUINO programming knowledge required, this is the ideal universal Light Controller. It's compatible with a wide input AC voltage range of 7-35 DCv. We've also included three button pins options for pedestrian crossing button programming. In other words, you can program your pedestrian crossing signal using the onboard button pins. Depending on your signal requirements, this device is designed with you in mind.

Key Features:
Independent output channels suitable for LEDs or incandescent DC voltage lamps.
The controller features a built-in LED to demonstrate how the lights will behave.
Easy Programming: Programming Light Controller timings is now a breeze with Arduino software. The USB-UART bridge is based on the popular CH340G chip, and the board comes pre-programmed with a simple Light Controller demo code. Additional demo codes are also provided for your convenience.
Easy connect external device such as Bluetooth or wifi module via RX – TX pins: device has uart RX – TX pins specially for connecting external device. This is transmitter-receiver for data sending and receiving.

Getting Started: To start working with this board, follow these steps:
Please check your manual comes with the board. If you still have any question please contact with us.

Specifications:
PCB board dimensions: 100mm x 100mm
PCB Board Material: 1.6mm FR-4, with solder mask & silk screen.
Supply Voltage: 7-35 Dc Volt

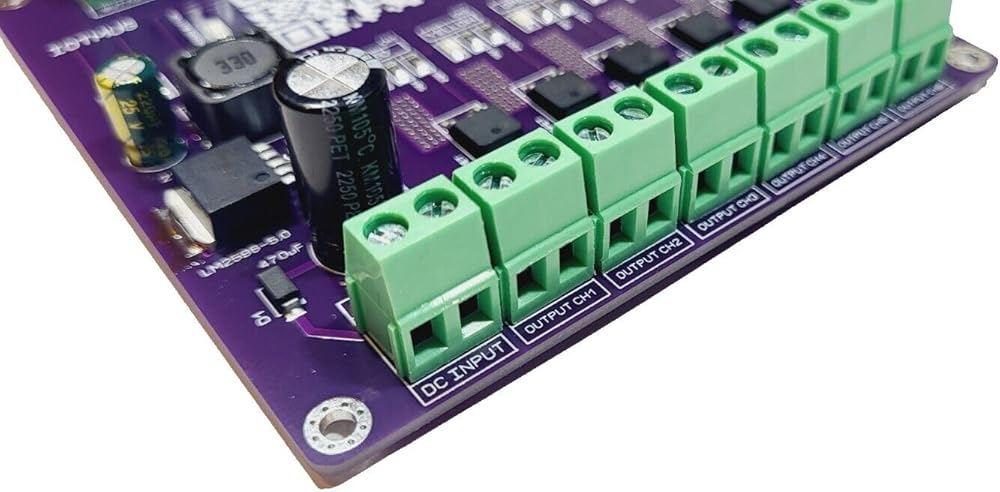

Input Output Connector: 14-26AWG @ 16A screw terminals. Upgrade your management system with our versatile and user-friendly programmable Light Controller Gain precise control over your lighting configurations and unleash your creativity.
