مميزات خاصة

【High-speed operation】Use 8 mosfets to form a double H-bridge drive circuit for a smoother operation.Low heat generation and high operating efficiency. Can print at high speed without losing steps
【Low noise and low vibration】Software algorithm optimization, motor running noise and vibration are smaller
【Easy to install】The whole machine is sold, eliminating the need for complicated assembly and debugging. Easy to install and wire
【Support 1-256 subdivision】Support 1-256 subdivision,odd subdivision is also available. And support motors with 0.9 degree or 1.8 degree. Maximum speed 1000RPM. With usart interface, you can connect the computer by serial port, for parameter adjustment and query
【After-sales service】 If you need the user manual or have any questions about the product, you can contact us at any time

وصف

1.Support Fielld-Oriented Control and Position/spped/torque closed-loop Control.

2.Directly set most parameters with oled. Set the microsteps as you need from 1 to 256.

3.With power-on self-check function, if the motor is in an abnormal state, the corresponding error report will be displayed.

4.Use 8 mosfets to form a double H-bridge drive circuit for a smoother operation.

5.Position /speed/torque closed-loop, it can run at high speed without losing step. Easy to install and wire.

6.The max printing speed can reach 150-180mm/S. Field-Oriented control, low noise, low vibration and low calorific.

7.14Bits magnetic encoder, high angle resolution.

8.Compatible with Gen L SGen L, SKR 2 / V1.4 Turbo BTT Octopus V1.1 Motherboard and other board which is seperated with drivers, that means drivers is not soldered onto the board

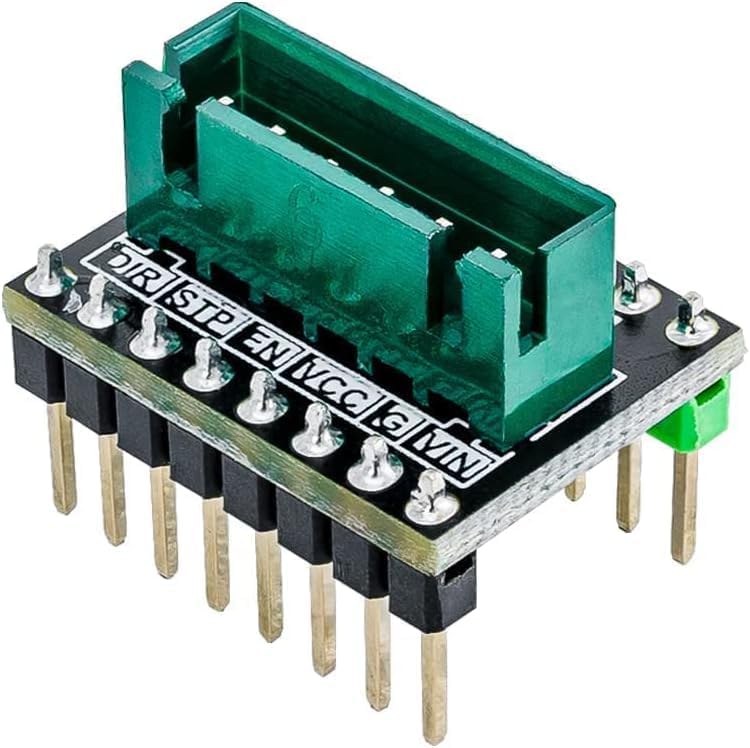

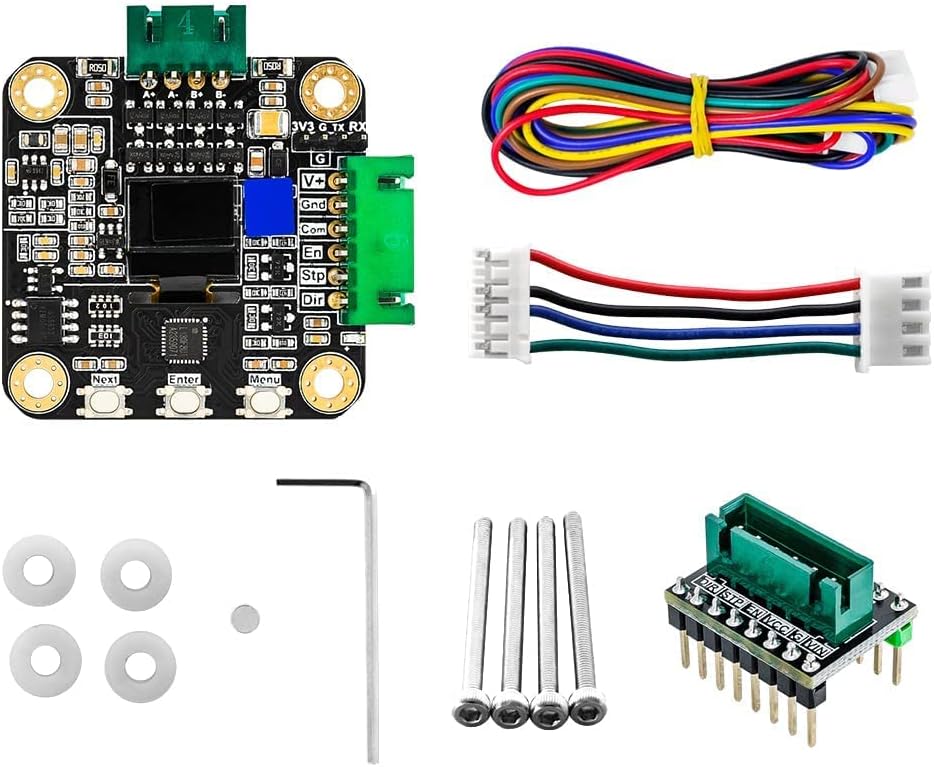

9.Package: 1*MKS SERVO42C(no motor) + 1*Adapter board(MKS APT) + 1*60cm 6pin Data Cable

مرحبًا،

بحث

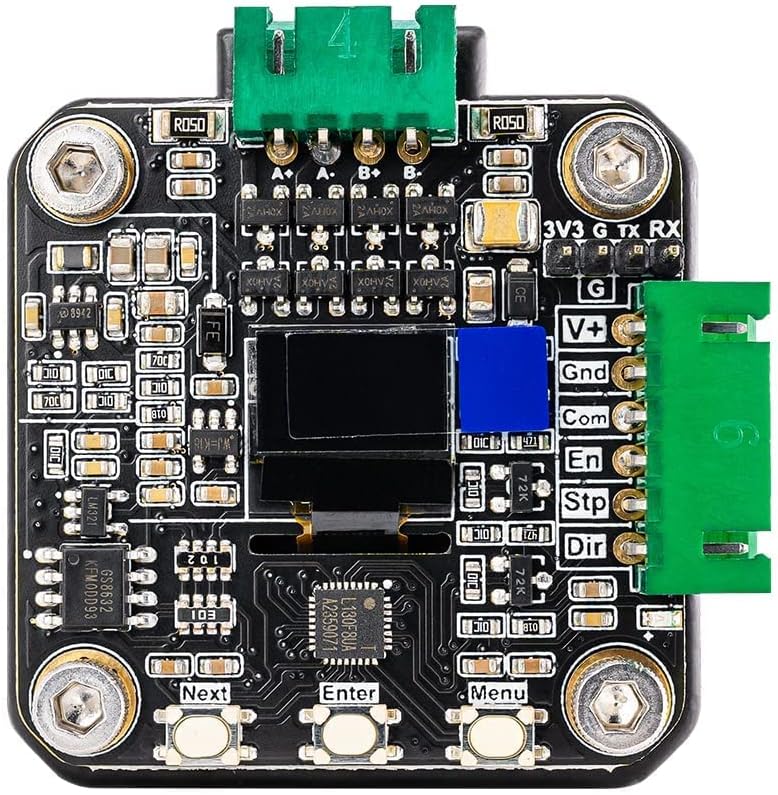

سائق محرك متدرج للطابعة ثلاثية الأبعاد Ickiya، MKS SERVO42C NEMA 17 سائق محرك متدرج ذو حلقة مغلقة يمنع الخطوات المتعددة وفقدان الخطوة متوافق مع اللوحة الرئيسية MKS Gen L SGen L
