مميزات خاصة

1. Product Name: Magnetic Door Swith; Color: black; Material: ABS;Net Weight: 100g
2. Maximum Switch Voltage: 100V;Contact Capacity: 500(mA) (Maximum Switch Current);Rated Power: 10W(Maximum Switch Power)
3. Great for alarm,LED,Relay,GPS low voltage devices...etc.,Trigger Range: 10-20mm; Contact Type: NC/NO/COM
4. Magnetic Contact sensors can be added to an existing wired Alarm Systems. They are ideal for protecting doors,

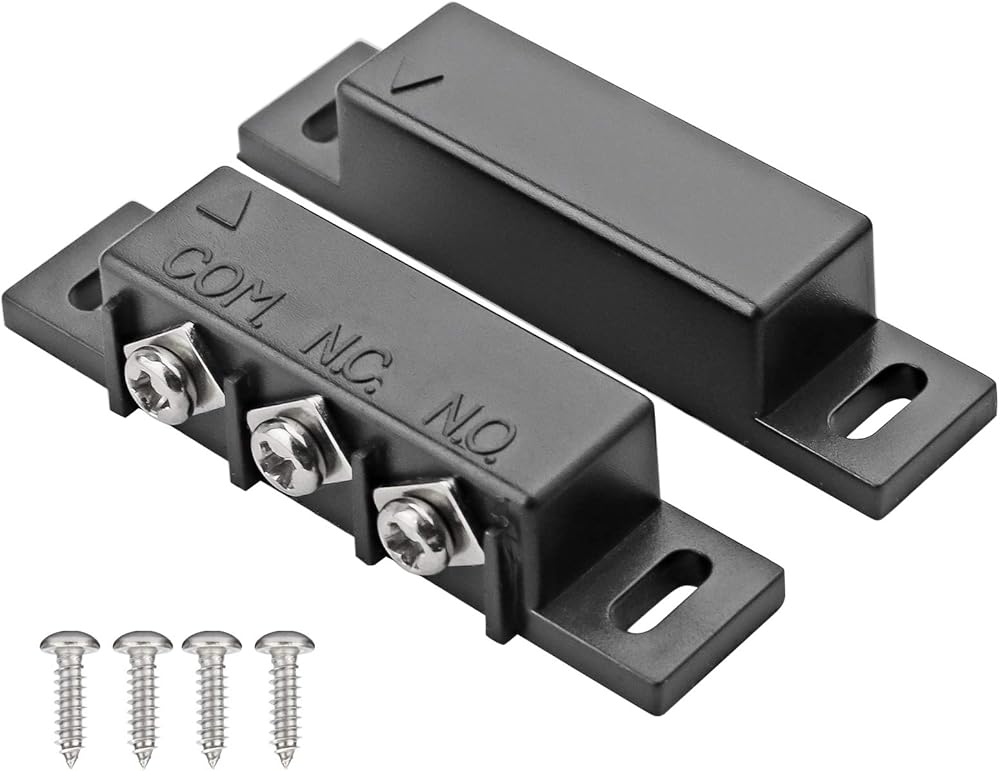

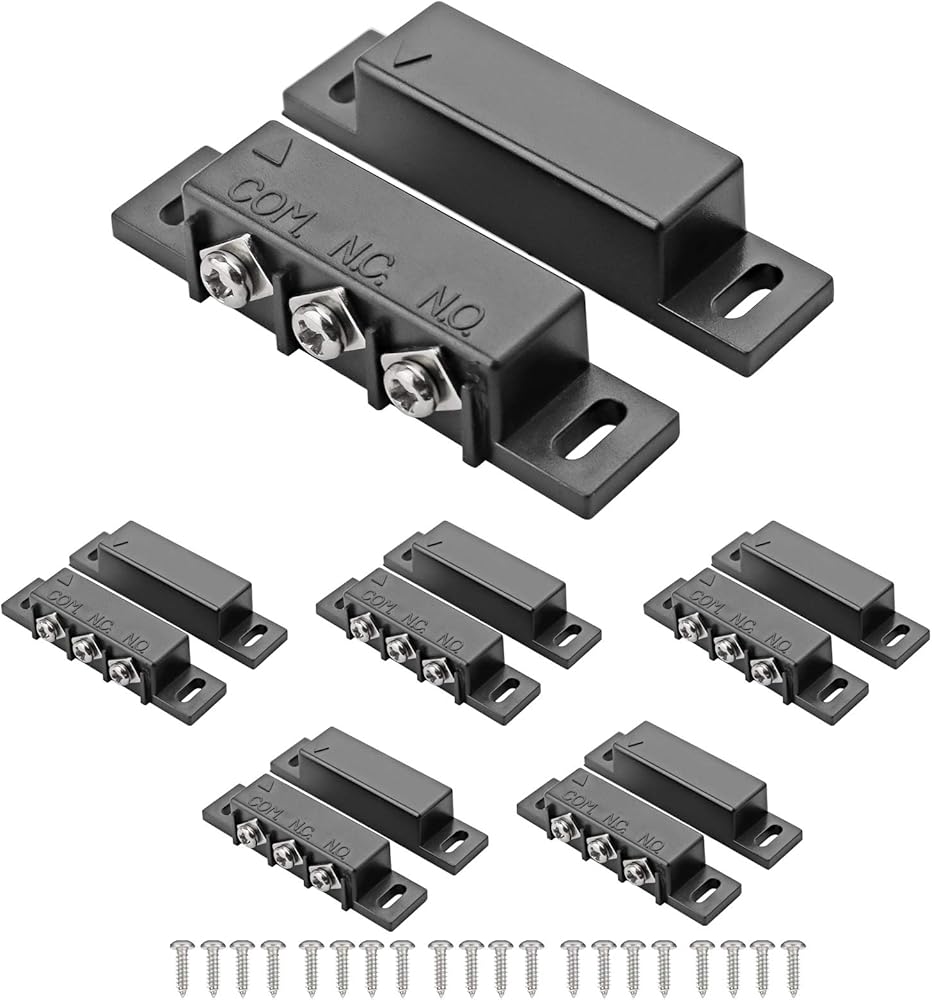

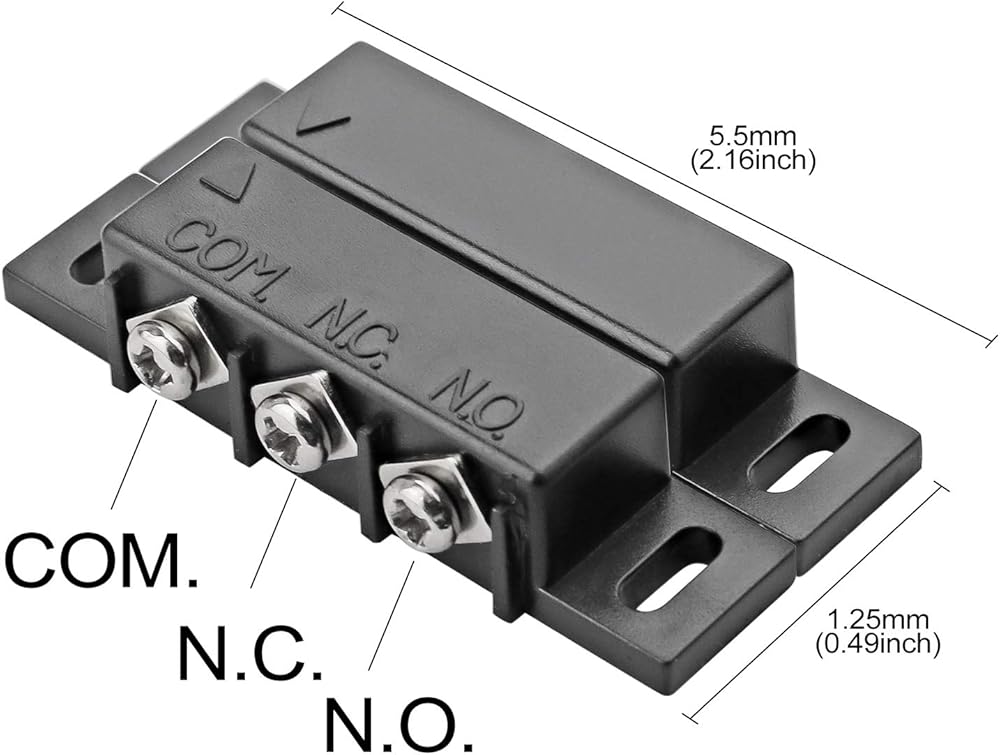

5. Package Content: 5 Sets x Magnetic Door Swith; Size: 55*12.5*11.5mm / 2.17" x 0.45" x 0.45"(L*W*H) a package of screws

وصف

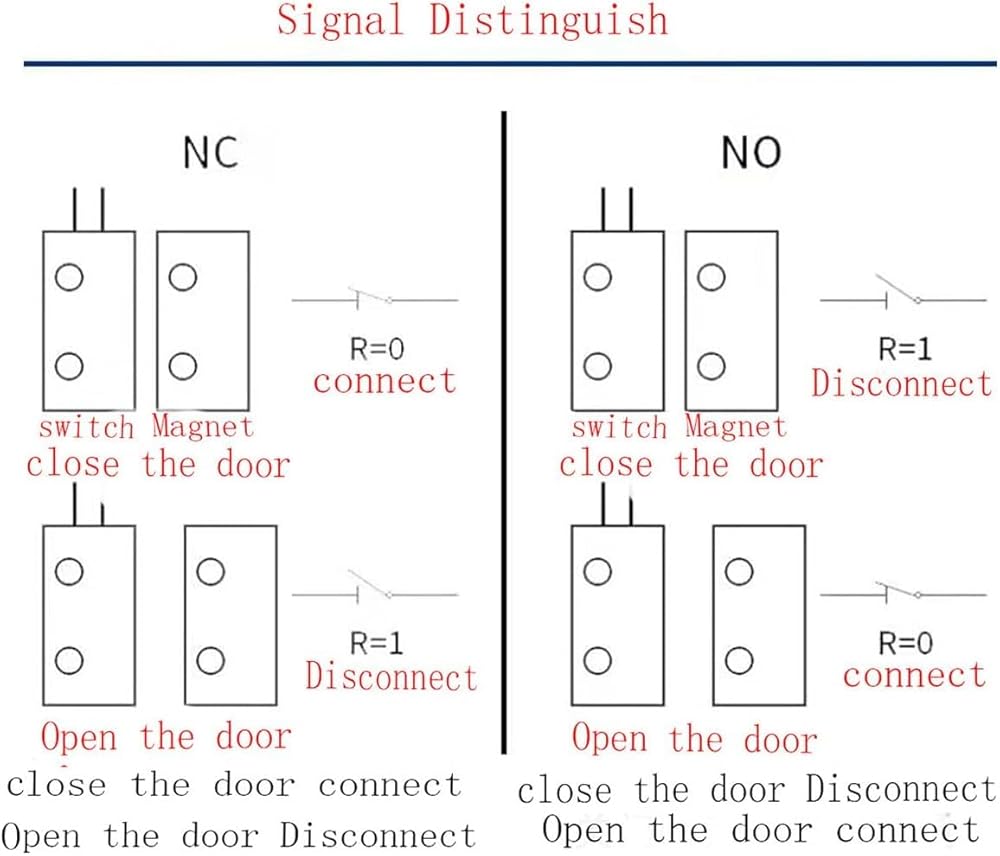

Switch Type: NO/NC, circuit is connected when magnet is near the switch.

The reed switch is an electrical switch operated by an applied magnetic field.

Designed for use with alarm systems.

Great for use in family and factory window, door. etc.

Screw Mounted for easily install.

More than 0.5A, the spring will not be able to switch because the current is too large,Add a 12V relay to let the door sensor control the relay. The relay controls his switch just fine
